RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

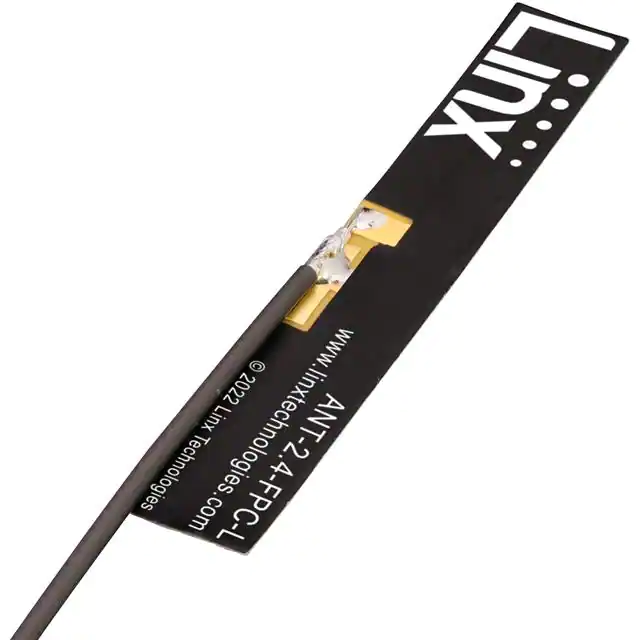

ANT-2.4-FPC-LV100UFANT 2.4 FPC 45X7 100MM CBL UFL |
2,513 | 4.55 |
|
Datasheet |
ANT-2.4-FPC-LV | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.7 | - | 4.3dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

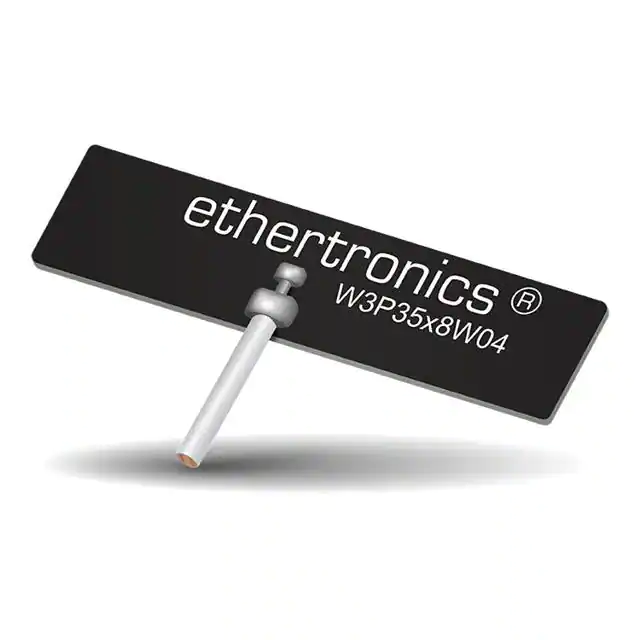

W3P35X8W04-U100D3B0AANT ASSY, WLAN 04 100 D0230 |
1,459 | 3.37 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.44GHz, 5.5GHz, 6.475GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.825GHz ~ 7.125GHz | PCB Trace | 3 | - | -15dB, -10dB, -6dB | 2.3dBi, 5dBi, 2.5dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

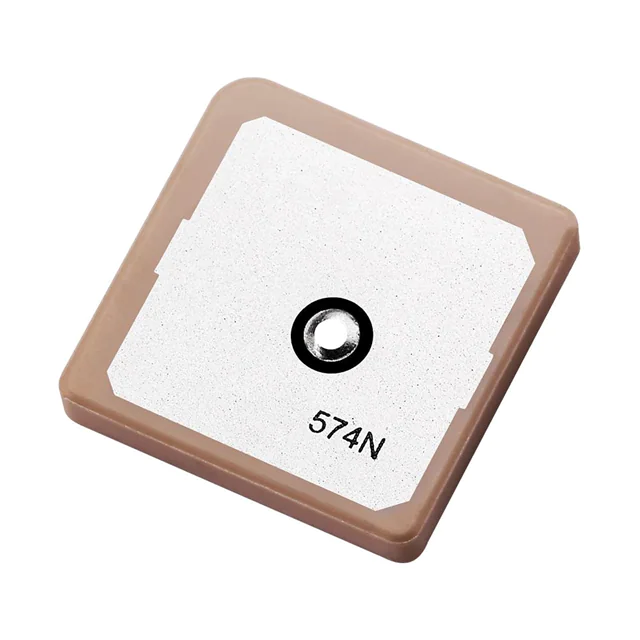

GP.1575.25.4.A.02RF ANT 1.575GHZ CER PATCH PIN |
4,337 | 4.39 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.570GHz ~ 1.580GHz | Ceramic Patch | 1 | 1.2 | -10dB | 1.55dBic | - | - | Pin | - | - | - | Adhesive | 0.197" (5.00mm) | GPS |
|
1461870200RF ANT 2.4/5.5GHZ PCB TRACE U.FL |
1,862 | 3.55 |
|
Datasheet |
146187 | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 4dBi | - | Cable - 200mm | U.FL | - | - | - | Surface Mount | 0.004" (0.10mm) | WLAN |
|

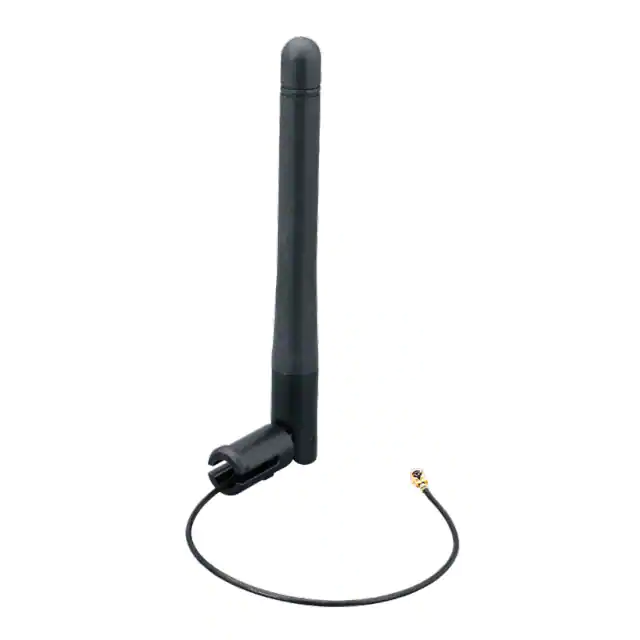

ANT-2.4-LPW-125RF ANT 2.4GHZ WHIP PNL-MNT HINGE |
2,232 | 4.28 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Whip, Tilt | 1 | 1.5 | -14.6dB | 2.8dBi | 10 W | Cable - 125mm | I-PEX MHF1 (U.FL) | - | - | - | Panel Mount | 3.693" (93.79mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
YPR00A0AATERMINAL, HINGE, LTE, SMAM IP66 |
1,089 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 1.7GHz | 700MHz ~ 2.7GHz | Whip, Straight | 1 | 4.75 | - | 2dBi | - | - | SMA Male | IP66 | - | - | Connector Mount | 7.650" (194.30mm) | LTE |
|
|
YCGO011AAPATCH ACTIVE GNSS L1 UFL 25X25 |
155 | 0.00 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 1 | - | - | - | - | Cable - 50mm | I-PEX | - | - | - | Adhesive | 0.256" (6.50mm) | GNSS, GPS |
|

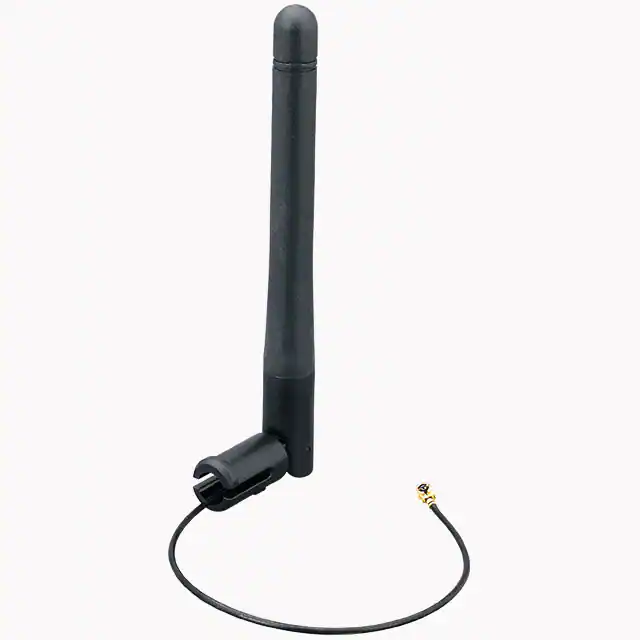

ANT-DB1-LPD-125RF ANT 2.4&5GHZ WHP PNL HING UFL |
765 | 4.63 |
|
Datasheet |
LPD | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 1.5 | -14.7dB, -14.2dB | 2.8dB, 4.5dB | 10 W | Cable - 125mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 4.134" (105.00mm) | ISM, U-NII, WiFi, WLAN |
|

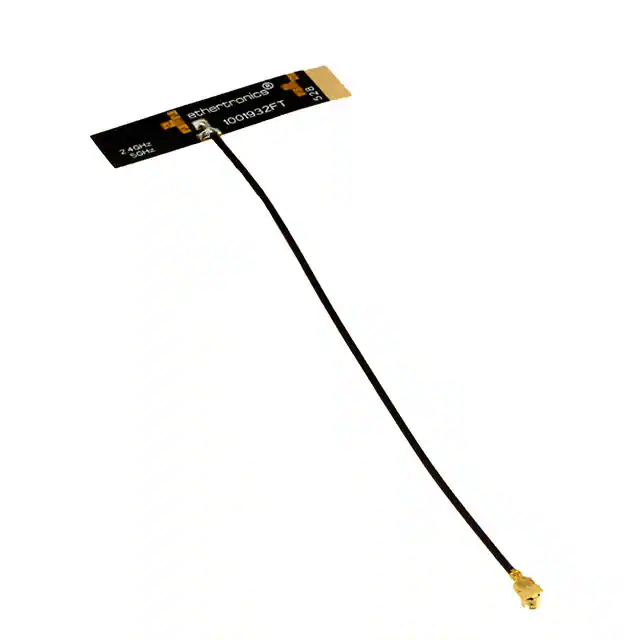

1001932FT-AA10L0100RF ANT 2.4GHZ/5GHZ PCB TRACE ADH |
1,012 | 3.52 |
|
Datasheet |
Prestta™ | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 3.7dBi, 3.4dBi, 4.4dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
EFB2455A3S-20MHF1EMBED,PIFA,200M 2.4/5.5GHZ,MHF1, |
390 | 0.00 |
|
Datasheet |
FlexPIFA™ | Bag | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.4GHz | 2.4GHz ~ 2.48GHz, 4.9GHz ~ 5.9GHz | FlexPIFA | 2 | 2.5, 3 | - | 2.5dBi, 3dBi | - | Cable - 200mm | MHF1 | - | - | - | Adhesive | 0.098" (2.50mm) | - |
|

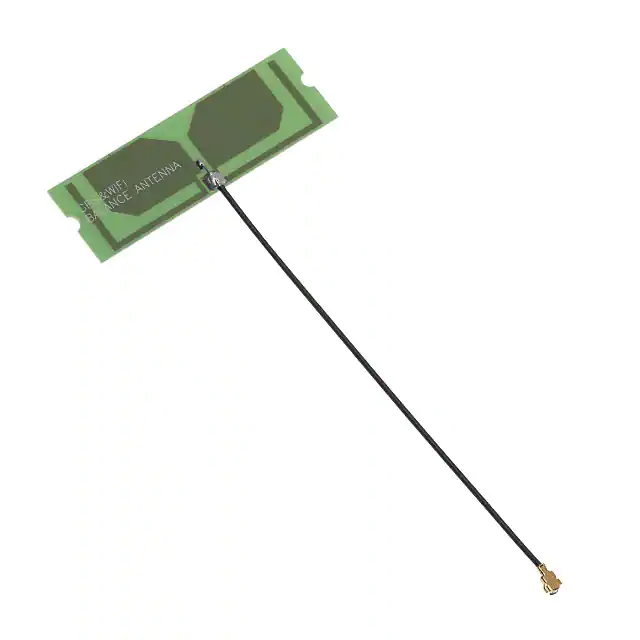

1462200200RF ANT 1.561/1.575GHZ PCB 200MM |
1,091 | 4.24 |
|
Datasheet |
146220 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | PCB Trace | 5 | - | -8dB | 2.1dBi, 2.6dBi, 3dBi, 3.3dBi | 2 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.032" (0.81mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|
ANT-2.4-FPC-LH100M4ANT 2.4 FPC 45X7 100 CBL MHF4 |
1,873 | 4.79 |
|
Datasheet |
ANT-2.4-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.4 | - | 6.1dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

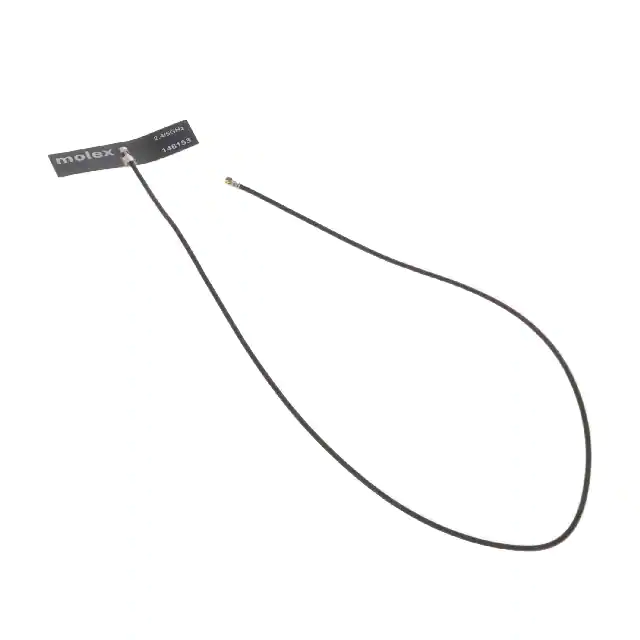

1461531300RF ANT 2.4417/5.415GHZ PCB 300MM |
1,882 | 3.72 |
|
Datasheet |
146153 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4417GHz, 5.415GHz | 2.4GHz, 5GHz | PCB Trace | 2 | - | -10dB | 2.4dBi, 3.2dBi | - | Cable - 300mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi, Zigbee™ |
|

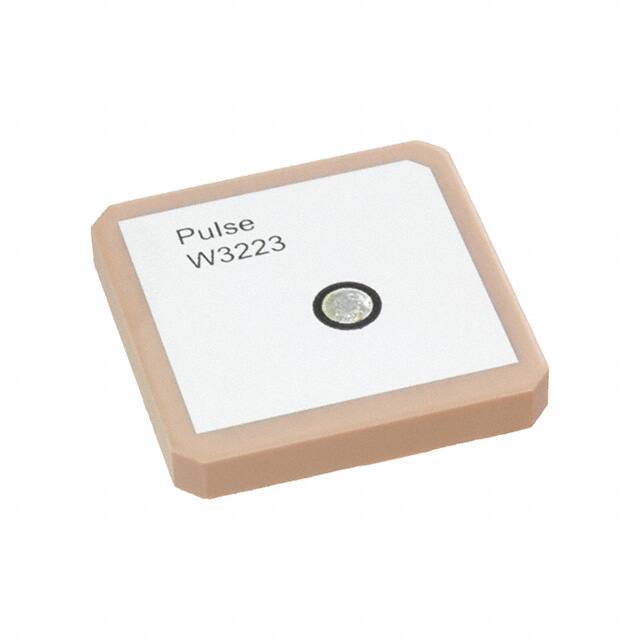

W322325X25X4MM GPS/GLONASSPIN MOUNT |
700 | 3.54 |
|
Datasheet |
Ceramic Patch | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 2 | - | -10dB | 4dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|

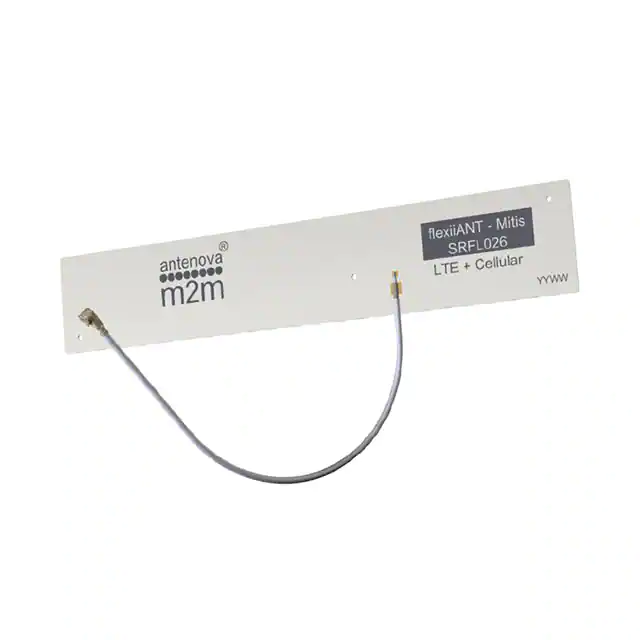

SRFL026-100RF ANT 748MHZ/892MHZ FLAT PATCH |
1,792 | 6.04 |
|
Datasheet |
Mitis | Bulk | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.6GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 5 | 3.1 | -10dB | 3.5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, LTE, W-CDMA |
|
NN02-220ALL MXTEND MULTIBAND ANTENNA |
32,616 | 5.06 |
|
Datasheet |
ALL mXTEND™ | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz | 698MHz ~ 2.69GHz | Chip | 12 | 3 | - | 3.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | DCS, GSM, LTE, PCS, UMTS |
|

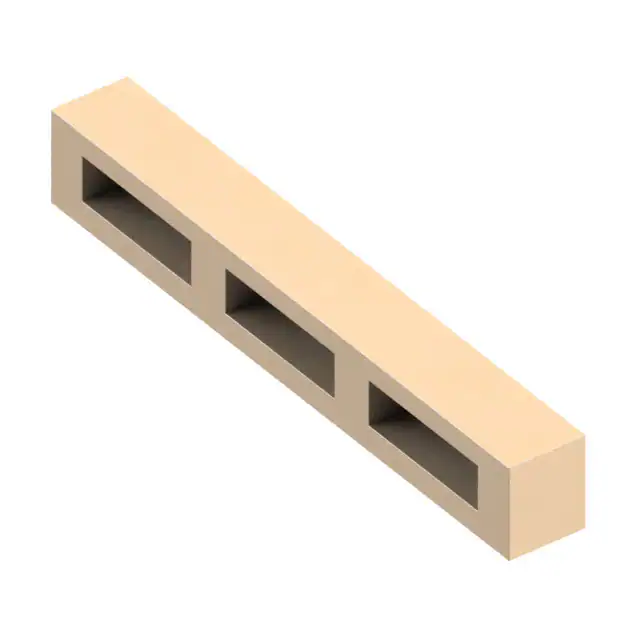

ANT4005B000RWHEXSRF ANT 829MHZ/2.2GHZ CHIP SLD |
1,800 | 4.30 |
|
Datasheet |
4005 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 2 | 3 | - | 3.2dBi, 4dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | General Purpose |
|
|
1005460F0-AA10L02005G/4G WIDE BAND FPC EMBEDDED ANT |
544 | 0.00 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 789MHz, 1.8GHz, 2.5GHz, 3.55GHz, 5.5GHz | 617MHz ~ 960MHz, 1.4GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 5GHz ~ 6GHz | Flat Patch | 5 | 2, 2.1, 2.4 | - | 3.4dBi, 4dBi, 3dBi, 2.5dBi, 4.2dBi | 2 W | Cable - 200mm | MHF4L, U.FL | - | - | - | Adhesive | 0.008" (0.20mm) | LoRa, LTE, Sigfox |
|

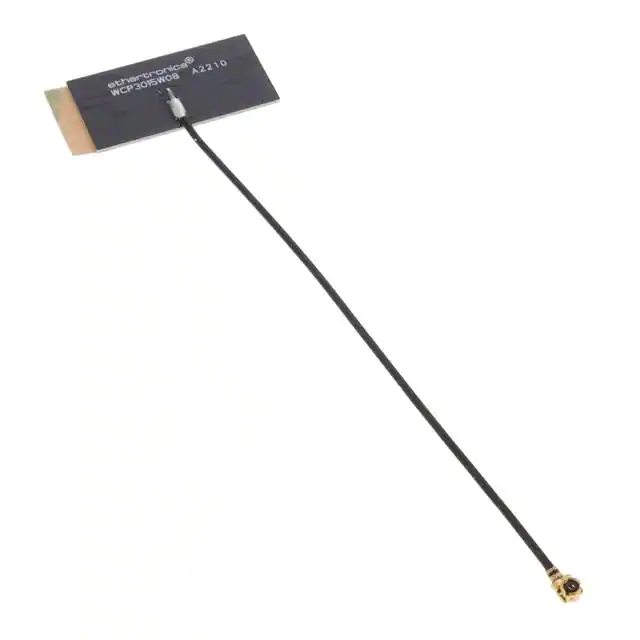

WCP3015W08-U100D3B0AANTENNA ASSY, WIFI STRAIGHT, 100 |
281 | 3.65 |
|
Datasheet |
W | Box | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.4dB, 8.7dB | 3dBi, 6.7dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | Wi-Fi |
|
|
EFF6060A3S-20MHF1REVIE 600 5G CAT M1 NB-IOT ANT |
231 | 0.00 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Adhesive | - | - |
