RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YEWN001AATERMINAL WIFI 6 ANTENNA HINGE |
425 | 0.00 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Right Angle | 2 | - | - | - | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.874" (200.00mm) | Bluetooth, Wi-Fi, WLAN |
|
7488910092RF ANT 900MHZ CHIP SOLDER SMD |
3,806 | 3.94 |
|
Datasheet |
WE-MCA | Tape & Reel (TR) | Active | Bluetooth, Cellular, WiFi | UHF (300MHz ~ 1GHz) | 900MHz | 868MHz ~ 960MHz | Chip | 1 | 2.5 | - | -0.7dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Bluetooth, GSM, WLAN |
|
ANT-2.4-JJB-STRF ANT 2.4GHZ DOME SLD TH 7MM |
623 | 3.55 |
|
Datasheet |
JJB | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.39GHz ~ 2.48GHz | Whip, Straight | 1 | 2 | - | -1.5dBi | - | - | Solder | - | - | - | Through Hole | 0.693" (17.60mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-LPC-FPC-50RF ANT LTE CBRS FLEX ADHES UFL |
4,310 | 4.09 |
|
Datasheet |
FPC | Bag | Active | 802.15.4, Bluetooth, General ISM, Navigation, WiFi | Wide Band | 750MHz, 876MHz, 1.58GHz, 1.96GHz, 2.35GHz, 2.44GHz, 2.59GHz, 3.55GHz | 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Flat Patch | 8 | 8.2, 4.8, 1.7, 4.9, 3.5, 2.7, 3.1, 2 | - | 0.1dBi, 3.7dBi, 3.3dBi, 2.2dBi, 3.3dBi, 3.9dBi, 5dBi, 5.7dBi | 2 W | Cable - 50mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.008" (0.20mm) | General Purpose |
|

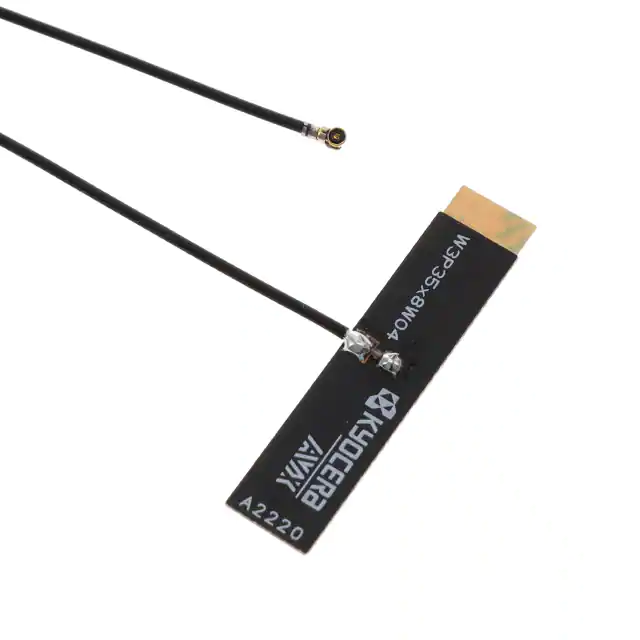

W3P35X8W04-H100D3B0AANTENNA ASSY, WLAN 04 100 F |
557 | 3.93 |
|
Datasheet |
W | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | -15dB, -10dB, -6dB | 2.3dBi, 5dBi, 2.5dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

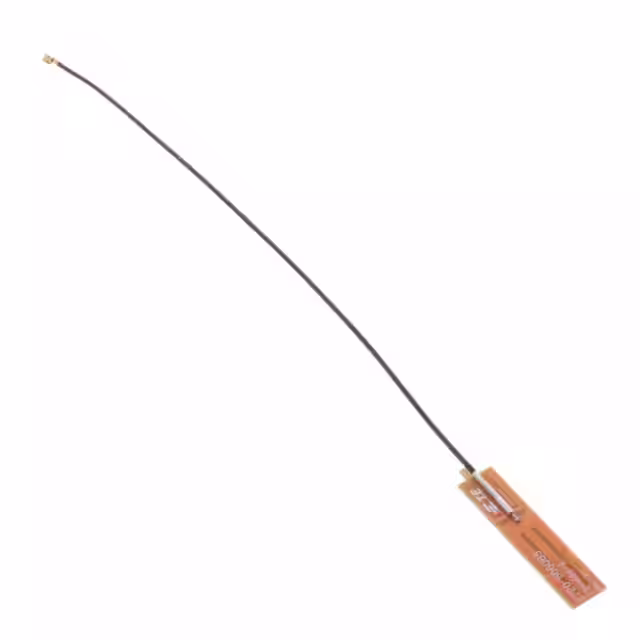

2344655-3WLAN DUAL BAND ANTENNA PCB H 150 |
2,084 | 2.79 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

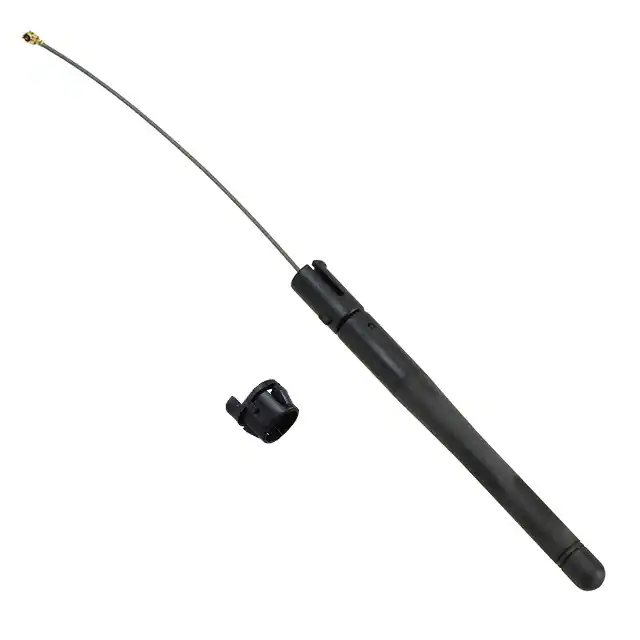

W1049B030RF ANT 2.4GHZ WHIP/TILT CONN MT |
241 | 3.62 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 2dBi | - | Cable - 76mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 3.248" (82.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
FXP72.07.0053ARF ANT 2.4GHZ FLAT PATCH IPEX |
9,588 | 3.96 |
|
Datasheet |
Freedom | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Flat Patch | 1 | 2 | - | 5dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.003" (0.08mm) | Bluetooth, WLAN, Zigbee™ |
|

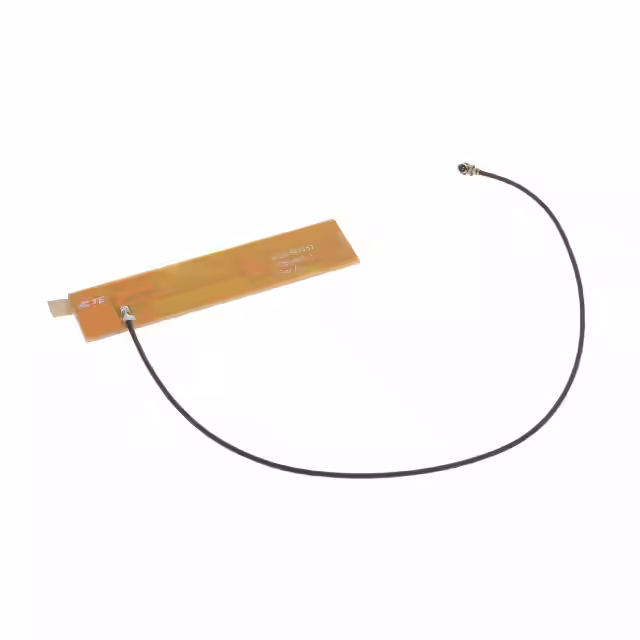

2361492-1PCB ANTENNA,CABLE,MHF,698-2700MH |
2,608 | 2.80 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 3 | 4 | - | 4dBi, 4dBi, 4dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | LTE, UMTS, WCDMA |
|
2065600100RF ANT 1.561/1.575GHZ FLAT PATCH |
9,344 | 3.24 |
|
Datasheet |
206560 | Bag | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | 1.558GHz ~ 1.61GHz | Flat Patch | 3 | - | -8dB | 0.9dBi, 1dBi, 1.37dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, GLONASS, GNSS, GPS |
|
1461870150RF ANT 2.4/5.5GHZ PCB TRACE U.FL |
766 | 3.43 |
|
Datasheet |
146187 | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | - | - | Cable - 150mm | U.FL | - | - | - | Surface Mount | 0.004" (0.10mm) | WLAN |
|

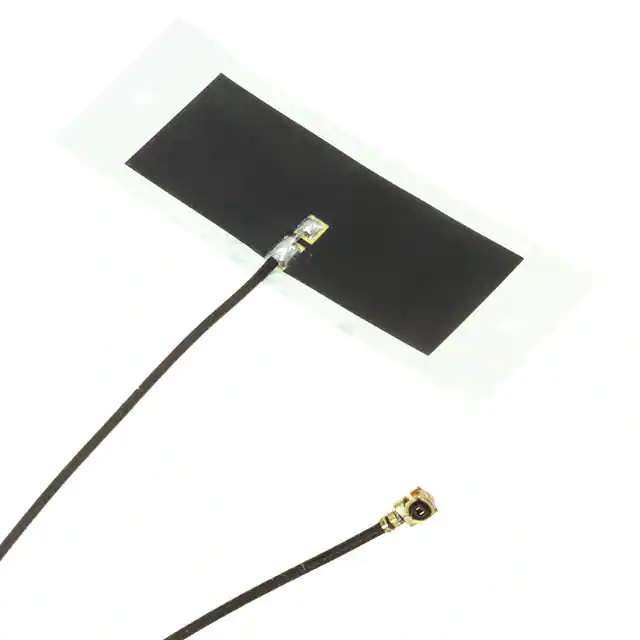

2065600050RF ANT 1.561/1.575GHZ FLAT 50MM |
1,913 | 3.24 |
|
Datasheet |
206560 | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | 1.558GHz ~ 1.61GHz | Flat Patch | 3 | - | -8dB | 1.1dBi, 1.2dBi, 1.5dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, GLONASS, GNSS, GPS |
|

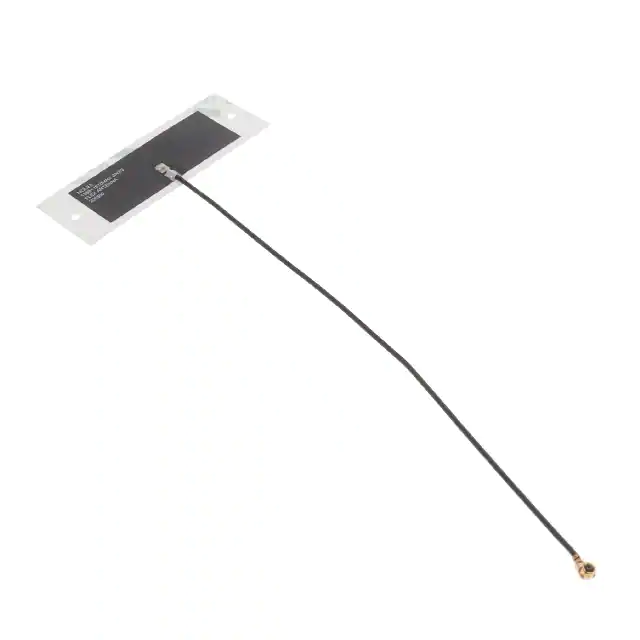

2065600150RF ANT 1.561/1.575GHZ FLAT 150MM |
932 | 3.72 |
|
Datasheet |
206560 | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | 1.558GHz ~ 1.61GHz | Flat Patch | 3 | - | -8dB | 0.8dBi, 0.9dBi, 1.3dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, GLONASS, GNSS, GPS |
|
2118309-1RF ANT 2.4GHZ/5GHZ PCB TRACE ADH |
5,852 | 3.96 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 4.9GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 3.7dBi | 3 W | Cable - 120mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.102" (2.60mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
YE0019AAISM 450-470 ANTENNA TERMINAL |
197 | 0.00 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Right Angle | 1 | 2 | - | 4.5dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 4.291" (109.00mm) | ISM |
|
SRFI068V-100FERA VERTICAL ISM ANTENNA+100MM |
209 | 3.09 |
|
Datasheet |
FlexiiANT® | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | PCB Trace | 1 | 1.4 | -15dB | 0.7dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | ISM, LoRa, Sigfox |
|

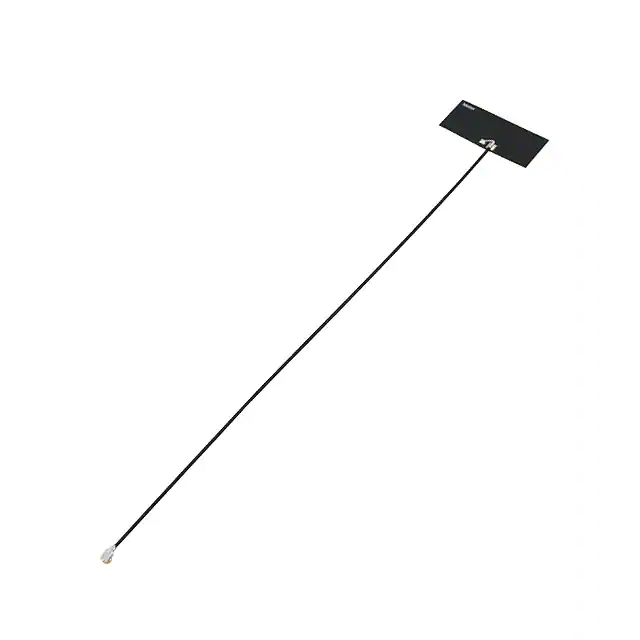

0479502011RF ANT 2.4/5GHZ PCB TRC CAB .61" |
3,167 | 5.15 |
|
Datasheet |
47950 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483.5GHz, 4.8GHz ~ 5.9GHz | PCB Trace | 2 | - | -10dB, -9dB | 2.6dBi, 4.4dBi | 2 W | Cable - 200mm | SMT Male | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN, Zigbee™ |
|
|
RFA-100-010SMA ANTENNA,WITH ELBOW, 2.4 - 2. |
1,043 | 0.00 |
|
Datasheet |
RFA | Bag | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2dBi | 1 W | - | SMA | - | - | - | Connector Mount | 4.252" (108.00mm) | General Purpose |
|

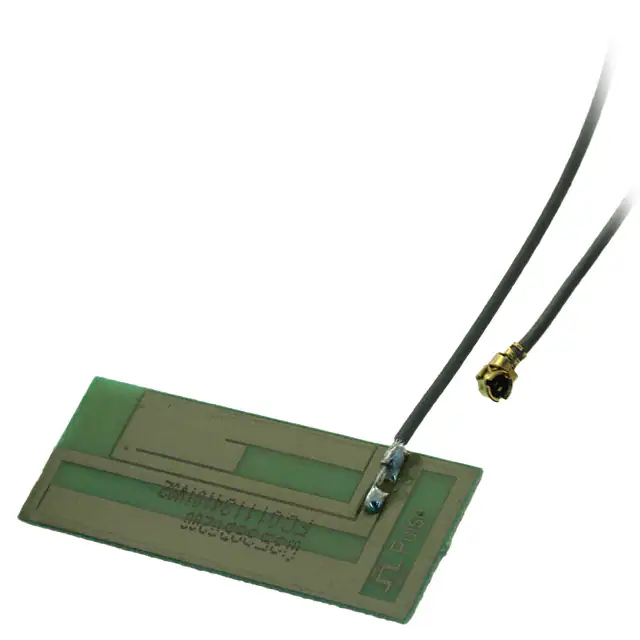

W3538B0200RF ANT 850MHZ/900MHZ PCB TRACE |
858 | 3.65 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | - | -6dB | 2.8dBi, 5.8dBi, 6.3dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.028" (0.70mm) | GSM, WCDMA |
|

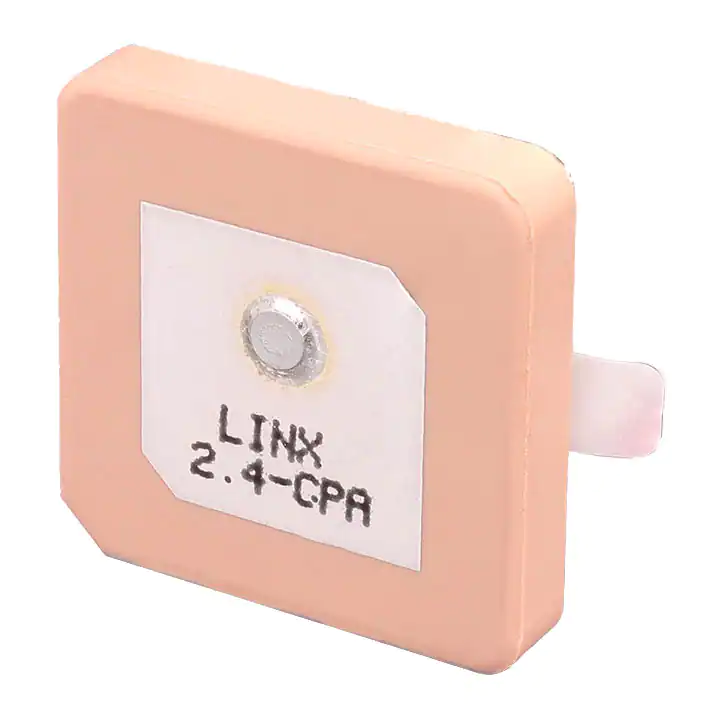

ANT-2.4-CPARF ANT 2.4GHZ PATCH ISM 20X20 |
725 | 3.80 |
|
Datasheet |
CPA | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | 2.7 | -6.9dB | 5.5dBi | 8 W | - | Pin | - | - | - | Adhesive | 0.200" (4.00mm) | 802.15.4, Bluetooth, ISM, Wi-Fi |
