RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

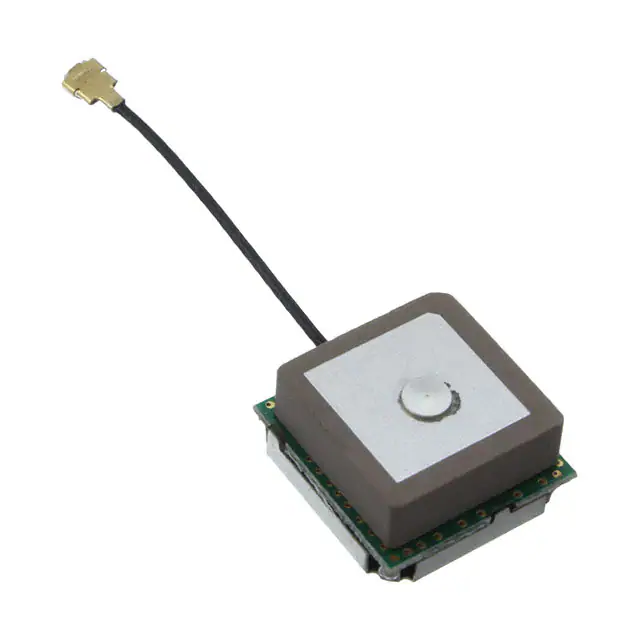

GPSMOD1315RF ANT 1.575GHZ CER PATCH U.FL |
323 | 12.44 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.5 | - | 1dB | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | - | GPS |
|
1004138ANTENNA |
299 | 8.83 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573MHz ~ 1.577GHz | Ceramic Patch | 1 | 2 | - | 1dBic | - | Cable - 125mm, LNA, Filter | I-PEX MHF | - | - | - | Adhesive | 0.268" (6.80mm) | GPS |
|

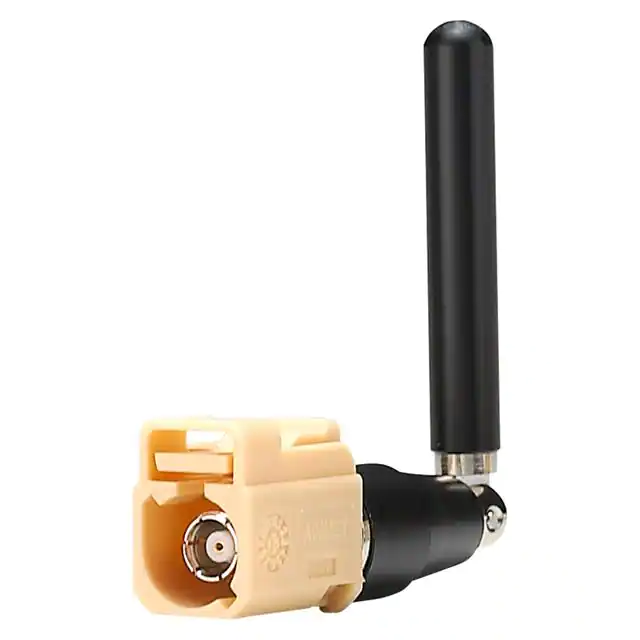

GW.05.AE232.4/5.8GHZ TERMINAL MOUNT MONOPO |
198 | 13.53 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | - | - | -0.83dBi, 2.92dBi, 2.64dBi, 2.91dBi, 1.41dBi, 2.61dBi | 10 W | - | SMB, Fakra | - | - | - | Connector Mount | 2.740" (69.60mm) | Wi-Fi |
|
APAMPG-117RF ANT 1.575GHZ/1.602GHZ MODULE |
663 | 12.66 |
|
Datasheet |
APAMPG | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.572GHz ~ 1.578GHz, 1.594GHz ~ 1.61GHz | Module | 2 | 1.5 | - | 5dBi | - | Cable - 4m, LNA | SMA Male | - | - | - | Adhesive | 0.571" (14.50mm) | GLONASS, GPS |
|
SDWA.01RF ANT 2.4GHZ/5.8GHZ CHIP SLD |
4,573 | 13.62 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Chip | 2 | 2.5, 3 | - | 2.59dBi, 3.38dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | WLAN |
|

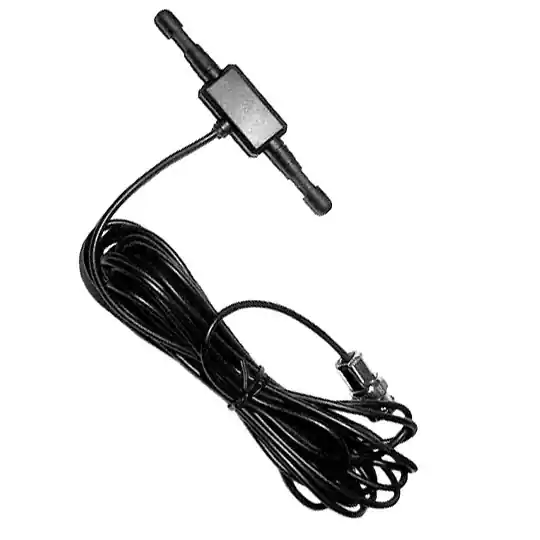

ANT-433-MHW-SMA-SRF ANT 433MHZ WHP CTR ADH 79" |
252 | 16.54 |
|
Datasheet |
MHW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 413MHz ~ 453MHz | Whip, Center-Fed Double | 1 | 1.9 | - | 1.2dBi | - | Cable - 2m | SMA Male | - | - | - | Adhesive | 5.709" (145.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-315-CW-HWR-SMARF ANT 315MHZ WHIP TILT SMA MALE |
543 | 16.18 |
|
Datasheet |
HWR | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 315MHz | 305MHz ~ 325MHz | Whip, Tilt | 1 | 2 | - | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

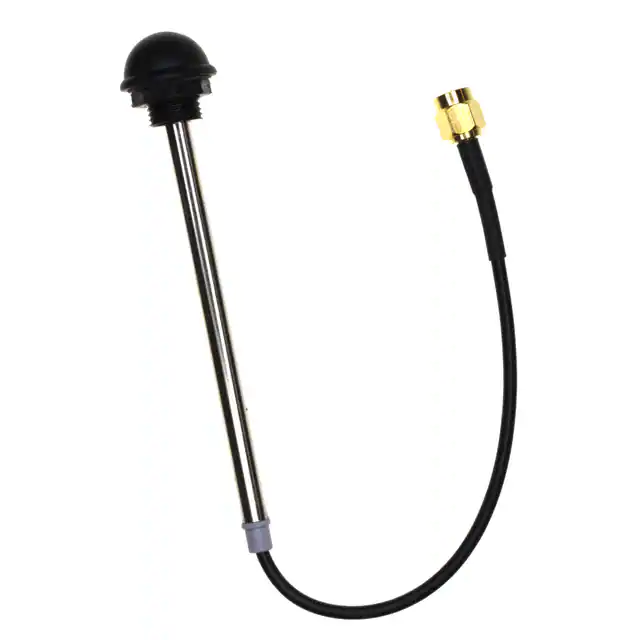

ANT-868-WRT-SMARF ANT 868MHZ DOME SMA ML PNL MT |
1,119 | 16.26 |
|
Datasheet |
WRT | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 800MHz, 850MHz | 855MHz ~ 880MHz | Dome | 1 | 1.9 | - | 1.5dBi | - | Cable - 216mm | SMA Male | - | - | - | Panel Mount | 0.433" (11.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
WLA.01RF ANT 2.4GHZ CHIP SOLDER SMD |
28,493 | 13.62 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Bluetooth, WLAN, Zigbee™ |
|

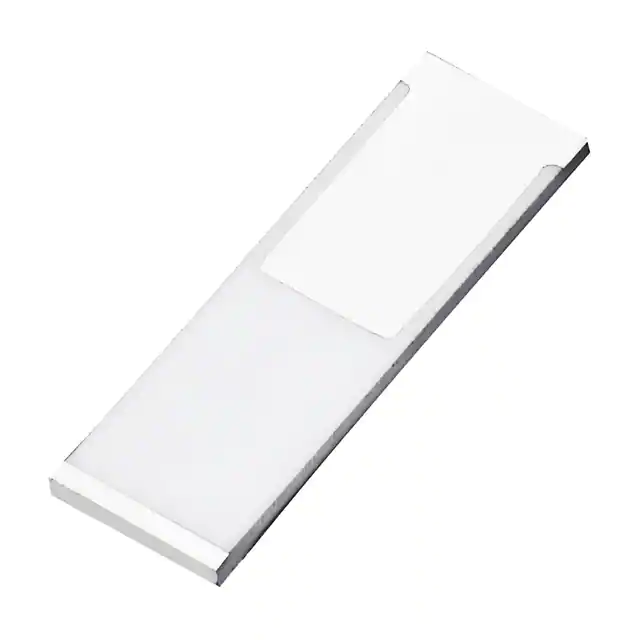

ILA.02RF ANT 869MHZ CHIP SOLDER SMD |
10,652 | 13.62 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 869MHz | 868MHz ~ 870MHz | Chip | 1 | 1.5 | -17dB | 1dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | - |
|

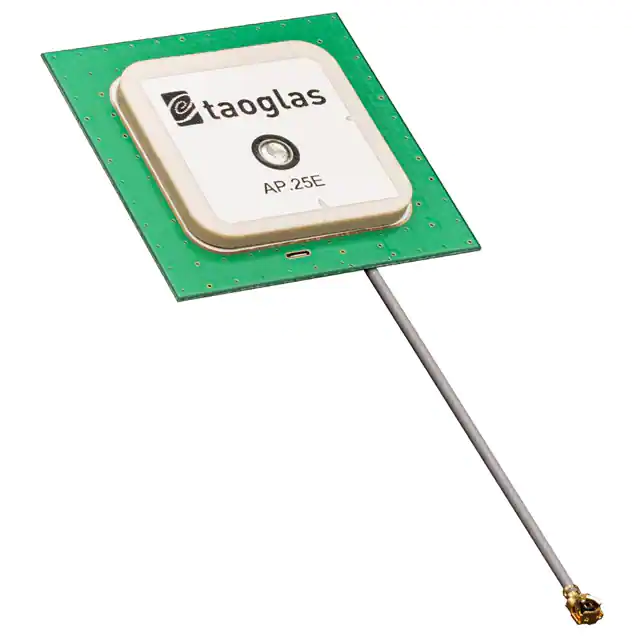

AP.25E.07.0054ARF ANT 1.575GHZ CER PATCH IPEX |
2,023 | 13.62 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 1.5dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.079" (2.00mm) | GPS |
|

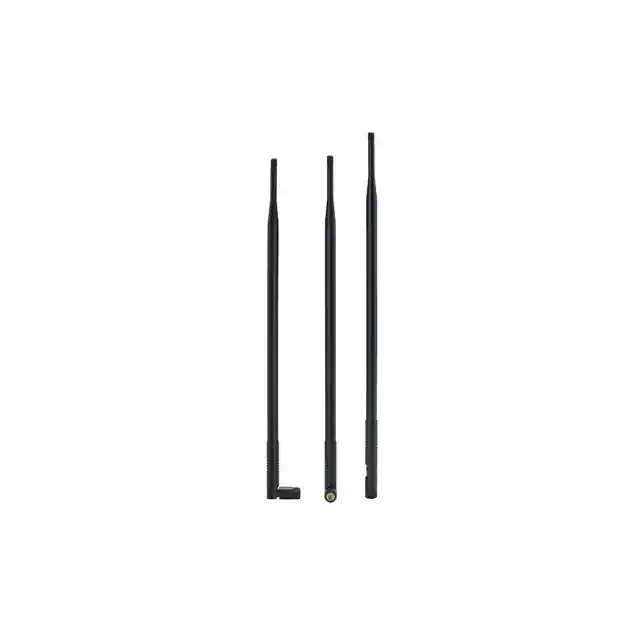

TI.19.2113RF ANT 915MHZ WHIP TILT SMA MALE |
101 | 13.63 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Tilt | 1 | 1.9 | - | 2.5dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 15.315" (389.00mm) | WLAN |
|

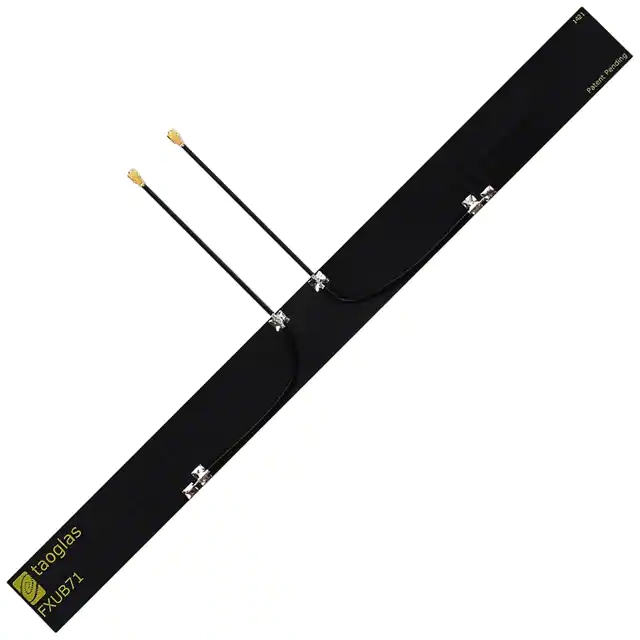

FXUB71.A.07.C.001RF ANT 1.9GHZ FLAT PATCH MHFHT |
445 | 13.94 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 1.9GHz | 698MHz ~ 3GHz | Flat Patch | 1 | - | - | 4.42dBi | 2 W | - | I-PEX MHFHT (2) | - | - | - | Adhesive | 0.006" (0.15mm) | GPS, LTE, WCDMA, WLAN |
|

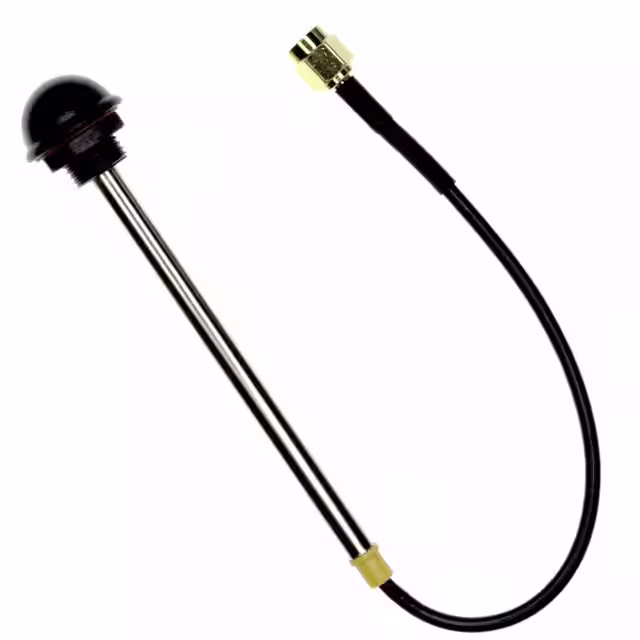

ANT-916-WRT-SMARF ANT 916MHZ DOME SMA ML PNL MT |
309 | 16.41 |
|
Datasheet |
WRT | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 900MHz, 915MHz | 900MHz ~ 930MHz | Dome | 1 | 1.9 | - | -0.1dBi | - | Cable - 216mm | SMA Male | - | - | - | Panel Mount | 0.433" (11.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
|
ANT-916-MHW-SMA-SRF ANT 916MHZ WHP CTR ADH 79" |
107 | 16.83 |
|
Datasheet |
MHW | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 816MHz ~ 1.016GHz | Whip, Center-Fed Double | 1 | 1.9 | - | 5.4dBi | - | Cable - 2m | SMA Male | - | - | - | Adhesive | 5.433" (138.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

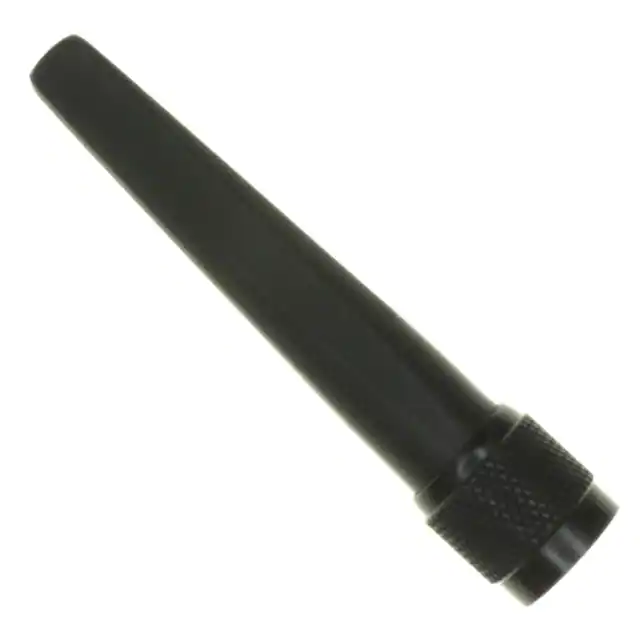

S325TC-915RF ANT 915MHZ WHIP STR TNC MALE |
106 | 11.69 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 0dBi | - | - | TNC Male | - | - | - | Connector Mount | 2.764" (70.20mm) | - |
|

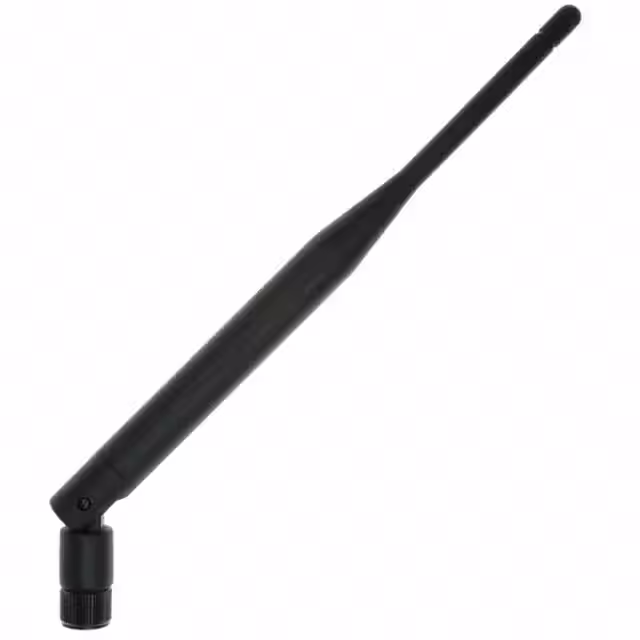

S151AH-2450SRF ANT 2.4GHZ WHIP TILT RP-SMA |
1,791 | 11.88 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.717" (196.00mm) | - |
|

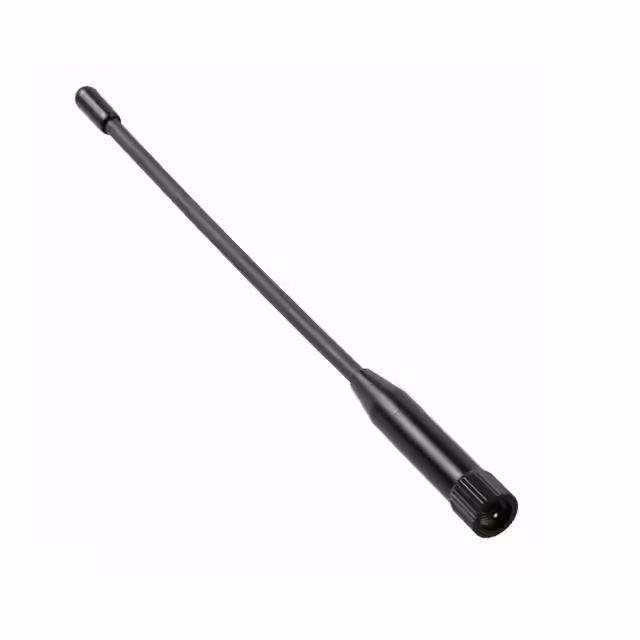

S463AM-868RF ANT 868MHZ WHIP STR SMA MALE |
228 | 17.29 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 867MHz ~ 869MHz | Whip, Straight | 1 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.929" (176.00mm) | - |
|

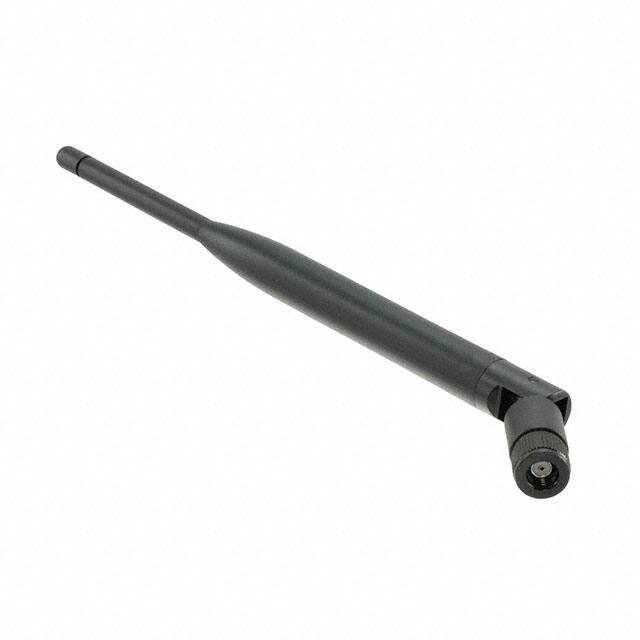

A08-HASM-560RF ANT 868MHZ WHIP TILT RP-SMA |
195 | 15.48 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Tilt | 1 | - | - | 2.1dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | - | - |
|

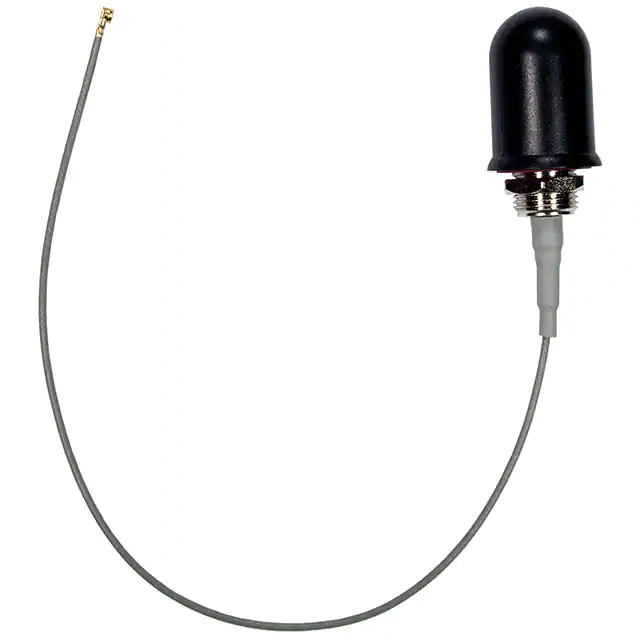

ANT-DB1-WRT-MON-UFLRF ANT 2.45/5.8GHZ DOME PANEL MT |
179 | 15.33 |
|
Datasheet |
WRT-MON | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz | Dome | 2 | 2.2, 10.8 | - | 1.0dBi, 2.8dBi | 5 W | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 1.063" (27.00mm) | Wi-Fi |
