RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

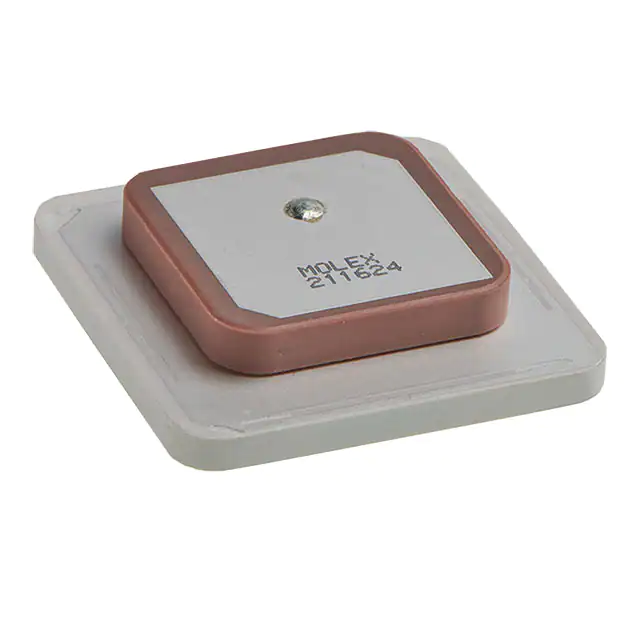

2116240001GPS L1/L5 & GLONASS 36MM STACKED |
201 | 13.69 |
|
Datasheet |
211624 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz, 1.602GHz | 1.171GHz ~ 1.181GHz, 1.57GHz ~ 1.58GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 3 | - | -10dB | 2.1dBi, 4.5dBi, 4.2dBi | - | - | Solder | - | - | - | Adhesive | 0.276" (7.00mm) | GLONASS, GPS |
|

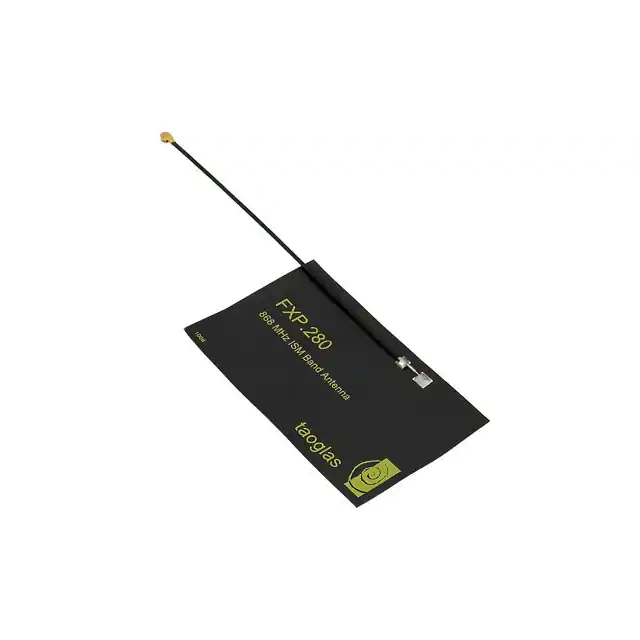

FXP280.07.0100ARF ANT 866MHZ FLAT PATCH IPEX |
214 | 16.17 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 866MHz | 863MHz ~ 870MHz | Flat Patch | 1 | 2 | -20dB | 1.5dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|

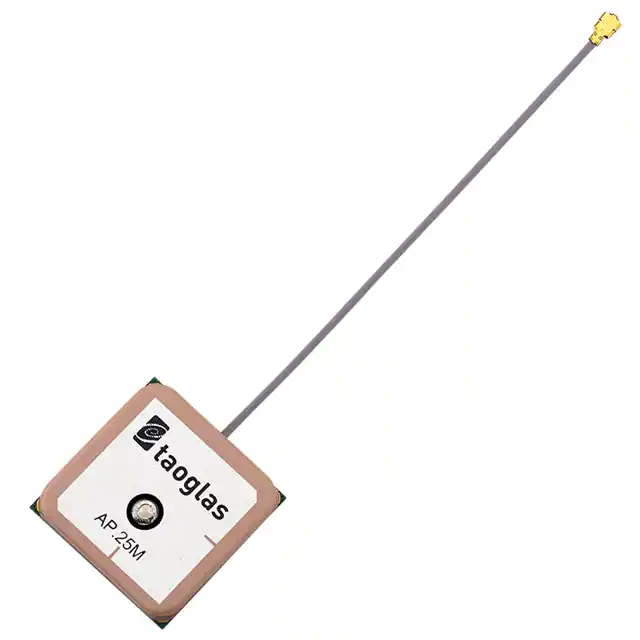

AP.25F.07.0078ARF ANT 1.575GHZ CER PATCH CAB |
551 | 15.32 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | 2dBic | - | Cable - 80mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.327" (8.30mm) | GPS |
|

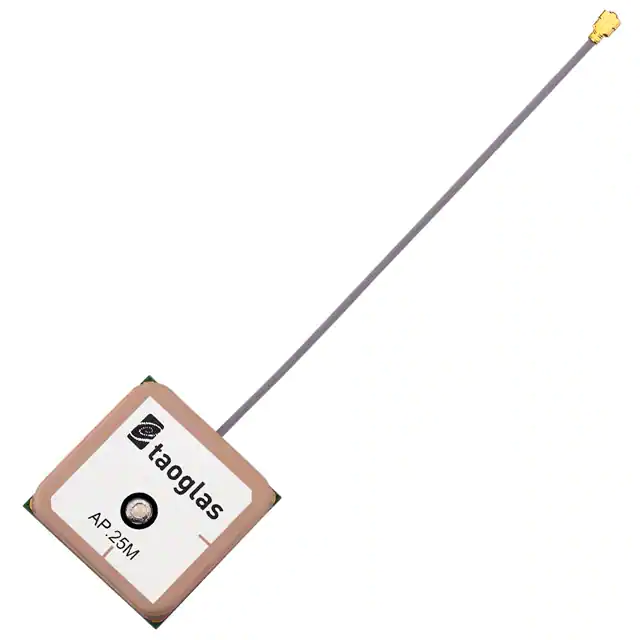

AP.25M.07.0080ARF ANT 1.575GHZ CER PATCH IPEX |
436 | 15.39 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 2dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.079" (2.00mm) | GPS |
|

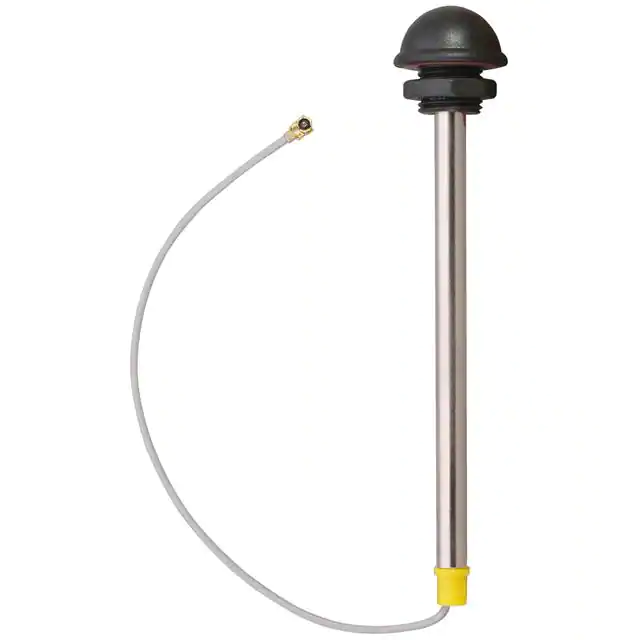

ANT-916-WRT-UFL-150RF ANT 915MHZ DOME UFL -150 |
452 | 16.13 |
|
Datasheet |
WRT | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Dome | 1 | 1.5 | - | 4.4dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

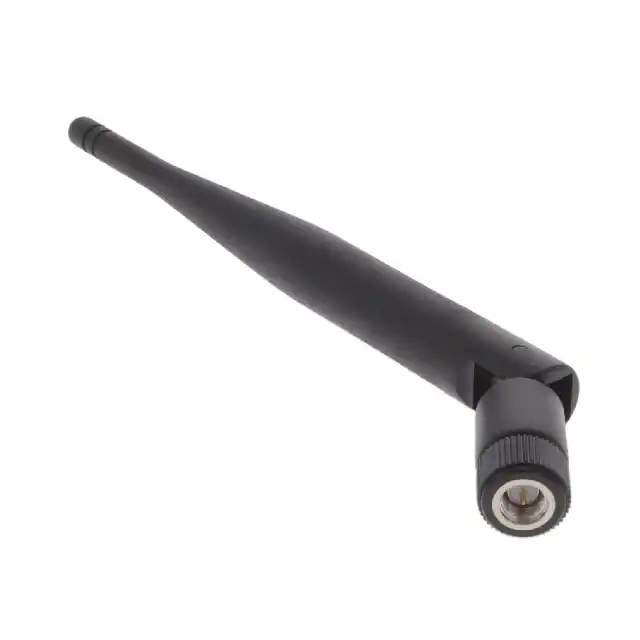

W5097RF ANT 2.4GHZ/5.5GHZ WHIP STR |
159 | 13.80 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 6GHz | Whip, Straight | 2 | 2 | - | 3.5dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 5.921" (150.40mm) | Bluetooth, WLAN, Zigbee™ |
|
GA.107.201111RF ANT 1.5GHZ WHIP STR SMA MALE |
1,096 | 15.83 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 1.5GHz | 800MHz ~ 2.2GHz | Whip, Straight | 1 | 2 | - | 5dBi | - | - | SMA Male | - | - | - | Base Mount | 4.567" (116.00mm) | GSM, UMTS |
|

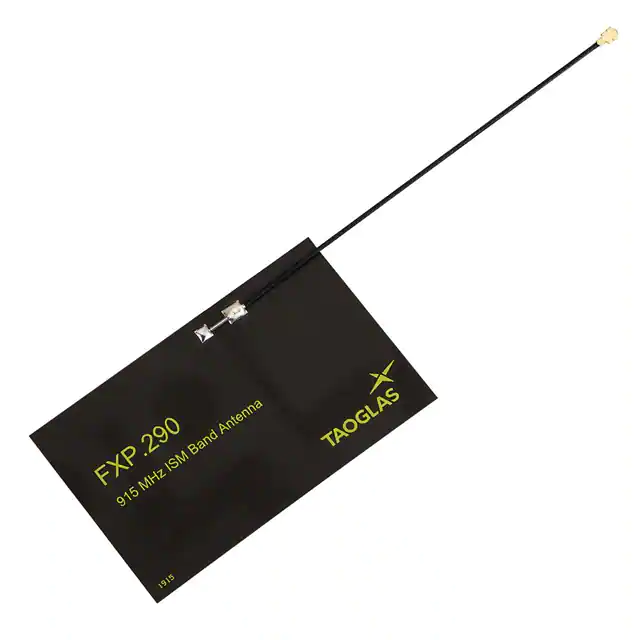

FXP290.07.0100ARF ANT 915MHZ FLAT PATCH CAB ADH |
4,246 | 16.17 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 2 | -20dB | 1.5dBi | 5 W | Cable - 100mm | I-PEX MHF2 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|

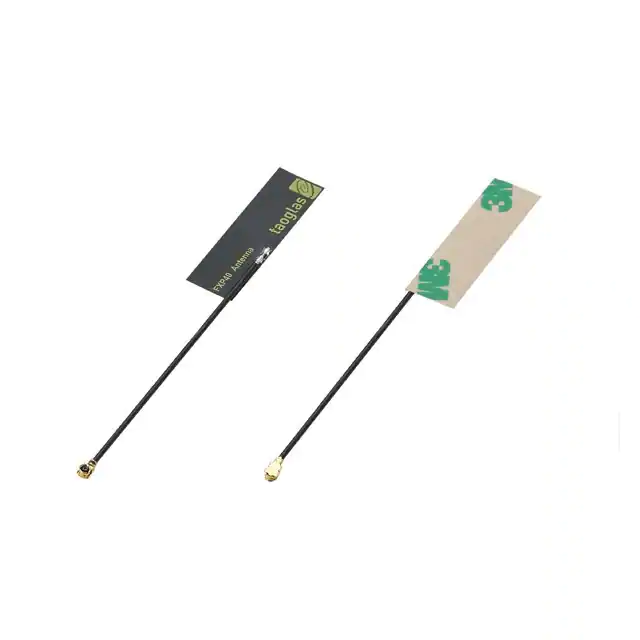

FXP40.07.0085ARF ANT 850MHZ/900MHZ FLAT PATCH |
1,433 | 11.91 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 896MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 4 | - | -5dB, -3dB | -3.83dBi, -3.83dBi, 1.37dBi, 1.03dBi | 5 W | Cable - 85mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, DCS, PCS |
|

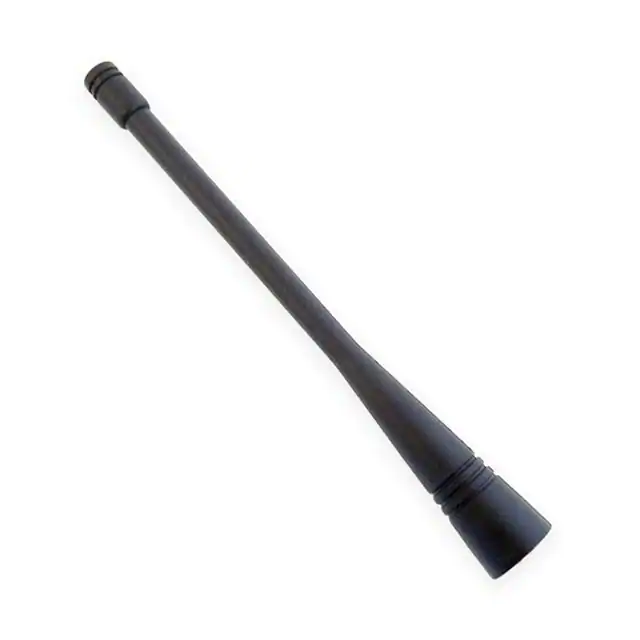

DELTA12/X/SMAM/S/S/17RF ANT 151MHZ/173MHZ WHIP STR |
446 | 15.16 |
|
Datasheet |
DELTA 12 | Bulk | Active | General ISM | VHF (f < 300MHz) | 151MHz, 173MHz | - | Whip, Straight | 2 | 2 | - | 3dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 5.118" (130.00mm) | ISM |
|

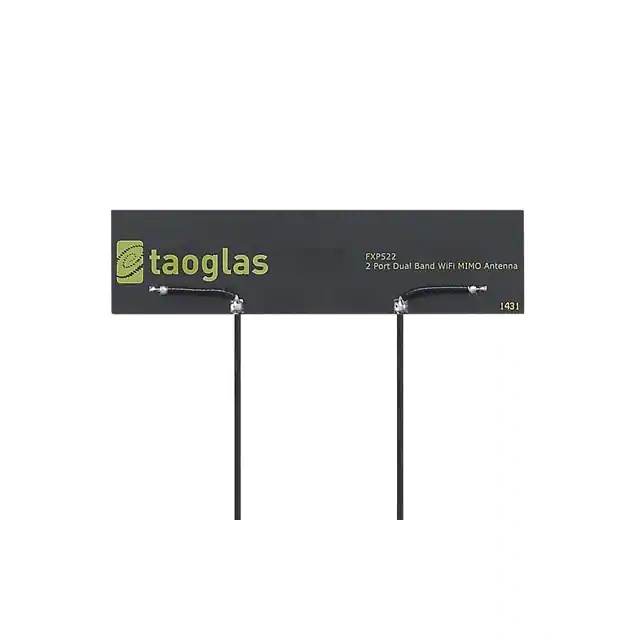

FXP522.A.07.A.001RF ANT 2.4GHZ/5.8GHZ FLAT 120MM |
1,233 | 16.34 |
|
Datasheet |
Venti | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | - | 3.78dBi, 4.63dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Wi-Fi |
|

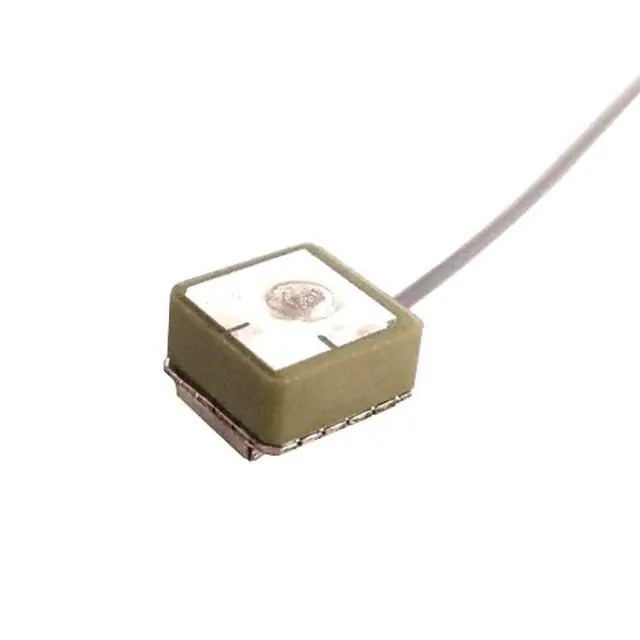

ECHO19/0.1M/UFL/S/S/17RF ANT 1.575GHZ CER PATCH U.FL |
422 | 15.34 |
|
Datasheet |
ECHO 19 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.8 | - | 16dB | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.256" (6.50mm) | GPS |
|
AGGBLA.125.AACTIVE MULTI-BAND GNSS CHIP ANTE |
266 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | Wide Band | 1.176GHz, 1.561GHz, 1.575GHz, 1.603GHz | - | Chip | 4 | - | -6.3dB, -6.8dB, -7.1dB | -0.38dBi, -0.95dBi, -0.95dBi, -0.94dBi | - | LNA, Filter | Solder | - | - | - | Surface Mount | 0.110" (2.80mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|

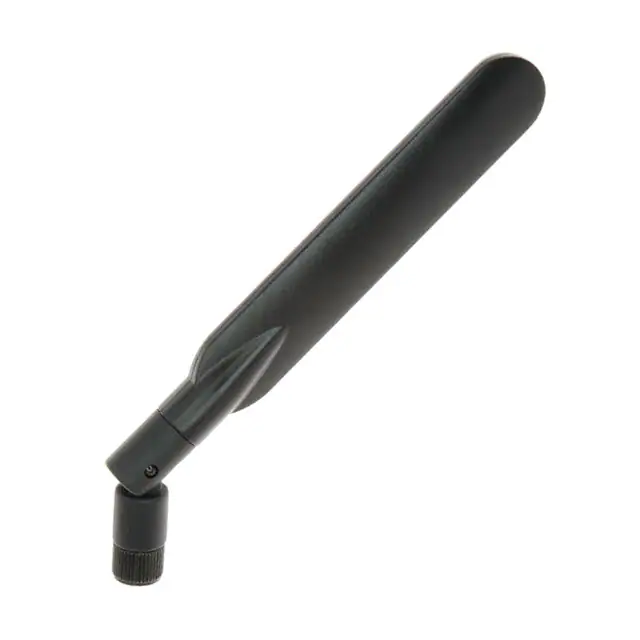

T6140AM-AGDPU-SRF ANT 850MHZ/900MHZ WHIP TILT |
483 | 15.41 |
|
Datasheet |
- | Bulk | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Tilt | 5 | 2, 3 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.283" (159.60mm) | AMPS, DCS, GSM, PCS, UMTS |
|

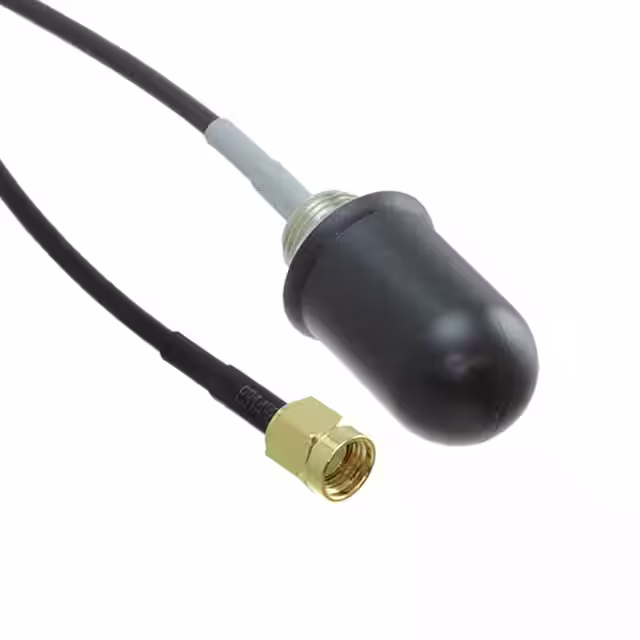

ANT-DB1-WRT-MON-RPSRF ANT 2.45/5.8GHZ DOME PANEL MT |
451 | 17.11 |
|
Datasheet |
WRT-MON | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz | Dome | 2 | 2.2, 10.8 | - | 1.0dBi, 2.8dBi | 5 W | Cable - 216mm | RP-SMA Male | - | - | - | Panel Mount | 1.063" (27.00mm) | 802.11b/g/n/ac, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Zigbee™ |
|
|
YEMA003AA2IN1 COMBO ADH LTE&GNSS FAKRA |
321 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 830MHz, 1.228GHz, 1.505GHz, 1.561GHz, 1.575GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 700MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.58GHz, 1.556GHz ~ 1.566GHz, 1.57GHz ~ 1.61GHz, 1.71GHz ~ 1.71GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GH | Dome | 12 | 3 | - | 4dBi, 0.42dBi, 4dBi, -2.08dBi, 5dBi, 5dBi | - | Cable - 3m, LNA | Fakra | IP66 | - | - | Adhesive | 0.689" (17.50mm) | GNSS, LTE, Wi-Fi |
|
|
YB0008AA3IN1 2LTE 1 GNSS 300MM SMAM ADH |
101 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 849MHz, 1.561GHz, 1.575GHz, 2.2GHz | 698MHz ~ 1GHz, 1.556GHz ~ 1.566GHz, 1.57GHz ~ 1.58GHz, 1.7GHz ~ 2.7GHz | Module | 4 | 3, 6 | - | 2.94dBi, 5dBi | - | LNA | SMA Male | IP66 | - | - | Adhesive | 0.689" (17.50mm) | GNSS, LTE, Wi-Fi |
|

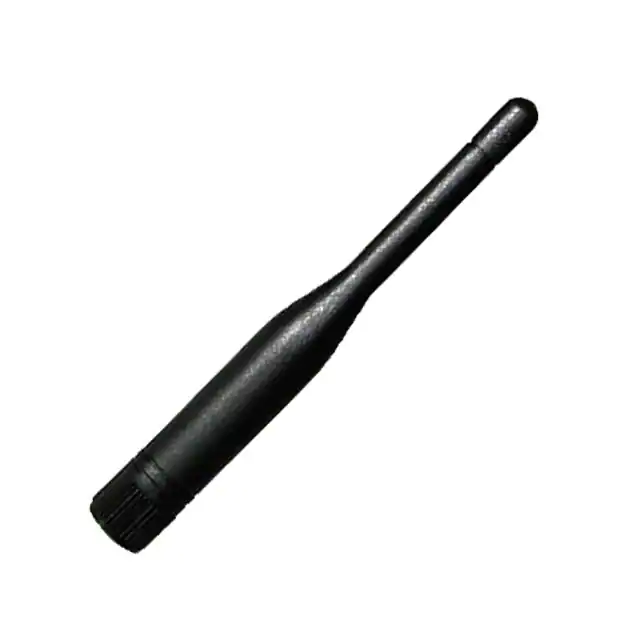

S331AH-915RF ANT 915MHZ WHIP STR RP-SMA |
172 | 13.21 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 1dBi | - | - | RP-SMA Female | - | - | - | Connector Mount | 3.465" (88.00mm) | - |
|

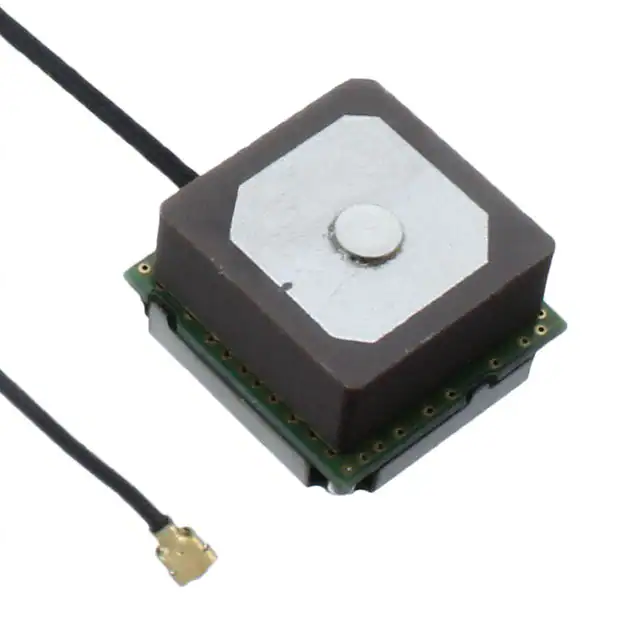

GPSGB1315RF ANT 1.575/1.602GHZ CER PATCH |
184 | 14.91 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | 2 | - | 1dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.321" (8.15mm) | GPS |
|

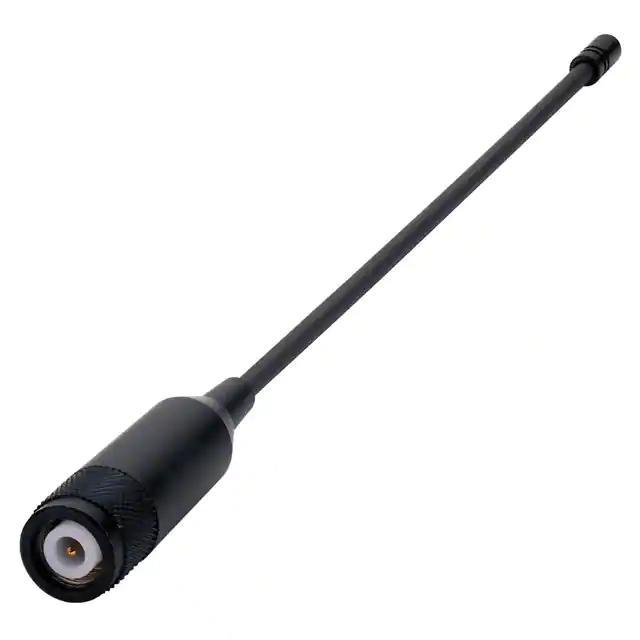

FW.91.TNC.MRF ANT 892MHZ/1.9GHZ WHIP STR |
1,213 | 16.79 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | - | - | 3dBi, 4.5dBi | - | - | TNC Male | IP65 | - | - | Connector Mount | 10.039" (255.00mm) | GSM |
