RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2108784-25G/4G/3G/2G, NB-IOT, CAT-M, GNSS |
10,425 | 1.89 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.5945GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.614GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Chip | 5 | 3 | - | 4dBi, 0.98dBi, 1.93dBi, 2.3dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.125" (3.18mm) | CDMA, GSM, LTE |
|

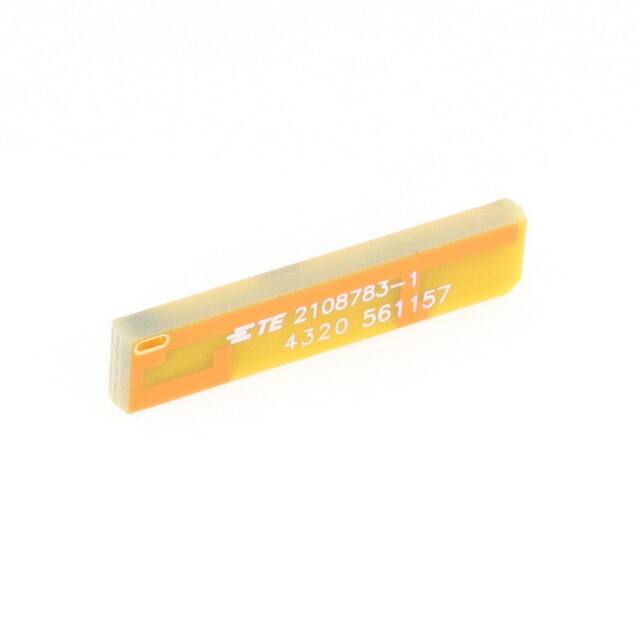

2108783-1PCB ANTENNA, SMD, 617-3800MHZ |
5,006 | 1.89 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 780MHz, 1.515GHz, 2.2GHz, 3.55GHz | 698MHz ~ 862MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | PCB Trace | 4 | 2 | - | 4.9dBi, 2dBi, 2.5dBi, 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.125" (3.18mm) | CDMA, GSM, LTE |
|
AN01DL25C00R3200METAL SMD ANT 2.4/5GHZ |
2,777 | 1.80 |
|
Datasheet |
AN01DL25C00 | Tape & Reel (TR) | Active | Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2, 2.5 | - | - | - | - | - | - | - | - | Surface Mount | 0.079" (2.00mm) | Bluetooth, Wi-Fi |
|
W3315B0100MHF1WIFI ANTENNA |
942 | 3.00 |
|
Datasheet |
Internal Antenna | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 2dBi, 5dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | Bluetooth, DSRC, Wi-Fi, Zigbee™ |
|
APAE1575R1540AZDB2F-TRF ANT 1.575GHZ CER PATCH PIN |
6,982 | 2.38 |
|
Datasheet |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.575GHz ~ 1.579GHz | Ceramic Patch | 1 | 1.5 | -15dB | 1.2dBic | - | - | Pin | - | - | - | Adhesive | 0.185" (4.70mm) | GPS |
|

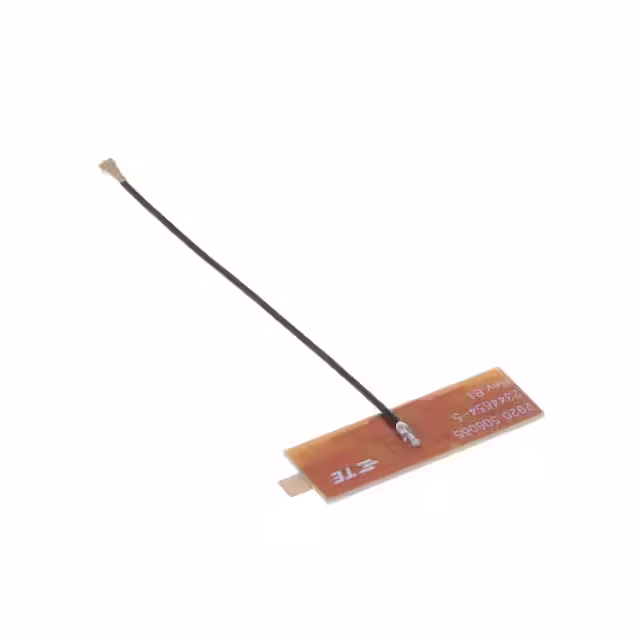

2344654-5WLAN DUAL BAND ANTENNA PCB V 50 |
6,627 | 2.63 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
2344655-5WLAN DUAL BAND ANTENNA PCB H 50 |
2,494 | 2.63 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

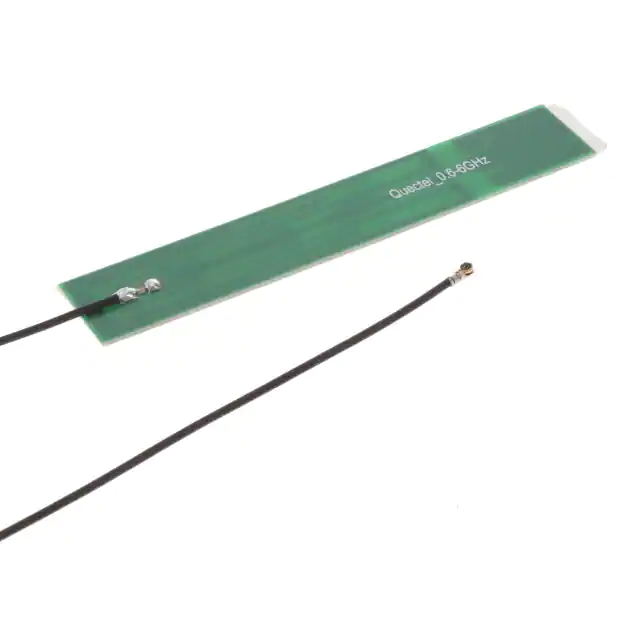

YP0009CAEMBEDDED CELLULAR ANTENNA |
509 | 2.74 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | PCB Trace | 8 | 1.96, 2.1, 2.19, 2.2, 2.31, 4.5 | - | 0.51dBi, 2.4dBi, 4.5dBi, 3.8dBi, 3.9dBi, 2.3dBi | - | Cable - 188.5mm | I-PEX MHF4 | - | - | - | Adhesive | 0.037" (0.95mm) | 6G |
|

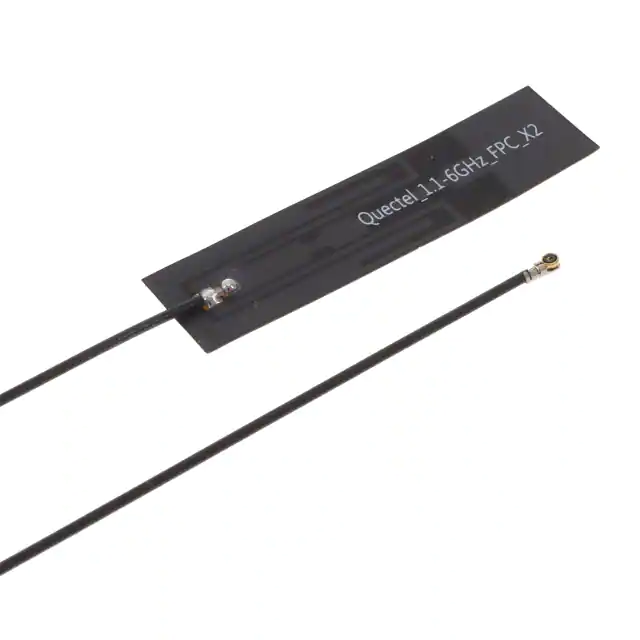

YF0017BAEMBEDDED CELLULAR ANTENNA |
433 | 2.35 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Flat Patch | 8 | 1.6, 1.7, 1.9, 2, 2.1, 2.6 | - | 1.5dBi, 2.8dBi, 2.8dBi, 4.1dBi, 3.6dBi, 4.4dBi, 3dBi | - | Cable - 193mm | I-PEX MHF4 | - | - | - | Surface Mount | 0.005" (0.13mm) | 6G |
|
|
APAE1575R2540AADBE-TRF ANT 1.575GHZ CER PATCH PIN |
235 | 1.94 |
|
Datasheet |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.569GHz ~ 1.577GHz | Ceramic Patch | 1 | 2.32 | - | 4.5dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|

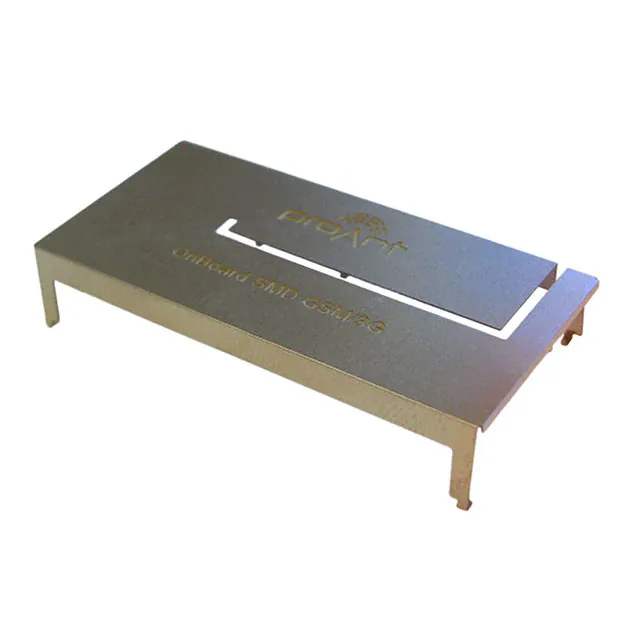

PRO-OB-468RF ANT 850MHZ/900MHZ STAMPED MET |
16,706 | 3.43 |
|
Datasheet |
Embedded Antenna | Tape & Reel (TR) | Not For New Designs | Cellular | Wide Band | 850MHz, 900MHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Stamped Metal | 2 | - | -6dB | - | - | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | GSM, UMTS |
|

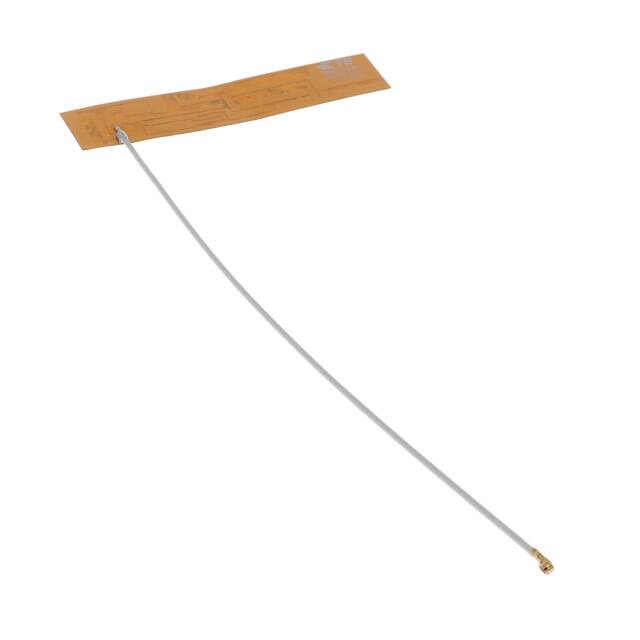

2195846-3FPC ANT, MHF, 150MM, 698-7125 MH |
9,542 | 2.67 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 150mm | MHF | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|
|
YC0001AAPCB ANTENNA LTE SMD 35X8.5 |
1,352 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 2 | 4 | - | 3dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | LTE |
|

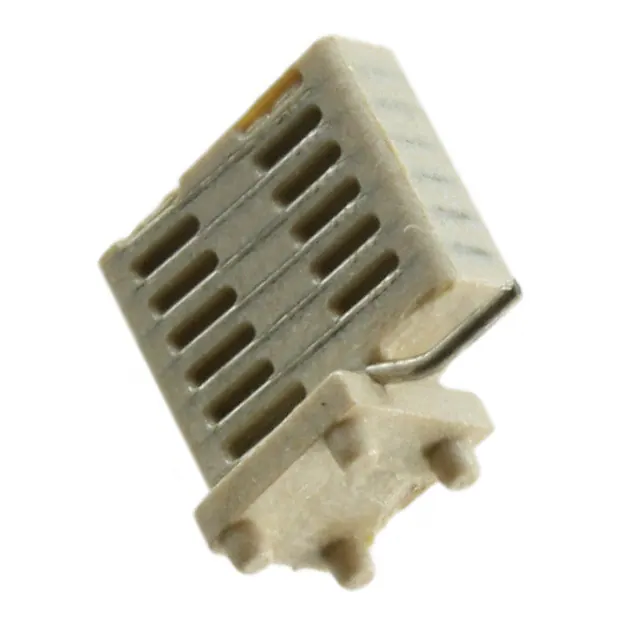

W3112ARF ANT 900MHZ HELICAL SOLDER SMD |
3,053 | 1.91 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 902MHz ~ 928MHz | Helical | 1 | - | -10dB | 0.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.315" (8.00mm) | - |
|
1513634-1RF ANT 1.575GHZ PUCK SOLDER SMD |
450 | 2.48 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Puck | 1 | 3 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.238" (6.05mm) | GPS |
|
|
ACG0301UUWB ANT 6.22GHZ- 8.2GHZ SMD CHIP |
2,846 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | Wide Band | 7.2GHz | 6.2GHz ~ 8.2GHz | Chip | 1 | 2 | - | - | - | Filter | - | - | - | - | Surface Mount | 0.047" (1.20mm) | UWB |
|

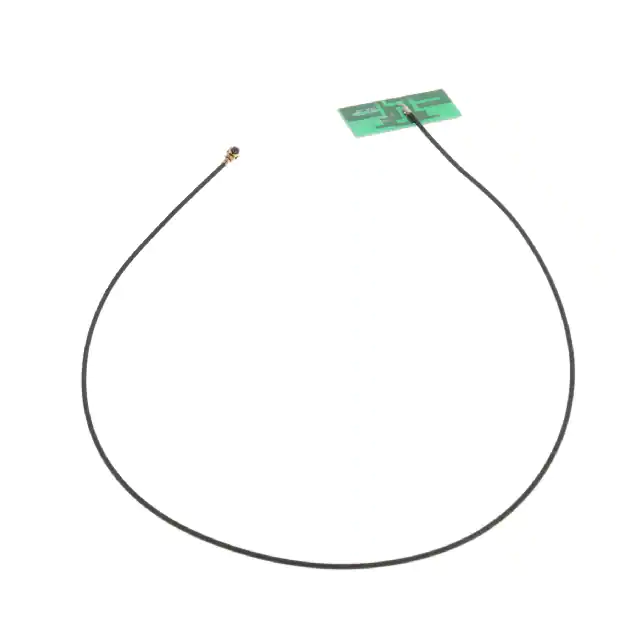

2118439-2RF ANT 2.44/5.387GHZ PCB TRACE |
5,662 | 2.83 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.387GHz | 2.4GHz ~ 2.483.5GHz, 4.9GHz ~ 5.875GHz | PCB Trace | 2 | - | - | - | - | Cable - 310mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.065" (1.65mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1002295RF ANT 2.4GHZ STAMPED MET SLD |
5,053 | 2.00 |
|
Datasheet |
Prestta™ | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 2.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.382" (9.70mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

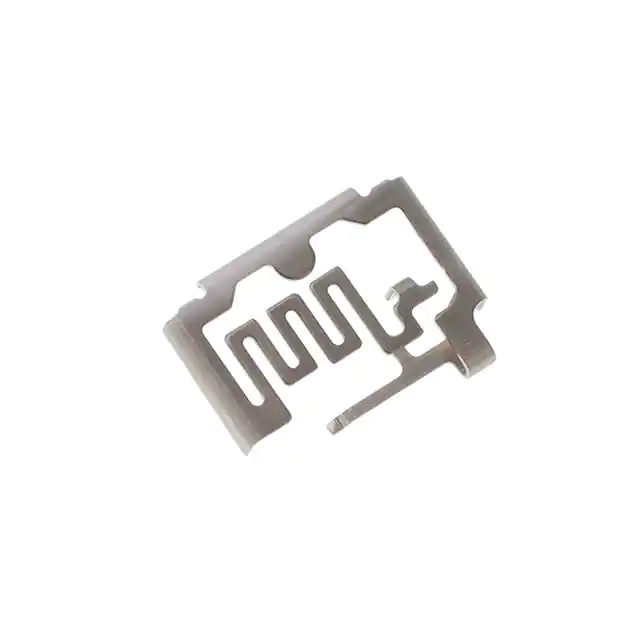

AN01ML27C00R2400METAL SMD ANT 2.4/5/6GHZ |
2,396 | 1.97 |
|
- |
AN01ML27C00 | Tape & Reel (TR) | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Stamped Metal | 3 | 2 | - | - | - | - | - | - | - | - | Surface Mount | 0.079" (2.00mm) | Wi-Fi |
|

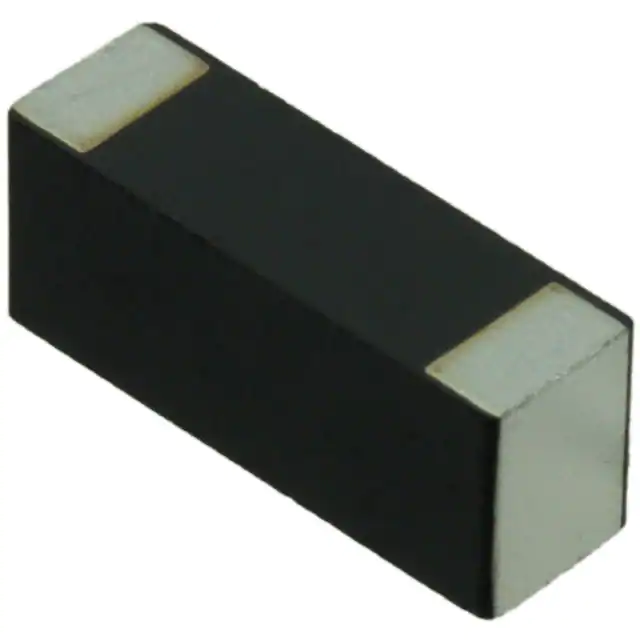

W3012RF ANT 900MHZ CHIP SOLDER SMD |
3,701 | 2.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 902MHz ~ 928MHz | Chip | 1 | - | -6dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | - |
