RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2344656-7WLAN DUAL BAND ANTENNA FPC V 150 |
602 | 2.32 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
YCGS006AACERAMIC ANTENNA,GNSS,SMD,25*25*4 |
2,166 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.583GHz | 1.56GHz ~ 1.606GHz | Ceramic Patch | 1 | - | - | - | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | GNSS, LTE |
|
|
W3136ANTENNA HELIX SMT 860-930MHZ |
2,149 | 2.25 |
|
Datasheet |
SMD Helical Antenna | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 860MHz ~ 930MHz | Helical | 2 | 2.5 | - | 2dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.346" (8.78mm) | ISM |
|
APAE1575R1840BADB1F-TRF ANT 1.575GHZ CER PATCH PIN |
1,111 | 1.94 |
|
Datasheet |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.557GHz ~ 1.563GHz | Ceramic Patch | 1 | 1.5 | - | 3.3dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|
2344657-8WLAN DUAL BAND ANTENNA FPC H 200 |
3,020 | 2.42 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
1513164-1RF ANT 2.4GHZ/5.5GHZ MOLDED SLD |
2,309 | 2.44 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz | Molded | 2 | 2.5 | - | 4dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | Bluetooth, WLAN, Zigbee™ |
|
|
1582AT54A0045001E1.585GHZ GLOBAL NAVIGATION (GPS, |
1,947 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.56GHz ~ 1.605GHz | Chip | 1 | - | 9.5dB | 1.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | Beidou, Galileo, GLONASS, GPS |
|
ANT-W63RPC1-100RF ANT WIFI 6GHZ FLEX ADHE 100MM |
178 | 4.69 |
|
Datasheet |
W63RPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Rigid Patch | 3 | 1.8, 2.1, 1.6 | -10.9dB, -9dB, -12.7dB | 3.7dBi, 6.1dBi, 5.9dBi | 5 W | Cable - 100mm | Solder | - | - | - | Adhesive | 0.051" (1.30mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|

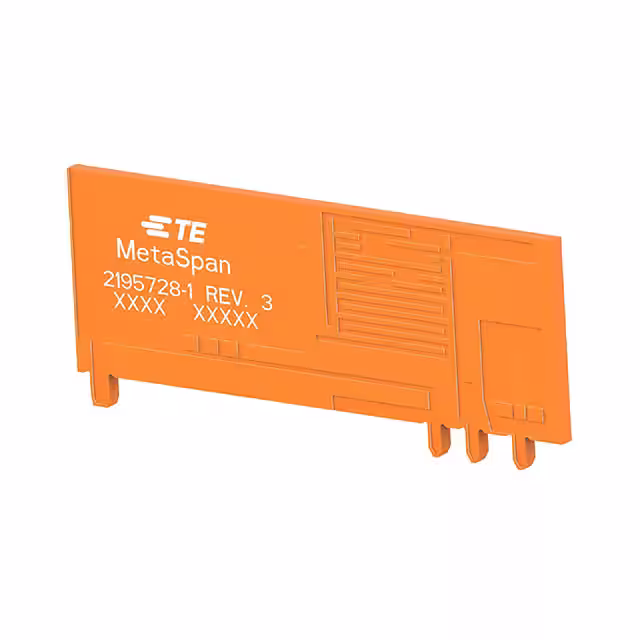

2195728-1LTE + GNSS ANTENNA |
1,500 | 2.27 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 1.544GHz, 2.205GHz | 698MHz ~ 960MHz, 1.427GHz ~ 1.661GHz, 1.71MHz ~ 2.7GHz | PCB Trace | 3 | 2.5 | - | 2.3dBi, 2.3dBi, 2.3dBi | - | - | - | - | - | - | Surface Mount | 0.062" (1.58mm) | 2G, 3G, 4G, 5G, GNSS, LTE, UMTS, WCDMA |
|
W3544ARF ANT 850MHZ/900MHZ CHIP SLD |
893 | 2.44 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 5 | - | -4.1dB, -4.6dB, -16.3dB, -12.3dB | -1.9dBi, -1.3dBi, -1.3dBi, -1.66dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | GSM |
|

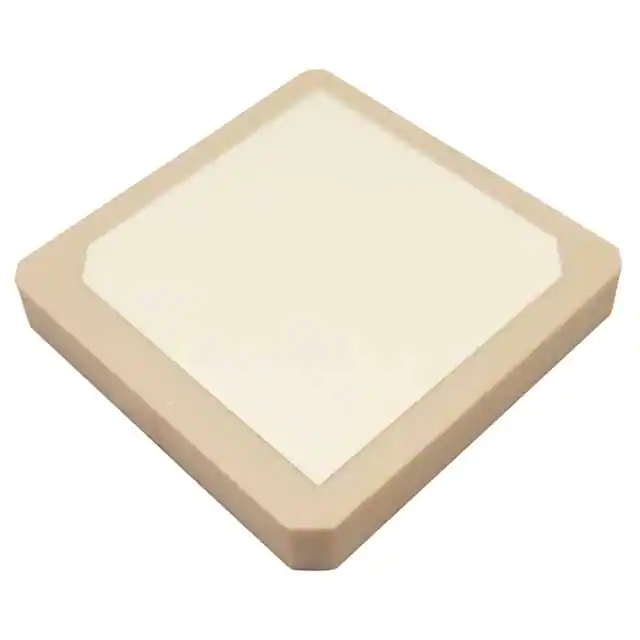

ANT2525B00BT1575SRF ANT 1.575GHZ CER PATCH SLD |
800 | 3.05 |
|
Datasheet |
2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.59GHz | Ceramic Patch | 1 | 1.5 | -34.626dB | 5.5dBic | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|

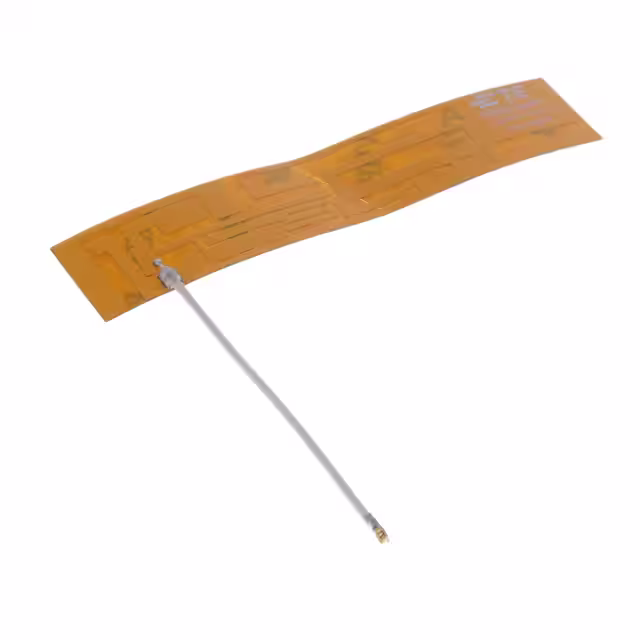

2195846-5FPC ANT, MHF4L, 50MM, 698-7125 M |
665 | 2.57 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 50mm | MHF4L | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|

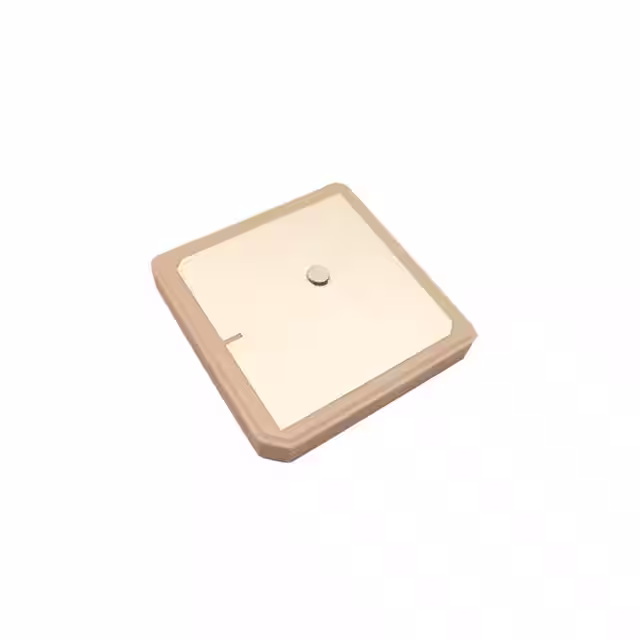

ANT2525B00DTGNSSSANTENNA PATCH GNSS |
255 | 2.53 |
|
Datasheet |
2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Ceramic Patch | 1 | 2 | - | 5.16dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, GLONASS, GNSS, GPS |
|

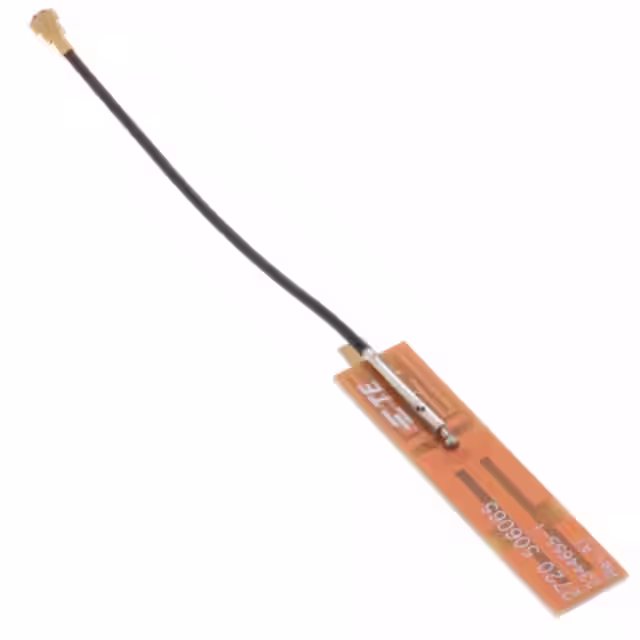

2344655-1WLAN DUAL BAND ANTENNA PCB H 50M |
849 | 2.58 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

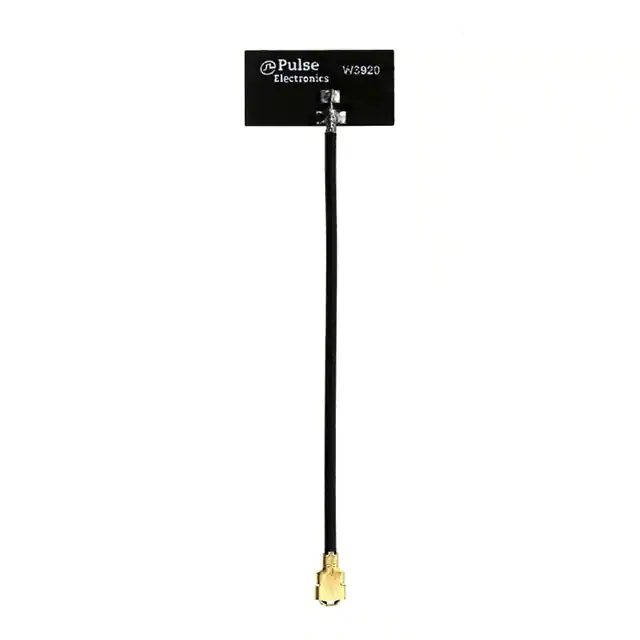

W3920B0100RF ANT 5.4GHZ FLAT PATCH CAB ADH |
1,428 | 2.47 |
|
Datasheet |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.925GHz | Flat Patch | 1 | 2 | - | 3dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Wi-Fi |
|

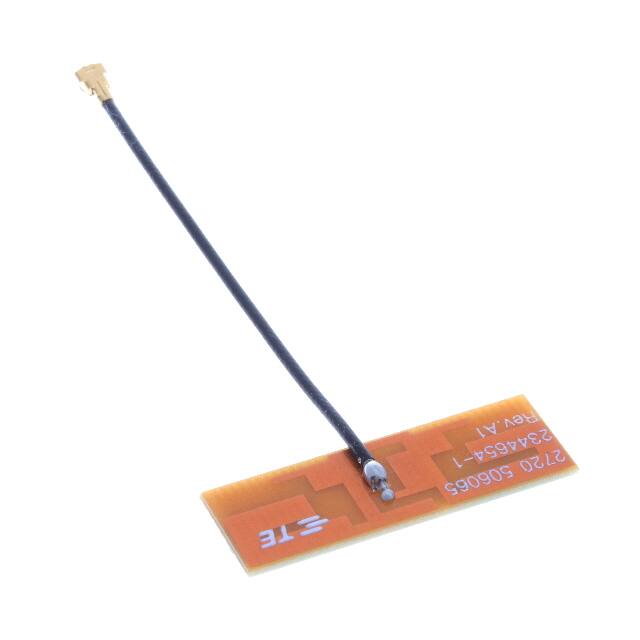

2344654-1WLAN DUAL BAND ANTENNA PCB V 50M |
567 | 2.58 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

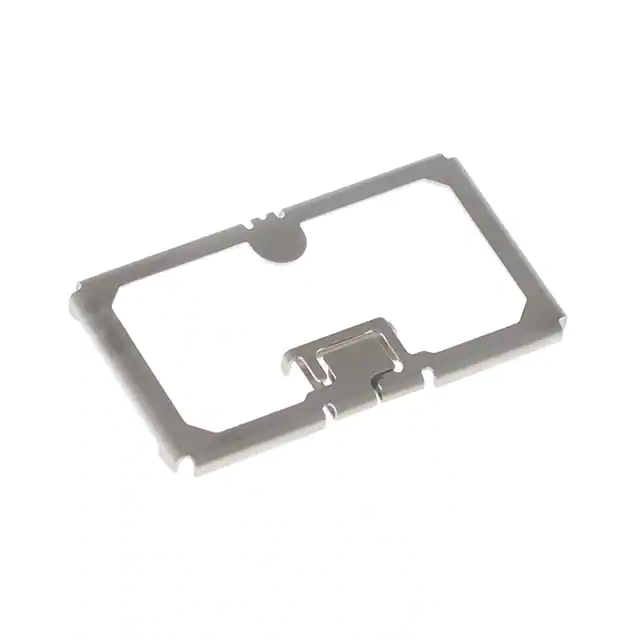

AN010860C00R1700METAL SMD ANT 860MHZ |
1,268 | 2.47 |
|
Datasheet |
AN010860C00 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Stamped Metal | 1 | 2.5 | - | - | - | - | - | - | - | - | Surface Mount | 0.075" (1.90mm) | General Purpose |
|

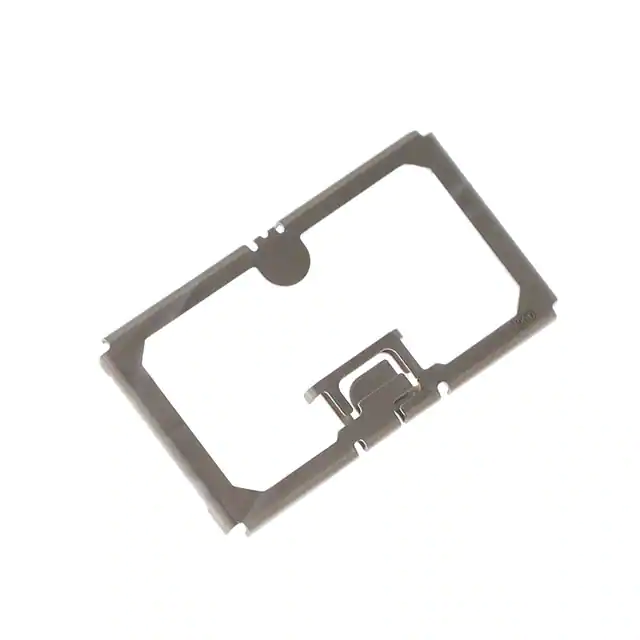

AN010920C00R1700METAL SMD ANT 920MHZ |
1,005 | 2.47 |
|
Datasheet |
AN010920C00 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Stamped Metal | 1 | 2.5 | - | - | - | - | - | - | - | - | Surface Mount | 0.075" (1.90mm) | General Purpose |
|

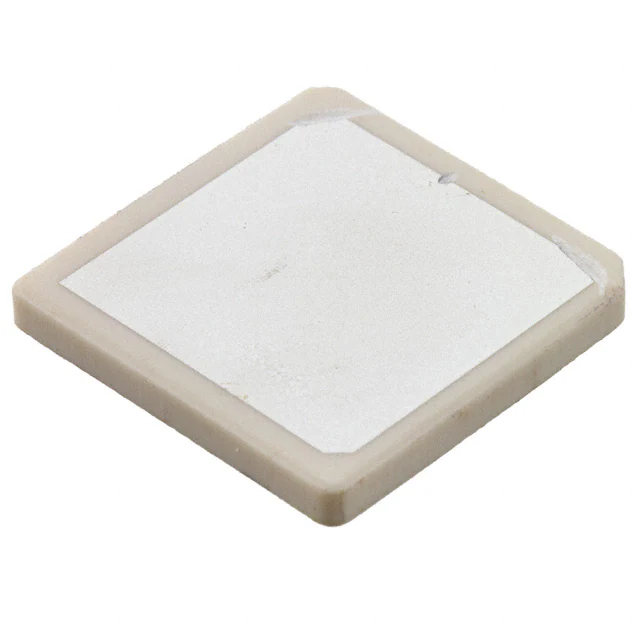

ANT1818B00AT1575SRF ANT 1.6GHZ CER PATCH SOLDER |
750 | 2.60 |
|
Datasheet |
1818 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.577GHz ~ 1.583GHz | Ceramic Patch | 1 | 2 | -10dB | 2dBic | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GPS |
|

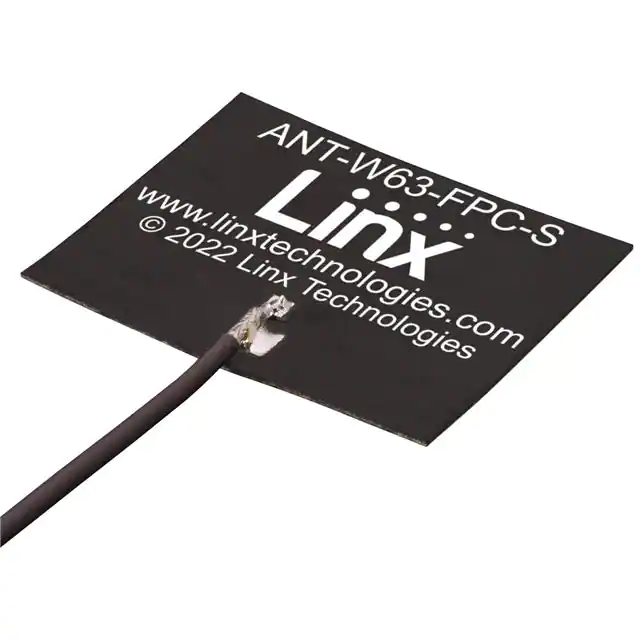

ANT-W63-FPC-SH100UFANT WIFI6 FPC 25X20 100MM UFL |
1,905 | 3.43 |
|
Datasheet |
ANT-W63-FPC-SH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6, 1.8 | - | 4.7dBi, 7.8dBi, 8.5dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ |
