RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

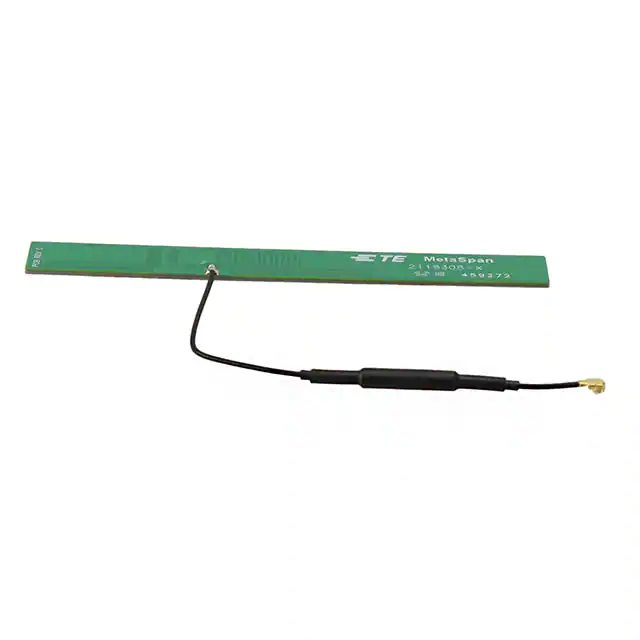

2118308-1RF ANT 829MHZ/1.94GHZ PCB TRACE |
2,585 | 10.98 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 3 | 3 | - | 3.9dBi | - | Cable - 120mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.052" (1.31mm) | LTE |
|
ANT-20228WB56RF ANT, 5G&4G&3G&2G/NB-IOT/CAT M |
337 | 11.05 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 780MHz, 2.05GHz, 4.5GHz | 600MHz ~ 960MHz, 1.4GHz ~ 2.7GHz, 3GHz ~ 6GHz | Whip, Tilt | 3 | 4, 5 | -3.5dB, -5dB | -3dBi, 4.5dBi, 0.5dBi, 5dBi, 1dBi, 6dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 7.598" (193.00mm) | 2G, 3G, 4G, 5G, LPWA |
|
|
YAT001CAGNSS RF ANTENNA |
969 | 12.80 |
|
- |
- | Tray | Active | Navigation | UHF (300MHz ~ 1GHz) | 1.176GHz, 1.561GHz | - | Ceramic Patch | 2 | 2 | - | -1dBi, 2dBi | - | Cable - 40mm | Pin | - | - | - | Surface Mount | 0.236" (6.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

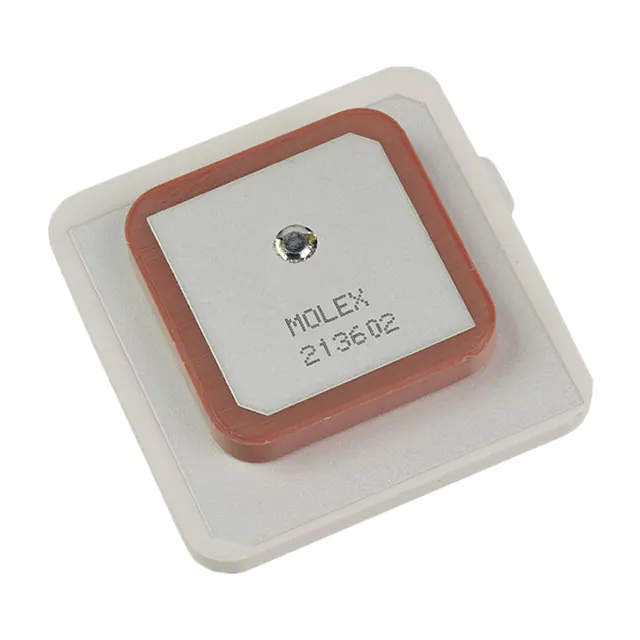

2136020001ANTENNA GPS L1/L2 STACKED |
102 | 14.22 |
|
Datasheet |
213602 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2275GHz, 1.575GHz | 1.2265GHz ~ 1.2286GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 2 | - | -15dB | 2.1dBi, 5.3dBi | - | - | Solder | - | - | - | Adhesive | 0.276" (7.00mm) | GLONASS, GNSS, GPS |
|
|
1005620GPS L1 & L5 CERAMIC PATCH ANTENN |
214 | 0.00 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.584GHz | 1.174GHz ~ 1.178GHz, 1.582GHz ~ 1.586GHz | Ceramic Patch | 2 | - | -10dB | 3.3dBic, 0.4dBic | - | - | - | - | - | - | Adhesive | 0.309" (7.85mm) | GNSS, GPS |
|
ANT-DK-LTE1MD-GAPL52MRF ANT 832MHZ/2.2GHZ WHP STR MAG |
166 | 11.27 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 832MHz, 2.2GHz | 704MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | 1.92 | -10dB | 5dBi | 20 W | Cable - 2m | SMA | - | - | - | Magnetic | 4.409" (112.00mm) | LTE |
|
ANT1212JB27B1575ARF ANT 1.575GHZ CER PATCH IPEX |
260 | 11.19 |
|
Datasheet |
1212 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.569GHz ~ 1.581GHz | Ceramic Patch | 1 | 1.5 | - | -4.56dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|

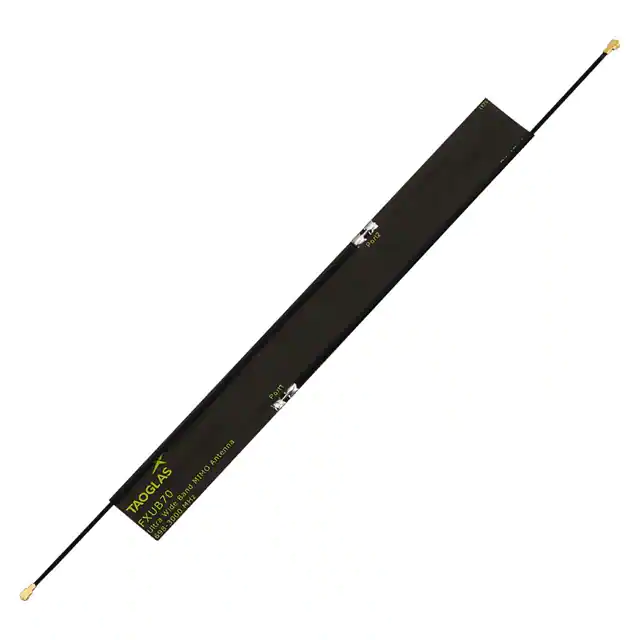

FXUB70.A.07.C.001RF ANT 850MHZ/1.575GHZ FLT PATCH |
1,109 | 11.87 |
|
Datasheet |
- | Bag | Active | AGPS, Cellular, WiFi | Wide Band | 850MHz, 1.575GHz, 1.8GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 3GHz | Flat Patch | 6 | 2, 2, 1.8, 1.7, 1.7, 2.3 | -10dB, -10dB, -11dB, -12dB, -12dB, -8dB | 1dBi, 2.5dBi, 3.5dBi, 5dBi, 5dBi, 4.5dBi | 5 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | CDMA, GPRS, GSM, HSPA, LTE, Wi-Fi |
|

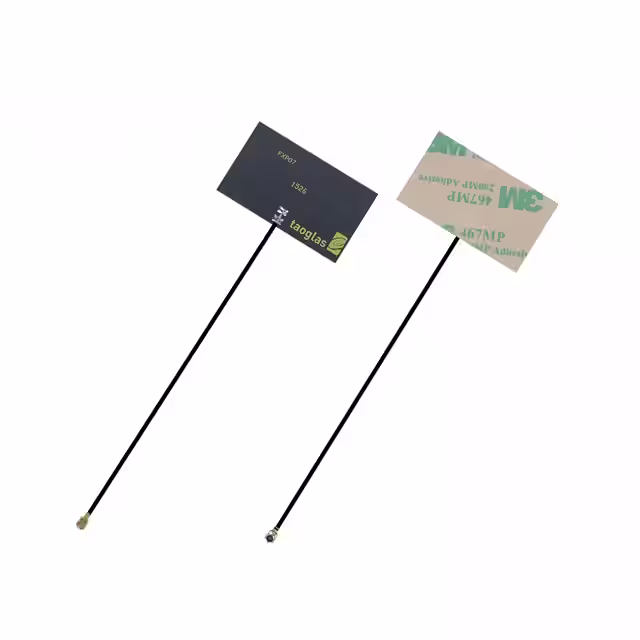

FXP07.07.0100ARF ANT 850MHZ/900MHZ PCB TRACE |
300 | 11.91 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular, General ISM | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | - | - | - | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | AMPS, DCS, GSM, PCS, UMTS |
|
FXP14R.A.07.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
161 | 15.39 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 6 | - | -7dB, -11dB, -12dB, -16dB, -12dB, -12dB | -1.5dBi, -3dBi, 1.5dBi, 2.5dBi, 2.5dBi, 2.5dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | CDMA, GSM |
|

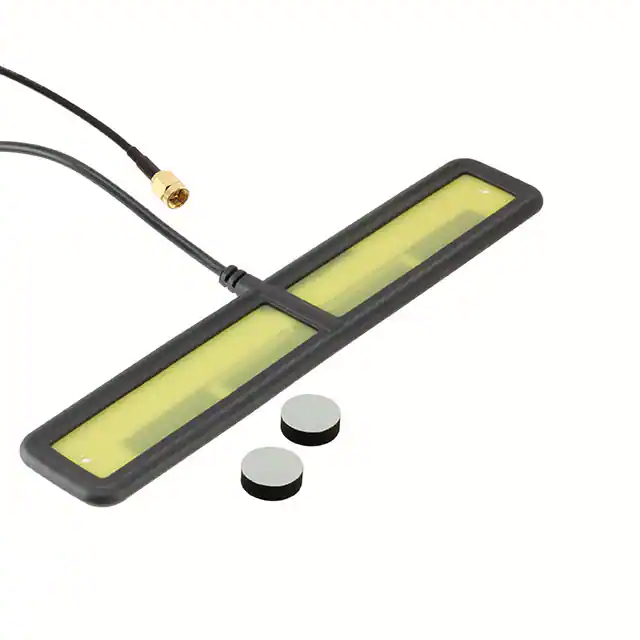

ALPHA40/1.5M/SMAM/S/S/29RF ANT 762MHZ/1.94GHZ FLAT BAR |
598 | 18.92 |
|
Datasheet |
ALPHA 40 | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 762MHz, 1.94GHz, 2.5GHz | 700MHz ~ 824MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Bar | 3 | - | - | 2dBi | - | - | SMA Male | - | - | - | Adhesive | 0.177" (4.50mm) | Bluetooth, WLAN |
|
|
PA.176.AANT 5G/4G SUB 6 SMD 1700-6000MHZ |
922 | 11.91 |
|
- |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.4GHz, 3.925GHz, 5.5375GHz | 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 3.2GHz ~ 4.65GHz, 5.15GHz ~ 5.925GHz | Chip | 7 | 3 | - | 3dBi, 3.3dBi, 3.8dBi, 4.5dBi, 3.7dBi, 3.6dBi, 2.8dBi | - | - | SMA Female | - | - | - | Surface Mount | 0.118" (3.00mm) | 5G, HSPA, HSPA+, LTE, WCDMA |
|

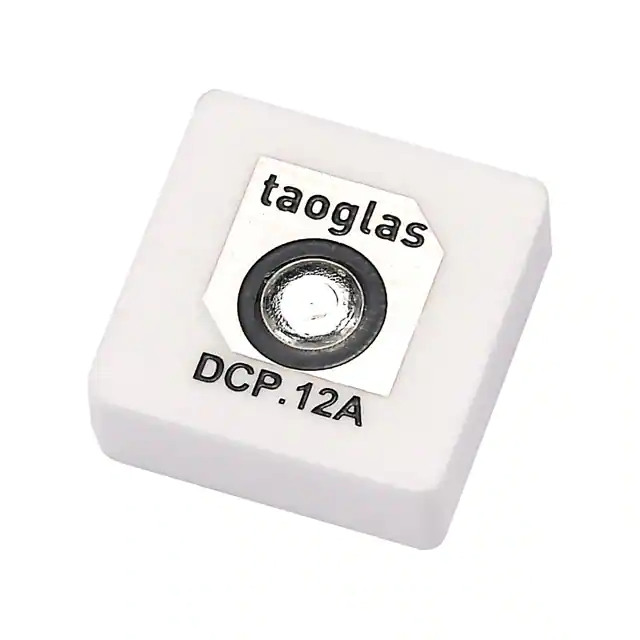

DCP.5900.12.4.A.02RF ANT 5.9GHZ CER PATCH PIN ADH |
314 | 11.92 |
|
Datasheet |
- | Tray | Active | General ISM | SHF (f > 4GHz) | 5.9GHz | 5.85GHz ~ 5.925GHz | Ceramic Patch | 1 | 1.8 | - | 6dBi | - | - | Pin | - | - | - | Adhesive | 0.197" (5.00mm) | DSRC |
|

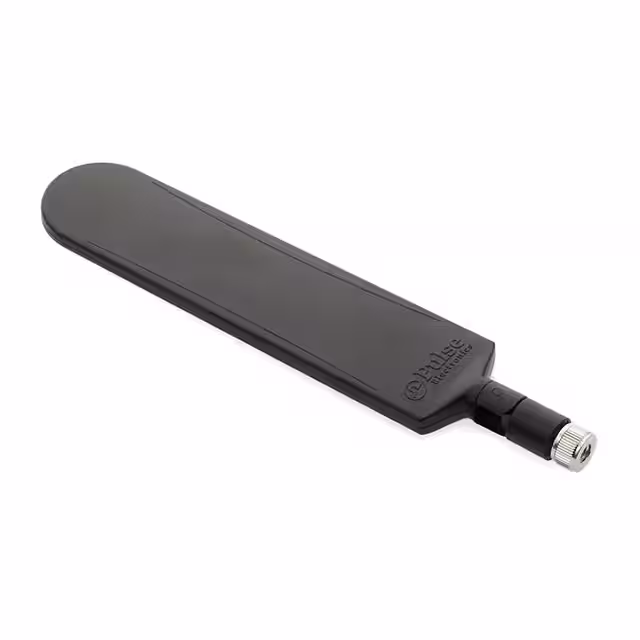

W5084KRF ANT 829MHZ/2.05GHZ BLADE SMA |
121 | 17.74 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 829MHz, 2.05GHz | 698MHz ~ 960MHz, 1.4GHz ~ 2.69GHz | Blade | 2 | 2.5 | - | 4dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 9.009" (228.84mm) | LTE |
|
FXUWB01.07.0100CULTRA WIDE BAND FLEX ANTENNA 6GH |
492 | 12.47 |
|
- |
- | Bag | Active | - | SHF (f > 4GHz) | 6.49GHz, 6.99GHz | 5.95GHz ~ 6.74GHz, 6.24GHz ~ 7.03GHz, 6.74GHz ~ 7.24GHz | FlexPIFA | 2 | 2, 3 | - | 3.5dBi, 4dBi, 4.5dBi | 10 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|
|
9001169F0-AA10L0100ANTENNA ASSY, GPS LNA |
890 | 0.00 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.559GHz ~ 1.591GHz | PCB Trace | 1 | - | 9dB | 15.81dB, 15.72dB, 14.84dB | - | Cable - 100mm, LNA, Filter | U.FL | - | - | - | Adhesive | - | Galileo, GPS |
|

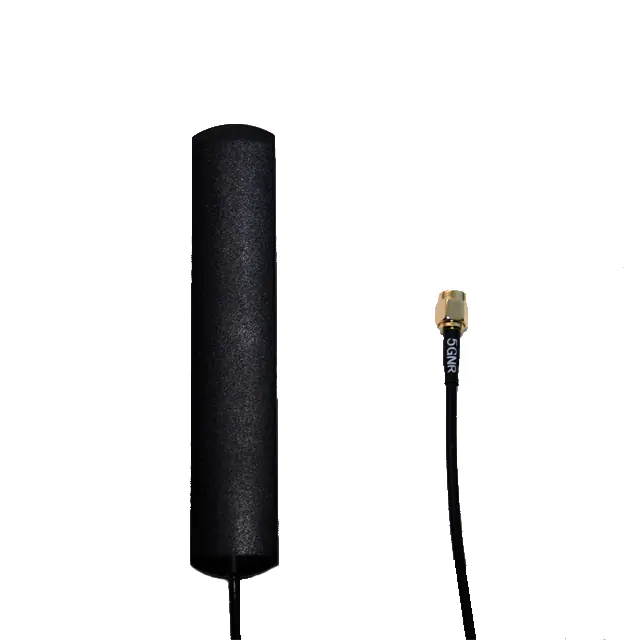

AECB1102XS-3000SRF ANT 5G/4G/LTE/NBIOT/CAT BLADE |
191 | 12.24 |
|
Datasheet |
AECB | Bulk | Active | Cellular | UHF (3GHz ~ 4GHz) | 3.3GHz | 600MHz ~ 6GHz | Blade | 1 | 3.5 | - | 2dBi | 10 W | Cable - 3m | SMA Male | - | - | - | Adhesive | 0.228" (5.80mm) | 4G, 5G, LTE |
|
ANT-433-MHW-RPS-SRF ANT 433MHZ WHP CTR ADH 79" |
262 | 16.04 |
|
Datasheet |
MHW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 413MHz ~ 453MHz | Whip, Center-Fed Double | 1 | 1.9 | - | 1.2dBi | - | Cable - 2m | RP-SMA Male | - | - | - | Adhesive | 5.709" (145.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

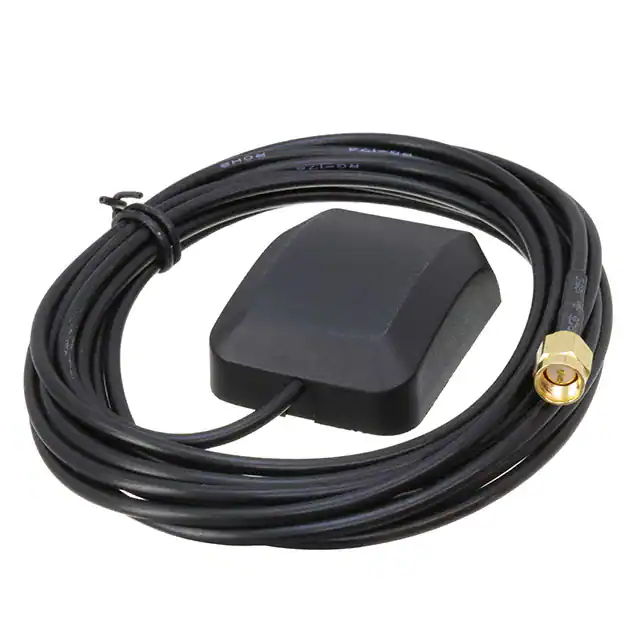

ANT-DK-GP1FP-GAP3M-1RF ANT 1.575GHZ MOLDED SMA MAGNT |
188 | 13.29 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.58GHz | Molded | 1 | 1.5 | - | 3dBi | - | Cable - 3m | SMA | - | - | - | Magnetic | 0.669" (17.00mm) | GPS |
|

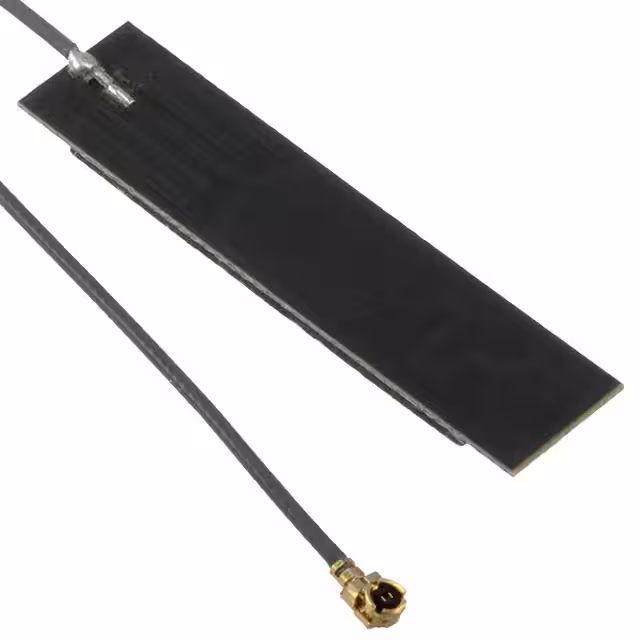

ECHO11/0.2M/IPEX/S/S/12RF ANT 2.4GHZ PCB TRACE IPEX SMD |
213 | 11.84 |
|
Datasheet |
ECHO 11 | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.6 | - | 2.6dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
