RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGGBP.35.2.A.08RF ANT 1.561/1.575GHZ CER PATCH |
139 | 9.15 |
|
- |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz | Ceramic Patch | 3 | - | - | 3.45dBi, 3.68dBi, 4.87dBi | - | - | Pin | - | - | - | Adhesive | 0.079" (2.00mm) | Beidou, Galileo, GLONASS, GPS |
|

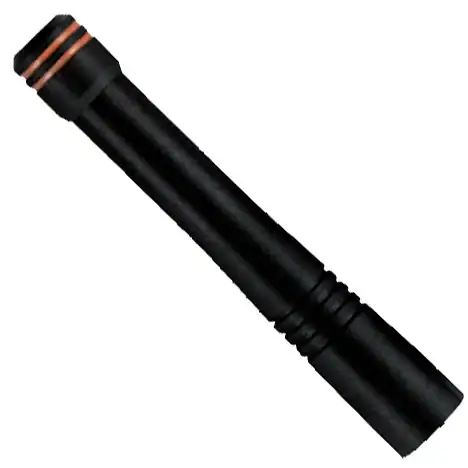

ANT-868-CW-HD-SMARF ANT 868MHZ WHIP STR SMA MALE |
3,866 | 10.74 |
|
Datasheet |
HD | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 820MHz ~ 900MHz | Whip, Straight | 1 | 2 | - | -0.3dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.953" (75.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-20289EB56RF ANT, 2.4G WIFI, OMNI-DIRECTIO |
162 | 8.83 |
|
Datasheet |
- | Bag | Active | WiFi | Wide Band | 2.45GHz, 6.1125GHz | 2.4GHz ~ 2.5GHz, 5.1GHz ~ 7.125GHz | Whip, Tilt | 2 | 1.5, 2.5 | -7dB, -15dB | 4.5dBi, 5.5dBi, 3dBi, 6.5dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 6.000" (152.40mm) | Wi-Fi |
|
|
ANT-19031EB78RF ANT, 4G/3G/2G (EXTERNAL SUCTI |
158 | 8.83 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 892MHz, 2.2GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | 2.5, 3 | -6dB, -7dB | -0.5dBi, 1.5dBi, -0.5dBi, 0.5dBi | 5 W | Cable - 2m | SMA Male | - | - | - | Magnetic | 7.283" (185.00mm) | 2G, 3G, 4G |
|

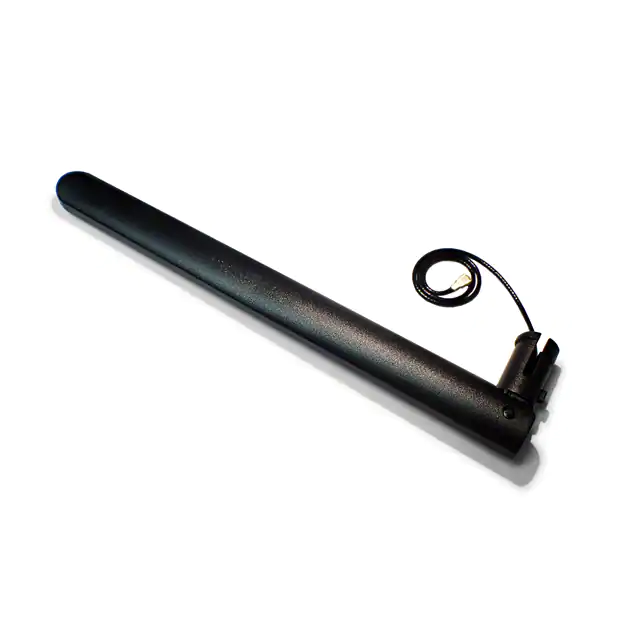

RFDPA131015IMBB301RF ANT 863-928MHZ IPEX DIPOLE |
2,776 | 11.57 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 895.5MHz | 863MHz ~ 928MHz | Whip, Tilt | 1 | 2 | -10dB | 0.9dBi | - | Cable - 150mm | I-PEX | - | - | - | Connector Mount | 6.024" (153.00mm) | GSM |
|

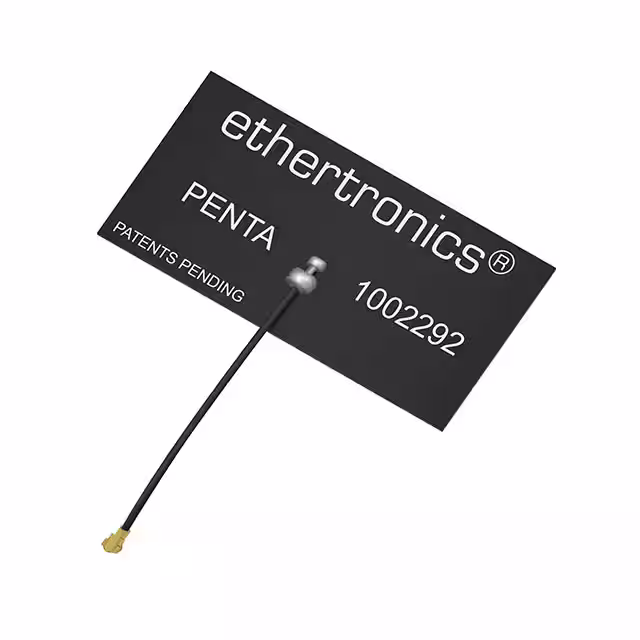

1002292RF ANT 700/750MHZ FLAT 28.5MM |
545 | 11.35 |
|
Datasheet |
Prestta™ | Bulk | Active | Cellular | Wide Band | 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Flat Patch | 8 | 3, 5 | - | - | 2 W | Cable - 28.5mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.049" (1.25mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|

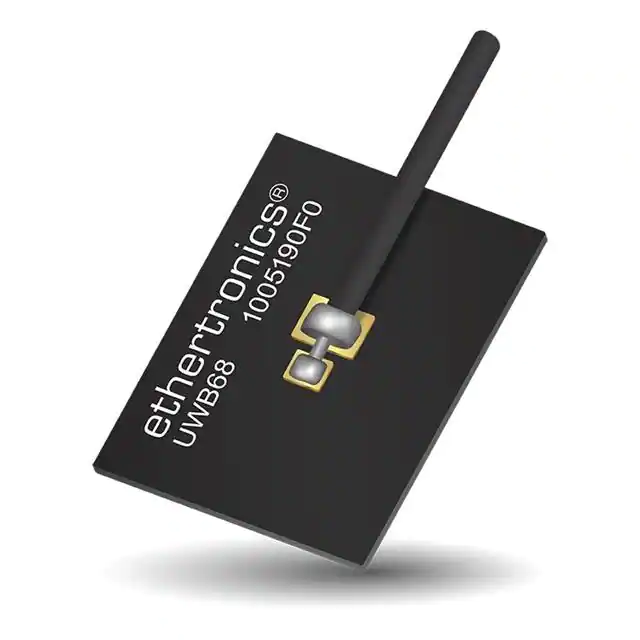

1005193-A01ANTENNA ASSY, UWB68 V SMA(M) |
996 | 8.20 |
|
Datasheet |
- | Box | Active | - | SHF (f > 4GHz) | 7.25GHz | 6GHz ~ 8.5GHz | PCB Trace | 1 | 2 | - | 6dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 0.031" (0.80mm) | UWB |
|

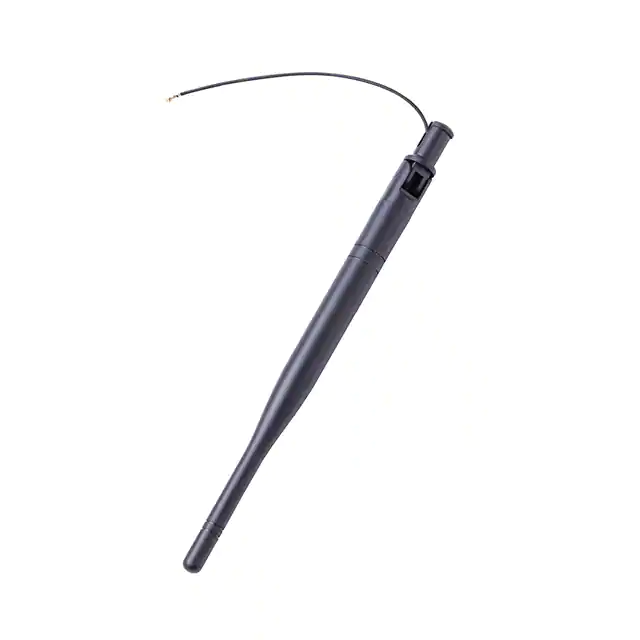

AEACAQ190012-S915RF ANT 915MHZ WHIP STR IPEX MHF |
2,460 | 9.60 |
|
Datasheet |
AEAC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Straight | 1 | 2 | - | 3.5dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 7.480" (190.00mm) | ISM, LoRa, LPWAN, Sigfox |
|
|
ANT-450-HSW-TNCRF ANT 450MHZ WHIP TNC PLUG |
521 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 418.5MHz, 458.75MHz | 410MHz ~ 427MHz, 450MHz ~ 467.5MHz | Whip, Right Angle | 2 | 1.2, 1.6 | - | 3.1dBi, 2.3dBi | 25 W | - | TNC Male | - | - | - | Connector Mount | 7.940" (201.68mm) | LTE |
|
DELTA7A/X/SMAM/RP/S/11RF ANT 2.4GHZ/5.8GHZ WHIP TILT |
116 | 8.98 |
|
Datasheet |
DELTA 7A | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | - | Whip, Tilt | 2 | 2 | - | 1.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.331" (110.00mm) | ISM |
|
ANT-418-CW-RAHRF ANT 418MHZ WHIP RA RP-SMA MAL |
826 | 11.65 |
|
Datasheet |
RAH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 410MHz ~ 426MHz | Whip, Right Angle | 1 | 1.9 | - | -6.1dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
ANT-450-HSW-NPRF ANT 450MHZ LTE WHIP N PLUG |
650 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 418.5MHz, 458.75MHz | 410MHz ~ 427MHz, 450MHz ~ 467.5MHz | Whip, Right Angle | 2 | 1.2, 1.6 | - | 3.1dBi, 2.3dBi | 25 W | - | N Type Male | - | - | - | Connector Mount | 8.090" (205.49mm) | LTE |
|

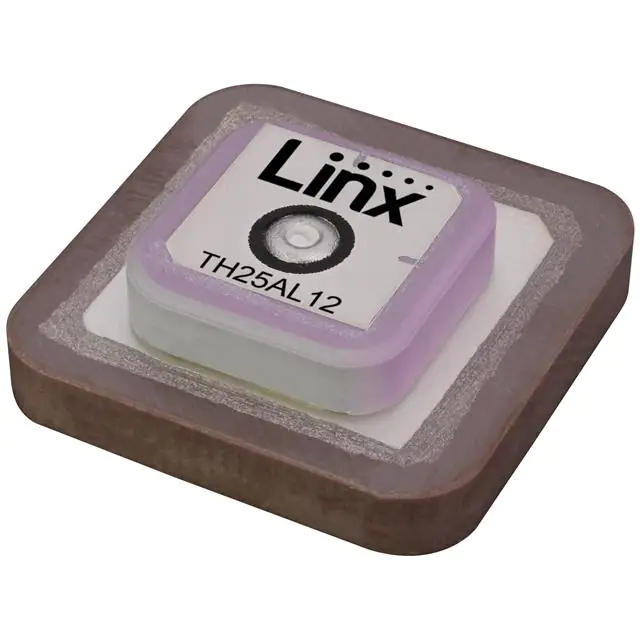

ANT-GNCP-TH25AL12RF ANT GNSS PATCH L1 L2 25MM PIN |
781 | 12.50 |
|
Datasheet |
GNCP | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.228GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.601GHz | 1.215GHz ~ 1.24GHz, 1.243GHz ~ 1.25GHz, 1.559GHz ~ 1.592GHz | Ceramic Patch | 5 | 12.1, 4.5, 5, 5, 2.1 | -1.4dB, -4dB, -3.5dB, -3.5dB, -9.1dB | -1.9dBi, -0.9dBi, 0.9dBi, 3.1dBi, 4dBi | 8 W | - | Pin | - | - | - | Solder | 0.315" (8.00mm) | Beidou, COMPASS, Galileo, GLONASS, GPS |
|

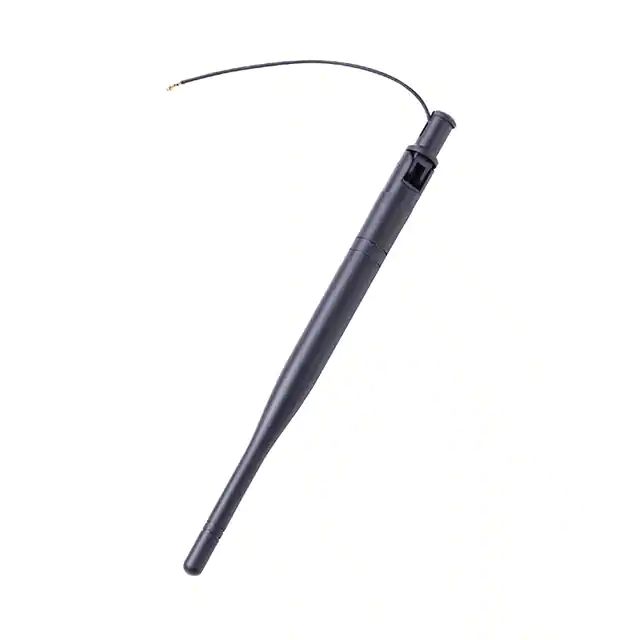

AEACAQ190012-S868RF ANT 868MHZ WHIP STR IPEX MHF |
299 | 10.55 |
|
Datasheet |
AEAC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Straight | 1 | 2 | - | 3.5dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 7.480" (190.00mm) | ISM, LoRa, LPWAN, Sigfox |
|

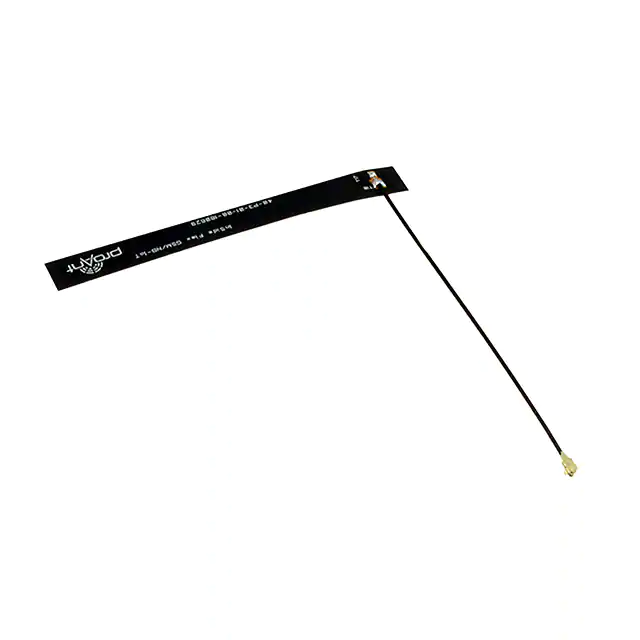

PRO-IS-590INSIDE FLEXFOIL GSM/NB-IOT MHF4 |
162 | 0.00 |
|
Datasheet |
Embedded Antenna | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 875.5MHz, 1.94GHz | 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -6dB | 5.5dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.005" (0.13mm) | EDGE, GPRS, GSM, LTE, UMTS |
|
APARM2504-C2GRRF ANT GPS+IRIDIUM CER PATCH |
273 | 10.52 |
|
Datasheet |
APAR | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.621GHz | 1.575GHz, 1.61GHz ~ 1.625GHz | Ceramic Patch | 2 | 1.8 | - | 2dBi, 3dBi | - | - | Solder | - | - | - | Through Hole | 0.157" (4.00mm) | GPS, Iridium |
|
66089-0430RF ANT 425MHZ WHIP STR U.FL CONN |
665 | 8.95 |
|
Datasheet |
66089 | Tray | Active | - | UHF (300MHz ~ 1GHz) | 425MHz | - | Whip, Straight | 1 | 1.7 | - | 3dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 7.992" (203.00mm) | - |
|
|
W5151ANTENNA 5G NR 4G LTE BLADE |
662 | 8.93 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | Wide Band | 788.5MHz, 4.2275GHz | 617MHz ~ 960MHz, 1.43GHz ~ 7.125GHz | Blade, Tilt/Swivel | 2 | - | -6dB | 0.9dBi, 3.8dBi | 3 W | - | SMA Male | IP65 | - | - | Connector Mount | 8.789" (223.24mm) | 2G, 3G, 4G, 5G, Wi-Fi 6E |
|

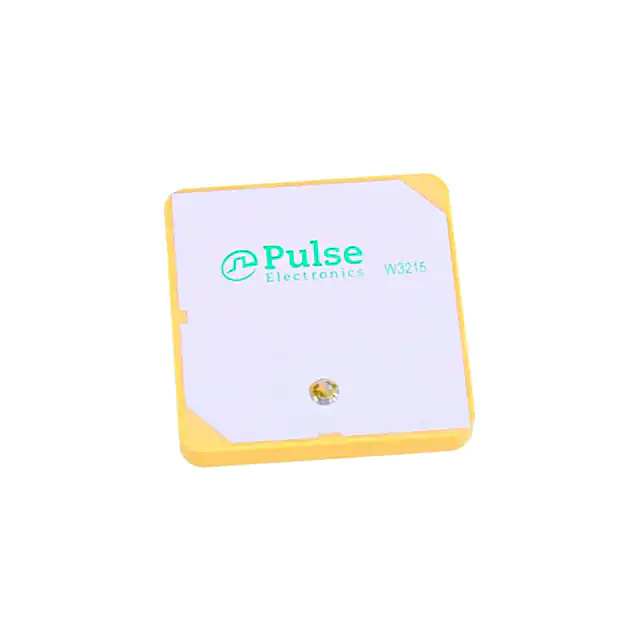

W3215ANT CER 902-928MHZ 40X40X6 PIN |
171 | 13.78 |
|
Datasheet |
Patch Antenna | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Ceramic Patch | 1 | - | -4dB, -20dB | 5dBi | - | - | Pin | - | - | - | Adhesive | 0.236" (6.00mm) | ISM |
|

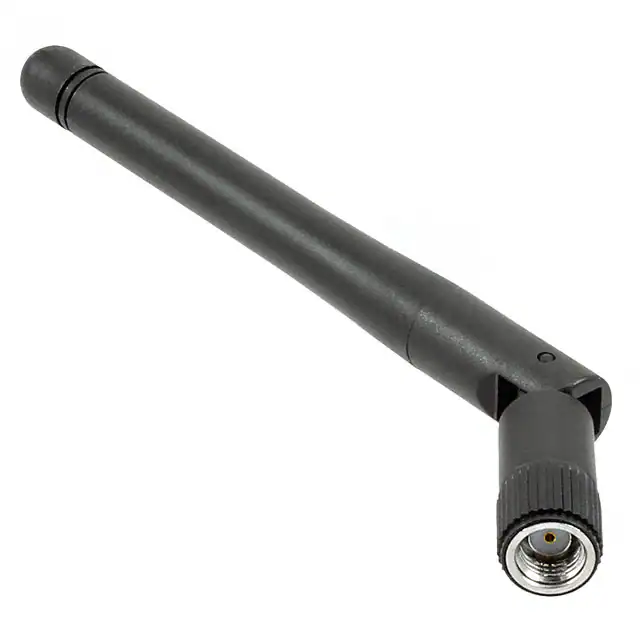

RFDPA870900SBAB8G1RF ANT 2.4GHZ WHIP TILT RP-SMA |
755 | 13.49 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | 2 | -10dB | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.425" (87.00mm) | - |
