RF Directional Coupler

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Coupler Type	Frequency	Coupling Factor	Applications	Insertion Loss	Power - Max	Isolation	Return Loss	Supplier Device Package
XEC24A6-03GR RF DIR COUPLER 2.4-2.5GHZ 4SMD TTM Technologies, Inc.	221	18.54	RFQ	-	Xinger®	Tape & Reel (TR)	Active	Standard	2.4GHz ~ 2.5GHz	-	General Purpose	0.15dB	600W	20dB	-	4-SMD
SYD-20-33+ RF DIR COUPLER 30MHZ-3GHZ 8SMD Mini-Circuits	446	26.29	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Standard	30MHz ~ 3GHz	21.5 ± 0.5dB	General Purpose	-	1W	-	34.45dB	-
EDC10-183+ RF DIR CPLR 6GHZ-18GHZ 24VFQFN Mini-Circuits	931	35.16	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Standard	6GHz ~ 18GHz	10.8dB	GSM, LTE	-	-	-	24dB	-

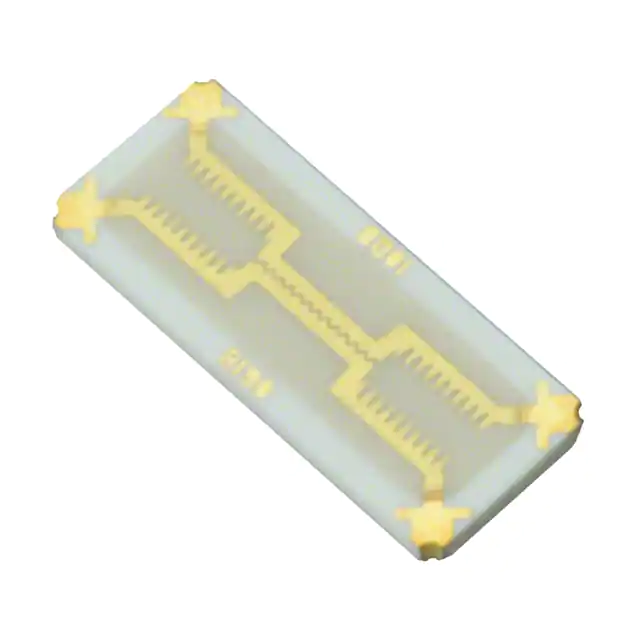

FPC06719 RF DIR COUPLER 6GHZ-18GHZ SMD Knowles Dielectric Labs	204	33.15	RFQ	Datasheet	-	Bulk	Active	Standard	6GHz ~ 18GHz	11.5dB	General Purpose	1dB	-	-	18dB	-
EDC21-24+ RF DIR CPLR 4GHZ-20GHZ 24VFQFN Mini-Circuits	3,508	35.16	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Standard	4GHz ~ 20GHz	21 ± 2dB	General Purpose	-	-	-	26dB	-
EDC10-273+ RF DIR CPLR 6GHZ-26.5GHZ 24VFQFN Mini-Circuits	2,150	39.17	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Standard	6GHz ~ 26.5GHz	10 ± 1.5dB	Wireless LAN	-	1W	-	24dB	-

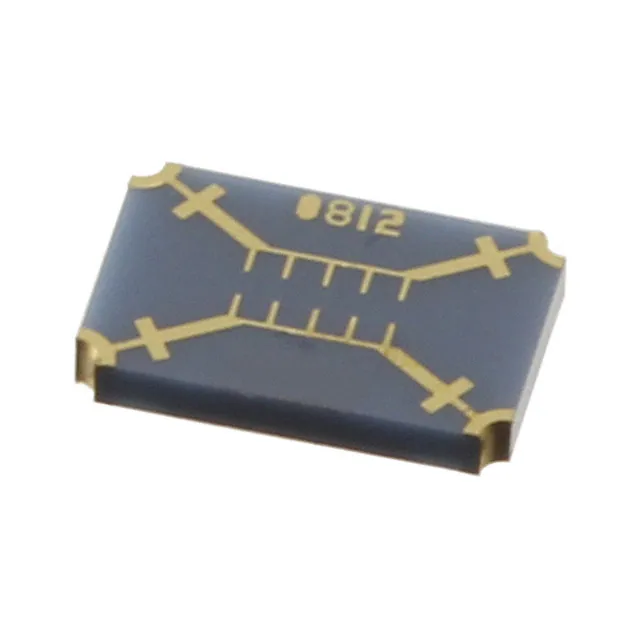

FPC06075 RF DIR COUPLER 12GHZ-18GHZ SMD Knowles Dielectric Labs	194	29.25	RFQ	Datasheet	-	Bulk	Active	Standard	12GHz ~ 18GHz	12dB	General Purpose	0.22dB	-	-	15dB	-
SYDC-20-62HP+ SMT BI-DIR COUP, 10 - 540 MHZ Mini-Circuits	296	0.00	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Standard	10MHz ~ 540MHz	19.8 ± 0.5dB	Military	-	25W	-	26dB	-
SYDC-20-13HP+ 20 DB BI-DIR COUP, 40 - 1000 MHZ Mini-Circuits	226	0.00	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Standard	40MHz ~ 1GHz	20 ± 1dB	Cellular	-	-	-	13dB	-
XMC0204F1-03GR1 RF DIR COUPLER 2GHZ-4GHZ SMD TTM Technologies, Inc.	114	37.31	RFQ	Datasheet	Xinger®	Tape & Reel (TR)	Active	Standard	2GHz ~ 4GHz	-	General Purpose	0.25dB	40W	23dB	-	-
SYBDC-27-82VHP+ 27 DB BI-DIR COUP, 30 - 840 MHZ Mini-Circuits	2,402	0.00	RFQ	Datasheet	-	Strip	Active	Standard	30MHz ~ 840MHz	26.5 ± 1dB	General Purpose	-	-	-	24dB	-
ZFDC-10-5-S+ DIR COUP / SMA ROHS Mini-Circuits	3,520	140.83	RFQ	Datasheet	-	Tray	Active	Standard	1MHz ~ 2GHz	10.8 ± 0.5dB	General Purpose	-	500mW	-	31.26dB	-

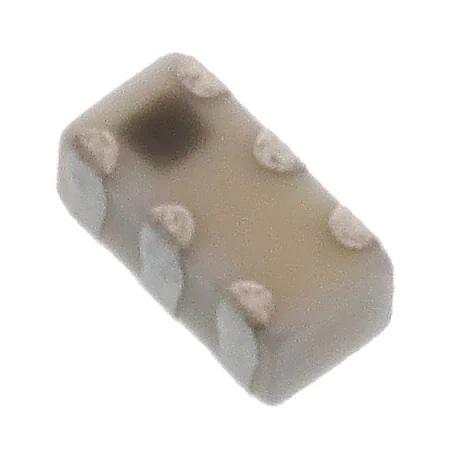

HHM22139A2 MULTILAYER DIRECTIONAL COUPLER F TDK Corporation	11,665	0.23	RFQ	Datasheet	HHM	Tape & Reel (TR)	Active	Standard	698MHz ~ 2.62GHz	25dB	General Purpose	0.11dB	-	49.7dB	29dB	0603

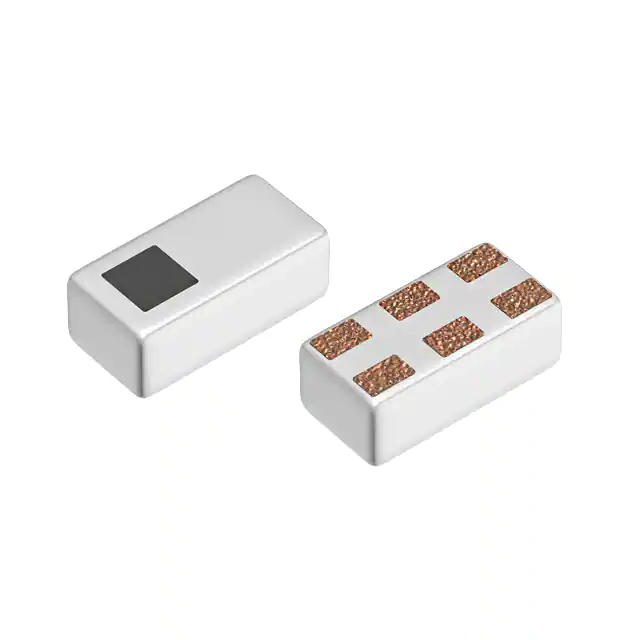

HHM22152A2 RF DIR COUPLER 450-3800MHZ 1608 TDK Corporation	18,307	0.22	RFQ	Datasheet	HHM	Tape & Reel (TR)	Active	Standard	-	-	General Purpose	0.4dB	3W	-	15dB	1608
HHM2955A1 DIRECTIONAL COUPLER 1.4-5.95GHZ TDK Corporation	10,845	0.26	RFQ	Datasheet	HHM	Tape & Reel (TR)	Active	Standard	1.427GHz ~ 5.95GHz	25.8dB	General Purpose	0.05dB	3W	47.8dB	25dB	0402

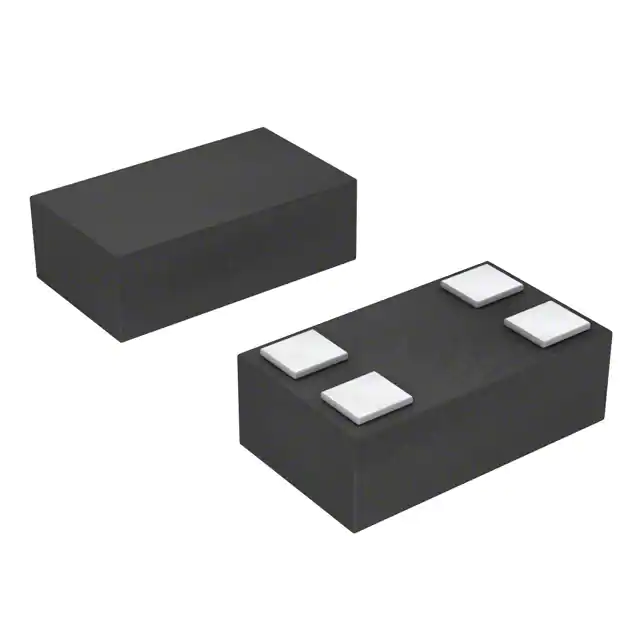

CP0402W2700FNTR RF DIR COUPLR 700MHZ-2.7GHZ 0402 KYOCERA AVX	5,862	0.52	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Standard	700MHz ~ 2.7GHz	24dB	General Purpose	0.3dB	-	-	18dB	0402 (1005 Metric)

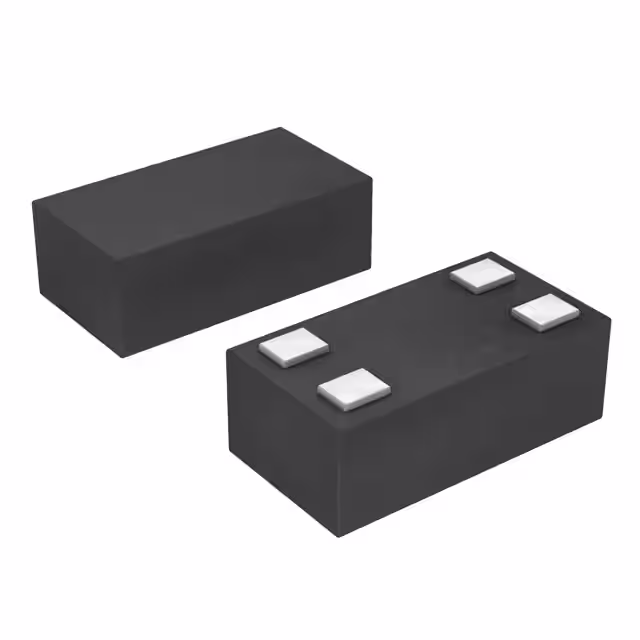

CP0603A0902CNTR RF DIR COUPLER 890-915MHZ 0603 KYOCERA AVX	3,600	0.56	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Standard	890MHz ~ 915MHz	14.7dB	GSM	0.35dB	3W	-37dB	23dB	0603
C2327J5003AHF RF DIR COUPLER 2.3-2.7GHZ 0805 TTM Technologies, Inc.	11,775	0.98	RFQ	Datasheet	Xinger®	Tape & Reel (TR)	Active	Standard	2.3GHz ~ 2.7GHz	3dB	General Purpose	0.3dB	4W	22dB	18dB	0805
DC1722J5020AHF RF DIR COUPLER 1.7-2.2GHZ 0805 TTM Technologies, Inc.	7,219	1.12	RFQ	Datasheet	Xinger®	Tape & Reel (TR)	Active	Standard	1.7GHz ~ 2.2GHz	19.9dB	General Purpose	0.17dB	2W	-	22.5dB	0805 (2012 Metric)
DC4759J5020AHF RF DIR COUPLER 4.7-5.9GHZ 0805 TTM Technologies, Inc.	6,531	1.12	RFQ	Datasheet	Xinger®	Tape & Reel (TR)	Active	Standard	4.7GHz ~ 5.9GHz	19.7dB	General Purpose	0.17dB	2W	-	7.6dB	0805 (2012 Metric)

Total 2890 Record«Prev 1 2 345 6 7...145 Next»
