RF Directional Coupler
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

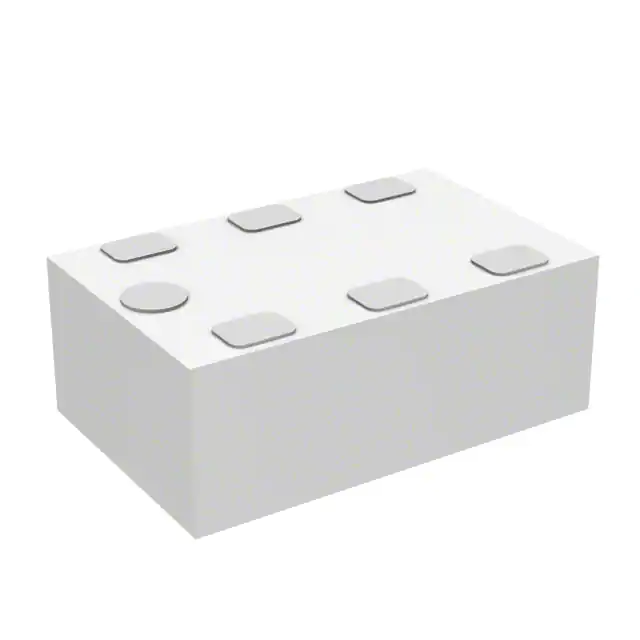

C0810J5003AHFRF DIR COUPLER 800MHZ-1GHZ 0805 |
30,247 | 0.98 |
|
Datasheet |
Xinger® | Tape & Reel (TR) | Active | Standard | 800MHz ~ 1GHz | 3dB | CDMA, WCDMA | 0.5dB | 4W | 23dB | 31dB | 0805 (2012 Metric) |
|
|
C5060J5003AHFRF DIR CPLR 5-6GHZ HY 90DEG 0805 |
18,109 | 0.98 |
|
Datasheet |
Xinger® | Tape & Reel (TR) | Active | Standard | 4.5GHz ~ 6GHz | 3dB | General Purpose | 0.2dB | 4W | 27dB | 26dB | 0805 |
|
|
C1517J5003AHFRF DIR COUPLER 1.5-1.7GHZ 0805 |
14,742 | 0.98 |
|
Datasheet |
Xinger® | Tape & Reel (TR) | Active | Standard | 1.5GHz ~ 1.7GHz | 3dB | General Purpose | 0.2dB | 4W | 28dB | 25dB | 0805 |
|
|
DC0710J5010AHFRF DIR COUPLER 700MHZ-1GHZ 0805 |
32,240 | 1.12 |
|
Datasheet |
Xinger® | Tape & Reel (TR) | Active | Standard | 700MHz ~ 1GHz | 10.9dB | General Purpose | 0.21dB | 2W | - | 17.5dB | 0805 |
|
|
DC2337J5020AHFRF DIR COUPLER 2.3-3.7GHZ 0805 |
10,282 | 1.12 |
|
Datasheet |
Xinger® | Tape & Reel (TR) | Active | Standard | 2.3GHz ~ 3.7GHz | 21.3dB | General Purpose | 0.14dB | 2W | - | 21.2dB | 0805 (2012 Metric) |
|
|
C0727J5003AHFHYBRID COUPLR 700MHZ-2.7GHZ 0805 |
3,887 | 1.12 |
|
Datasheet |
Xinger® | Tape & Reel (TR) | Active | Standard | 700MHz ~ 2.7GHz | 3dB | General Purpose | 0.7dB | 2W | 28.8dB | 31dB | 0805 |
|
|
DC2337J5010AHFRF DIR COUPLER 2.3-3.7GHZ 0805 |
1,589 | 1.12 |
|
Datasheet |
Xinger® | Tape & Reel (TR) | Active | Standard | 2.3GHz ~ 3.7GHz | 10dB | General Purpose | 0.29dB | 2W | - | 20dB | 0805 (2012 Metric) |
|
0910CF15B0100001ERF DIR COUPLER 860-960MHZ 0805 |
33,019 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Coupler, With Filter | 860 ~ 960MHz | 10 ± 1dB | General Purpose | 1.2dB | - | 30dB | 20dB | 0805 |
|
|
X3C14F1-03SHYBRID COUPLER 3DB 90DEG |
5,258 | 0.00 |
|
Datasheet |
Xinger® | Tape & Reel (TR) | Active | Standard | 1.2GHz ~ 1.7GHz | 3dB | General Purpose | 0.25dB | 25W | 23dB | - | SMD |
|
|
X4C40K1-20SRDIRECTIONAL COUPLER 5G 20DB ATTO |
3,052 | 0.00 |
|
- |
Xinger® | Tape & Reel (TR) | Active | Standard | 3.3GHz ~ 5.1GHz | - | General Purpose | - | 25W | - | - | 1210 |
|
|
X3C09F1-03SRF DIR COUPLER 800MHZ-1GHZ SMD |
10,505 | 1.44 |
|
Datasheet |
Xinger® III | Tape & Reel (TR) | Active | Standard | 800MHz ~ 1GHz | - | General Purpose | 0.16dB | 25W | 26dB | - | - |
.JPG)
|

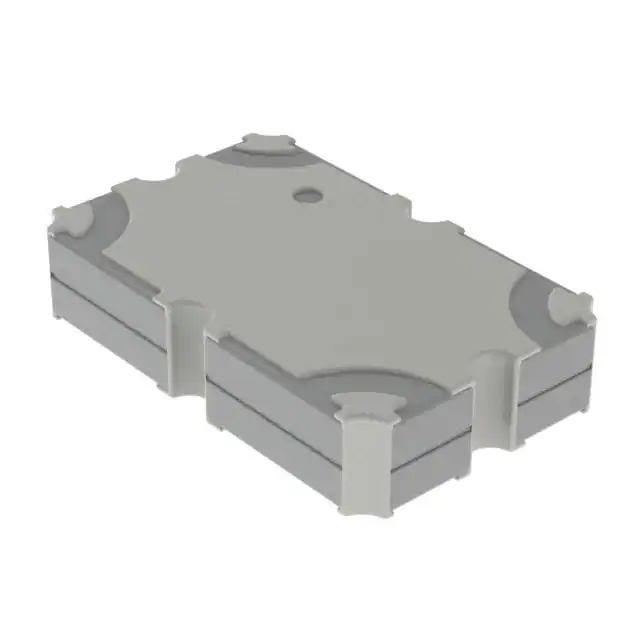

X3C19F1-03SRF DIR COUPLER 1.7GHZ-2.3GHZ SMD |
6,817 | 3.22 |
|
Datasheet |
Xinger® III | Tape & Reel (TR) | Active | Standard | 1.7GHz ~ 2.3GHz | - | General Purpose | 0.25dB | 25W | 26dB | - | - |
|
|
X3C25F1-03SRF DIR COUPLER 2.3GHZ-2.7GHZ SMD |
339 | 1.44 |
|
Datasheet |
Xinger® III | Tape & Reel (TR) | Active | Standard | 2.3GHz ~ 2.7GHz | - | General Purpose | 0.2dB | 25W | 26dB | - | - |
|
|
X3C35F1-03SRF DIR COUPLER 3.3GHZ-3.7GHZ SMD |
3,077 | 1.44 |
|
Datasheet |
Xinger® III | Tape & Reel (TR) | Active | Standard | 3.3GHz ~ 3.7GHz | - | General Purpose | 0.2dB | 25W | 23dB | - | - |
|

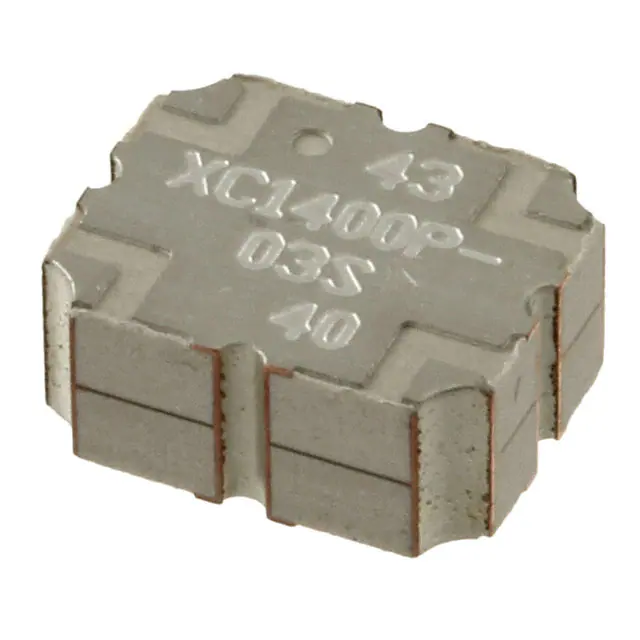

XC1400P-03SRF DIR COUPLER 1.2GHZ-1.6GHZ SMD |
22,858 | 3.33 |
|
Datasheet |
Xinger® II | Tape & Reel (TR) | Active | Standard | 1.2GHz ~ 1.6GHz | - | General Purpose | 0.32dB | 40W | 23dB | - | SMD |
|
DBTC-17-5L+RF DIR COUPLER 50MHZ-2GHZ 5SMD |
3,024 | 4.81 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 50MHz ~ 2GHz | 17.5 ± 1dB | Cellular | - | 2W | - | 28.07dB | - |
|
DCW-9-432+9 DB SMT DIRECTIONAL COUPLER, 23 |
1,066 | 4.90 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 2.3GHz ~ 4.3GHz | 9dB | General Purpose | - | - | - | - | - |
|

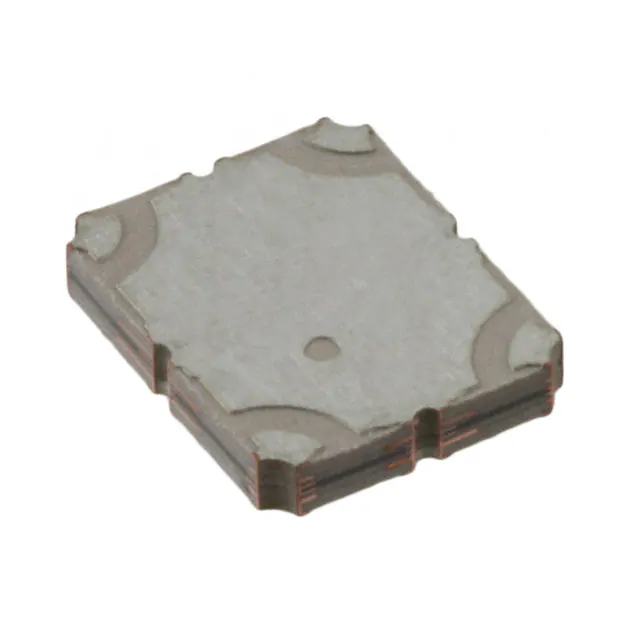

X3C09P1-03SRF DIR COUPLER 800MHZ-1GHZ 4SMD |
4,506 | 4.31 |
|
Datasheet |
Xinger® III | Tape & Reel (TR) | Active | Standard | 800MHz ~ 1GHz | 3dB | AMPS, CDMA, WCDMA | 0.22dB | 90W | 23dB | 24.9dB | 4-SMD |
|
|
X3C09F1-20SRF DIR COUPLER 700MHZ-1GHZ SMD |
5,540 | 4.17 |
|
Datasheet |
Xinger® III | Tape & Reel (TR) | Active | Standard | 700MHz ~ 1GHz | 20dB | General Purpose | 0.075dB | 25W | - | - | - |
|

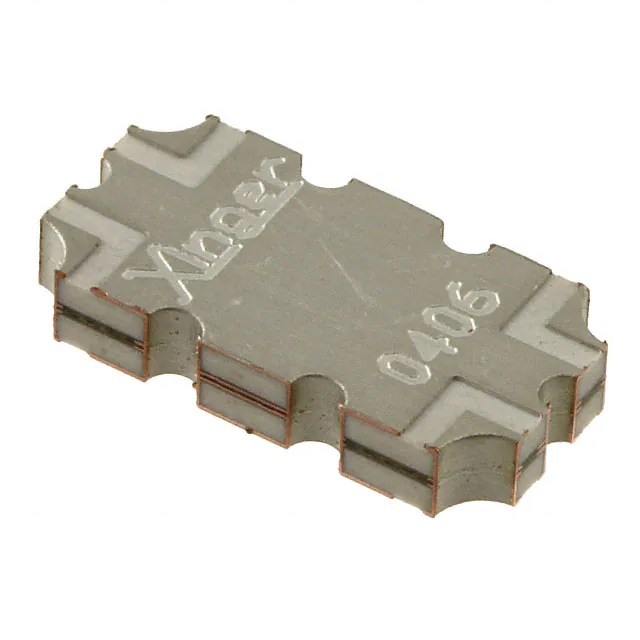

1M803SRF DIR COUPLER 4.8GHZ-6GHZ SMD |
1,422 | 4.26 |
|
Datasheet |
Xinger® | Tape & Reel (TR) | Active | Standard | 4.8GHz ~ 6GHz | - | General Purpose | 0.25dB | 20W | 20dB | - | - |
