RF Filters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB5655B1049RF FILTER BAND PASS 5.655GHZ MOD |
100 | 445.89 |
|
Datasheet |
- | Module | Box | Active | 5.655GHz Center | 20MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.283" L x 3.283" W (83.40mm x 83.40mm) | 1.354" (34.40mm) |
|
|
AB5695B1050RF FILTER BAND PASS 5.695GHZ MOD |
100 | 445.89 |
|
Datasheet |
- | Module | Box | Active | 5.695GHz Center | 20MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.283" L x 3.283" W (83.40mm x 83.40mm) | 1.354" (34.40mm) |
|
|
AB5495B1045RF FILTER BAND PASS 5.495GHZ MOD |
100 | 445.89 |
|
Datasheet |
- | Module | Box | Active | 5.495GHz Center | 20MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.283" L x 3.283" W (83.40mm x 83.40mm) | 1.354" (34.40mm) |
|
|
AB5560B957RF FILTER BAND PASS 5.56GHZ MOD |
100 | 449.40 |
|
Datasheet |
- | Module | Box | Active | 5.56GHz Center | 20MHz | Band Pass | 0.2dB | 1.75dB | Chassis Mount | 3.268" L x 3.268" W (83.00mm x 83.00mm) | 1.354" (34.40mm) |
|
|
AB5815B584RF FILTER BAND PASS 5.815GHZ MOD |
100 | 449.40 |
|
Datasheet |
- | Module | Box | Active | 5.815GHz Center | 20MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.500" L x 3.500" W (88.90mm x 88.90mm) | 1.500" (38.10mm) |
|
|
AE1600L9119RF FILTER LOW PASS 1.6GHZ MODULE |
100 | 449.40 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.6GHz (Cutoff) | - | Low Pass | - | 1.5dB | Chassis Mount | 1.500" L x 0.380" W (38.10mm x 9.65mm) | 0.380" (9.65mm) |
|
|
AB2483B1200RF FILTER BANDPASS 2.4835GHZ MOD |
100 | 450.00 |
|
Datasheet |
- | Module | Box | Active | 2.4835GHz Center | 22MHz | Band Pass | 1.2dB | 3dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.024" (26.00mm) |
|
|
AE2287B10568RF FILTER BAND PASS 2.294GHZ MOD |
100 | 339.60 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.294GHz Center | 35MHz | Band Pass | 0.05dB | - | Chassis Mount | 2.200" L x 1.200" W (55.88mm x 30.48mm) | 0.450" (11.43mm) |
|
|
AE1550L9079RF FILTER LOWPASS 1.55GHZ MODULE |
100 | 455.06 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.55GHz (Cutoff) | 1.55GHz | Low Pass | - | 1dB | Chassis Mount | 1.750" L x 0.500" W (44.45mm x 12.70mm) | 0.412" (10.46mm) |
|
|
AB5592B778RF FILTER BAND PASS 5.592GHZ MOD |
100 | 455.26 |
|
Datasheet |
- | Module | Box | Active | 5.592GHz Center | 40MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.500" L x 3.500" W (88.90mm x 88.90mm) | 1.500" (38.10mm) |
|
|
AE70B11273RF FILTER BAND PASS 70MHZ 6DIP |
100 | 455.30 |
|
Datasheet |
- | 6-DIP Module | Box | Active | 70MHz Center | 12MHz | Band Pass | - | 2dB | Through Hole | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.412" (10.46mm) |
|
|
AB912B1156RF FILTER BANDPASS 912MHZ MODULE |
100 | 455.98 |
|
Datasheet |
- | Module | Box | Active | 912MHz Center | 10MHz | Band Pass | 0.2dB | 3dB | Chassis Mount | 5.512" L x 3.150" W (140.00mm x 80.00mm) | 2.098" (53.30mm) |
|
|
AE160B6208RF FILTER BAND PASS 160MHZ 6SMD |
100 | 457.50 |
|
Datasheet |
- | 6-SMD Module | Box | Active | 160MHz Center | 16MHz | Band Pass | - | 2dB | Surface Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AE100L8904RF FILTER LOW PASS 100MHZ MODULE |
100 | 457.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 100MHz (Cutoff) | 100MHz | Low Pass | - | 3dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|

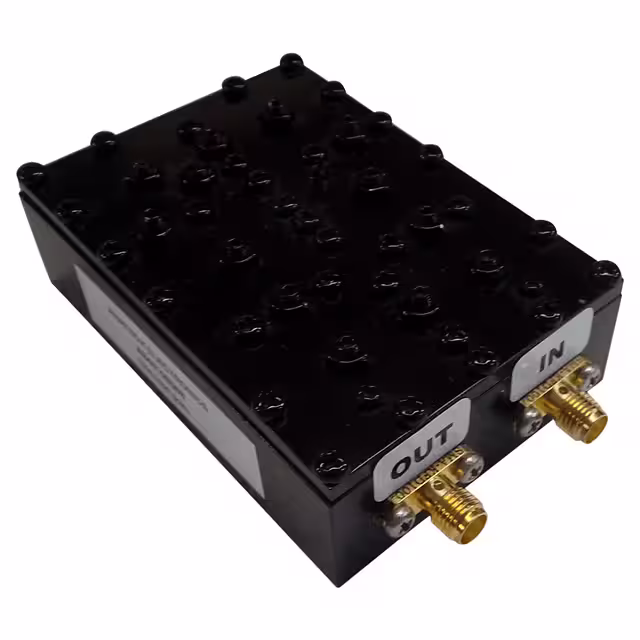

AB4810B968RF FILTER BAND PASS 4.81GHZ MOD |
100 | 457.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 4.81GHz Center | 50MHz | Band Pass | - | 1.7dB | Chassis Mount | 3.020" L x 2.090" W (76.71mm x 53.09mm) | 1.090" (27.68mm) |
|
|
AE45B10996RF FILTER BAND PASS 45MHZ 12SMD |
100 | 457.50 |
|
Datasheet |
- | 12-SMD Module | Box | Active | 45MHz Center | 80MHz | Band Pass | - | 1.5dB | Surface Mount | 0.900" L x 0.500" W (22.86mm x 12.70mm) | 0.300" (7.62mm) |
|
|
AE513L8907RF FILTER LOW PASS 513MHZ MODULE |
100 | 457.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 513MHz (Cutoff) | - | Low Pass | - | 3dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|
|
AE5B10717RF FILTER BAND PASS 5MHZ BNC |
100 | 457.50 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 5MHz Center | 28.8kHz | Band Pass | 0.5dB | 10dB | Chassis Mount | 4.000" L x 2.000" W (101.60mm x 50.80mm) | 1.000" (25.40mm) |
|
|
AE5825B1404RF FILTER BANDPASS 5.825GHZ TNC |
100 | 457.50 |
|
Datasheet |
- | TNC In-Line Module | Box | Active | 5.825GHz Center | 20MHz | Band Pass | 0.2dB | 2dB | Chassis Mount | 5.394" L x 3.858" W (137.00mm x 98.00mm) | 1.276" (32.40mm) |
|
|
AE297L8906RF FILTER LOW PASS 297MHZ MODULE |
100 | 457.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 297MHz (Cutoff) | - | Low Pass | - | 3dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
