RF Filters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE250B8813RF FILTER BAND PASS 250MHZ BNC |
100 | 402.60 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 250MHz Center | - | Band Pass | 0.1dB | 2dB | Chassis Mount | 2.380" L x 1.000" W (60.45mm x 25.40mm) | 1.000" (25.40mm) |
|
|
AB2440B1163RF FILTER BAND PASS 2.44GHZ MOD |
100 | 405.48 |
|
Datasheet |
- | Module | Box | Active | 2.44GHz Center | 22MHz | Band Pass | 1.2dB | 3dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.024" (26.00mm) |
|
|
AB2410B1162RF FILTER BAND PASS 2.41GHZ MOD |
100 | 405.48 |
|
Datasheet |
- | Module | Box | Active | 2.41GHz Center | 22MHz | Band Pass | 1.2dB | 3dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.024" (26.00mm) |
|
|
AB2470B1164RF FILTER BAND PASS 2.47GHZ MOD |
100 | 405.48 |
|
Datasheet |
- | Module | Box | Active | 2.47GHz Center | 22MHz | Band Pass | 1.2dB | 3dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.024" (26.00mm) |
|
|
AE390B10236RF FILTER BANDPASS 390MHZ MODULE |
100 | 405.48 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 390MHz Center | - | Band Pass | - | 2dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AE608B9621RF FILTER BAND PASS 608MHZ BNC |
100 | 405.48 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 608MHz Center | 60MHz | Band Pass | - | 1dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|
|
AE500B10400RF FILTER BAND PASS 500MHZ BNC |
100 | 405.48 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 500MHz Center | 60MHz | Band Pass | - | 1dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|
|
AB913B488RF FILTER BANDPASS 913MHZ MODULE |
100 | 405.65 |
|
Datasheet |
- | Module | Box | Active | 913MHz Center | 20MHz | Band Pass | 1dB | 1.6dB | Chassis Mount | 5.512" L x 4.450" W (140.00mm x 113.02mm) | 2.213" (56.20mm) |
|
|
AB5290B1165RF FILTER BAND PASS 5.29GHZ MOD |
100 | 406.63 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5.29GHz Center | 80MHz | Band Pass | - | 0.7dB | Chassis Mount | 2.382" L x 1.760" W (60.50mm x 44.70mm) | 0.906" (23.00mm) |
|
|
AB5540B1166RF FILTER BAND PASS 5.54GHZ MOD |
100 | 406.63 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5.54GHz Center | 100MHz | Band Pass | - | 0.9dB | Chassis Mount | 3.307" L x 1.760" W (84.00mm x 44.70mm) | 0.906" (23.00mm) |
|
AB5742B1170RF FILTER BANDPASS 5.7425GHZ MOD |
100 | 406.63 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5.7425GHz Center | 185MHz | Band Pass | - | 1dB | Chassis Mount | 2.827" L x 1.417" W (71.80mm x 36.00mm) | 0.827" (21.00mm) |
|

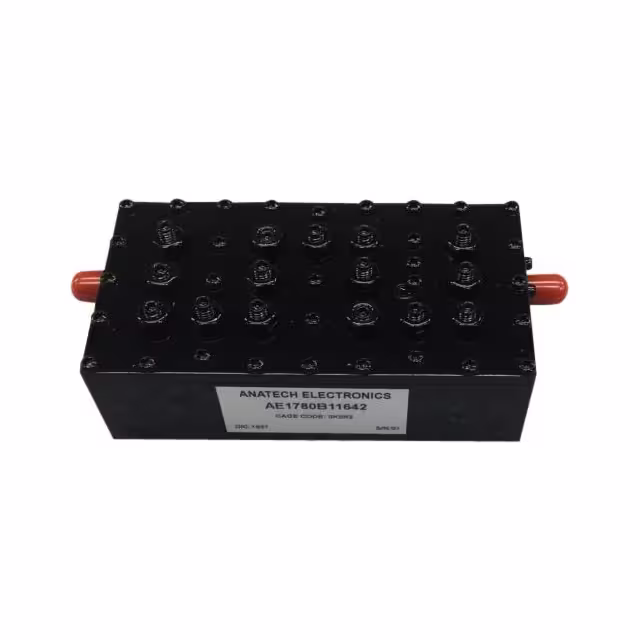

AE1780B11642RF FILTER BAND PASS 1.78GHZ MOD |
100 | 408.70 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.78GHz Center | 140MHz | Band Pass | - | 1dB | Chassis Mount | 3.701" L x 1.969" W (94.00mm x 50.00mm) | 1.457" (37.00mm) |
|

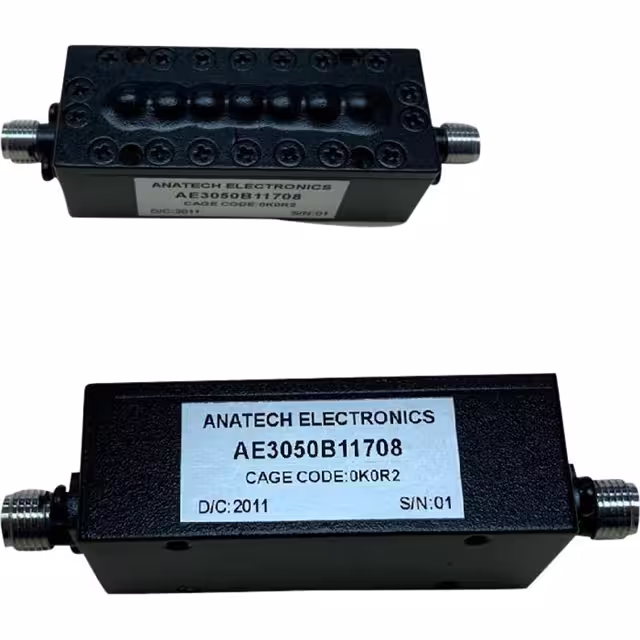

AE3050B11708RF FILTER BAND PASS 3.05GHZ MOD |
100 | 412.36 |
|
- |
- | Module, SMA Connectors | Box | Active | 3.05GHz Center | 100MHz | Band Pass | - | 0.7dB | Chassis Mount | 1.969" L x 0.787" W (50.00mm x 20.00mm) | 0.748" (19.00mm) |
|
|
AE1200B11286RF FILTER BANDPASS 1.2GHZ MODULE |
100 | 415.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.2GHz Center | 400MHz | Band Pass | - | 1dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AB914B1098RF FILTER BAND PASS 914.5MHZ MOD |
100 | 418.09 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 914.5MHz Center | 20MHz | Band Pass | - | 1.5dB | Chassis Mount | 5.512" L x 3.150" W (140.00mm x 80.00mm) | 2.098" (53.30mm) |
|
|
AB5640B961RF FILTER BAND PASS 5.64GHZ MOD |
100 | 420.12 |
|
Datasheet |
- | Module | Box | Active | 5.64GHz Center | 20MHz | Band Pass | 0.2dB | 1.75dB | Chassis Mount | 3.283" L x 3.283" W (83.40mm x 83.40mm) | 1.354" (34.40mm) |
|

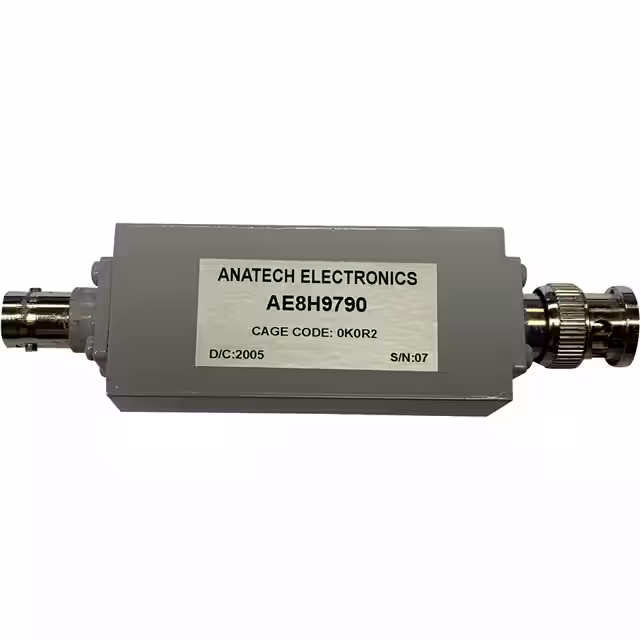

AE8H9790RF FILTER HIGH PASS 8MHZ BNC |
100 | 420.12 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 8MHz (Cutoff) | 232MHz | High Pass | - | 0.5dB | Chassis Mount | 2.500" L x 1.125" W (63.50mm x 28.58mm) | 0.750" (19.05mm) |
|

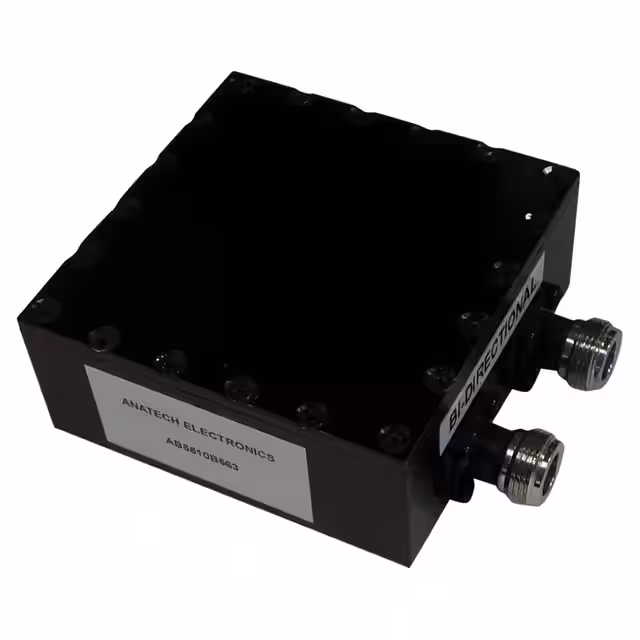

AB5510B563RF FILTER BAND PASS 5.51GHZ MOD |
100 | 420.12 |
|
Datasheet |
- | Module | Box | Active | 5.51GHz Center | 20MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.283" L x 3.283" W (83.40mm x 83.40mm) | 1.276" (32.40mm) |
|
|
AB5550B565RF FILTER BAND PASS 5.55GHZ MOD |
100 | 420.12 |
|
Datasheet |
- | Module | Box | Active | 5.55GHz Center | 20MHz | Band Pass | 0.2dB | 1.75dB | Chassis Mount | 3.283" L x 3.283" W (83.40mm x 83.40mm) | 1.354" (34.40mm) |
|
|
AB5835B1257RF FILTER BAND PASS 5.835GHZ MOD |
100 | 420.12 |
|
Datasheet |
- | Module | Box | Active | 5.835GHz Center | 20MHz | Band Pass | 0.2dB | 1.75dB | Chassis Mount | 5.394" L x 3.858" W (137.00mm x 98.00mm) | 1.276" (32.40mm) |
