RF Filters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE3910B11469RF FILTER BAND PASS 3.91GHZ MOD |
100 | 512.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3.91GHz Center | 15MHz | Band Pass | - | 3.5dB | Chassis Mount | 2.640" L x 1.650" W (67.06mm x 41.91mm) | 0.990" (25.15mm) |
|
AB9500B1354RF FILTER BANDPASS 9.5GHZ MODULE |
100 | 512.40 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 9.5GHz Center | 400MHz | Band Pass | - | 2dB | Chassis Mount | 1.791" L x 0.591" W (45.50mm x 15.00mm) | 0.354" (9.00mm) |
|
|
AE160B5108RF FILTER BANDPASS 160MHZ MODULE |
100 | 457.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 160MHz Center | 16MHz | Band Pass | - | 2dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AE7000SSH6561RF FILTER HIGH PASS 7GHZ MODULE |
100 | 0.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 7GHz (Cutoff) | 17GHz | High Pass | - | 2dB | Chassis Mount | 1.181" L x 0.827" W (30.00mm x 21.00mm) | 0.394" (10.00mm) |
|
|
AE30L8933RF FILTER LOW PASS 30MHZ MODULE |
100 | 515.00 |
|
Datasheet |
- | Module | Box | Active | 30MHz (Cutoff) | 30MHz | Low Pass | - | 0.5dB | Chassis Mount | 6.000" L x 2.000" W (152.40mm x 50.80mm) | 1.500" (38.10mm) |
|

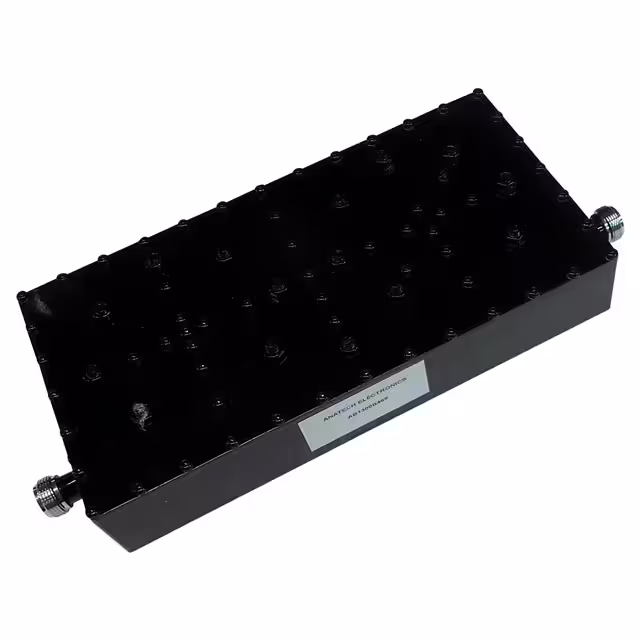

AB1300B469RF FILTER BANDPASS 1.3GHZ MODULE |
100 | 518.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.3GHz Center | - | Band Pass | - | 2dB | Chassis Mount | 8.346" L x 4.252" W (212.00mm x 108.00mm) | 1.378" (35.00mm) |
|
|
AE1500L9231RF FILTER LOW PASS 1.5GHZ MODULE |
100 | 518.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.5GHz (Cutoff) | - | Low Pass | - | 1.2dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AB2315B994RF FILTER BAND PASS 2.315GHZ MOD |
100 | 518.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.315GHz Center | 10MHz | Band Pass | 0.2dB | 1dB | Chassis Mount | 6.181" L x 5.512" W (157.00mm x 140.00mm) | 1.575" (40.00mm) |
|
|
AE4800B11587RF FILTER BANDPASS 4.8GHZ MODULE |
100 | 518.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 4.8GHz Center | 1.6GHz | Band Pass | - | 1.5dB | Chassis Mount | 1.693" L x 0.748" W (43.00mm x 19.00mm) | 0.327" (8.30mm) |
|
|
AE285L8698RF FILTER LOW PASS 285MHZ BNC |
100 | 518.50 |
|
- |
- | BNC In-Line Module | Box | Active | 285MHz (Cutoff) | 285MHz | Low Pass | - | 1dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|
|
AE1000B10426RF FILTER BAND PASS 1GHZ MODULE |
100 | 518.50 |
|
Datasheet |
- | Module | Box | Active | 1GHz Center | 50MHz | Band Pass | - | 3dB | Chassis Mount | 2.000" L x 0.500" W (50.80mm x 12.70mm) | 0.400" (10.16mm) |
|
|
AE154B10097RF FILTER BAND PASS 154MHZ BNC |
100 | 518.50 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 154MHz Center | 4MHz | Band Pass | - | 2dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|

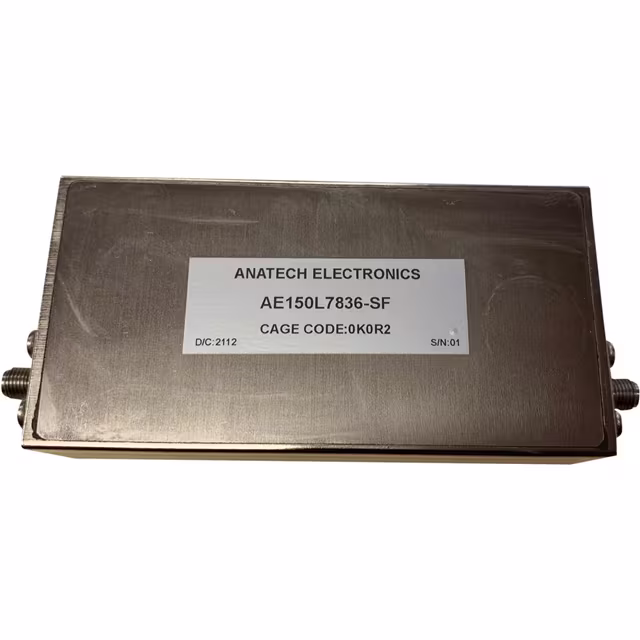

AE150L7836-SFRF FILTER LOW PASS 150MHZ MODULE |
100 | 518.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 150MHz (Cutoff) | - | Low Pass | - | 0.75dB | Chassis Mount | 4.000" L x 2.000" W (101.60mm x 50.80mm) | 1.000" (25.40mm) |
|
|
AE1100L9229RF FILTER LOW PASS 1.1GHZ MODULE |
100 | 518.50 |
|
- |
- | Module, SMA Connectors | Box | Active | 1.1GHz (Cutoff) | - | Low Pass | - | 1.5dB | Chassis Mount | 1.500" L x 0.380" W (38.10mm x 9.65mm) | 0.380" (9.65mm) |
|
|
AE1800L9232RF FILTER LOW PASS 1.8GHZ MODULE |
100 | 518.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.8GHz (Cutoff) | - | Low Pass | - | 1.2dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AE70NS2191RF FILTER BAND STOP 70MHZ MODULE |
100 | 518.50 |
|
Datasheet |
- | Module | Box | Active | 70MHz Center | 4MHz | Band Stop | - | 1dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|
|
AE9650B10915RF FILTER BAND PASS 9.65GHZ MOD |
100 | 518.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 9.65GHz Center | 900MHz | Band Pass | - | 1.7dB | Chassis Mount | 4.000" L x 1.500" W (101.60mm x 38.10mm) | 0.750" (19.05mm) |
|
|
AE143B11205RF FILTER BANDPASS 143MHZ MODULE |
100 | 518.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 143MHz Center | 20MHz | Band Pass | - | 1dB | Chassis Mount | 4.000" L x 1.000" W (101.60mm x 25.40mm) | 1.000" (25.40mm) |
|
|
AB5000B1258RF FILTER BAND PASS 5GHZ MODULE |
100 | 518.50 |
|
Datasheet |
- | Module | Box | Active | 5GHz Center | 205MHz | Band Pass | 0.2dB | 3dB | Chassis Mount | 3.500" L x 3.500" W (88.90mm x 88.90mm) | 1.500" (38.10mm) |
|
|
AE4950B11497RF FILTER BAND PASS 4.95GHZ MOD |
100 | 518.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 4.95GHz Center | 100MHz | Band Pass | 0.25dB | 0.8dB | Chassis Mount | 3.260" L x 0.752" W (82.80mm x 19.10mm) | 1.094" (27.80mm) |
