RF Filters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

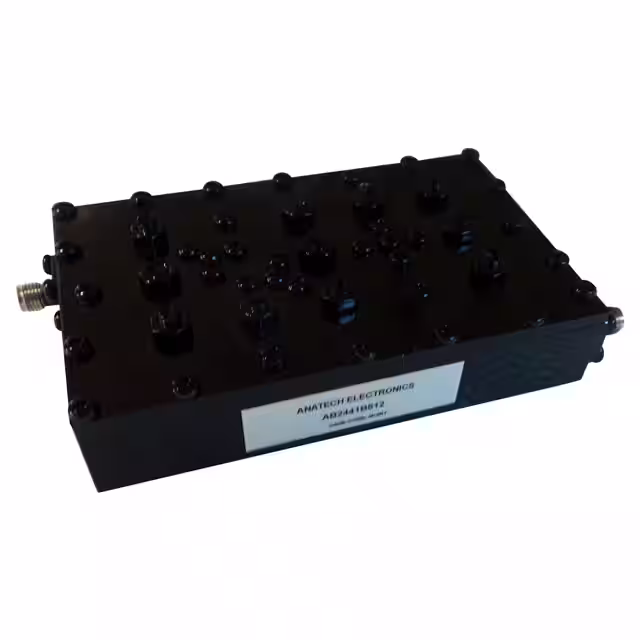

AB2441B512RF FILTER BAND PASS 2.441GHZ MOD |
100 | 547.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.441GHz Center | 66MHz | Band Pass | - | 2dB | Chassis Mount | 4.000" L x 2.500" W (101.60mm x 63.50mm) | 1.100" (27.94mm) |
|
AE4030B11471RF FILTER BAND PASS 4.03GHZ MOD |
100 | 547.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 4.03GHz Center | 15MHz | Band Pass | - | 3.5dB | Chassis Mount | 2.640" L x 1.650" W (67.06mm x 41.91mm) | 0.990" (25.15mm) |
|
AE2260B11405RF FILTER BAND PASS 2.26GHZ MOD |
100 | 549.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.26GHz Center | 80MHz | Band Pass | - | 2dB | Chassis Mount | 3.858" L x 1.850" W (98.00mm x 47.00mm) | 1.193" (30.30mm) |
|
AE30NS2055RF FILTER BAND STOP 30MHZ MODULE |
100 | 549.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 30MHz Center | 2MHz | Band Stop | - | 3dB | Chassis Mount | 2.500" L x 1.125" W (63.50mm x 28.58mm) | 0.762" (19.35mm) |
|
|
AE745B10955RF FILTER BANDPASS 745MHZ MODULE |
100 | 549.00 |
|
Datasheet |
- | Module | Box | Active | 745MHz Center | 20MHz | Band Pass | - | 1dB | Chassis Mount | 3.307" L x 2.055" W (84.00mm x 52.20mm) | 2.362" (60.00mm) |
|
|
AB2050B622RF FILTER BANDPASS 2.0505GHZ MOD |
100 | 549.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.0505GHz Center | 12MHz | Band Pass | 0.5dB | 2.5dB | Chassis Mount | 10.071" L x 1.496" W (255.80mm x 38.00mm) | 0.984" (25.00mm) |
|
|
AE1791B10561RF FILT BANDPASS 1.791748GHZ MOD |
100 | 549.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.791748GHz Center | 16MHz | Band Pass | - | 2dB | Chassis Mount | 1.138" L x 1.059" W (28.90mm x 26.90mm) | 1.051" (26.70mm) |
|
|
AE213B10681RF FILTER BAND PASS 213.5MHZ MOD |
100 | 549.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 213.5MHz Center | 123MHz | Band Pass | - | 3dB | Chassis Mount | 4.000" L x 0.500" W (101.60mm x 12.70mm) | 0.600" (15.24mm) |
|
|
AE765B10956RF FILTER BANDPASS 765MHZ MODULE |
100 | 549.00 |
|
Datasheet |
- | Module | Box | Active | 765MHz Center | 20MHz | Band Pass | - | 1dB | Chassis Mount | 3.307" L x 2.055" W (84.00mm x 52.20mm) | 2.362" (60.00mm) |
|

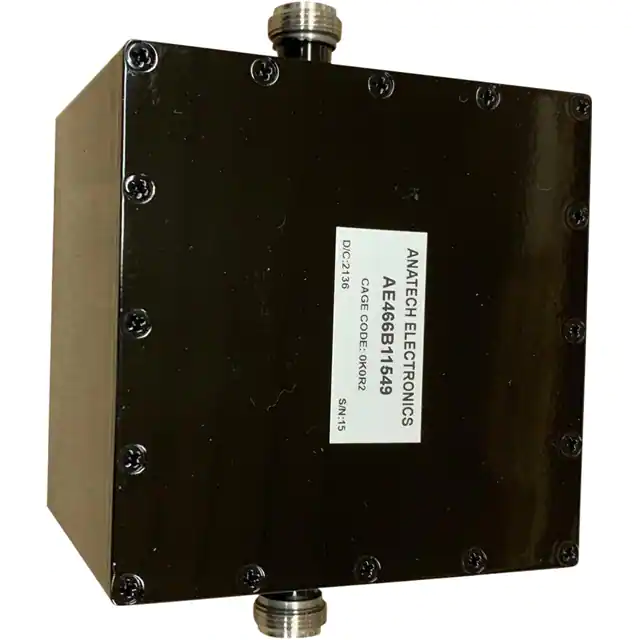

AE466B11549RF FILTER BANDPSS 466.675MHZ MOD |
100 | 549.00 |
|
Datasheet |
- | Module | Box | Active | 466.675MHz Center | 2MHz | Band Pass | 0.5dB | 1dB | Chassis Mount | 3.610" L x 3.610" W (91.70mm x 91.70mm) | 2.913" (74.00mm) |
|
|
AE30B6838RF FILTER BAND PASS 30MHZ 6DIP |
100 | 549.00 |
|
Datasheet |
- | 6-DIP Module | Box | Active | 30MHz Center | 4MHz | Band Pass | - | 2.6dB | Through Hole | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.400" (10.16mm) |
|
|
AE193B1287RF FILTER BANDPASS 193MHZ MODULE |
100 | 549.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 193MHz Center | 48MHz | Band Pass | - | 1dB | Chassis Mount | 4.250" L x 3.000" W (107.95mm x 76.20mm) | 1.550" (39.37mm) |
|
|
AE120NS2142RF FILTER BANDSTOP 120MHZ MODULE |
100 | 549.00 |
|
Datasheet |
- | Module | Box | Active | 120MHz Center | 4MHz | Band Stop | - | 6dB | Chassis Mount | 2.700" L x 1.970" W (68.58mm x 50.04mm) | 0.980" (24.89mm) |
|
|
AE5720B11891RF FILTER BAND PASS 5.72GHZ MOD |
100 | 549.00 |
|
Datasheet |
- | Module | Box | Active | 5.72GHz Center | 20MHz | Band Pass | - | 2.5dB | Chassis Mount | 5.689" L x 2.476" W (144.50mm x 62.90mm) | 1.102" (28.00mm) |
|
|
AE52B11183RF FILTER BAND PASS 52MHZ MODULE |
100 | 549.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 52MHz Center | - | Band Pass | - | 2dB | Chassis Mount | 1.496" L x 0.500" W (38.00mm x 12.70mm) | 0.412" (10.46mm) |
|
|
AS816N335RF FILTER BANDSTOP 816MHZ MODULE |
100 | 549.00 |
|
- |
- | Module | Box | Active | 816MHz Center | 18MHz | Band Stop | - | 2dB | Chassis Mount | 17.200" L x 2.200" W (436.88mm x 55.88mm) | 3.200" (81.28mm) |
|
|
AE2280B11311-TFRF FILTER BANDPASS 2.28GHZ TNC |
100 | 549.00 |
|
Datasheet |
- | TNC In-Line Module | Box | Active | 2.28GHz Center | 22MHz | Band Pass | 1.2dB | 3dB | Chassis Mount | 4.843" L x 2.795" W (123.00mm x 71.00mm) | 1.240" (31.50mm) |
|

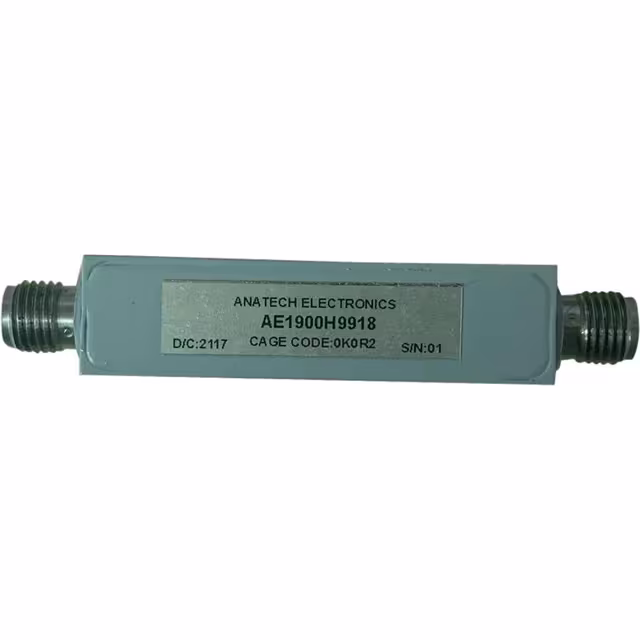

AE1900H9918RF FILTER HI PASS 1.9GHZ MODULE |
100 | 549.00 |
|
- |
- | Module | Box | Active | 1.9GHz (Cutoff) | 6.1GHz | High Pass | - | 1dB | Chassis Mount | - | - |
|
|
AB2067B687RF FILTER BANDPASS 2.0675GHZ MOD |
100 | 549.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.0675GHz Center | 12MHz | Band Pass | 1.5dB | 3dB | Chassis Mount | 10.071" L x 1.496" W (255.80mm x 38.00mm) | 0.984" (25.00mm) |
|
|
AE5800B11890RF FILTER BANDPASS 5.8GHZ MODULE |
100 | 549.00 |
|
Datasheet |
- | Module | Box | Active | 5.8GHz Center | 20MHz | Band Pass | - | 2.5dB | Chassis Mount | 5.689" L x 2.476" W (144.50mm x 62.90mm) | 1.102" (28.00mm) |
