RF Multiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DIP2450-01D3RF DIPLEXER 2.4415/5.375GHZ 4BGA |
3,860 | 0.43 |
|
Datasheet |
- | 4-UFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Diplexer | 2.4GHz ~ 2.483GHz / 4.9GHz ~ 5.85GHz | 20.00dB / - | 18.00dB / - | - | - | - | Surface Mount |
|
2450CP05A5400001TRF DIPLEXER 0202 4 LEAD |
9,525 | 0.00 |
|
- |
* | 0202 (0605 Metric), 4 Lead | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | Surface Mount |
|
|
DPX2012LKHHR1931LANT MB & HB N78 DIPLEXER |
4,000 | 0.00 |
|
Datasheet |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Obsolete | Diplexer | 1.71GHz ~ 2.2GHz / 2.496GHz ~ 3.8GHz | 11.00dB / - | 11.00dB / - | - | - | - | Surface Mount |
|

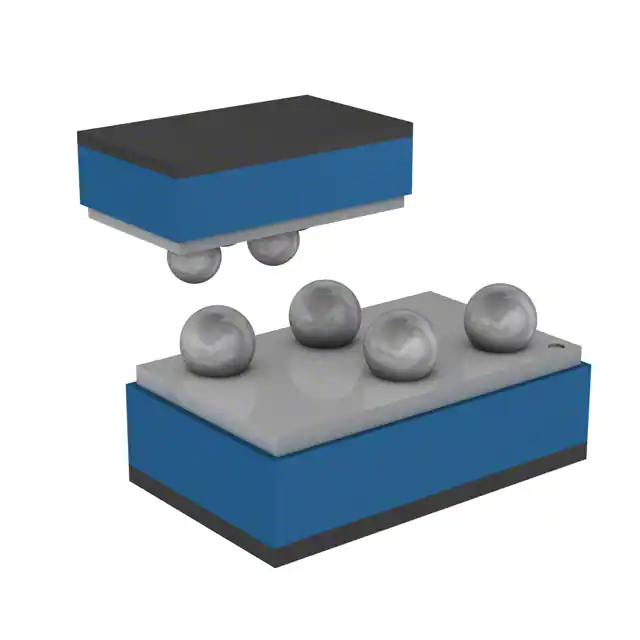

DIP1524-01D3RF DIPLX 1589.655MHZ/2.55GHZ BGA |
3,469 | 0.45 |
|
Datasheet |
- | 4-UFBGA, FCBGA | Tape & Reel (TR) | Active | Diplexer | 1573.42MHz ~ 1605.89MHz / 2.4GHz ~ 2.7GHz | 20.00dB / - | 18.00dB / - | 10.0dB / 20.0dB | - | - | Surface Mount |
|
|
2450DP15A5512001ERF DIPLEXER 2.45GHZ/5.51GHZ 0805 |
4,000 | 0.00 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.87GHz | 20.00dB / 0.70dB | 15.00dB / 0.90dB | 9.5dB / 9.5dB | - | - | Surface Mount |
|
|
TPX2520LKTDRWH34LANT LTE &N78 &N79 TRIPLEXER |
3,000 | 0.00 |
|
Datasheet |
- | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Obsolete | Triplexer | 617MHz, 2.3GHz, 2.496GHz ~ 1.99GHz, 2.496GHz, 2.69GHz / 4.4GHz ~ 5GHz | 25.00dB / - | 17.00dB / - | - | - | - | Surface Mount |
|
|
TPX2520LKTCR0913LANT LB &JB MB & HB-N79 TRIPLEXER |
3,000 | 0.00 |
|
Datasheet |
- | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Obsolete | Triplexer | 698MHz ~ 960MHz / 2.496GHz, 3.3GHz, 3.8GHz, 4.4GHz ~ 2.69GHz, 3.8GHz, 4.2GHz, 5GHz | 35.00dB / - | 18.00dB / - | - | - | - | Surface Mount |
|

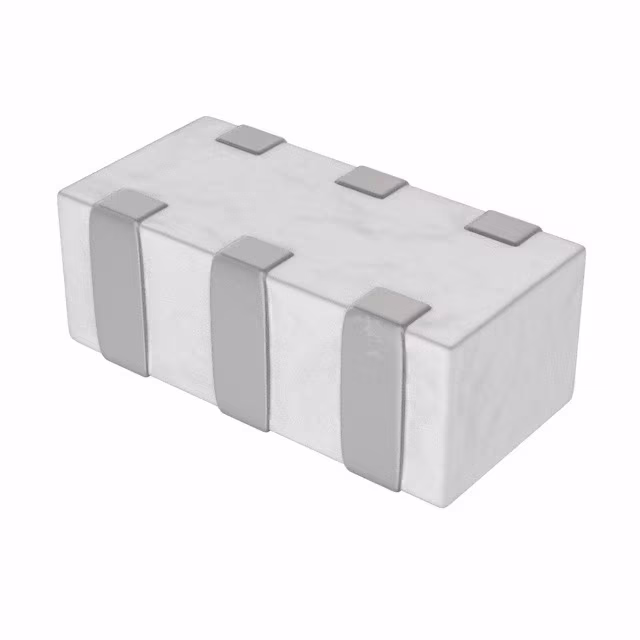

DPX161576DT-8011B1RF DIPLEXER 873.5/1575.42MZ 0603 |
2,312 | 0.97 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 Lead | Tape & Reel (TR) | Obsolete | Diplexer | 806MHz ~ 941MHz / 1574.42MHz ~ 1576.42MHz | 20.00dB / - | 18.00dB / - | 14.0dB / 14.0dB | - | - | Surface Mount |
|
|
HMD9118ELTCC RF DIPLEXLER 2450MHZ/ 5550M |
495 | 0.00 |
|
Datasheet |
HMD | 0603 (1608 Metric), 6 PC Pad | Cut Tape (CT) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.1GHz, 5.15GHz ~ 5.95GHz | 22.00dB / 31.50dB | 2.00dB / 2.50dB | 10.0dB / 10.0dB | Automotive | AEC-Q200 | Surface Mount |
|
DPX205950DT-9108A1RF DIPLEXER 2.4GHZ/5.425GHZ 0805 |
529 | 1.11 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Obsolete | Diplexer | 2.3GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 20.00dB / - | 20.00dB / - | 20.0dB / 11.0dB | - | - | Surface Mount |
|
|
DPX201990DT-4014A2RF DIPLEXER 859MHZ/1.92GHZ 0805 |
2,557 | 1.14 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Obsolete | Diplexer | 824MHz ~ 894MHz / 1.85GHz ~ 1.99GHz | 20.00dB / - | 19.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
FSDCSQ8T782MK2J6-AZRF DUPLEXER 751MHZ/782MHZ 8SMD |
3,000 | 1.29 |
|
Datasheet |
FSDC | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | - | - / 58.00dB | - / 61.00dB | - | - | - | Surface Mount |
|
RSD-836.500-881.500-1814-TR-NS6RF DUPLEXER 836.5/881.5MHZ 8SMD |
2,601 | 1.35 |
|
Datasheet |
RSD | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 824MHz ~ 849MHz / 869MHz ~ 894MHz | 45.00dB / 54.00dB | 50.00dB / 60.00dB | 1.4dB / 1.7dB | - | - | Surface Mount |
|
|
DPX202170DT-4021A1RF DIPLEXR 857.5MZ/2.045GHZ 0805 |
1,358 | 1.53 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Obsolete | Diplexer | 830MHz ~ 885MHz / 1.92GHz ~ 2.17GHz | 20.00dB / - | 20.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|

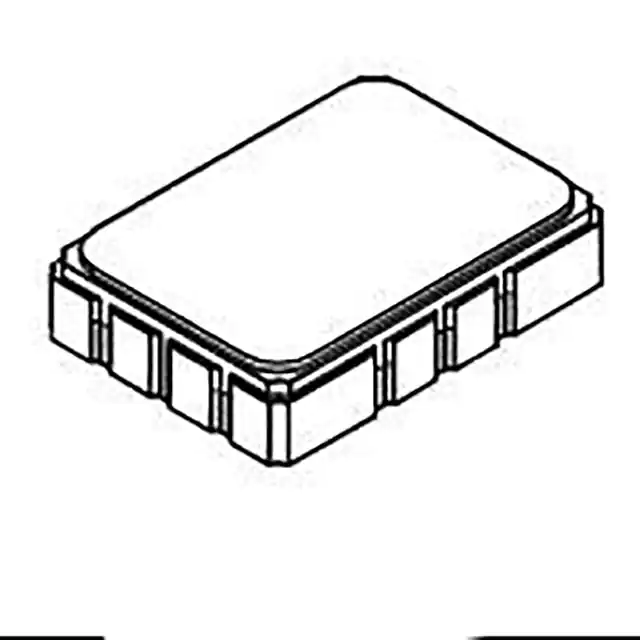

SF2143BFILTER SAW 72.54/80.46 MHZ 10SMD |
9,000 | 5.20 |
|
Datasheet |
- | 10-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 72.54MHz / 80.46MHz | 37.00dB / 42.00dB | 33.00dB / 38.00dB | - | - | - | Surface Mount |
|
B39881B8013P810RF DUPLEXER 836.5/881.5MHZ 9SMD |
955 | 3.14 |
|
Datasheet |
- | 9-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 824MHz ~ 849MHz / 869MHz ~ 894MHz | 53.00dB / 56.00dB | 52.00dB / 59.00dB | - | - | - | Surface Mount |
|
|
B39741B8012P810RF DUPLEXER 707.5/737.5MHZ 9SMD |
4,106 | 5.08 |
|
Datasheet |
- | 9-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 699MHz ~ 716MHz / 729MHz ~ 746MHz | 45.00dB / 50.00dB | 45.00dB / 51.00dB | - | - | - | Surface Mount |
|
|
TE0137BSAW DIPLEXER, SM3030-8PAD, 1223. |
980 | 0.00 |
|
Datasheet |
- | 8-SMD, No Lead | Cut Tape (CT) | Active | Diplexer | 1.197GHz ~ 1.249GHz / 1.559GHz ~ 1.606GHz | 45.00dB / 49.00dB | 30.00dB / 35.00dB | - | - | - | Surface Mount |
|

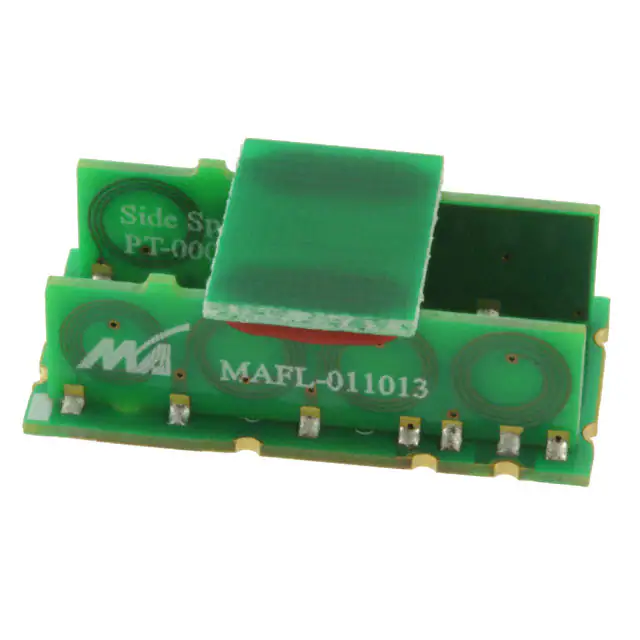

MAFL-011013RF DIPLEXER 23.5MHZ/527MHZ 11SMD |
176 | 4.42 |
|
Datasheet |
- | 11-SMD Module | Tape & Reel (TR) | Active | Diplexer | 5MHz ~ 42MHz / 54MHz ~ 1GHz | - | - | 16.0dB / 16.0dB | - | - | Surface Mount |
|
|
B39781B8034P810RF DIPLEXER 9SMD NO LEAD |
1,197 | 5.66 |
|
- |
B8034 | 9-SMD, No Lead | Tape & Reel (TR) | Active | - | 746MHz ~ 756MHz / 777MHz ~ 787MHz | 50.00dB / 58.00dB | 50.00dB / 56.00dB | - | - | - | Surface Mount |
