RF Multiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDPO-33-53+LTCC DIPLEXER, DC-3000/5000-5750 |
3,927 | 5.88 |
|
Datasheet |
- | 4-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 0Hz ~ 3GHz / 5GHz ~ 5.75GHz | - | - | 15.0dB / 11.0dB | - | - | Surface Mount |
|
MAFL-011057RF DIPLEXER MODULE |
926 | 9.77 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
|
MAFL-011081RF DIPLEXER 204/258MHZ SMD |
184 | 8.02 |
|
Datasheet |
- | 20-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 5MHz ~ 204MHz / 258MHz ~ 1.218GHz | - | - | 19.0dB / 18.0dB | - | - | Surface Mount |
|
|
MAFL-011056RF DIPLEXER MODULE |
173 | 11.40 |
|
- |
- | Module | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
AM1542-1643SD3581542-1643.5 MHz SAW Diplexer |
795 | 0.00 |
|
Datasheet |
- | 10-SMD Module | Tape & Reel (TR) | Active | Duplexer | 1.525GHz ~ 1.559GHz / 1.6265GHz ~ 1.6605GHz | 43.00dB / - | 43.00dB / - | - | - | - | Surface Mount |
|
|
AM455-465SD329455/465 MHz Saw Duplexer |
830 | 0.00 |
|
Datasheet |
- | 12-SMD Module | Tape & Reel (TR) | Active | Duplexer | 452.2MHz ~ 457.5MHz / 462.2MHz ~ 467.5MHz | 37.00dB / 55.00dB | 43.00dB / 52.00dB | - | - | - | Surface Mount |
|
|
AM1542-1643D11151525-1559.5 / 1626-1660.5 MHZ CE |
728 | 0.00 |
|
Datasheet |
- | 3-SMD Module | Box | Active | Duplexer | 1.525GHz ~ 1.5595GHz / 1.626GHz ~ 1.6605GHz | - | - | 12.0dB / 12.0dB | - | - | Surface Mount |
|

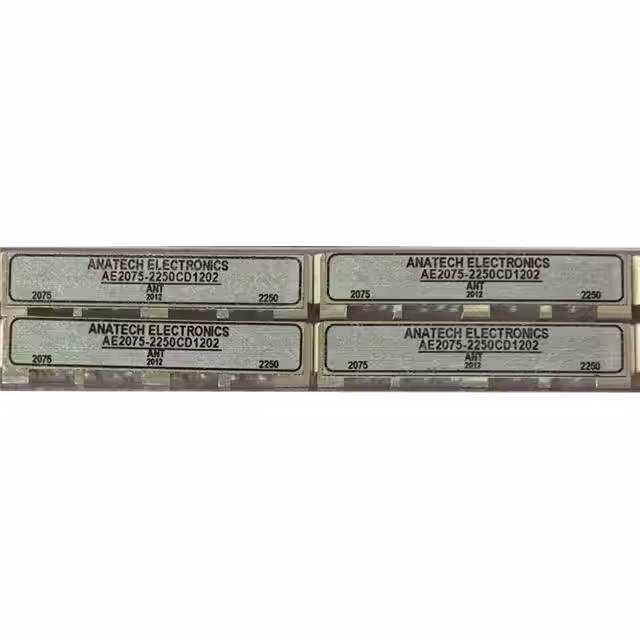

AE2075-2250CD12022025-2125 MHZ/ 2200-2300 MHZ CER |
100 | 179.00 |
|
Datasheet |
- | 7-SMD Module | Box | Active | Duplexer | 2.025GHz ~ 2.125GHz / 2.2GHz ~ 2.3GHz | - | - | 14.0dB / 14.0dB | - | - | Surface Mount |
|

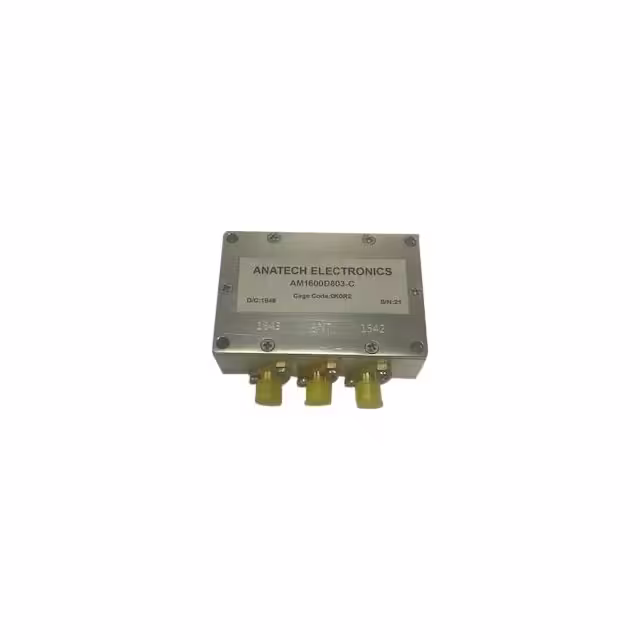

AM1600D803-C1600 MHZ CONNECTORIZED CERAMIC D |
4,069 | 396.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.6265GHz ~ 1.6605GHz / 1.525GHz ~ 1.559GHz | - | - | 10.0dB / 10.0dB | - | - | Chassis Mount |
|
|
AE1732-2132DB5295-O1710-1755 MHZ / 2110-2155 MHZ LT |
100 | 439.20 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.71GHz ~ 1.755GHz / 2.11GHz ~ 2.155GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|

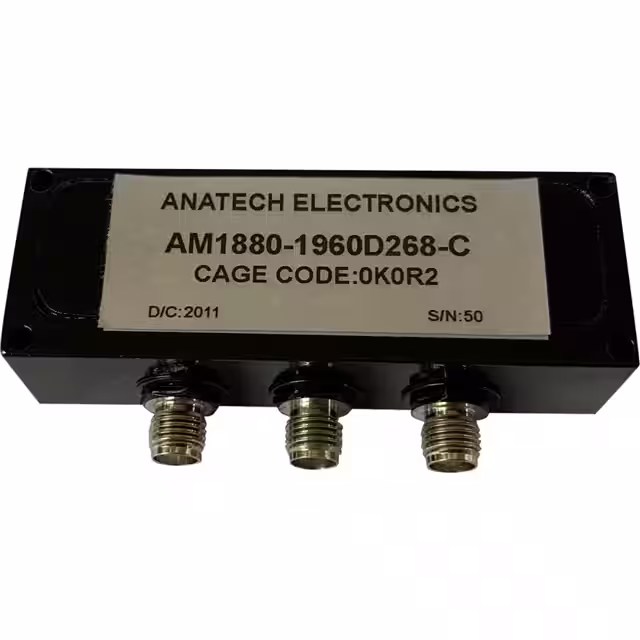

AM1880-1960D268-C1880 / 1960 MHZ CONNECTORIZED CE |
4,162 | 365.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.805GHz ~ 1.91GHz / 1.93GHz ~ 1.99GHz | - | - | - | - | - | Chassis Mount |
|
AE1543-1643DB51611526-1560 MHZ / 1625-1662 MHZ CA |
1,384 | 671.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 1.526GHz ~ 1.56GHz / 1.625GHz ~ 1.662GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD2535-2655D4672535 MHZ / 2655 MHZ CAVITY DUPLE |
100 | 652.70 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 2.5GHz ~ 2.57GHz / 2.62GHz ~ 2.69GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|

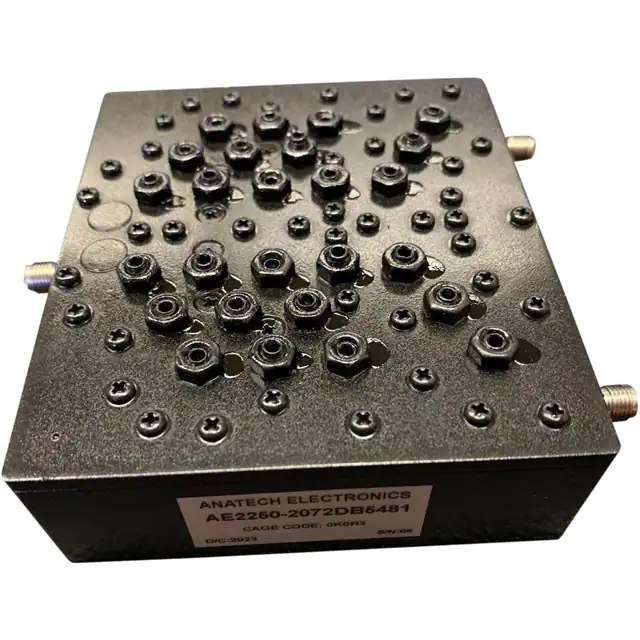

AE2250-2072DB5481S-BAND CAVITY DIPLEXER |
1,483 | 762.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Diplexer | 2.2GHz ~ 2.3GHz / 2.025GHz ~ 2.12GHz | - | - | 10.0dB / 10.0dB | - | - | Chassis Mount |
|

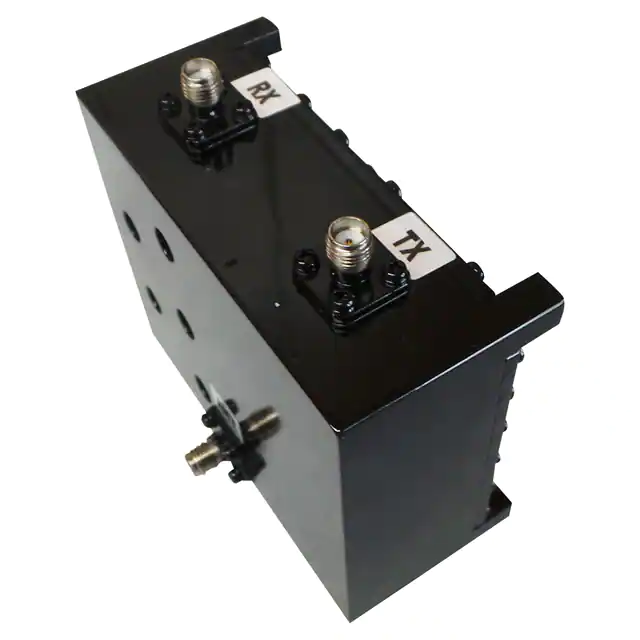

AE1800-2350DB54771800 MHZ / 2350 MHZ CAVITY DUPLE |
100 | 1122.00 |
|
- |
- | Module | Box | Active | Duplexer | 1.75GHz ~ 1.85GHz / 2.2GHz ~ 2.5GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|

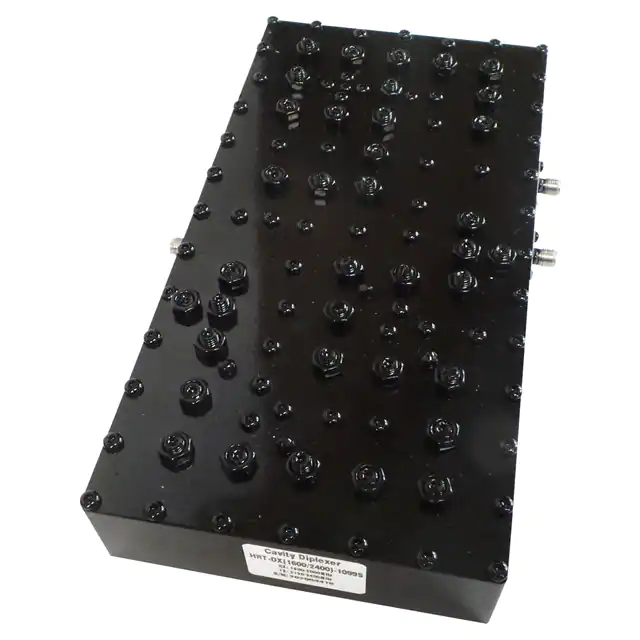

AE1800-2275DB54911800 MHZ / 2275 MHZ CAVITY DUPLE |
2,543 | 1122.00 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 1.6GHz ~ 2GHz / 2.15GHz ~ 2.4GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE1600-2262-4698TR1276L-BAND/ C-BAND / S-BAND TRIPLEXE |
100 | 518.50 |
|
Datasheet |
- | Module | Box | Active | Triplexer | 1.35GHz ~ 1.85GHz / 4.4GHz ~ 4.99GHz | - | - | - | - | - | Chassis Mount |
|

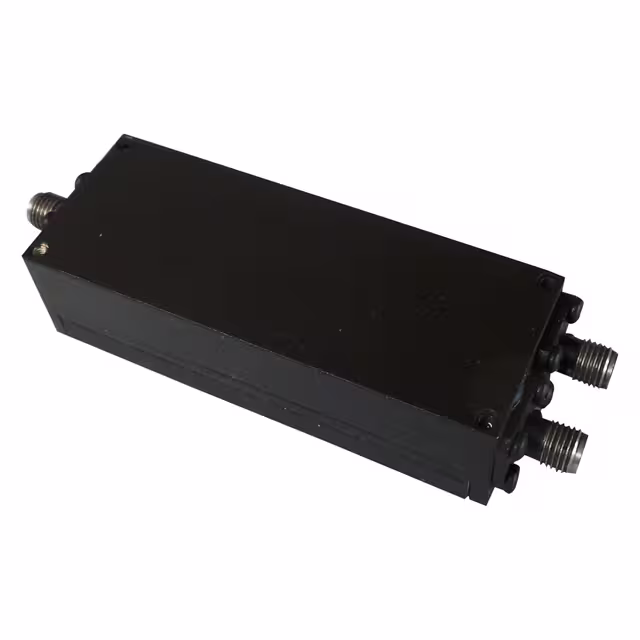

AE14660-15250DB531014660 MHZ / 15250 MHZ CAVITY DUP |
100 | 1890.00 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 14.4GHz ~ 14.92GHz / 15.15GHz ~ 15.35GHz | - | - | 10.0dB / 10.0dB | - | - | Chassis Mount |
|
AE1925-2237D4881750-2100 MHZ / 2200-2275 MHZ CA |
2,220 | 1781.20 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Diplexer | 1.75GHz ~ 2.1GHz / 2.2GHz ~ 2.275GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD412-422D224410-415 MHZ 420-425 MHZ CAVITY D |
100 | 1579.90 |
|
Datasheet |
- | Module | Box | Active | Diplexer | 410MHz ~ 415MHz / 420MHz ~ 425MHz | - | - | 20.0dB / 20.0dB | - | - | Chassis Mount |
