RF Multiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPX202690DT-4149A2RF DIPLEXER 832MHZ/2.2GHZ 0805 |
3,803 | 1.11 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 704MHz ~ 960MHz / 1.71GHz ~ 2.69GHz | 13.00dB / 17.00dB | 17.00dB / 20.00dB | 12.0dB / 14.0dB | - | - | Surface Mount |
|

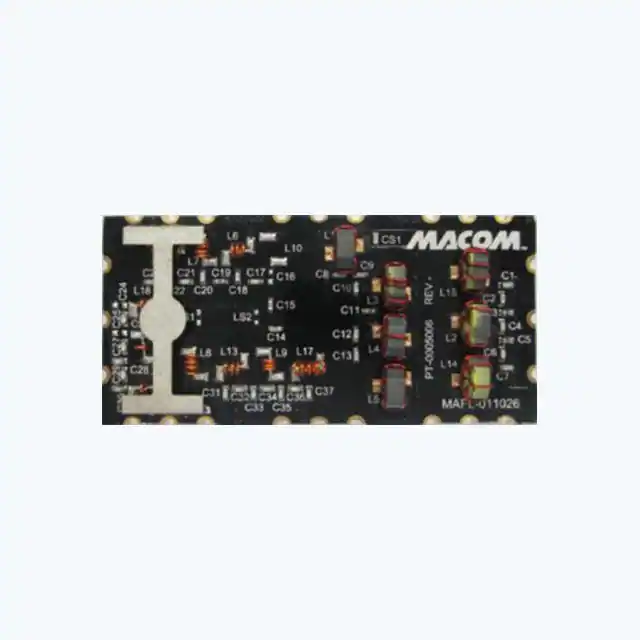

MAFL-011026RF DIPLEXER 502.5MHZ/1.4GHZ MOD |
2,963 | 11.11 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | Diplexer | 5MHz ~ 1GHz / 1.1GHz ~ 1.7GHz | - | - | 18.0dB / 16.0dB | - | - | Surface Mount |
|
TPLX-E3000+LUMPED LC TRIPLEXER |
100 | 0.00 |
|
Datasheet |
- | 20-SMD Module | Tape & Reel (TR) | Active | Triplexer | 0Hz ~ 100MHz / 1.85GHz ~ 3GHz | - | - | 12.0dB / 10.0dB | - | - | Surface Mount |
|
|
ZX75-23-S+LUMPED LC DIPLEXER |
3,825 | 0.00 |
|
Datasheet |
- | Module | Tray | Active | Diplexer | 9.8MHz ~ 10.2MHz / 650MHz ~ 2GHz | - | - | 11.0dB / 11.0dB | - | - | Chassis Mount |
|
|
2450DP39K5400001ERF DIPLEXER 2.45GHZ/5.4GHZ 1008 |
708 | 0.00 |
|
Datasheet |
- | 1008 (2520 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz | 15.00dB / - | 21.00dB / - | - | - | - | Surface Mount |
|
|
2450DM40A1575001ERF DIPLEXER 1.575GHZ/2.45GHZ |
702 | 0.00 |
|
- |
- | - | Cut Tape (CT) | Obsolete | Diplexer | 1.574GHz ~ 1.576GHz / 2.4GHz ~ 2.5GHz | 50.00dB / - | 30.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX205950DT-9008A1RF DIPLEXER 2.4GHZ/5.425GHZ 0805 |
520 | 0.70 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Obsolete | Diplexer | 2.3GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 20.00dB / - | 20.00dB / - | 20.0dB / 11.0dB | - | - | Surface Mount |
|
DPX165950DT-8130A1RF DIPLEXER 2.45/5.425GHZ 0603 |
842 | 0.88 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Obsolete | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 20.00dB / 32.00dB | 20.00dB / 31.00dB | 20.0dB / 15.0dB | - | - | Surface Mount |
|
|
HMD9120ELTCC RF DIPLEXLER 2450MHZ/ 5550M |
500 | 0.00 |
|
Datasheet |
HMD | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.1GHz, 5.15GHz ~ 5.95GHz | 22.00dB / 31.50dB | 2.00dB / 2.50dB | 10.0dB / 10.0dB | Automotive | AEC-Q200 | Surface Mount |
|
|
AM836-881SD340836-881 MHz Saw Duplexer |
4,113 | 0.00 |
|
Datasheet |
- | 12-SMD Module | Tape & Reel (TR) | Active | Duplexer | 824MHz ~ 849MHz / 869MHz ~ 894MHz | 40.00dB / 45.00dB | 50.00dB / 57.00dB | - | - | - | Surface Mount |
|
|
PE8DP1002Diplexer 75 Ohm Type F Female, 2 |
4,980 | 0.00 |
|
Datasheet |
- | Module | Retail Package | Active | Diplexer | 20MHz ~ 862MHz / 950MHz ~ 2.3GHz | - | - | 10.0dB / 10.0dB | - | - | Chassis Mount |
|
|
AM707-737D1038-C707 / 737 MHZ CONNECTORIZED CERA |
4,447 | 456.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 728MHz ~ 746MHz / 698MHz ~ 716MHz | 40.00dB / 55.00dB | 30.00dB / 50.00dB | - | - | - | Chassis Mount |
|
|
AM417-427SD353417-427 MHz Saw Duplexer |
4,501 | 0.00 |
|
Datasheet |
- | 12-SMD Module | Tape & Reel (TR) | Active | Duplexer | 415.5MHz ~ 420MHz / 425.5MHz ~ 430MHz | 30.00dB / 50.00dB | 33.00dB / 51.00dB | - | - | - | Surface Mount |
|
|
AM481-491SD334481-491 MHz Saw Duplexer |
1,331 | 0.00 |
|
Datasheet |
- | 12-SMD Module | Tape & Reel (TR) | Active | Duplexer | 479.2MHz ~ 483.5MHz / 489MHz ~ 493.5MHz | 30.00dB / 50.00dB | 33.00dB / 50.00dB | - | - | - | Surface Mount |
|
|
AM836-881SD371824-849/869-894 MHz LTE SAW Dupl |
2,790 | 0.00 |
|
Datasheet |
- | 12-SMD Module | Tape & Reel (TR) | Active | Duplexer | 824MHz ~ 849MHz / 869MHz ~ 894MHz | 45.00dB / 50.00dB | 50.00dB / 58.00dB | - | - | - | Surface Mount |
|
|
PE8DP1004Diplexer 75 Ohm Type F Female, 5 |
2,765 | 0.00 |
|
Datasheet |
- | Module | Retail Package | Active | Diplexer | 5MHz ~ 1.45GHz / 1.65GHz ~ 2.3GHz | - | - | 10.0dB / 10.0dB | - | - | Chassis Mount |
|
|
AM453-463SD330453 - 463 MHz SAW Duplexer |
1,357 | 0.00 |
|
Datasheet |
- | 12-SMD Module | Tape & Reel (TR) | Active | Duplexer | 451.3MHz ~ 455.8MHz / 461.3MHz ~ 465.8MHz | 37.00dB / 55.00dB | 38.00dB / 52.00dB | - | - | - | Surface Mount |
|
|
AM457-467SD333457-467 MHz Saw Duplexer |
4,524 | 0.00 |
|
Datasheet |
- | 12-SMD Module | Tape & Reel (TR) | Active | Duplexer | 455.2MHz ~ 460MHz / 465.2MHz ~ 470MHz | 30.00dB / 50.00dB | 33.00dB / 50.00dB | - | - | - | Surface Mount |
|
|
AM413-423SD332413-423 MHz Saw Duplexer |
4,972 | 0.00 |
|
Datasheet |
- | 12-SMD Module | Tape & Reel (TR) | Active | Duplexer | 411.6MHz ~ 415.9MHz / 421.6MHz ~ 425.9MHz | 30.00dB / 50.00dB | 33.00dB / 51.00dB | - | - | - | Surface Mount |
|
|
PE8DP1003Diplexer 75 Ohm Type F Female, 5 |
1,765 | 0.00 |
|
Datasheet |
- | Module | Retail Package | Active | Diplexer | 5MHz ~ 1.45GHz / 1.55GHz ~ 2.3GHz | - | - | 10.0dB / 10.0dB | - | - | Chassis Mount |
