RF Multiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

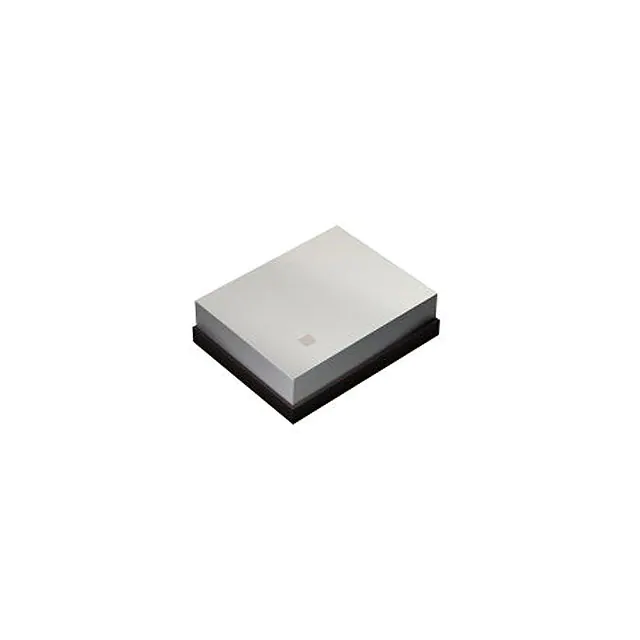

D6DA1G485K2W1-ZSAW DUPLEXER W-CDMA/LTE BAND 11 |
1,087 | 2.17 |
|
Datasheet |
D6 | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 1GHz / 5GHz | - / 58.00dB | - / 60.00dB | - | - | - | Surface Mount |
|
FAR-D5NF-942M50-P1GWQZRF DUPLEXER 9SMD NO LEAD |
2,650 | 2.25 |
|
Datasheet |
D5 | 9-SMD, No Lead | Tape & Reel (TR) | Not For New Designs | Duplexer | - | - | - | - | - | - | Surface Mount |
|
|
D6PF1G960M3B6-ZRF DUPLEXER 9SMD NO LEAD |
4,836 | 2.57 |
|
Datasheet |
D6 | 9-SMD, No Lead | Tape & Reel (TR) | Not For New Designs | Duplexer | - | - | - | - | - | - | Surface Mount |
|
D5PF876M5M3U9-ZRF DUPLEXER 830MHZ/876.5MHZ 9SMD |
4,989 | 2.67 |
|
Datasheet |
- | 9-SMD, No Lead | Tape & Reel (TR) | Not For New Designs | Duplexer | 815MHz ~ 845MHz / 859MHz ~ 894MHz | 52.00dB / 56.00dB | 42.00dB / 47.00dB | - | - | - | Surface Mount |
|

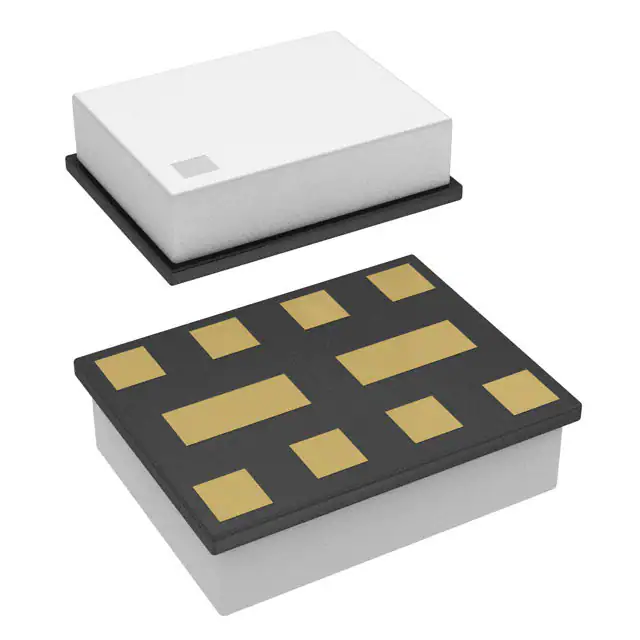

D5DA782M0K2J6-ZRF DUPLEXER 751MHZ/782MHZ 8SMD |
2,170 | 2.67 |
|
Datasheet |
- | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 746MHz ~ 756MHz / 777MHz ~ 787MHz | 44.00dB / 51.00dB | 50.00dB / 62.00dB | - | - | - | Surface Mount |
|
D6HQ2G655DP02-ZRF DUPLEXER BAND 7 8SMD |
1,769 | 4.36 |
|
Datasheet |
D6 | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 1GHz ~ 5GHz | - / 58.00dB | - / 55.00dB | - | - | - | Surface Mount |
|
|
D6HQ1G962DP39-ZRF DUPLEXER 1.8825/1.962GHZ 8SMD |
3,998 | 4.47 |
|
Datasheet |
D6 | 8-SMD, No Lead | Tape & Reel (TR) | Not For New Designs | Duplexer | 1.85GHz ~ 1.915GHz / 1.93GHz ~ 1.994GHz | 40.00dB / 57.00dB | 35.00dB / 50.00dB | - | - | - | Surface Mount |
|
J5NA782M0P1H6-ZRF DUPLEXER 745MHZ/782MHZ 9SMD |
4,021 | 4.78 |
|
Datasheet |
J5 | 9-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer (Dual) | 734MHz ~ 756MHz / 777MHz ~ 787MHz | 42.00dB / 50.00dB | 45.00dB / 52.00dB | - | - | - | Surface Mount |
|
|
K6QZ2G140Q3ZC-ZSAW QUADPLEXER LTE BAND 1 |
3,113 | 7.28 |
|
Datasheet |
K6 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Quadplexer | 1GHz / 5GHz | 55.00dB / 57.00dB | 57.00dB / 58.00dB | - | - | - | Surface Mount |
|
|
DPX1608LKG9R2460ADIPLEXER WIFI 7 2.4G/5-7G G9 |
2,504 | 0.00 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.1GHz ~ 7.3GHz | 30.00dB / 42.40dB | 26.00dB / 31.20dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX1608LKM2R2460ADIPLEXER WIFI 7 2.4G/5-7G M2 |
2,180 | 0.00 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.875GHz, 5.875GHz ~ 7.125GHz | 35.00dB / 44.86dB | 32.00dB / 34.40dB | 11.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX1608LL60R2460ADIPLEXER WIFI 7 2.4G/5-7G 60 |
2,388 | 0.00 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.17GHz ~ 7.125GHz | 28.00dB / - | 30.00dB / - | 12.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX1608LKV7R2460ADIPLEXER WIFI 7 2.4G/5-7G V7 |
4,399 | 0.00 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.3GHz, 5.925GHz ~ 6.425GHz, 6.525GHz ~ 6.875GHz, 6.875GHz ~ 7.125GHz | 20.00dB / 27.60dB | 35.00dB / 55.50dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
LFD182G45MJ5E355DIPLEXER 5425/2450MHZ 0603 |
1,833 | 0.00 |
|
Datasheet |
LFD | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | - | - | - | - | - | Surface Mount |
|
|
ADID-R-0013RF DIPLEXER LTCC WI-FI6E/7 0603 |
2,970 | 0.00 |
|
Datasheet |
ADID | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 7.15GHz | 26.00dB / 39.00dB | 32.00dB / 38.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
ADID-R-0015RF DIPLEXER LTCC DUAL-BAND WI-FI |
4,351 | 0.00 |
|
Datasheet |
ADID | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 35.00dB / 45.00dB | 30.00dB / 45.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
ADID-R-0012RF DIPLEXER LTCC WI-FI6E/7 0603 |
3,847 | 0.00 |
|
Datasheet |
ADID | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 7.15GHz | 40.00dB / 50.00dB | 45.00dB / 50.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
ADID-R-0014RF DIPLEXER LTCC DUAL-BAND WI-FI |
1,181 | 0.00 |
|
Datasheet |
ADID | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 35.00dB / 42.00dB | 35.00dB / 50.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
ADID-R-0016RF DIPLEXER LTCC BLE/UWB 0603 |
1,364 | 0.00 |
|
Datasheet |
ADID | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 6.2GHz ~ 8.2GHz | 20.00dB / 25.00dB | 25.00dB / 45.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
ADID-R-0016-QRF DIPLEXER LTCC BLE/UWB 0603 A |
2,279 | 0.00 |
|
Datasheet |
ADID | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 6.2GHz ~ 8.2GHz | 20.00dB / 25.00dB | 25.00dB / 45.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
