RF Multiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPX2520LKWERWH46L2520 0.7-2.7GHZ, N77+5G DPX TYPE |
4,403 | 0.00 |
|
Datasheet |
2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Diplexer | 617MHz ~ 2.69GHz / 3.3GHz ~ 5.95GHz | 15.00dB / - | 23.00dB / - | - | - | - | Surface Mount |
|
|
DPX2520LRXAR2455L2520 2.4/5GHZ DPX TYPEXA |
4,451 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
|
DPX2520LWWDRWP31L2520 0.7-2.1/2.3-3.8G DPX TYPEWD |
4,044 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
|
DPX2520LKWJR1527L2520 617~1511/1710~2690MHZ DPX T |
1,868 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
|
RFDIP2012100L0TDIPLEXER |
4,210 | 0.00 |
|
Datasheet |
RFDIP | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz | 20.00dB / - | 25.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
RFDIP2012050L5TDIPLEXER |
2,444 | 0.00 |
|
Datasheet |
RFDIP | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz | 20.00dB / - | 25.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
RFDIP2012050L8TDIPLEXER |
2,592 | 0.00 |
|
Datasheet |
RFDIP | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 18.00dB / - | 25.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|

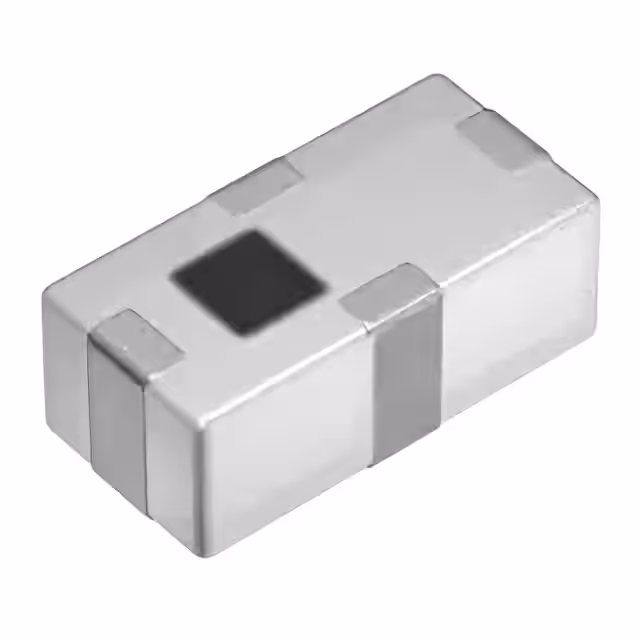

DPX162500DT-8114C1DIPLEXER |
4,627 | 0.14 |
|
Datasheet |
DPX | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Not For New Designs | Diplexer | 1.565GHz ~ 1.585GHz / 2.4GHz ~ 2.5GHz | 20.00dB / 25.80dB | 20.00dB / 27.90dB | 9.54dB / 9.54dB | - | - | Surface Mount |
|
|
RFDIP2012100L3TDIPLEXER |
2,360 | 0.00 |
|
Datasheet |
RFDIP | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz | 20.00dB / - | 25.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX1608LKFCR2460LDIPLEXER WIFI 7 2.4G/5-7G FC |
4,919 | 0.00 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.875GHz, 5.875GHz ~ 7.125GHz | 30.00dB / 34.10dB | 35.00dB / 42.50dB | 13.0dB / 13.0dB | - | - | Surface Mount |
|
|
DPX1608LKFBR2460ADIPLEXER WIFI 7 2.4G/5-7G FB |
4,517 | 0.00 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 7.125GHz | 33.00dB / 47.20dB | 35.00dB / 60.60dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
SLFD18-2R450G-22TDIPLEXER FOR 1570-1610MHZ/2400-2 |
2,827 | 0.15 |
|
Datasheet |
SLFD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 1.57GHz ~ 1.61GHz / 2.4GHz ~ 2.5GHz | 22.00dB / - | 20.00dB / - | - | - | - | Surface Mount |
|
|
SLFD21-2R200G-01TDIPLEXER FOR 698-764/MHZ746-960M |
3,584 | 0.15 |
|
Datasheet |
SLFD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 698MHz ~ 960MHz / 1.71GHz ~ 2.4GHz | 25.00dB / - | 30.00dB / - | - | - | - | Surface Mount |
|
|
SLFD18-5R950G-01TDIPLEXER FOR 2400-2500MHZ/4900-5 |
4,442 | 0.15 |
|
Datasheet |
SLFD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 20.00dB / 35.00dB | 15.00dB / 20.00dB | - | - | - | Surface Mount |
|
|
SLFD18-5R950G-02TDIPLEXER FOR 2400-2500MHZ/4900-5 |
2,456 | 0.15 |
|
Datasheet |
SLFD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 20.00dB / 35.00dB | 15.00dB / 20.00dB | - | - | - | Surface Mount |
|
|
SLFD18-5R950G-04TDIPLEXER FOR 2400-2500MHZ/4900-5 |
1,954 | 0.15 |
|
Datasheet |
SLFD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 10.00dB / 35.00dB | 15.00dB / 20.00dB | - | - | - | Surface Mount |
|
|
SLFD18-5R950G-07TDIPLEXER FOR 2400-2500MHZ/4900-5 |
1,403 | 0.15 |
|
Datasheet |
SLFD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 21.00dB / 25.00dB | 20.00dB / 30.00dB | - | - | - | Surface Mount |
|
|
SLFD21-2R450G-02TDIPLEXER FOR 2400-2500MHZ/5150-5 |
4,155 | 0.15 |
|
Datasheet |
SLFD | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 2.4GHz ~ 18GHz | 18.00dB / 30.00dB | 17.00dB / 25.00dB | - | - | - | Surface Mount |
|
|
SLFD18-5R950G-08TDIPLEXER FOR 2400-2500MHZ/4900-5 |
3,567 | 0.15 |
|
Datasheet |
SLFD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 21.00dB / 25.00dB | 20.00dB / 30.00dB | - | - | - | Surface Mount |
|
|
SLFD18-2R450G-23TDIPLEXER FOR 1570-1610MHZ/2400-2 |
4,370 | 0.15 |
|
Datasheet |
SLFD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 1.57GHz ~ 1.61GHz / 2.4GHz ~ 2.5GHz | 22.00dB / - | 20.00dB / - | - | - | - | Surface Mount |
