RF Multiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

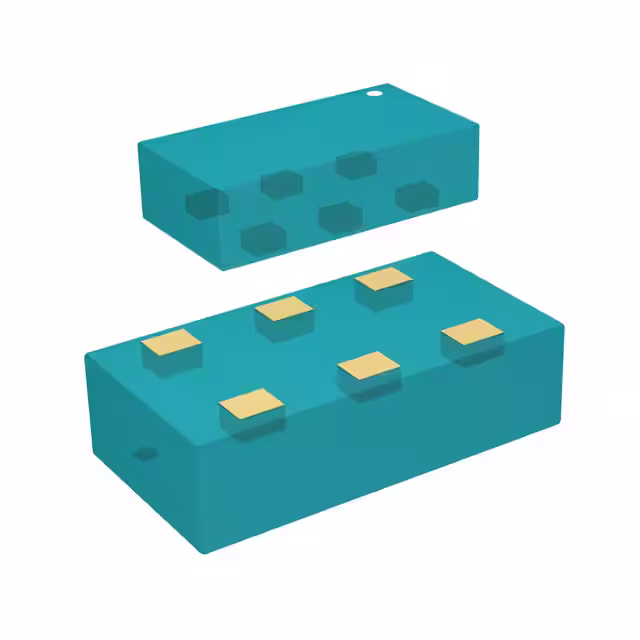

DP03A2450TTRRF DIPLEXER 2.45/5.425GHZ 0603 |
2,821 | 0.26 |
|
Datasheet |
MLO™ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 25.00dB / - | 25.00dB / - | - | - | - | Surface Mount |
|
DPX2012LKWKR2460LDIPLEXER WIFI 7 2.4G/5-7G WK |
4,304 | 0.00 |
|
Datasheet |
2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 7.15GHz | - / 42.00dB | - / 34.00dB | - | - | - | Surface Mount |
|
|
0790DP15A2205002EIC |
4,059 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
|
2450DP14G5400001TIC |
2,383 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 25.00dB / - | 20.00dB / - | 9.5dB / 9.5dB | - | - | - |
|
|
2450DP14D5400001TIC |
2,736 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz | 10.00dB / - | 30.00dB / - | 9.5dB / 9.5dB | - | - | - |
|
|
2450DP14C5400001TIC |
1,535 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz | 18.00dB / - | 18.00dB / - | 9.5dB / 9.5dB | - | - | - |
|
|
TPX2012LKTFR1525LTRIPLEXER 1.575/2.4/5GHZ TF |
2,466 | 0.00 |
|
Datasheet |
2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Triplexer | 1.559GHz ~ 1.606GHz / 4.9GHz ~ 5.1GHz, 5.15GHz ~ 5.95GHz | 20.00dB / 29.09dB | 32.00dB / 38.70dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
2450DP14W5400000TIC |
2,725 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.85GHz | - | - | - | - | - | - |
|
FI212P245003-TRF DIPLEXER 5.025/5.6475GHZ MOD |
1,229 | 0.00 |
|
- |
- | Module | Tape & Reel (TR) | Obsolete | Diplexer | 4.9GHz ~ 5.15GHz / 5.47GHz ~ 5.825GHz | 14.00dB / - | 14.00dB / - | - | - | - | Surface Mount |
|
|
2450DP15S5400001EIC |
4,969 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
|
2450DP16A0041001EIC |
4,158 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
|
2450DP14V5400001TIC |
4,885 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
|
0967DP18A1795001EDIPLEXER LPF/HPF 967MHZ/1795MHZ |
2,949 | 0.00 |
|
Datasheet |
- | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Diplexer | 954MHz ~ 980MHz / 1.71GHz ~ 1.88GHz | 20.00dB / 0.75dB | 20.00dB / 0.55dB | 12.0dB / 12.0dB | - | - | Surface Mount |
|
|
1710DP39A2600001EIC |
3,093 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
|
0859DP18A1920001EDIPLEXER LPF/HPF 859MHZ/1920MHZ |
1,616 | 0.00 |
|
- |
- | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Diplexer | 824MHz ~ 894MHz / 1.85GHz ~ 1.99GHz | 20.00dB / 0.75dB | 20.00dB / 0.55dB | 12.0dB / 12.0dB | - | - | Surface Mount |
|
|
2450DP14C5400002TIC |
1,801 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz | 18.00dB / - | 18.00dB / - | 9.5dB / 9.5dB | Automotive | AEC-Q200 | - |
|
|
2450DP15L5400001ERF DIPLEXER 2.45/5.425GHZ 0805 |
3,160 | 0.00 |
|
Datasheet |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 20.00dB / 27.00dB | 20.00dB / 23.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
2450DP15K5400001ERF DIPLEXER 2.45/5.425GHZ 0805 |
1,395 | 0.00 |
|
Datasheet |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 20.00dB / - | 20.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
DPX204752DT-4028A1RF DIPLEXER 2.4GHZ/3.965GHZ 0805 |
4,496 | 0.38 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Obsolete | Diplexer | 2.3GHz ~ 2.5GHz / 3.17GHz ~ 4.76GHz | 20.00dB / - | 20.00dB / - | 7.0dB / 10.0dB | - | - | Surface Mount |
|
|
2450DP15Q5400001EIC |
1,296 | 0.00 |
|
- |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 20.00dB / 27.00dB | 20.00dB / 23.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
