RF Power Dividers/Splitters

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Insertion Loss	Frequency	Specifications	Size / Dimension
PE20S0034 2 Way Broadband Combiner from 2 Pasternack	1,315	0.00	RFQ	Datasheet	Module	-	Retail Package	Active	0.6dB	2 GHz ~ 8 GHz	Isolation (Min) 12dB, 6° Imbalance (Typ), 1.3 VSWR (Max)	2.500" L x 1.500" W x 1.051" H (63.50mm x 38.10mm x 26.70mm)
PE20S0030 2 Way Broadband Combiner from 70 Pasternack	1,249	0.00	RFQ	Datasheet	Module	-	Retail Package	Active	0.9dB	700 MHz ~ 6 GHz	Isolation (Min) 8dB, 5° Imbalance (Typ), 1.35 VSWR (Max)	5.201" L x 3.000" W x 1.118" H (132.10mm x 76.20mm x 28.40mm)
PE2078 2 Way 2.92mm Power Divider From Pasternack	2,098	0.00	RFQ	Datasheet	Module	-	Retail Package	Active	1.5dB	10 GHz ~ 40 GHz	Isolation (Min) 15dB, 6° Imbalance (Max), 1.8 VSWR (Max)	1.000" L x 1.000" W x 0.420" H (25.40mm x 25.40mm x 10.67mm)
PEW22DV001 2 Way WR-22 Waveguide Power Divi Pasternack	1,301	0.00	RFQ	Datasheet	Module	-	Retail Package	Active	0.4dB	36.7 GHz ~ 40 GHz	Isolation (Min) 17dB	1.969" L x 1.547" W x 1.690" H (50.00mm x 39.30mm x 42.93mm)
PE20S0035 4 Way Broadband Combiner from 2 Pasternack	1,759	0.00	RFQ	Datasheet	Module	-	Retail Package	Active	0.8dB	2 GHz ~ 8 GHz	Isolation (Min) 7.5dB, 6° Imbalance (Typ), 1.35 VSWR (Max)	3.079" L x 2.598" W x 1.051" H (78.20mm x 66.00mm x 26.70mm)
PE20DV1148 4 Way 2.4mm Power Divider From 2 Pasternack	4,858	0.00	RFQ	Datasheet	Module	-	Retail Package	Active	1.3dB	25 GHz ~ 50 GHz	Isolation (Min) 15dB, 10° Imbalance (Max), 1.8 VSWR (Max)	2.047" L x 0.945" W x 0.413" H (52.00mm x 24.00mm x 10.50mm)
PE20S0010 2 Way Broadband Combiner from 80 Pasternack	2,914	0.00	RFQ	Datasheet	Module	-	Retail Package	Active	0.6dB	800 MHz ~ 2.5 GHz	Isolation (Min) 7.5dB, 5° Imbalance (Typ), 1.3 VSWR (Max)	4.500" L x 3.000" W x 1.150" H (114.30mm x 76.20mm x 29.20mm)
PE20S0031 4 Way Broadband Combiner from 70 Pasternack	3,893	0.00	RFQ	Datasheet	Module	-	Retail Package	Active	1.1dB	700 MHz ~ 6 GHz	Isolation (Min) 6.5dB, 7° Imbalance (Typ), 1.35 VSWR (Max)	5.201" L x 3.902" W x 1.118" H (132.10mm x 99.10mm x 28.40mm)
PE2079A 2 Way 2.4mm Power Divider from 1 Pasternack	3,610	0.00	RFQ	Datasheet	Module, SMA Connectors	-	Retail Package	Active	1.8dB	10 GHz ~ 50 GHz	Isolation (Min) 15dB, 10° Imbalance (Max), 2 VSWR (Max)	1.000" L x 1.000" W x 0.390" H (25.40mm x 25.40mm x 9.91mm)
PE20S0011 2 Way Broadband Combiner from 80 Pasternack	2,661	0.00	RFQ	Datasheet	Module	-	Retail Package	Active	0.6dB	800 MHz ~ 2.5 GHz	Isolation (Min) 7.5dB, 1.3 VSWR (Max)	4.500" L x 3.000" W x 1.150" H (114.30mm x 76.20mm x 29.20mm)
PE20S0012 2 Way Broadband Combiner from 80 Pasternack	4,236	0.00	RFQ	Datasheet	Module	-	Retail Package	Active	1dB	800 MHz ~ 4.2 GHz	Isolation (Min) 10dB, 5° Imbalance (Typ), 1.3 VSWR (Max)	5.201" L x 3.000" W x 1.154" H (132.10mm x 76.20mm x 29.30mm)
PE20S0006 4 Way Broadband Combiner from 80 Pasternack	2,602	0.00	RFQ	Datasheet	Module, SMA Connectors	-	Retail Package	Active	0.75dB	80 MHz ~ 1 GHz	Isolation (Min) 12dB, 5° Imbalance (Typ), 1.3 VSWR (Max)	5.098" L x 4.720" W x 1.539" H (129.50mm x 119.90mm x 39.10mm)
PE20S0017 4 Way Broadband Combiner from 2 Pasternack	3,489	0.00	RFQ	Datasheet	Module	-	Retail Package	Active	0.8dB	2 GHz ~ 6 GHz	5° Imbalance (Typ), 1.3 VSWR (Max)	4.512" L x 2.961" W x 1.098" H (114.60mm x 75.20mm x 27.90mm)
PE20S0009 4 Way Broadband Combiner from 80 Pasternack	3,737	0.00	RFQ	Datasheet	Module	-	Retail Package	Active	0.6dB	800 MHz ~ 2.5 GHz	Isolation (Min) 6dB, 5° Imbalance (Typ), 1.3 VSWR (Max)	4.500" L x 4.350" W x 1.150" H (114.30mm x 110.50mm x 29.20mm)
PE20S0004 2 Way Broadband Combiner from 20 Pasternack	2,821	0.00	RFQ	Datasheet	Module, SMA Connectors	-	Retail Package	Active	0.8dB	20 MHz ~ 1 GHz	Isolation (Min) 10dB, 5° Imbalance (Typ), 1.3 VSWR (Max)	5.000" L x 4.350" W x 1.579" H (127.00mm x 110.50mm x 40.10mm)

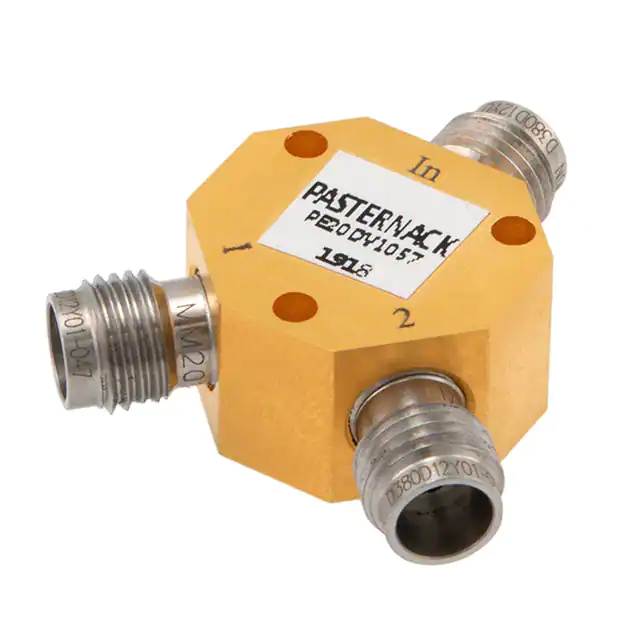

PE20DV1057 2 WAY 0.5W DIV 1.85MM DC-67GHZ Pasternack	4,642	4160.00	RFQ	Datasheet	Module	-	Bag	Active	7.8dB	0 Hz ~ 67 GHz	Isolation (Min) 14dB, 7° Imbalance (Max)	0.689" L x 0.622" W x 0.404" H (17.50mm x 15.80mm x 10.25mm)
PE20DV2107 2 Way 1.0mm Power Divider from D Pasternack	1,436	0.00	RFQ	Datasheet	Module, SMA Connectors	-	Retail Package	Active	9dB	0 Hz ~ 110 GHz	20° Imbalance (Max), 1.9 VSWR (Max)	0.642" Dia x 0.359" H (16.30mm x 9.11mm)
PE20DV2108 2 Way 1.0mm Power Divider from D Pasternack	2,375	0.00	RFQ	Datasheet	Module, SMA Connectors	-	Retail Package	Active	9.5dB	0 Hz ~ 110 GHz	2.1 VSWR (Max)	0.642" Dia x 0.359" H (16.30mm x 9.11mm)
PD1722J5050S2HF RF POWER DVDR 1.7GHZ-2.2GHZ 0805 TTM Technologies, Inc.	3,012	0.94	RFQ	Datasheet	0805 (2012 Metric)	Xinger®	Tape & Reel (TR)	Active	0.6dB	1.7 GHz ~ 2.2 GHz	Isolation (Min) 15dB, 3% Imbalance (Max)	0.079" L x 0.050" W (2.00mm x 1.27mm)

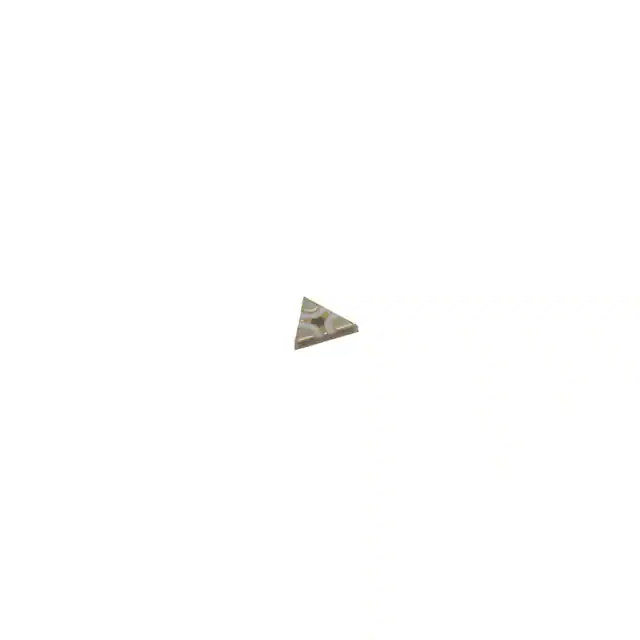

PDR05848 RF PWR DIVIDER 0HZ-40GHZ MODULE Knowles Dielectric Labs	2,900	12.22	RFQ	Datasheet	Module	-	Tray	Active	0.5dB	0 Hz ~ 40 GHz	20dB Return Loss	0.075" L x 0.065" W x 0.010" H (1.91mm x 1.65mm x 0.25mm)

Total 1397 Record«Prev 1... 30 31 32 333435 36 37...70 Next»
