RF Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMC199AMS8ETRIC RF SWITCH SPDT 2.5GHZ 8MSOP |
1,225 | 6.10 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | ISM | - | SPDT | 0Hz ~ 2.5GHz | 25dB | 0.6dB | 2GHz, 2.5GHz | 28dBm | 55dBm | - | 50Ohm | 3V, 5V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
HMC595AEIC RF SWITCH SPDT 3GHZ SOT23-6 |
1,165 | 7.02 |
|
Datasheet |
- | SOT-23-6 | Strip | Active | WiMax, WLAN | - | SPDT | 0Hz ~ 3GHz | 18dB | 0.5dB | 3GHz | 39dBm | 63dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
|
HMC545AIC RF SWITCH SPDT 3GHZ SOT23-6 |
2,428 | 5.41 |
|
Datasheet |
- | SOT-23-6 | Strip | Active | WiMax, WLAN | - | SPDT | 0Hz ~ 3GHz | 22dB | 0.4dB | 3GHz | 33dBm | 54dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|

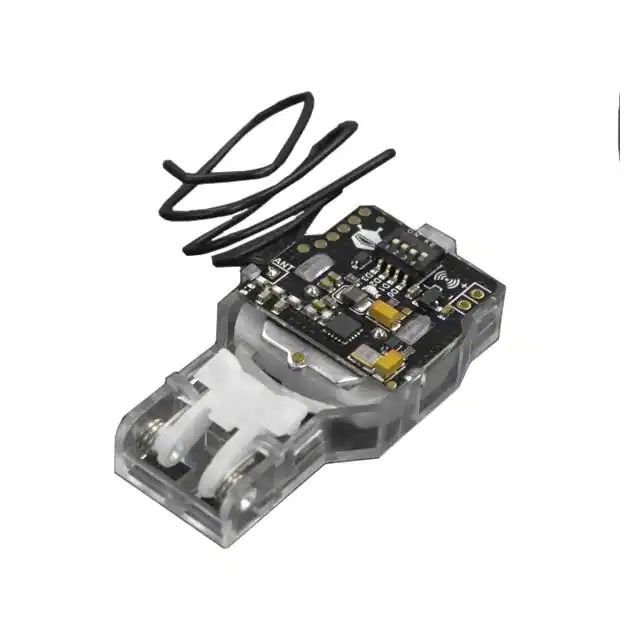

TEL0146IC RF SWITCH 433MHZ |
104 | 8.90 |
|
Datasheet |
- | Module | Bulk | Active | WiFi | - | - | 433MHz | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

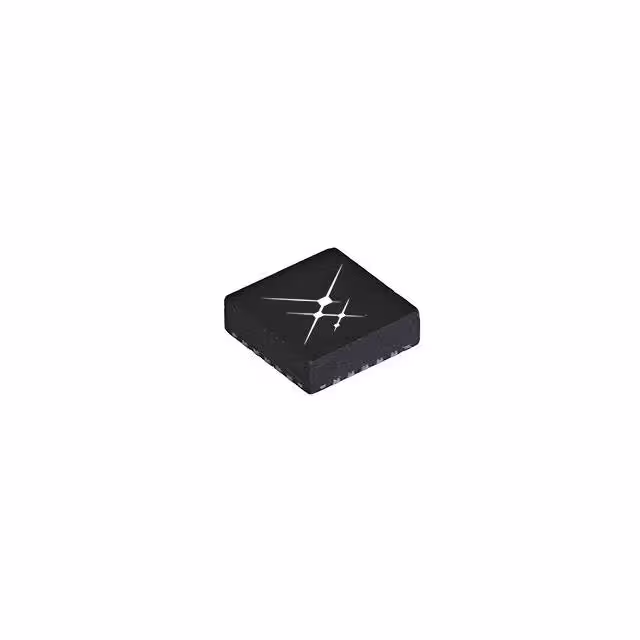

SKY12248-492LFIC RF SWITCH SPST 6GHZ 16QFN |
2,962 | 10.75 |
|
Datasheet |
- | 16-LQFN Exposed Pad | Tape & Reel (TR) | Active | LTE, TD-SCDMA, WiMax | - | SPST | 500MHz ~ 6GHz | 20dB | 1.3dB | 6GHz | - | 72dBm | - | 50Ohm | 28V | -55°C ~ 175°C | - | - | Surface Mount | 16-QFN (4x4) |
|
MSW-2-20+IC RF SWITCH SPDT 2GHZ |
645 | 11.75 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Cellular, PCN | Reflective | SPDT | 0Hz ~ 2GHz | 24dB | 0.75dB | 2GHz | 25dBm | - | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | - |
|

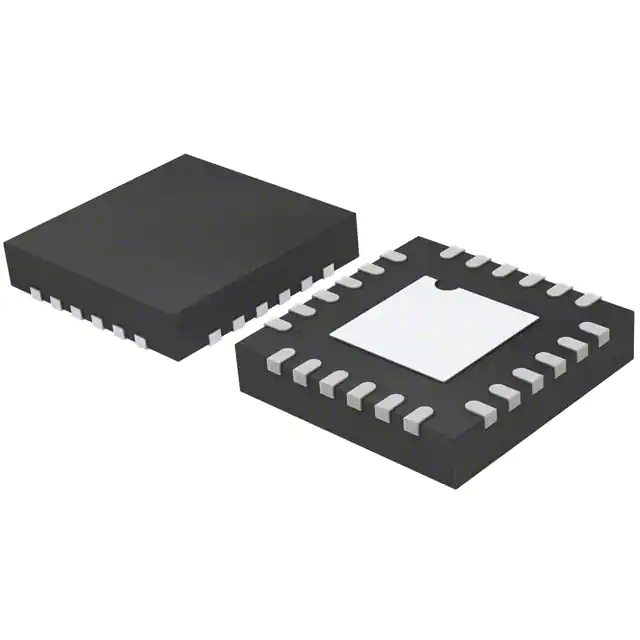

ADRF5250BCPZ-R7IC RF SWITCH SP5T 6GHZ 24LFCSP |
2,418 | 9.33 |
|
Datasheet |
- | 24-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | General Purpose | Absorptive | SP5T | 100MHz ~ 6GHz | 46dB | 1.8dB | 6GHz | - | 57dBm | - | 50Ohm | 3V ~ 5.25V | -40°C ~ 105°C (TC) | - | - | Surface Mount | 24-LFCSP (4x4) |
|

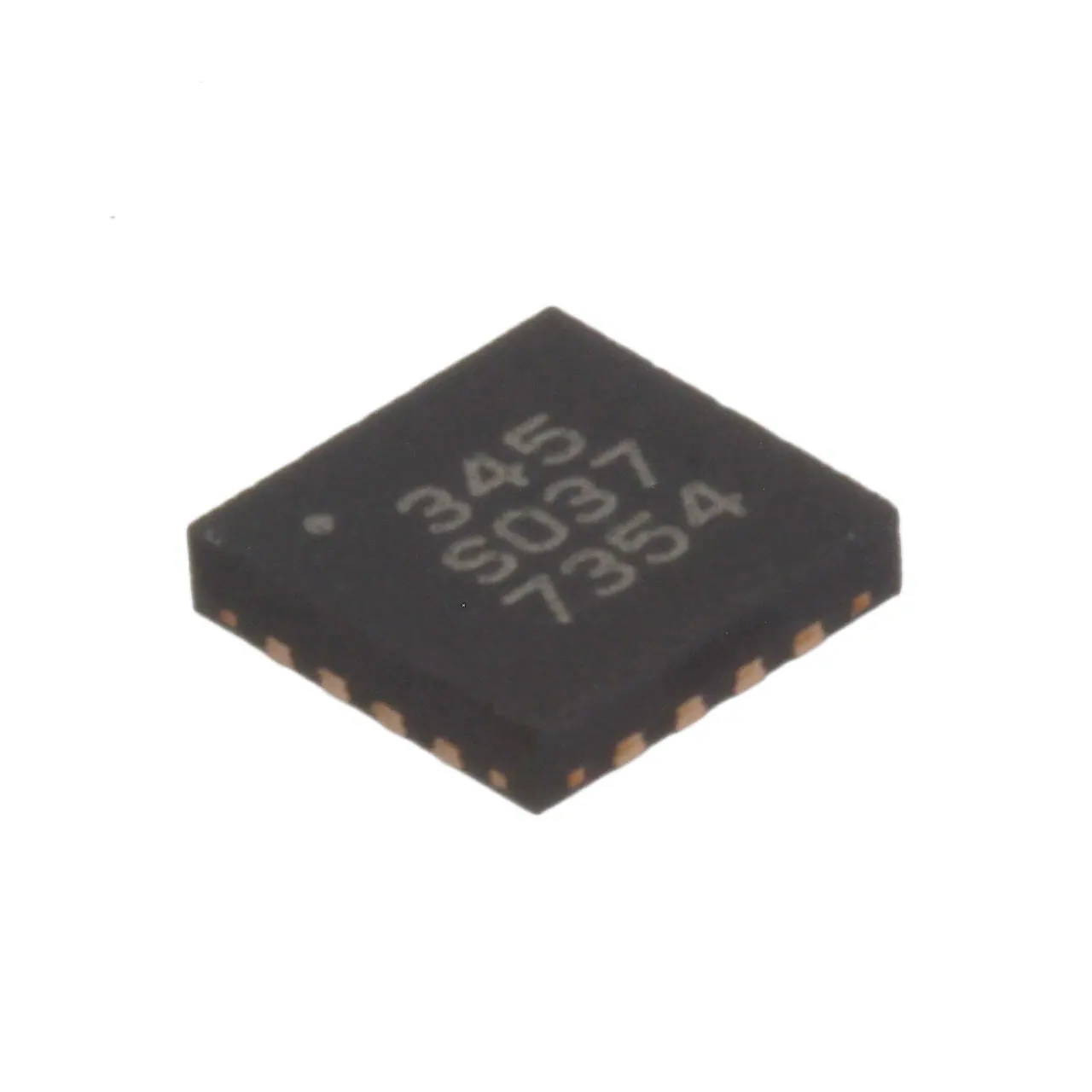

MASW-000834-13560TIC RF SWITCH SPDT 6GHZ 16QFN |
1,350 | 10.73 |
|
Datasheet |
HMIC™ | 16-VQFN Exposed Pad | Tape & Reel (TR) | Active | WiFi, WiMAX | Reflective | SPDT | 50MHz ~ 6GHz | 36dB | 0.38dB | 3.5GHz | - | 65dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | - | 16-PQFN (4x4) |
|
|
HMC595AIC RF SWITCH SPDT 3GHZ SOT23-6 |
4,358 | 8.26 |
|
Datasheet |
- | SOT-23-6 | Strip | Active | WiMax, WLAN | - | SPDT | 0Hz ~ 3GHz | 18dB | 0.5dB | 3GHz | 39dBm | 63dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
TS72420KIC RF SWITCH SP4T 3GHZ 16QFN |
766 | 16.30 |
|
Datasheet |
Symmetric | 16-VFQFN Exposed Pad | Strip | Not For New Designs | Cellular, LTE | Reflective | SP4T | 10MHz ~ 3GHz | 40dB | 0.45dB | 800MHz | 42dBm | 70dBm | - | 50Ohm | 2.6V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
|
TS63210KIC RF SWITCH SPDT 1GHZ 16QFN |
134 | 16.30 |
|
Datasheet |
Symmetric | 16-VFQFN Exposed Pad | Strip | Active | Cellular | Reflective | SPDT | 1MHz ~ 1GHz | 23dB | 0.25dB | 500MHz | 42dBm | 70dBm | - | 50Ohm | 2.6V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
HMC550AIC RF SWITCH SPST 6GHZ SOT23-6 |
112 | 9.19 |
|
Datasheet |
- | SOT-23-6 | Strip | Active | WiMAX / WiBro | Reflective | SPST | 0Hz ~ 6GHz | 12dB | 0.7dB | 6GHz | 32dBm | 52dBm | - | 50Ohm | 3.3V | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
SKY12245-492LFIC RF SWITCH SPDT 5GHZ 20QFN |
3,148 | 11.85 |
|
Datasheet |
- | 20-LQFN Exposed Pad | Tape & Reel (TR) | Active | 3G/4G/5G, LTE | Absorptive/Reflective | SPDT | 300MHz ~ 5GHz | 41dB | 0.7dB (max) | 4.6GHz | - | 69dBm | - | - | 4.5V ~ 5.5V | -40°C ~ 105°C | - | - | Surface Mount | 20-QFN (5x5) |
|
|
TS63421KIC RF SWITCH SP4T 1GHZ 16QFN |
112 | 17.79 |
|
Datasheet |
Symmetric | 16-VFQFN Exposed Pad | Strip | Active | Cellular | Reflective | SP4T | 1MHz ~ 1GHz | 25dB | 0.40dB | 500MHz | 42dBm | 71dBm | - | 50Ohm | 2.6V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
MASW-003100-11920WIC RF SWITCH SP3T 20GHZ |
150 | 19.47 |
|
Datasheet |
HMIC™ | Module | Tray | Active | General Purpose | Reflective | SP3T | 50MHz ~ 20GHz | 42dB | 0.9dB | 20GHz | - | - | - | - | - | -65°C ~ 125°C | - | - | - | - |
|
MASW-003100-11920GIC RF SWITCH SP3T 20GHZ CHIP |
150 | 19.47 |
|
Datasheet |
HMIC™ | Die | Tray | Active | General Purpose | - | SP3T | 50MHz ~ 20GHz | 42dB | 0.9dB | 20GHz | - | - | - | - | 50V | -65°C ~ 125°C | - | - | - | Chip |
|
HMC646LP2ETRIC RF SWITCH SPDT 2.1GHZ 6DFN |
858 | 14.30 |
|
Datasheet |
- | 6-TDFN Exposed Pad | Tape & Reel (TR) | Active | Cellular, TD-SCDMA | Reflective | SPDT | 100MHz ~ 2.1GHz | 32dB | 1.3dB | 2.025GHz | - | 34dBm | - | 50Ohm | 3V ~ 8V | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (2x2) |
|
MASW-000932-13560TIC RF SWITCH SPDT 4GHZ 16QFN |
1,482 | 13.31 |
|
Datasheet |
HMIC™ | 16-LQFN Exposed Pad | Tape & Reel (TR) | Active | WiFi, WiMAX | Reflective | SPDT | 10MHz ~ 4GHz | 43dB | 0.25dB | 2.01GHz | - | 72dBm | - | - | 28V | -40°C ~ 85°C | - | - | - | 16-PQFN (4x4) |
|
MASW-003103-13640GIC RF SWITCH SP3T 20GHZ |
500 | 26.81 |
|
Datasheet |
HMIC™ | - | Tray | Active | General Purpose | Reflective | SP3T | 50MHz ~ 20GHz | 31dB | 1.2dB | 20GHz | - | - | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | - |
|

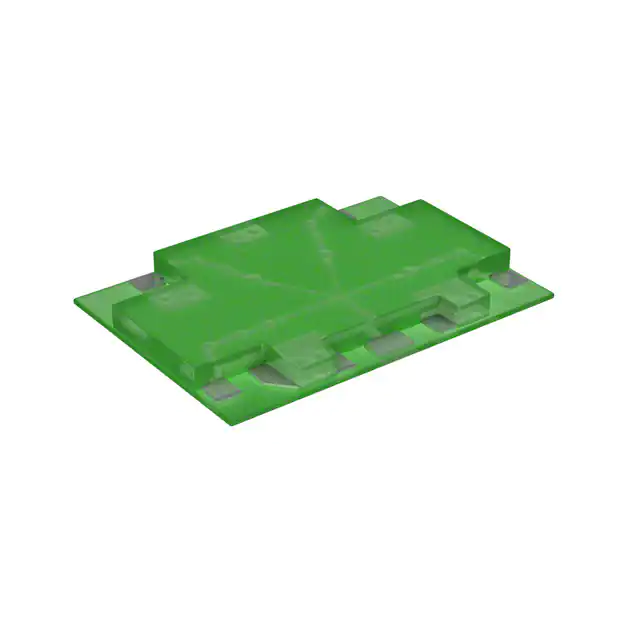

MA4SW410IC RF SWITCH SP4T 20GHZ DIE |
150 | 24.62 |
|
Datasheet |
HMIC™ | Die | Bulk | Active | General Purpose | Reflective | SP4T | 50MHz ~ 20GHz | 34dB | 0.9dB | 20GHz | - | - | - | - | - | -65°C ~ 125°C | - | - | - | Die |
