RF Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMC536MS8GTRIC RF SWITCH SPDT 6GHZ 8MSG |
195 | 8.54 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Reflective | SPDT | 0Hz ~ 6GHz | 32dB | 0.7dB | 6GHz | - | 48dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 8-MSG |
|
ADRF5301BCCZNIC RF SWITCH SPDT 49GHZ 20LGA |
3,429 | 0.00 |
|
Datasheet |
- | 20-VFLGA Exposed Pad | Strip | Active | Cellular | Reflective | SPDT | 37GHz ~ 49GHz | 30dB | 1.4dB | 40GHz | 36dBm | 52dBm | Single Line Control | 50Ohm | 3.15V ~ 3.45V | -40°C ~ 105°C | - | - | Surface Mount | 20-LGA (3x3) |
|
MAX12005ETM+IC RF SWITCH 2.15GHZ 48TQFN |
4,075 | 21.37 |
|
Datasheet |
- | 48-WFQFN Exposed Pad | Tube | Active | DBS, L-Band, IF Satellite | Reflective | - | 950MHz ~ 2.15GHz | 55dB | - | 950MHz | - | - | - | 75Ohm | 3V ~ 3.5V | -40°C ~ 85°C | - | - | Surface Mount | 48-TQFN (7x7) |
|

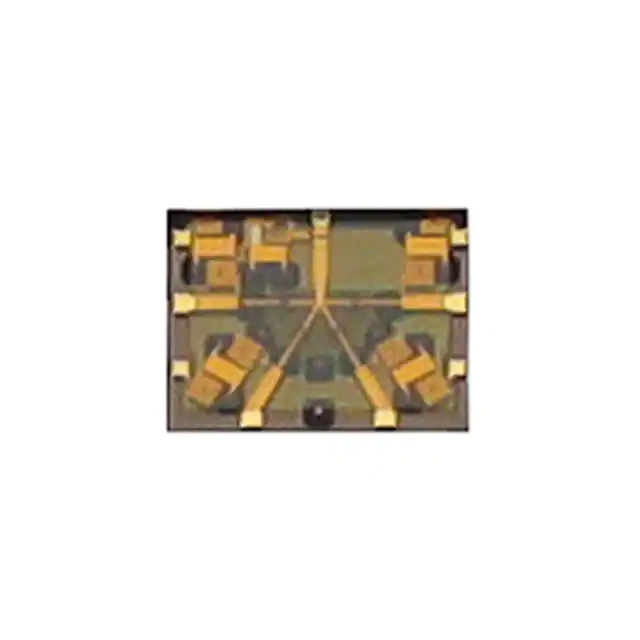

MASW-004102-12760WIC RF SWITCH SP4T 18GHZ DIE |
100 | 63.14 |
|
Datasheet |
HMIC™ | Die | Tray | Active | General Purpose | - | SP4T | 0Hz ~ 18GHz | 35dB | 1.4dB | 18GHz | - | - | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | Die |
|
|
MASW-011144-DIEIC RF SWITCH SPDT 40GHZ DIE |
100 | 0.00 |
|
Datasheet |
- | Die | Case | Active | K, Ka Band | Reflective | SPDT | 20GHz ~ 40GHz | 30dB | 0.65dB | 34GHz | 40dBm | - | DC Blocked | 50Ohm | 4.5V | -55°C ~ 85°C | - | - | - | Die |
|
|
MASW-011129-DIEIC RF SWITCH SP2T 22GHZ DIE |
1,996 | 0.00 |
|
Datasheet |
- | Die | Case | Active | General Purpose | Reflective | SP2T | 2GHz ~ 22GHz | -60dB | -0.5dB | 2GHz, 12GHz | - | - | DC Blocked | 50Ohm | - | -40°C ~ 85°C | - | - | - | Die |
|
|
MASW-011130-DIEIC RF SWITCH SP3T 22GHZ DIE |
1,510 | 0.00 |
|
Datasheet |
- | Die | Case | Active | General Purpose | Reflective | SP3T | 2GHz ~ 22GHz | -60dB | -0.5dB | 2GHz, 12GHz | - | 45dBm | DC Blocked | 50Ohm | - | -40°C ~ 85°C | - | - | - | Die |
|

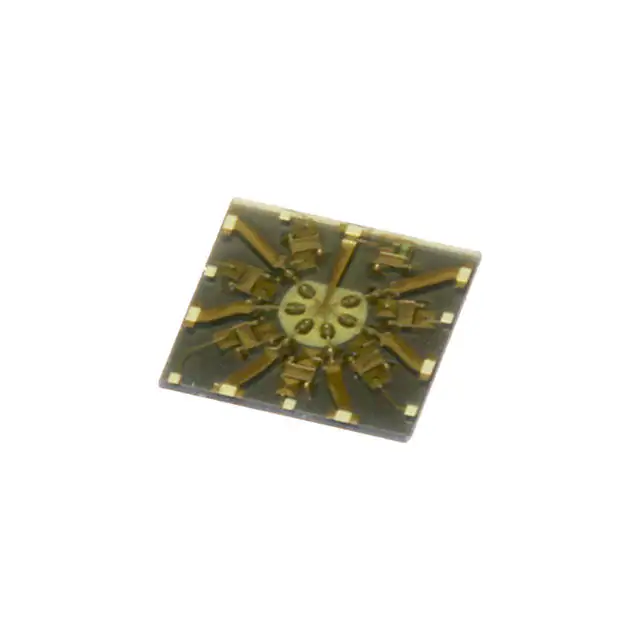

MA4SW610B-1IC RF SWITCH SP6T 18GHZ DIE |
125 | 110.68 |
|
Datasheet |
HMIC™ | Die | Bulk | Active | General Purpose | Reflective | SP6T | 2GHz ~ 18GHz | 39dB | 1.9dB | 18GHz | - | - | - | - | - | -65°C ~ 125°C | - | - | - | Die |
|
|
MASW-011108-DIEIC RF SWITCH SPDT 18GHZ DIE |
1,832 | 0.00 |
|
Datasheet |
- | Die | Case | Active | Radar | Reflective | SPDT | 6GHz ~ 18GHz | 38dB | 0.9dB | 18GHz | - | - | DC Blocked | 50Ohm | 5V | -40°C ~ 85°C | - | - | - | Die |
|
ADGM1004JCPZ-RL7IC RF SWITCH SP4T 13GHZ 24LFCSP |
892 | 73.46 |
|
Datasheet |
ADGM1004 | 24-LFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | General Purpose | - | SP4T | DC ~ 13GHz | 19dB | 0.63dB | 6GHz | - | 67dBm | - | 50Ohm | 3.1V ~ 3.3V | 0°C ~ 85°C | - | - | Surface Mount | 24-LFCSP (5x4) |
|
HMC347ALP3ETRIC RF SWITCH SPDT 14GHZ 16QFN |
656 | 75.31 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | VSAT | Absorptive | SPDT | 0Hz ~ 14GHz | 38dB | 1.9dB | 14GHz | 23dBm | 43dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
HMC547ALC3TRIC RF SWITCH SPDT 28GHZ 16SMT |
1,778 | 91.86 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | VSAT | Absorptive | SPDT | 0Hz ~ 28GHz | 34dB | 2.4dB | 28GHz | 23dBm | 46dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 16-SMT (3x3) |
|

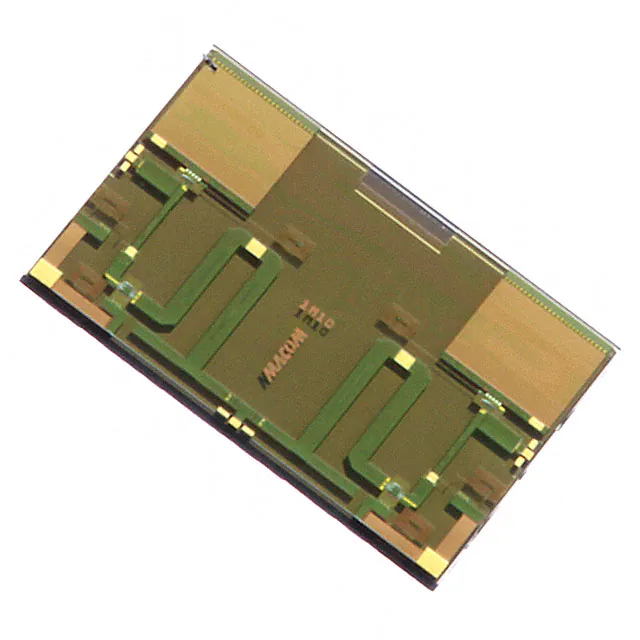

MASW-010647-13950GIC RF SWITCH SPDT 10.5GHZ DIE |
3,226 | 216.87 |
|
Datasheet |
- | Die | Bulk | Active | - | - | SPDT | 8GHz ~ 10.5GHz | 39dB | 0.85dB | 10.5GHz | - | 60dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | - | Die |
|
ADRF5026SCCZ-EPIC RF SWITCH SPDT 44GHZ 20LGA |
3,071 | 155.13 |
|
Datasheet |
- | 20-WFLGA Exposed Pad | Strip | Active | Cellular, Radar, VSAT | Absorptive | SPDT | 100MHz ~ 44GHz | 45dB | 3.8dB | 44GHz | 27dBm | 53dBm | - | 50Ohm | 3.15V ~ 3.45V | -55°C ~ 105°C | - | - | Surface Mount | 20-LGA (3x3) |
|

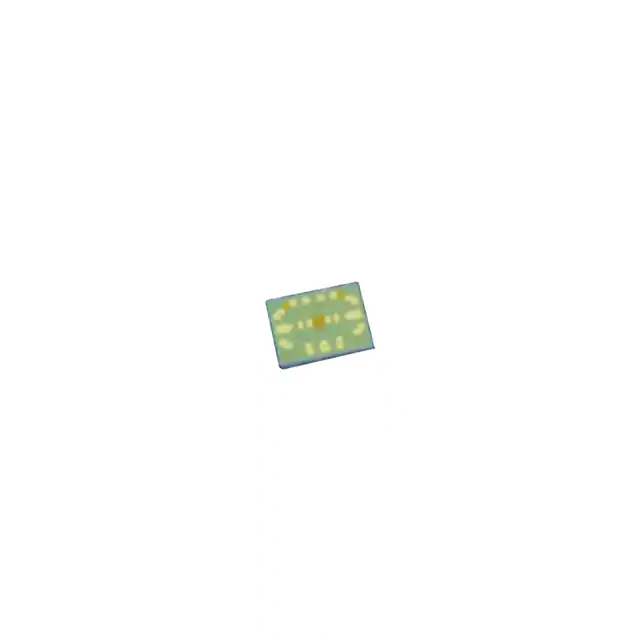

HMC986AIC RF SWITCH SPDT 50GHZ DIE |
1,685 | 188.30 |
|
Datasheet |
- | Die | Tray | Active | Radar | Reflective | SPDT | 100MHz ~ 50GHz | 36dB | 1.9dB | 1GHz, 40GHz | 25dBm | 40dBm | - | 50Ohm | - | - | - | - | - | Die |
|
|
BGSA14M3N10E6327XTSA1RF SWITCH SP4T |
12,000 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BGSA200ML9E6327XTSA1IC RF SWITCH 2XSPST 400MHZ ANT |
14,900 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | General Purpose | - | 2 x SPST | 400MHz | - | - | - | - | - | - | - | 1.2V ~ 1.8V | - | - | - | - | - |
|
|
BGSA143ML10E6327XTSA1IC RF SWITCH SP4T 6GHZ TSLP10-2 |
7,063 | 0.40 |
|
Datasheet |
- | 10-XFLGA | Tape & Reel (TR) | Active | - | Reflective | SP4T | 6GHz | - | - | - | - | - | DC Blocked | - | 42V | - | - | - | Surface Mount | PG-TSLP-10-2 |
|
BGSA12UGL8E6327XTSA1IC RF SWITCH SPDT TSLP8-1 |
14,927 | 0.73 |
|
Datasheet |
- | 8-XFLGA | Tape & Reel (TR) | Active | CDMA, EDGE, LTE, W-CDMA | - | SPDT | - | - | - | - | 11.2dBm | - | - | - | 1.8V ~ 3.6V | - | - | - | Surface Mount | PG-TSLP-8-1 |
|
|
BGSA14M2N10E6329XTSA1IC RF SW SP4T 7.125GHZ TSNP10 |
11,000 | 0.00 |
|
Datasheet |
- | 10-XFQFN | Tape & Reel (TR) | Active | General Purpose | Reflective | SP4T | 7.125GHz | - | - | - | - | - | - | 850mOhm | - | - | - | - | Surface Mount | PG-TSNP-10-9 |
