RF Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

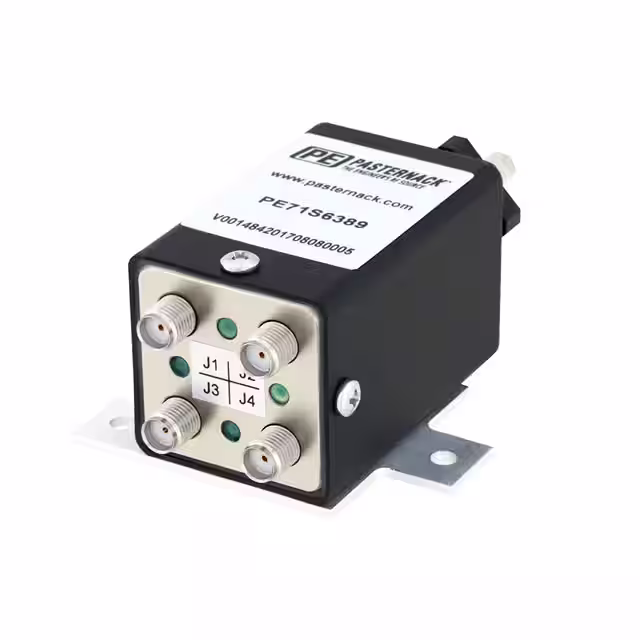

PE71S6389IC RF SWITCH DPDT 18GHZ MODULE |
2,095 | 970.00 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | DPDT | DC ~ 18GHz | 70dB | 0.2dB | 18GHz | - | - | - | 50Ohm | 22V ~ 26V | -25°C ~ 70°C | - | - | - | Module |
|
PE71S6432Transfer Failsafe DC to 40 GHz E |
2,540 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | - | 0Hz ~ 40GHz | 80dB | 0.35dB | 40GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6258SPST PIN Diode Switch Operating |
1,416 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Reflective | SPST | 10MHz ~ 1GHz | 80dB | 1dB | - | - | - | - | 50Ohm | -15V, 5V | -55°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6505SP6T Electromechanical Relay Nor |
2,463 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SP6T | 0Hz ~ 12.4GHz | 70dB | 0.2dB | 12GHz | - | - | - | 50Ohm | 28V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
PE71S6377IC RF SWITCH SP6T 18GHZ MODULE |
3,065 | 3620.00 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SP6T | DC ~ 18GHz | 80dB | 0.15dB | 18GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 70°C | - | - | - | Module |
|

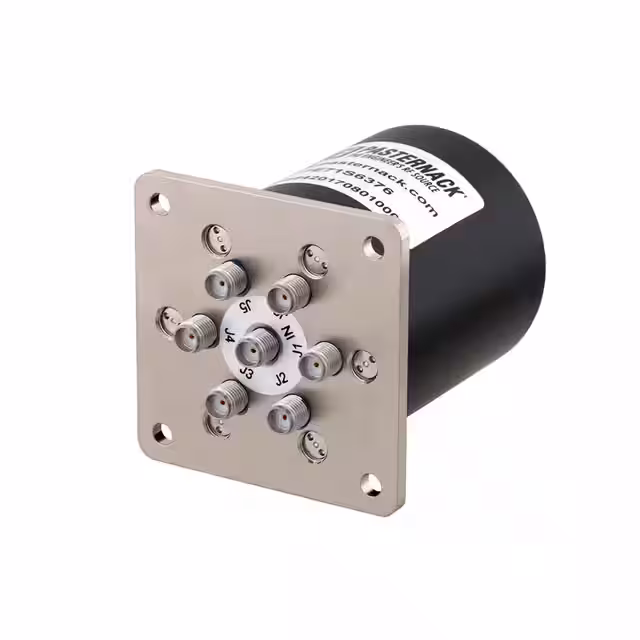

PE71S6376IC RF SWITCH SP6T 18GHZ MODULE |
2,937 | 3810.00 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SP6T | DC ~ 18GHz | 80dB | 0.15dB | 18GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 70°C | - | - | - | Module |
|
|
PEWGS6002WR-28 WAVEGUIDE ELECTROMECHANICA |
4,491 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | SPDT, DPDT | 26.5GHz ~ 40GHz | 90dB | 0.012dB | - | - | - | - | 50Ohm | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PEWGS6018WR-90 Waveguide Electromechanica |
4,644 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | SPDT | 8.2GHz ~ 12.4GHz | 105dB | 0.05dB | - | - | - | - | 50Ohm | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PEWGS6000WR-28 Waveguide Electromechanica |
4,747 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | SPDT | 26.5GHz ~ 40GHz | 90dB | 0.012dB | - | - | - | - | 50Ohm | 21V ~ 32V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PEWGS6008WR-62 Waveguide Electromechanica |
4,803 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | DPDT | 12.4Hz ~ 18GHz | 105dB | 0.08dB | - | - | - | - | 50Ohm | 21V ~ 32V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6078SP6T Electromechanical Relay Lat |
4,776 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Reflective | SP6T | 0Hz ~ 40GHz | 50dB (min) | 1.1dB (max) | 40GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PEWGS6023WR-112 WAVEGUIDE ELECTROMECHANIC |
4,471 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | SPDT | 7.05GHz ~ 10GHz | 85dB | 0.02dB | - | - | - | - | 50Ohm | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PEWGS6003WR-28 Waveguide Electromechanica |
3,027 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | DPDT | 26.5GHz ~ 40GHz | 90dB | 0.012dB | - | - | - | - | 50Ohm | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6466SP4T Electromechanical Relay Nor |
4,723 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | SP4T | 0Hz ~ 12GHz | 80dB | 0.2dB | 12GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S2040SPDT PIN DIODE SWITCH OPERATING |
1,533 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Reflective | SPDT | 20MHz ~ 1GHz | 40dB (min) | 0.75dB | 1GHz | - | - | - | 50Ohm | 15V | 0°C ~ 70°C | - | - | Chassis Mount | - |
|
|
PE71S6070Transfer Electromechanical Relay |
4,500 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Reflective | - | 0Hz ~ 12.4GHz | 60dB (min) | 0.5dB (max) | 12.4GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S8005SPDT High Power PIN Diode Switch |
4,898 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar | Reflective | SPDT | 960MHz ~ 1.3GHz | 46dB | 0.5dB | - | - | - | - | 50Ohm | 5V, 15V | -20°C ~ 70°C | - | - | Chassis Mount | - |
|
|
PE71S6465SP6T Electromechanical Relay Nor |
1,990 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SP6T | 0Hz ~ 12GHz | 80dB | 0.2dB | 12GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|

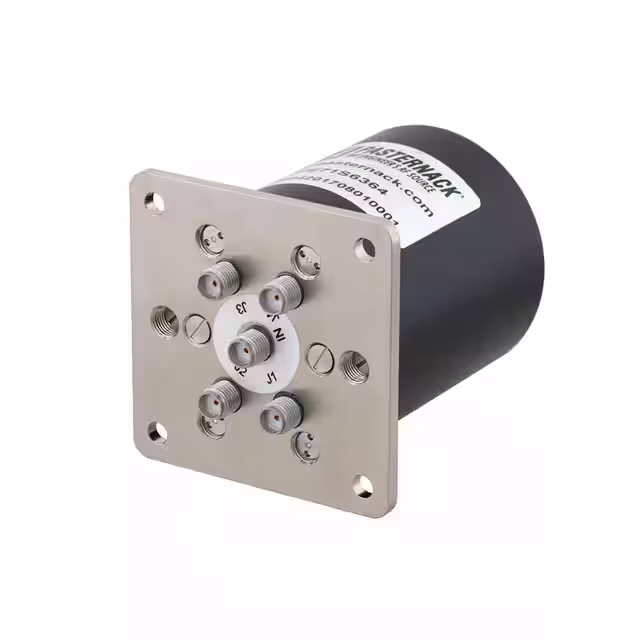

PE71S6364IC RF SWITCH SP4T 18GHZ MODULE |
2,258 | 2760.00 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SP4T | DC ~ 18GHz | 80dB | 0.15dB | 18GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 70°C | - | - | - | Module |
|
|
PE71S7284SPDT, Electromechanical Relay La |
4,318 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SPDT | DC ~ 43GHz | 85dB | 0.40dB | 43GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
