RF Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE71S8007SPDT PIN Diode Swtich Operating |
1,819 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar | Reflective | SPDT | 10MHz ~ 1GHz | 55dB | 0.3dB | 1GHz | - | - | - | 50Ohm | 5V, 15V | -20°C ~ 70°C | - | - | Chassis Mount | - |
|
|
PE71S8004SPDT High Power PIN Diode Swtich |
3,143 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar | Reflective | SPDT | 100MHz ~ 500MHz | 65dB | 0.3dB | - | - | - | - | 50Ohm | 5V, 15V | -20°C ~ 70°C | - | - | Chassis Mount | - |
|
|
PE71S2038SPDT PIN Diode Switch Operating |
1,255 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar | Reflective | SPDT | 100MHz ~ 500MHz | 55dB (min) | 0.5dB (max) | - | - | - | - | 50Ohm | 15V | -20°C ~ 70°C | - | - | Chassis Mount | - |
|
|
PE71S6474SP4T E-M Relay Latching Switch, |
3,849 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | SP4T | 0Hz ~ 26.5GHz | 85dB | 0.3dB | 26.5GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S8008SPDT PIN Diode Swtich Operating |
2,480 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar | Reflective | SPDT | 500MHz ~ 3GHz | 65dB | 0.9dB | 2GHz ~ 3GHz | - | - | - | 50Ohm | 5V, 15V | -20°C ~ 70°C | - | - | Chassis Mount | - |
|
|
PE71S8006SPDT PIN Diode Swtich Operating |
3,853 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar | Reflective | SPDT | 800MHz ~ 3GHz | 65dB | 0.9dB | 3GHz | - | - | - | 50Ohm | 5V, 15V | -20°C ~ 70°C | - | - | Chassis Mount | - |
|
|
PE71S6236Absorptive SPST PIN Diode Switch |
2,824 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | SPST | 1GHz ~ 18GHz | 65dB (min) | 3dB (max) | - | - | - | - | 50Ohm | -15V, 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6331SP6T 0.03 dB Low Insertion Loss |
1,564 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | SP6T | 0Hz ~ 20GHz | 80dB (min) | 0.6dB (max) | 20GHz | - | - | - | 50Ohm | 20V ~ 32V | -25°C ~ 75°C | - | - | Chassis Mount | - |
|
|
PE71S6240Absorptive SPDT PIN Diode Switch |
2,348 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | SPDT | 12GHz ~ 18GHz | 70dB (min) | 3.5dB (max) | - | - | - | - | 50Ohm | -15V, 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6287Absorptive Transfer PIN Diode Sw |
2,048 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | - | 1GHz ~ 2GHz | 80dB (min) | 1dB (max) | - | - | - | - | 50Ohm | -15V, 5V | -55°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6457SP4T E-M Relay Latching Switch w |
2,197 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | SP4T | 0Hz ~ 40GHz | 85dB | 0.5dB | 40GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6424SP4T NO DC to 26.5 GHz Electro-M |
3,841 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SP4T | 0Hz ~ 26.5GHz | 80dB | 0.40dB | 26.5GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 70°C | - | - | Chassis Mount | - |
|
|
PEWGS6001WR-28 Waveguide Electromechanica |
3,615 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | SPDT | 26.5GHz ~ 40GHz | 90dB | 0.012dB | - | - | - | - | 50Ohm | 21V ~ 32V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|

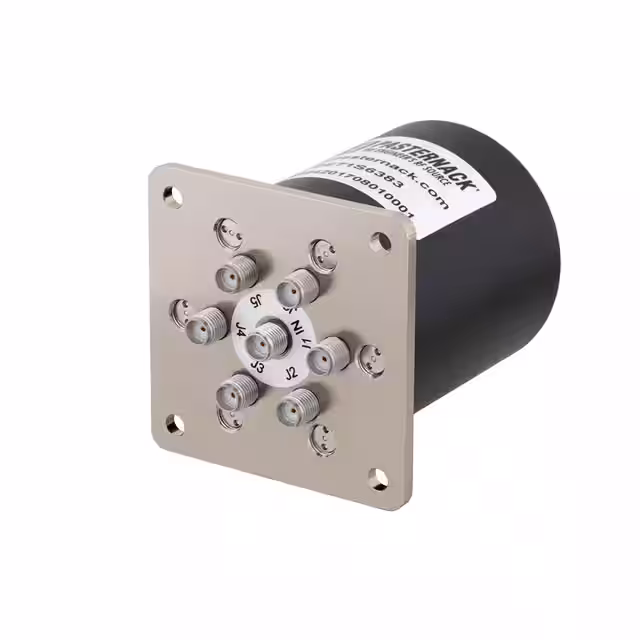

PE71S6383IC RF SWITCH SP6T 26.5GHZ MODULE |
1,554 | 3780.00 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SP6T | DC ~ 26.5GHz | 80dB | 0.15dB | 26.5GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 70°C | - | - | - | Module |
|
|
PE71S1104Reflective SP4T GaN High Power P |
3,923 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM, VSAT | Reflective | SP4T | 0Hz ~ 6GHz | 25dB (min) | 1.5dB | 6GHz | - | 50dBm | - | 50Ohm | 5V | -45°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6547SP4T, IP64 Rated Electromechanic |
1,953 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SP4T | 0Hz ~ 18GHz | 90dB | 0.2dB | 18GHz | - | - | - | 50Ohm | 11V ~ 13V | -54°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6484Transfer Electromechanical Relay |
4,999 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | - | 0Hz ~ 40GHz | 85dB | 0.40dB | 40GHz | - | - | - | 50Ohm | 12V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S7298Transfer, Electromechanical Rela |
2,136 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | - | DC ~ 43GHz | 85dB | 0.6dB | 43GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6459SP6T E-M RELAY LATCHING SWITCH W |
2,685 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SP6T | 0Hz ~ 40GHz | 90dB | 0.5dB | 40GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6210Absorptive SPDT PIN Diode Switch |
2,017 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SPDT | 500MHz ~ 18GHz | 55dB (min) | 3.75dB (max) | - | - | - | - | 50Ohm | -15V, 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
