RF Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE71S7290SP4T, Electromechanical Relay No |
1,486 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SP4T | DC ~ 43GHz | 85dB | 0.6dB | 43GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6514SP4T Electromechanical Relay Nor |
1,316 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | SP4T | 0Hz ~ 26.5GHz | 50dB (min) | 0.8dB (max) | 26.5GHz | - | - | - | 50Ohm | 28V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6224SP8T PIN DIODE SWITCH OPERATING |
3,945 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Reflective | SP8T | 500MHz ~ 18GHz | 55dB (min) | 4dB | - | - | - | - | 50Ohm | -15V, 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S7293SP6T, Electromechanical Relay No |
2,269 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | SP6T | DC ~ 43GHz | 85dB | 0.6dB | 43GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S7291SP4T, Electromechanical Relay No |
2,507 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | SP4T | DC ~ 43GHz | 85dB | 0.40dB | 43GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S2033Absorptive SP8T PIN Diode Switch |
2,738 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar | Absorptive | SP8T | 100MHz ~ 20GHz | 65dB (min) | 6dB (max) | - | - | - | - | 50Ohm | -12V, 5V | -55°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6080SP8T Electromechanical Relay Lat |
4,863 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SP8T | 0Hz ~ 18GHz | 60dB (min) | 0.6dB (max) | 18GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|

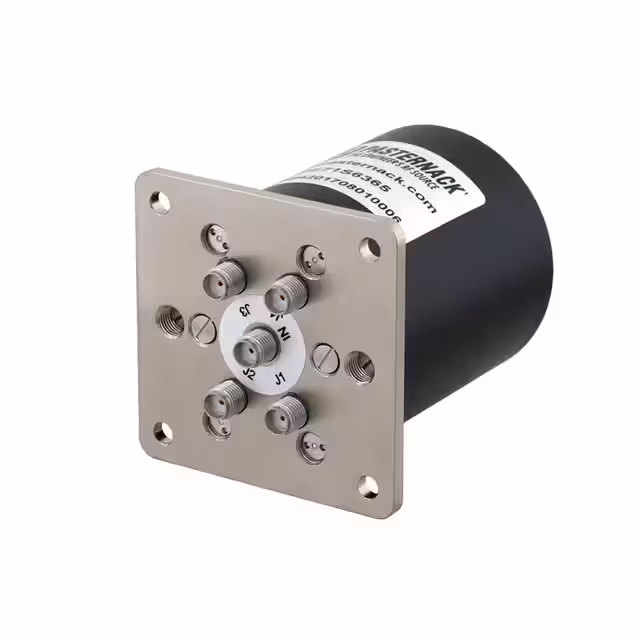

PE71S6365IC RF SWITCH SP4T 18GHZ MODULE |
1,094 | 2760.00 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SP4T | DC ~ 18GHz | 80dB | 0.15dB | 18GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 70°C | - | - | - | Module |
|
|
PE71S6516SP6T Electromechanical Relay Nor |
4,457 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | SP6T | 0Hz ~ 26.5GHz | 50dB (min) | 0.8dB (max) | 26.5GHz | - | - | - | 50Ohm | 28V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6320SP4T Electromechanical Relay Lat |
4,525 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SP4T | 0Hz ~ 40GHz | 50dB (min) | 1dB (max) | 40GHz | - | - | - | 50Ohm | 28V | -35°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PEWGS6046WRD-650 Double Ridge Waveguide S |
4,731 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Reflective | SPDT, DPDT | 6.5GHz ~ 18GHz | 60dB (min) | 0.35dB (max) | - | - | - | - | - | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PEWGS6050WRD-750 Double Ridge Waveguide S |
3,132 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Reflective | SPDT, DPDT | 7.5GHz ~ 18GHz | 60dB (min) | 0.3dB (max) | - | - | - | - | - | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6534SP6T, IP64 Rated Electromechanic |
4,469 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | SP4T, SP6T | 0Hz ~ 26.5GHz | 90dB | 0.3dB | 26.5GHz | - | - | - | 50Ohm | 26V ~ 30V | -54°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6533SP6T, IP64 Rated Electromechanic |
3,949 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SP6T | 0Hz ~ 26.5GHz | 90dB | 0.3dB | 26.5GHz | - | - | - | 50Ohm | 11V ~ 13V | -54°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PEWGS6051WRD-750 Double Ridge Waveguide S |
1,340 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Reflective | SPDT, DPDT | 7.5GHz ~ 18GHz | 60dB (min) | 0.3dB (max) | - | - | - | - | - | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PEWGS6049WRD-750 Double Ridge Waveguide S |
1,853 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Reflective | SPDT, DPDT | 7.5GHz ~ 18GHz | 60dB (min) | 0.3dB (max) | - | - | - | - | - | 21V ~ 32V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6264SPST PIN Diode Switch Operating |
4,246 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Reflective | SPST | 1GHz ~ 18GHz | 65dB (min) | 2.5dB | - | - | - | - | 50Ohm | -15V, 5V | -55°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S2010Absorptive SPDT PIN Diode Switch |
3,332 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SPDT | 70MHz ~ 26.5GHz | 55dB (min) | 5dB (max) | - | - | - | - | 50Ohm | -5V, 5V | -30°C ~ 60°C | - | - | Chassis Mount | - |
|
|
PE71S2021SPDT PIN Diode Switch Operating |
2,671 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Reflective | SPDT | 2GHz ~ 40GHz | 30dB (min) | 4dB (max) | - | - | - | - | 50Ohm | -5V, 5V | -30°C ~ 60°C | - | - | Chassis Mount | - |
|
|
PE71S6233ABSORPTIVE SPST PIN DIODE SWITCH |
3,618 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SPST | 4GHz ~ 8GHz | 75dB (min) | 1.8dB (max) | - | - | - | - | 50Ohm | -15V, 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
