RF Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE71S6073SP6T Electromechanical Relay Lat |
3,877 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Reflective | SP6T | 0Hz ~ 12.4GHz | 60dB (min) | 0.5dB (max) | 12.4GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S500638 dB High Isolation SP4T PIN Di |
1,287 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | SP4T | 0Hz ~ 20GHz | 38dB | 3.8dB | 20GHz | 24dBm | 40dBm | - | - | 5V | -55°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6215Absorptive SPDT PIN Diode Switch |
3,655 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SPDT | 500MHz ~ 40GHz | 60dB (min) | 6dB (max) | - | - | - | - | 50Ohm | -5V, 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S1117Absorptive SPDT Broadband PIN Di |
1,644 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | 5G | Absorptive | SPDT | 18GHz ~ 40GHz | 60dB | 3.5dB | - | - | 40dBm | - | 50Ohm | -5V, 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S3900USB Controlled High Isolation SP |
2,685 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Reflective | SPDT | 500MHz ~ 18GHz | 60dB (Min) | 6dB (max) | - | - | - | - | - | - | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S7292SP6T, Electromechanical Relay La |
4,465 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SP6T | DC ~ 43GHz | 85dB | 0.6dB | 43GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6566SP4T Electromechanical Relay Lat |
4,076 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SP4T | DC ~ 52GHz | 80dB | 1.5dB | 52GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PEWGS6017WR-90 Waveguide Electromechanica |
3,757 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | DPDT | 8.2GHz ~ 12.4GHz | 105dB | 0.05dB | - | - | - | - | 50Ohm | 21V ~ 32V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S2034Absorptive SP12T PIN Diode Switc |
4,255 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar | Absorptive | SP12T | 100MHz ~ 20GHz | 65dB (min) | 6dB (max) | - | - | - | - | 50Ohm | -12V, 5V | -55°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PEWGS6011WR-62 Waveguide Electromechanica |
3,956 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | DPDT | 12.4Hz ~ 18GHz | 105dB | 0.08dB | - | - | - | - | 50Ohm | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S2041ABSORPTIVE SPDT PIN DIODE SWITCH |
4,801 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SPDT | 800MHz ~ 2.7GHz | 75dB | 0.8dB | - | - | - | - | 50Ohm | 15V | 0°C ~ 70°C | - | - | Chassis Mount | - |
|
|
PEWGS6007WR-42 Waveguide Electromechanica |
4,091 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | SPDT | 18GHz ~ 26.5GHz | 90dB | 0.013dB | - | - | - | - | 50Ohm | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PEWGS6016WR-90 Waveguide Electromechanica |
2,285 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | SPDT | 8.2GHz ~ 12.4GHz | 105dB | 0.05dB | - | - | - | - | 50Ohm | 21V ~ 32V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6565SP4T Electromechanical Relay Lat |
1,984 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | SP4T | DC ~ 52GHz | 80dB | 1.5dB | 52GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PEWGS6019WR-90 Waveguide Electromechanica |
3,672 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | DPDT | 8.2GHz ~ 12.4GHz | 105dB | 0.05dB | - | - | - | - | 50Ohm | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6458SP6T Electromechanical Relay Nor |
2,561 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SP6T | 0Hz ~ 40GHz | 85dB | 0.6dB | 40GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6239Absorptive SPDT PIN Diode Switch |
4,953 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SPDT | 8GHz ~ 12GHz | 70dB (min) | 2.2dB (max) | - | - | - | - | 50Ohm | -15V, 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6573SP6T Electromechanical Relay Lat |
4,694 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | SP6T | DC ~ 52GHz | 80dB | 1.3dB | 52GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6574SP6T Electromechanical Relay Lat |
4,517 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SP6T | DC ~ 52GHz | 80dB | 1.3dB | 52GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|

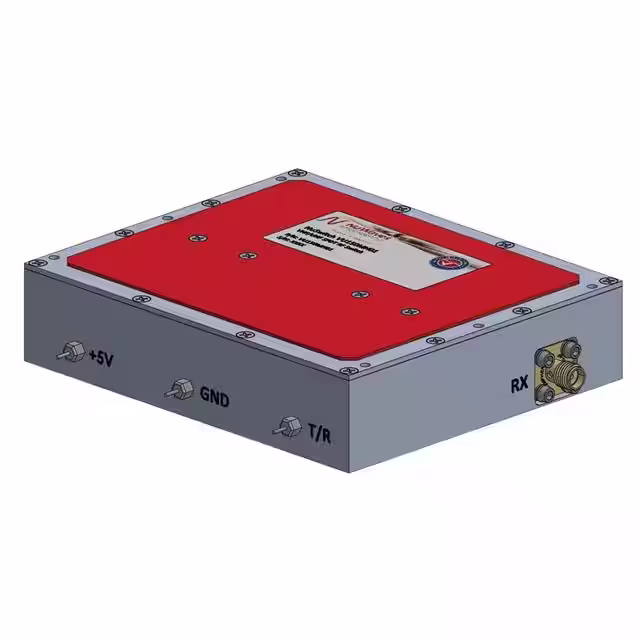

NW-SW-VU-150-MH01IC RF SWITCH SPDT 500MHZ |
4,422 | 5262.40 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | General Purpose | - | SPDT | 50MHz ~ 500MHz | 39dB | 0.25dB | 500MHz | - | - | - | 50Ohm | 5V | -40°C ~ 70°C (TC) | - | - | - | - |
