RF Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMC546MS8GEIC RF SWITCH SPDT 2.2GHZ 8MSOP |
4,893 | 8.43 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Strip | Active | WiMAX / WiBro | Reflective | SPDT | 200MHz ~ 2.2GHz | 30dB | 1.1dB | 2.17GHz | - | 43dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP-EP |
|

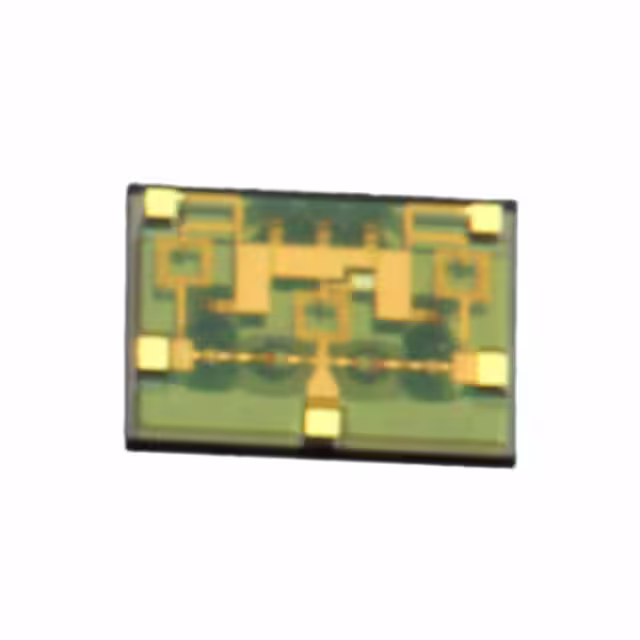

MASW-002102-13580GIC RF SWITCH SPDT 18GHZ |
3,181 | 30.41 |
|
Datasheet |
HMIC™ | - | Tray | Active | General Purpose | - | SPDT | 2GHz ~ 18GHz | 40dB | 1.2dB | 18GHz | - | - | - | - | - | -65°C ~ 125°C | - | - | - | - |
|
HMC347BIC RF SWITCH SPDT 20GHZ DIE |
3,895 | 52.55 |
|
Datasheet |
- | Die | Tray | Active | VSAT | Absorptive | SPDT | 0.1Hz ~ 20GHz | 45dB | 1.7dB | 20GHz | 23dBm | 41dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | Die |
|
HMC641AIC RF SWITCH SP4T 18GHZ DIE |
4,930 | 0.00 |
|
Datasheet |
- | Die | Tray | Active | General Purpose | Absorptive | SP4T | 100MHz ~ 18GHz | 38dB | 2.3dB | 18GHz | 25dBm | 41dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | Die |
|
HMC347A-SXIC RF SWITCH SPDT 20GHZ |
3,965 | 149.66 |
|
Datasheet |
- | Die | Tray | Active | VSAT | - | SPDT | 0Hz ~ 20GHz | 40dB | 2.1dB | 20GHz | 29dBm | 45dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | - |
|
ARD70224IC RF SWITCH SPDT 6GHZ |
4,321 | 359.48 |
|
Datasheet |
ARD | Module, Pin Contacts | Bulk | Active | General Purpose | Reflective | SPDT | 0Hz ~ 6GHz | 70dB (min) | 0.3dB | 8GHz | - | - | - | 50Ohm | 24V | -55°C ~ 85°C | - | - | - | - |
|
|
SKY59608-711LFEVALUATION BOARD/KIT |
4,038 | 0.00 |
|
Datasheet |
- | 6-XFDFN | Bulk | Active | WiFi, WLAN | Reflective | SPDT | 2.4GHz ~ 8.3GHz | 20dB | 0.8dB | 8.3GHz | - | 65dBm | - | 50Ohm | 2.7V ~ 5V | -40°C ~ 90°C | - | - | Surface Mount | 6-MLPD (1.1x0.7) |
|
|
SKY13582-676LFSPDT SOI WIFI SWITCH |
3,296 | 0.00 |
|
Datasheet |
- | 9-QFN | Bulk | Active | 3G/4G, Cellular, LTE | - | SP3T | 400MHz ~ 3.8GHz | 25dB | - | 2.7GHz | - | - | DC Blocked | - | - | -40°C ~ 85°C | - | - | Surface Mount | 9-QFN (1.1x1.1) |
|
|
SKY13581-676LFEVALUATION BOARD/KIT |
3,365 | 0.00 |
|
Datasheet |
- | 9-QFN | Bulk | Active | 3G/4G, Cellular, LTE | - | SPDT | 400MHz ~ 3.8GHz | 25dB | - | 2.7GHz | - | - | DC Blocked | - | - | -40°C ~ 85°C | - | - | Surface Mount | 9-QFN (1.1x1.1) |
|
|
SKY13699-21EVALUATION BOARD/KIT |
1,936 | 0.00 |
|
Datasheet |
- | 10-QFN | Bulk | Active | 5G, LTE | - | DPDT | 400MHz ~ 6GHz | 32dB | 0.3dB | 3.8GHz | - | - | DC Blocked | - | 1.35V ~ 2.8V | - | - | - | Surface Mount | 10-MCM (1.55x1.15) |
|
|
SKY13597-684LFEVALUATION BOARD/KIT |
2,587 | 0.00 |
|
Datasheet |
- | 10-QFN | Bulk | Active | 2G/3G/4G, Cellular, LTE | - | SP4T | 700MHz ~ 3.8GHz | 23dB | - | 2.7GHz | - | - | DC Blocked | - | - | -40°C ~ 90°C | - | - | Surface Mount | 10-QFN (1.1x1.5) |
|
|
SKY13561-670LFIC RF SWITCH SP8T 2.7GHZ 20QFN |
2,126 | 0.00 |
|
Datasheet |
- | 20-WFQFN Exposed Pad | Bulk | Active | 2G/3G/4G, CDMA2000, Cellular, EDGE, GSM, LTE, TD-SCDMA | - | SP8T | 400MHz ~ 2.7GHz | - | 0.95dB | 2.69GHz | - | - | DC Blocked | 50Ohm | 2.5V ~ 4.8V | -30°C ~ 90°C | - | - | Surface Mount | 20-QFN (2.5x2.5) |
|
|
SKY13918-397LFPOWER DIVIDER, 2 WAY, 2.7GHZ |
1,872 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | General Purpose | - | SPDT | 100MHz ~ 7.2GHz | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SKY13343-92LFIC RF SWITCH SPDT |
1,980 | 0.81 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SKY13560-485LFIC RF SWITCH SP4T 14QFN |
3,287 | 0.50 |
|
Datasheet |
- | 14-UFQFN | Tape & Reel (TR) | Active | CDMA2000, EDGE, LTE, UMTS | Reflective | SP4T | 400MHz ~ 2.7GHz | 20dB | - | 2.7GHz | - | - | DC Blocked | - | - | - | - | - | Surface Mount | 14-QFN (2x2) |
|
SKYA21041IC RF SWITCH SPDT 5GHZ 6DFN |
1,495 | 0.95 |
|
Datasheet |
- | 6-XFDFN | Tape & Reel (TR) | Active | 802.11n/ac | - | SPDT | 5GHz | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 6-DFN (1.2x1.4) |
|
|
SKY13636-695LFIC RF SWITCH SP6T 3.8GHZ 14QFN |
4,616 | 1.20 |
|
Datasheet |
- | 14-UFQFN | Tape & Reel (TR) | Active | CDMA2000, LTE, UMTS | - | SP6T | 700MHz ~ 3.8GHz | - | - | - | - | - | DC Blocked | - | - | - | - | - | Surface Mount | 14-QFN (2x2) |
|
SKY13473-569LFIC RF SWITCH SP10T 2.7GHZ 20QFN |
1,594 | 1.26 |
|
Datasheet |
- | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Active | 3G/4G | - | SP10T | 400MHz ~ 2.7GHz | 30dB | 0.6dB | 2GHz | - | - | - | 50Ohm | 2.5V ~ 5V | -40°C ~ 90°C | - | - | Surface Mount | 20-QFN (2.4x2.4) |
|
|
QPC6014TR75-6000MHZ ABSORPTIVE SPST SWITCH |
1,124 | 0.00 |
|
Datasheet |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | 3G, Cellular, LTE | Absorptive | SPST | 5MHz ~ 6GHz | 43dB | 1.05dB | 4GHz | 36dBm | 58dBm | - | 50Ohm | 2.7V ~ 5.5V | -40°C ~ 105°C | - | - | Surface Mount | 8-DFN (2x2) |
|
|
F2932NBGP8IC RF SWITCH SPDT 8GHZ 16QFN |
3,839 | 2.54 |
|
Datasheet |
- | 16-VQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Absorptive | SPDT | 50MHz ~ 8GHz | 37dB | 1.6dB | 8GHz | 36.5dBm | 64dBm | - | 50Ohm | 2.7V ~ 5.5V | -40°C ~ 105°C | - | - | Surface Mount | 16-QFN (4x4) |
