Solder Stencils, Templates
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Positions | Pitch | Outer Dimension | Inner Dimension | Thermal Center Pad | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

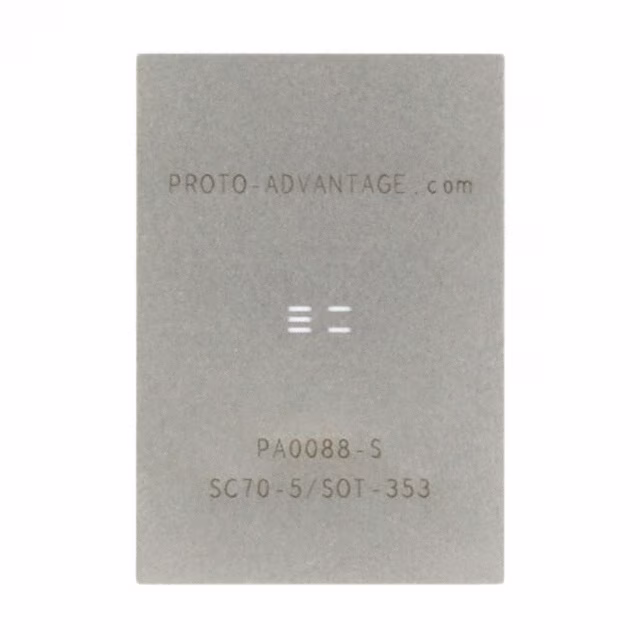

PA0088-SSC70-5/SOT-353 STENCIL |
4,569 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SOT/SC | 5 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

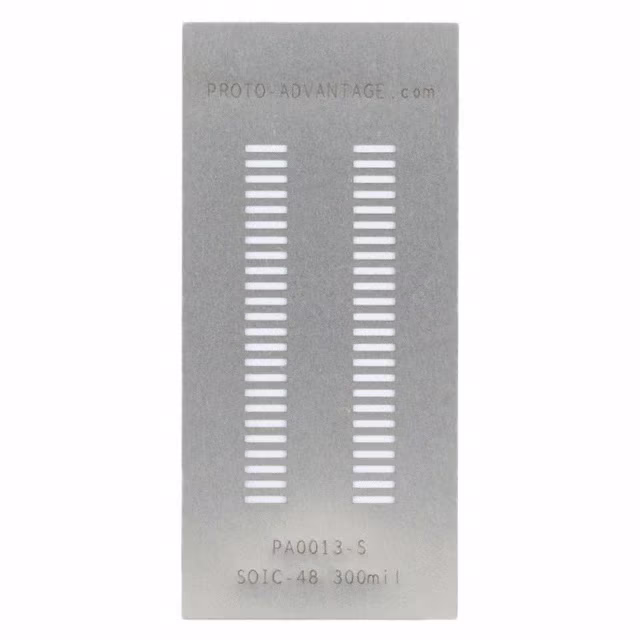

PA0013-SSOIC-48 STENCIL |
3,108 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SOIC | 48 | 0.050" (1.27mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | - | Stainless Steel |
|
PA0182-SSSOP-16 STENCIL |
4,834 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SSOP | 16 | 0.025" (0.64mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

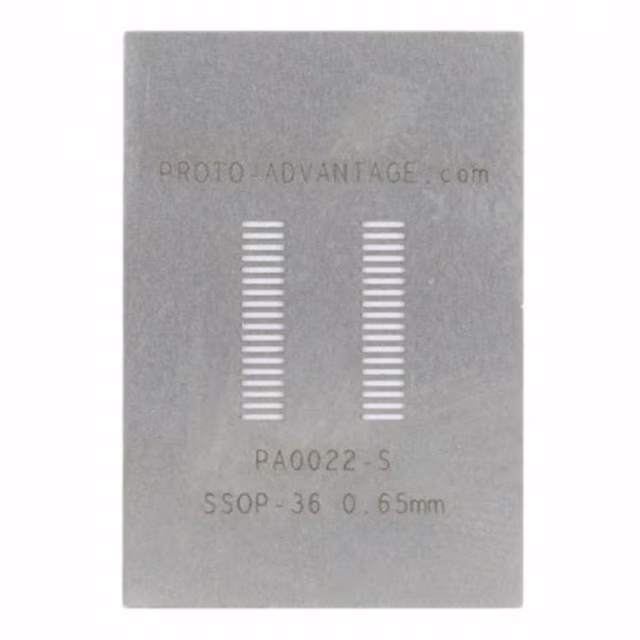

PA0022-SSSOP-36 STENCIL |
1,848 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SSOP | 36 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0024-SSSOP-38 STENCIL |
1,740 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SSOP | 38 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0186-STO-263-7 STENCIL |
2,153 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TO/DDPAK | 7 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.400" L x 0.390" W (10.16mm x 9.91mm) | 0.427" L x 0.370" W (10.85mm x 9.40mm) | Stainless Steel |
|

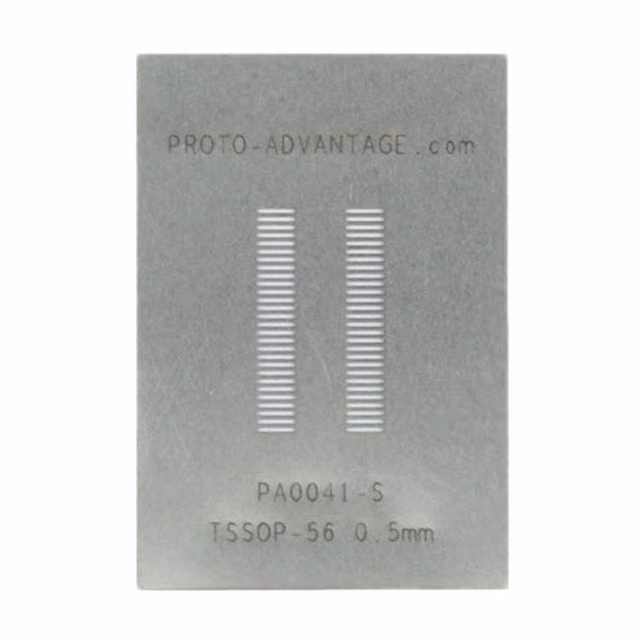

PA0041-STSSOP-56 STENCIL |
4,549 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSSOP | 56 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

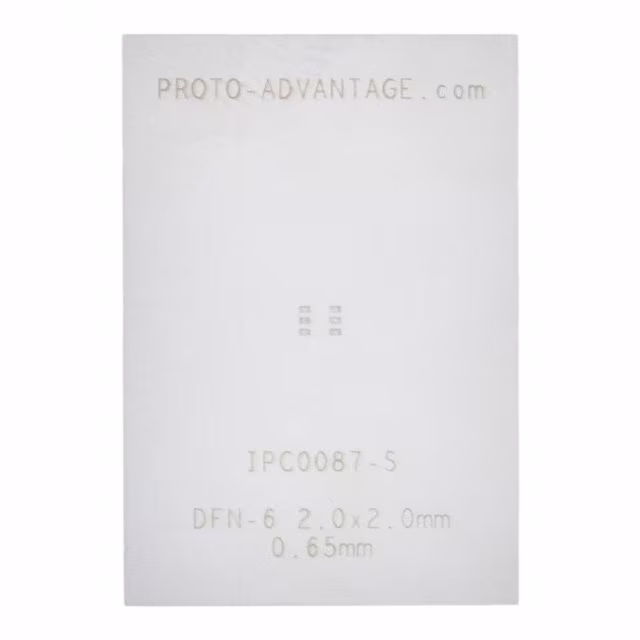

IPC0087-SDFN-6 STENCIL |
3,283 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 6 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.079" L x 0.079" W (2.00mm x 2.00mm) | - | Stainless Steel |
|
IPC0123-SDFN-6 STENCIL |
1,772 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 6 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.064" L x 0.047" W (1.63mm x 1.20mm) | Stainless Steel |
|
IPC0060-SDFN-8 STENCIL |
2,009 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 8 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.079" L x 0.079" W (2.00mm x 2.00mm) | - | Stainless Steel |
|

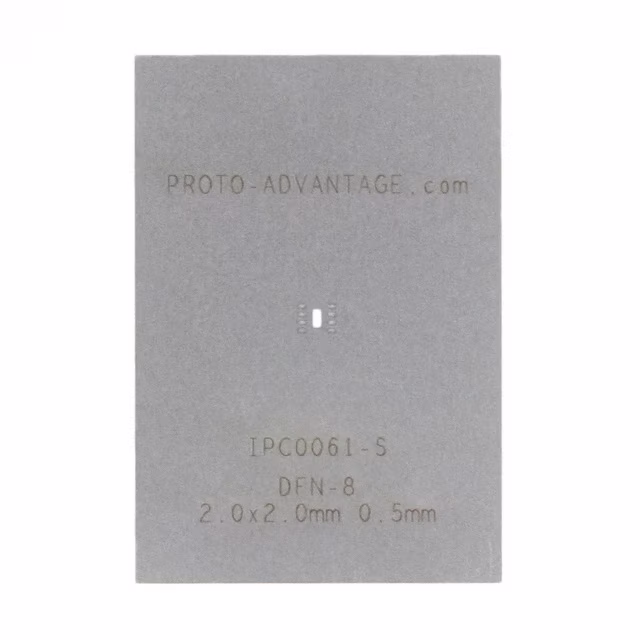

IPC0061-SDFN-8 STENCIL |
3,729 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 8 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.057" L x 0.031" W (1.45mm x 0.80mm) | Stainless Steel |
|

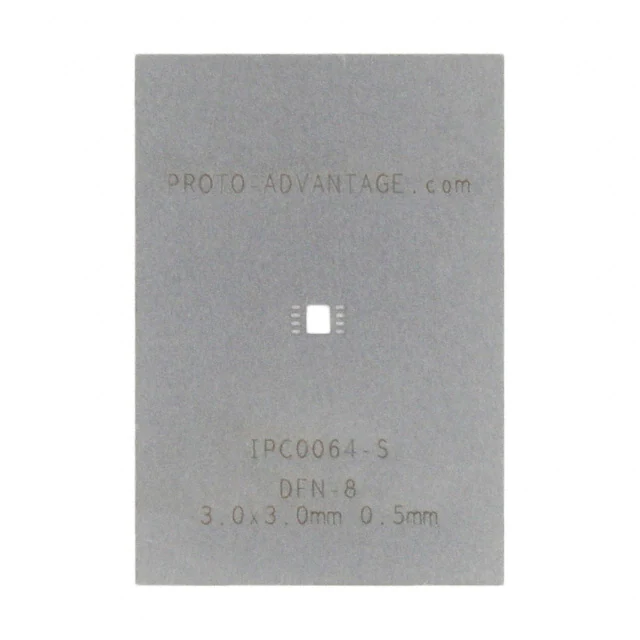

IPC0064-SDFN-8 STENCIL |
3,618 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 8 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.069" L x 0.057" W (1.75mm x 1.45mm) | Stainless Steel |
|
IPC0086-SDFN-8 STENCIL |
1,904 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 8 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | Stainless Steel |
|
FPC050P060-SFPC/FFC SMT CONN STENCIL |
1,668 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 60 | 0.020" (0.50mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | 1.488" L x 0.157" W (37.80mm x 4.00mm) | Stainless Steel |
|
PA0099-SLGA-16 STENCIL |
1,628 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LGA | 16 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | Stainless Steel |
|

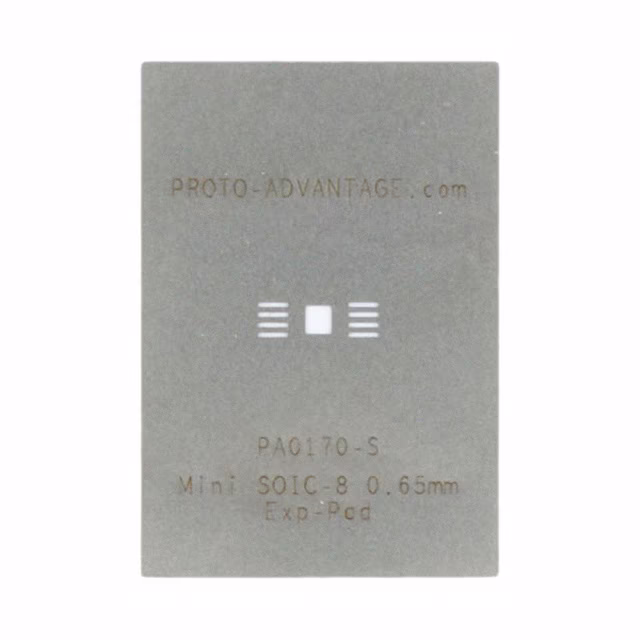

PA0170-SMINI SOIC-8 EXP PAD STENCIL |
2,138 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | Mini SOIC | 8 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.315" L x 0.067" W (8.00mm x 1.70mm) | Stainless Steel |
|

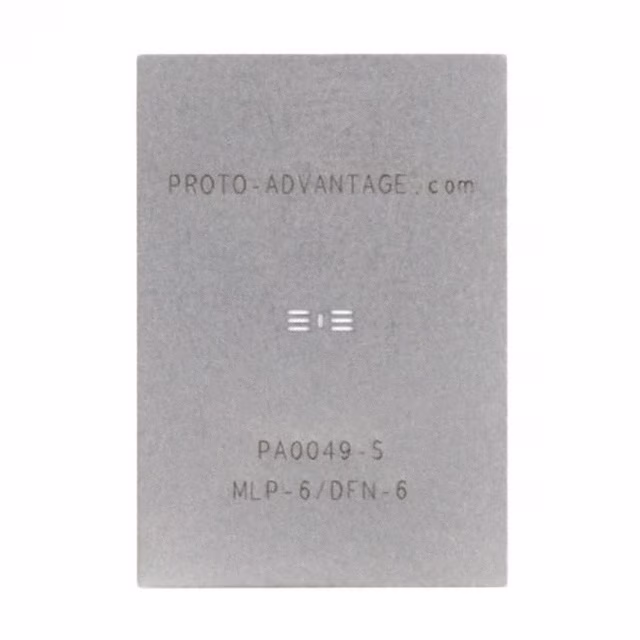

PA0049-SMLP/DFN-6 STENCIL |
4,805 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | DFN | 6 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.157" L x 0.031" W (4.00mm x 0.80mm) | Stainless Steel |
|
PA0219-SPLCC-52 STENCIL |
4,611 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | PLCC/JLCC | 52 | 0.050" (1.27mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | - | Stainless Steel |
|

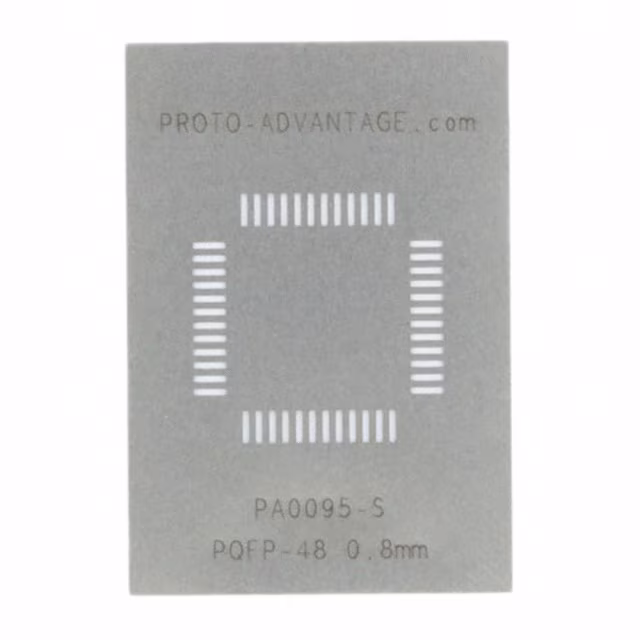

PA0095-SQFP-48 STENCIL |
3,643 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | PQFP | 48 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.433" L x 0.433" W (11.00mm x 11.00mm) | - | Stainless Steel |
|

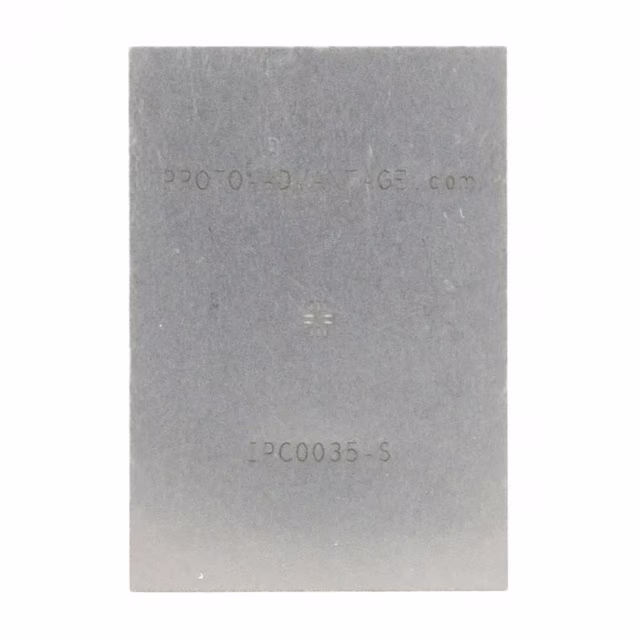

IPC0035-SQFN-10 STENCIL |
3,380 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 10 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.071" L x 0.055" W (1.80mm x 1.40mm) | - | Stainless Steel |
