Solder Stencils, Templates
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Positions | Pitch | Outer Dimension | Inner Dimension | Thermal Center Pad | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

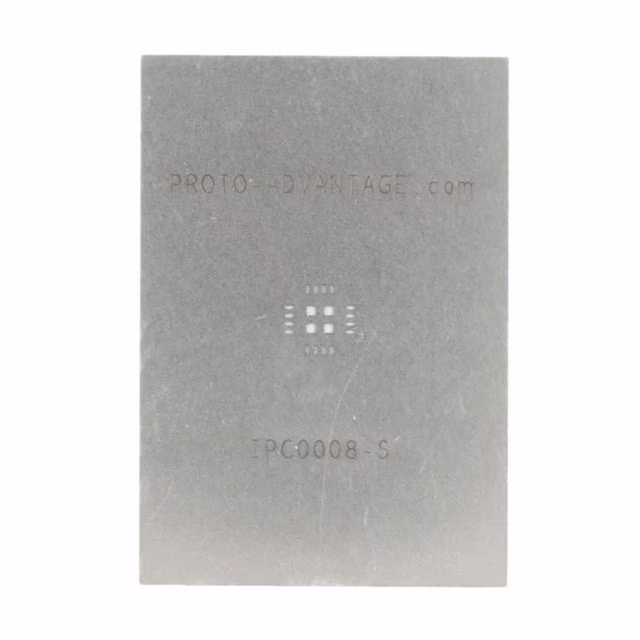

IPC0008-SQFN-16 STENCIL |
1,238 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 16 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.094" L x 0.094" W (2.40mm x 2.40mm) | Stainless Steel |
|

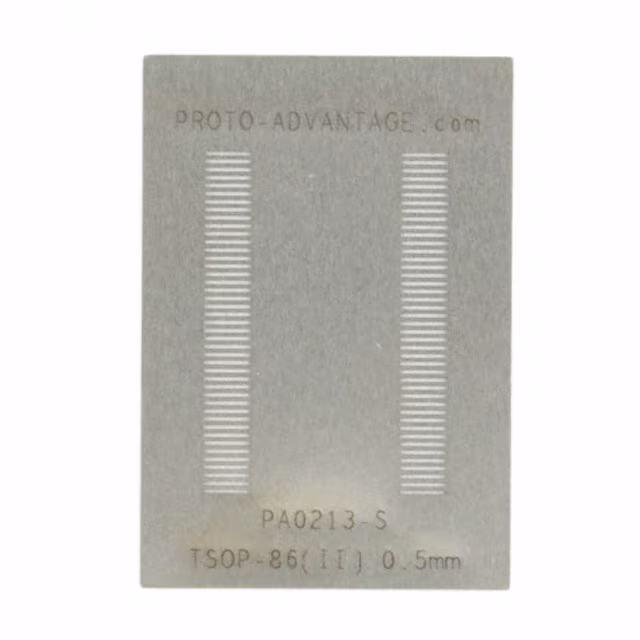

PA0213-STSOP-86 II STENCIL |
3,711 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSOP | 86 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0196-STSSOP-64-EXP-PAD STENCIL |
1,843 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSSOP | 64 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.669" L x 0.240" W (17.00mm x 6.10mm) | 0.906" L x 0.150" W (23.00mm x 3.81mm) | Stainless Steel |
|

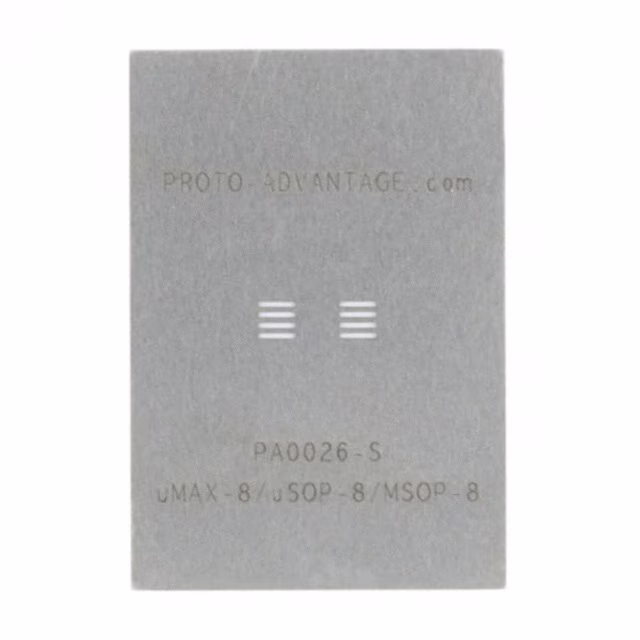

PA0026-SUMAX-8/USOP-8/MSOP-8 STENCIL |
1,081 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | uMAX | 8 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

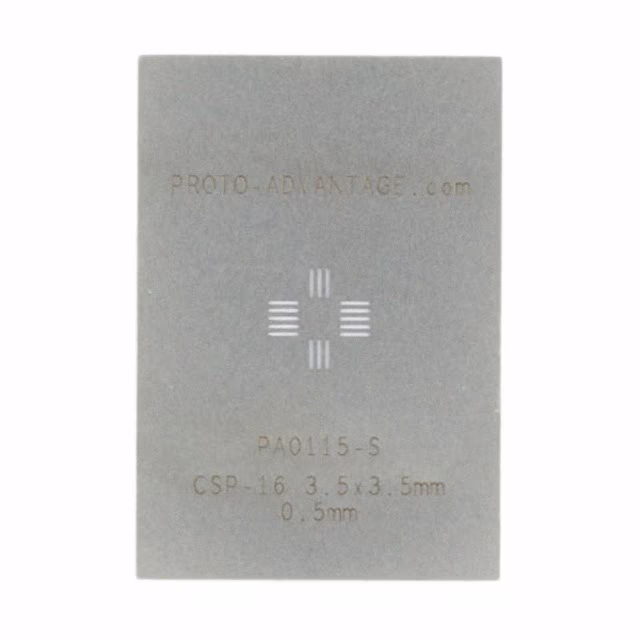

PA0115-SCSP-16 STENCIL |
2,876 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | CSP | 16 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.138" L x 0.138" W (3.50mm x 3.50mm) | - | Stainless Steel |
|

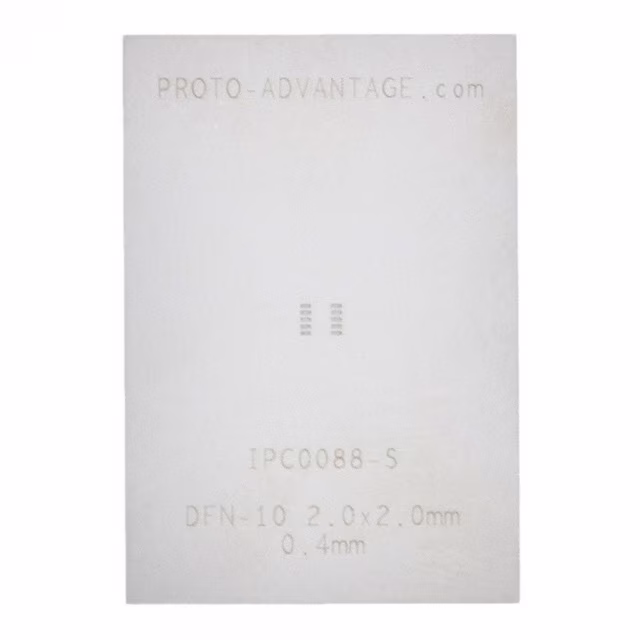

IPC0088-SDFN-10 STENCIL |
2,139 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 10 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.079" L x 0.079" W (2.00mm x 2.00mm) | - | Stainless Steel |
|

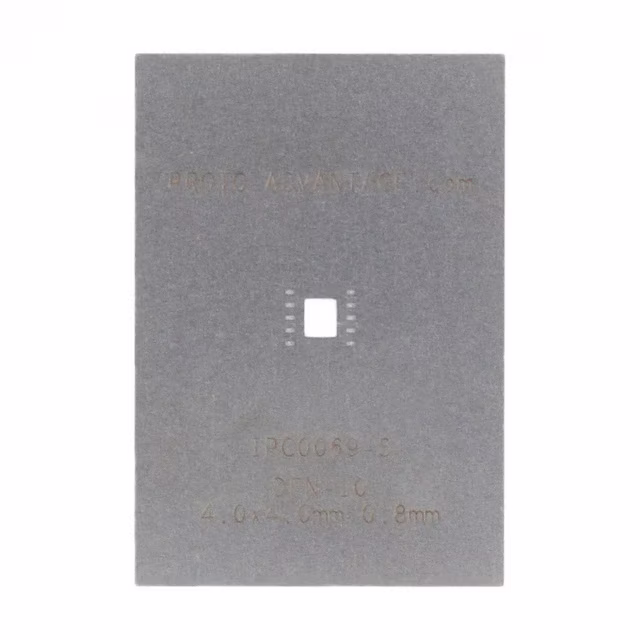

IPC0069-SDFN-10 STENCIL |
1,069 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 10 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" L x 0.102" W (3.00mm x 2.60mm) | Stainless Steel |
|
IPC0083-SDFN-6 STENCIL |
1,927 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 6 | 0.037" (0.95mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.091" L x 0.059" W (2.30mm x 1.50mm) | Stainless Steel |
|
IPC0065-SDFN-8 STENCIL |
1,428 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 8 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" L x 0.087" W (3.00mm x 2.20mm) | Stainless Steel |
|
PA0100-SLGA-16 STENCIL |
4,362 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LGA | 16 | 0.039" (1.00mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.295" L x 0.173" W (7.50mm x 4.40mm) | - | Stainless Steel |
|

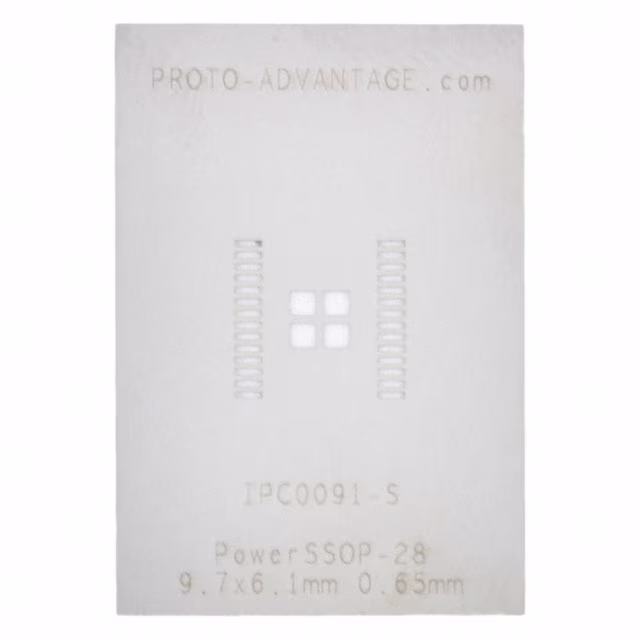

IPC0091-SPOWERSSOP-28 STENCIL |
4,523 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | PowerSSOP | 28 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.382" L x 0.240" W (9.70mm x 6.10mm) | 0.162" L x 0.154" W (4.11mm x 3.91mm) | Stainless Steel |
|

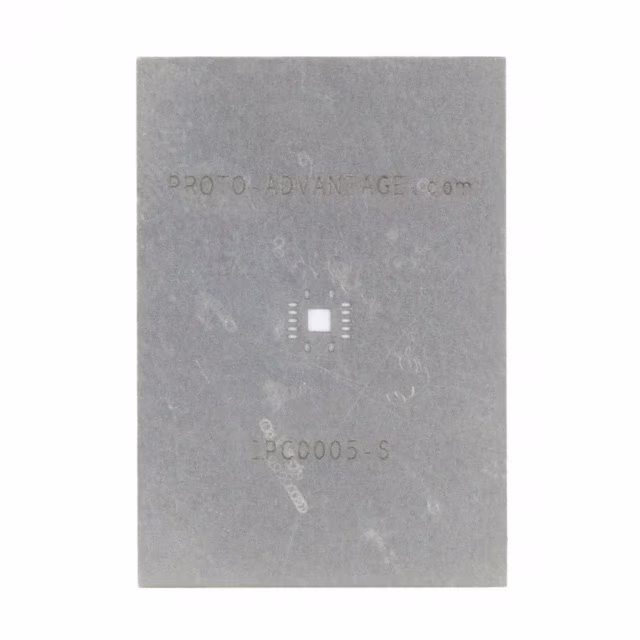

IPC0005-SQFN-14 STENCIL |
4,531 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 14 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.081" L x 0.081" W (2.05mm x 2.05mm) | Stainless Steel |
|

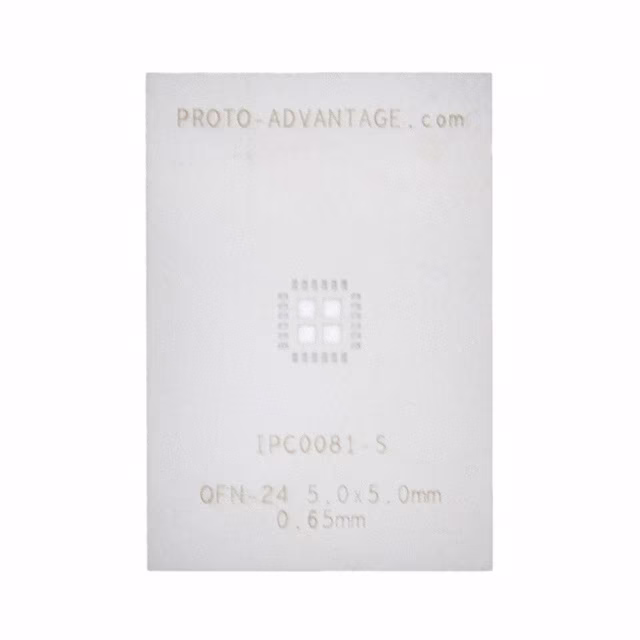

IPC0081-SQFN-24 STENCIL |
4,088 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 24 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.142" L x 0.142" W (3.60mm x 3.60mm) | Stainless Steel |
|

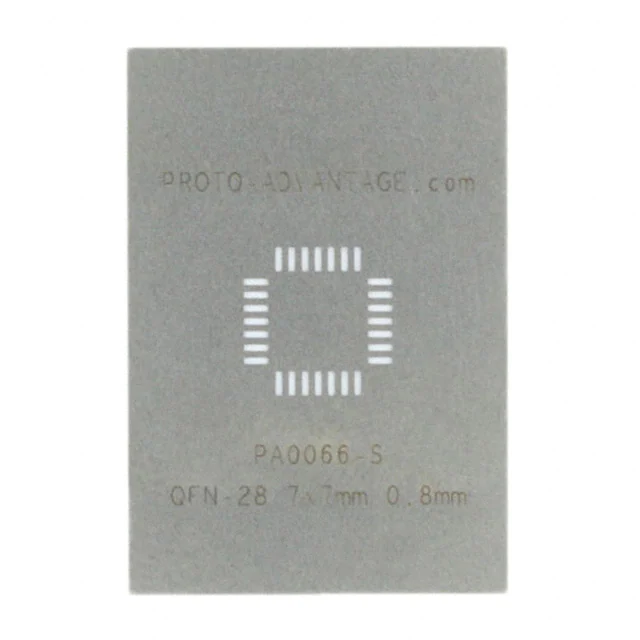

PA0066-SQFN-28 STENCIL |
1,845 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 28 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | Stainless Steel |
|

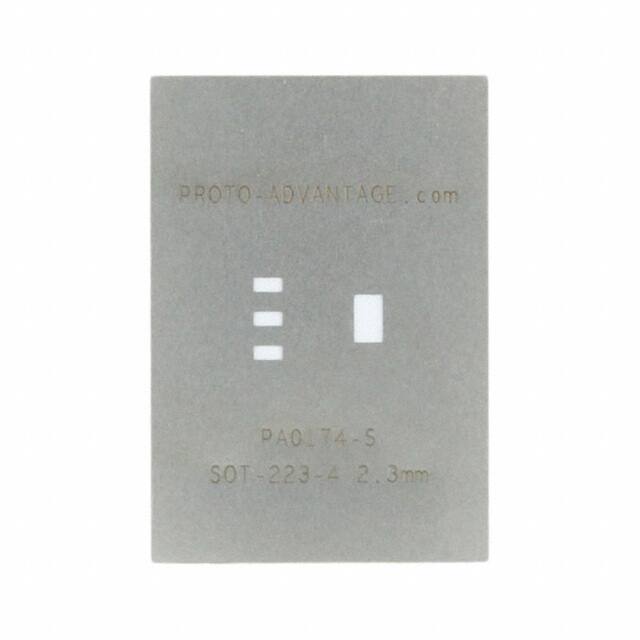

PA0174-SSOT-223-4 STENCIL |
3,963 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SOT/SC | 3 | 0.091" (2.30mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.256" L x 0.140" W (6.50mm x 3.56mm) | 0.130" L x 0.079" W (3.30mm x 2.00mm) | Stainless Steel |
|
PA0084-SSOT-89 STENCIL |
1,280 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SOT/SC | 3 | 0.059" (1.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.157" L x 0.079" W (4.00mm x 2.00mm) | Stainless Steel |
|

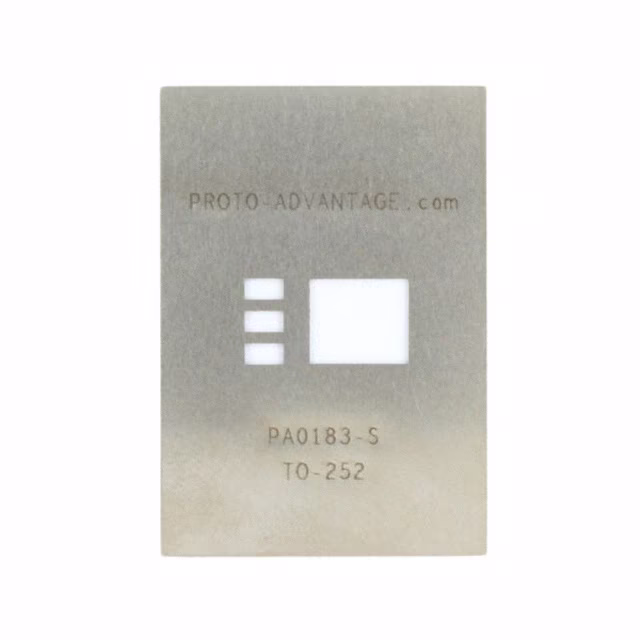

PA0183-STO-252 STENCIL |
1,512 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TO/DPAK | 3 | 0.090" (2.29mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.287" L x 0.259" W (7.30mm x 6.58mm) | 0.276" L x 0.236" W (7.00mm x 6.00mm) | Stainless Steel |
|
PA0184-STO-263-3 STENCIL |
2,721 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TO/DDPAK | 3 | 0.100" (2.54mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.400" L x 0.390" W (10.16mm x 9.91mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) | Stainless Steel |
|
PA0097-STSOP-32 STENCIL |
4,070 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSOP | 32 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

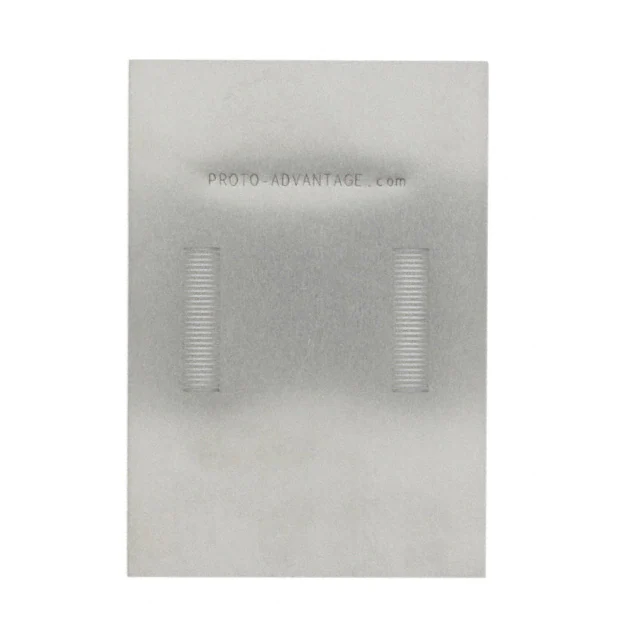

PA0211-STSOP-56 STENCIL |
3,189 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSOP | 56 | 0.020" (0.50mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | - | - | Stainless Steel |
