Solder Stencils, Templates

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Number of Positions	Pitch	Outer Dimension	Inner Dimension	Thermal Center Pad	Material
DR254P08-S DUAL ROW 2.54MM PITCH 8-PIN CONN Chip Quik Inc.	4,786	11.59	RFQ	-	Proto-Advantage DR	Bulk	Active	-	8	0.100" (2.54mm)	-	-	-	Stainless Steel
DR254P10-S DUAL ROW 2.54MM PITCH 10-PIN CON Chip Quik Inc.	3,671	11.59	RFQ	-	Proto-Advantage DR	Bulk	Active	-	10	0.100" (2.54mm)	-	-	-	Stainless Steel
DR254P12-S DUAL ROW 2.54MM PITCH 12-PIN CON Chip Quik Inc.	2,996	11.59	RFQ	-	Proto-Advantage DR	Bulk	Active	-	12	0.100" (2.54mm)	-	-	-	Stainless Steel
DR254P14-S DUAL ROW 2.54MM PITCH 14-PIN CON Chip Quik Inc.	2,968	11.59	RFQ	-	Proto-Advantage DR	Bulk	Active	-	14	0.100" (2.54mm)	-	-	-	Stainless Steel
DR254P16-S DUAL ROW 2.54MM PITCH 16-PIN CON Chip Quik Inc.	4,851	11.59	RFQ	-	Proto-Advantage DR	Bulk	Active	-	16	0.100" (2.54mm)	-	-	-	Stainless Steel
DR254P18-S DUAL ROW 2.54MM PITCH 18-PIN CON Chip Quik Inc.	2,355	11.59	RFQ	-	Proto-Advantage DR	Bulk	Active	-	18	0.100" (2.54mm)	-	-	-	Stainless Steel
DR254P20-S DUAL ROW 2.54MM PITCH 20-PIN CON Chip Quik Inc.	4,219	11.59	RFQ	-	Proto-Advantage DR	Bulk	Active	-	20	0.100" (2.54mm)	-	-	-	Stainless Steel
DR254P22-S DUAL ROW 2.54MM PITCH 22-PIN CON Chip Quik Inc.	1,032	11.59	RFQ	-	Proto-Advantage DR	Bulk	Active	-	22	0.100" (2.54mm)	-	-	-	Stainless Steel
DR254P24-S DUAL ROW 2.54MM PITCH 24-PIN CON Chip Quik Inc.	3,503	11.59	RFQ	-	Proto-Advantage DR	Bulk	Active	-	24	0.100" (2.54mm)	-	-	-	Stainless Steel
DR254P40-S DUAL ROW 2.54MM PITCH 40-PIN CON Chip Quik Inc.	1,419	11.59	RFQ	-	Proto-Advantage DR	Bulk	Active	-	40	0.100" (2.54mm)	-	-	-	Stainless Steel
DR254P80-S DUAL ROW 2.54MM PITCH 80-PIN CON Chip Quik Inc.	3,586	11.59	RFQ	-	Proto-Advantage DR	Bulk	Active	-	80	0.100" (2.54mm)	-	-	-	Stainless Steel

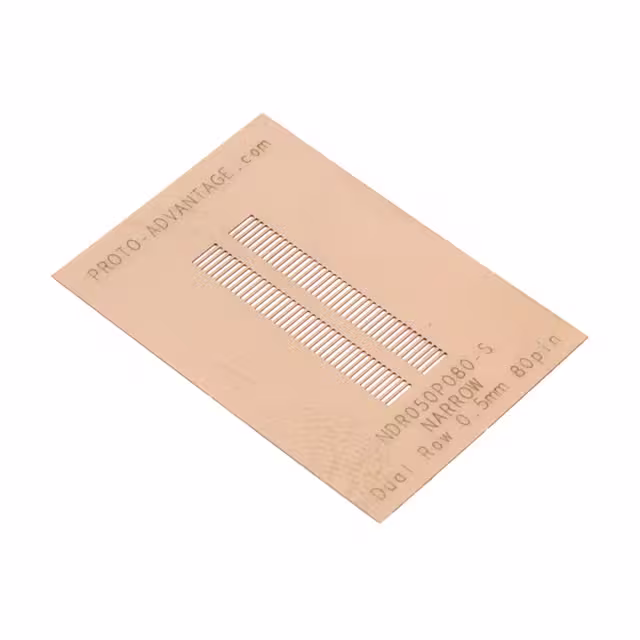

NDR050P080-S NARROW DUAL ROW 0.5MM PITCH 80-P Chip Quik Inc.	4,674	11.59	RFQ	Datasheet	Proto-Advantage NDR	Bulk	Active	-	80	0.020" (0.50mm)	-	-	-	Stainless Steel

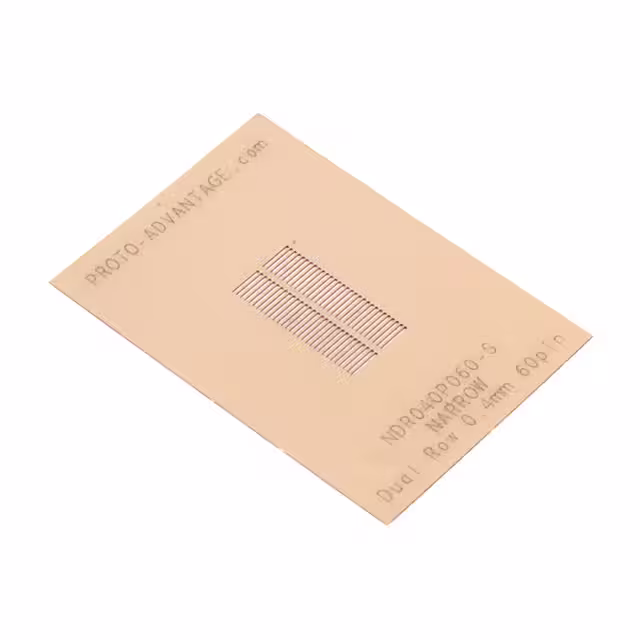

NDR040P060-S NARROW DUAL ROW 0.4MM PITCH 60-P Chip Quik Inc.	3,613	11.59	RFQ	Datasheet	Proto-Advantage NDR	Bulk	Active	-	60	0.016" (0.40mm)	-	-	-	Stainless Steel

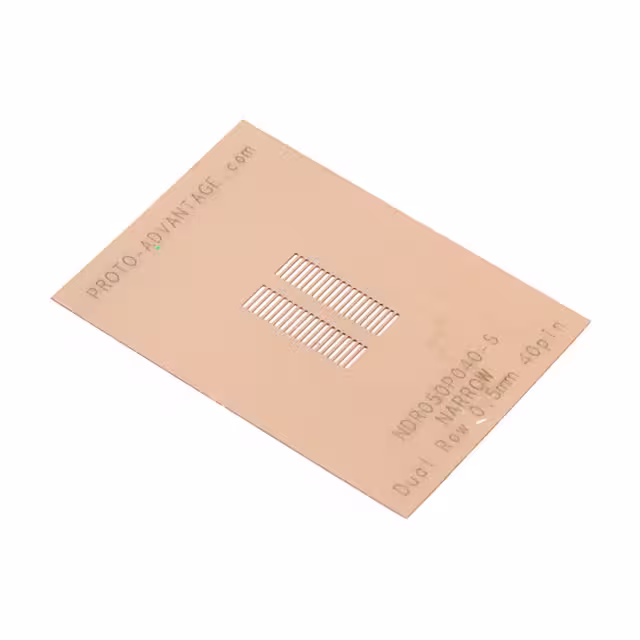

NDR050P040-S NARROW DUAL ROW 0.5MM PITCH 40-P Chip Quik Inc.	3,041	11.59	RFQ	Datasheet	Proto-Advantage NDR	Bulk	Active	-	40	0.020" (0.50mm)	-	-	-	Stainless Steel
IPC0139-S TQFP-80 (0.8MM PITCH, 14X20MM BO Chip Quik Inc.	3,369	12.93	RFQ	Datasheet	Proto-Advantage IPC	Bulk	Active	TQFP	80	0.031" (0.80mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	0.787" L x 0.551" W (20.00mm x 14.00mm)	-	Stainless Steel
IPC0188-S QFN-28/LFCSP-28 (0.65MM PITCH, 6 Chip Quik Inc.	2,721	12.93	RFQ	Datasheet	Proto-Advantage IPC	Bulk	Active	QFN/LFCSP	28	0.026" (0.65mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	0.236" L x 0.236" W (6.00mm x 6.00mm)	0.102" L x 0.079" W (2.60mm x 2.00mm)	Stainless Steel
IPC0190-S RN4020 (1.2MM PITCH, 19.5X11.5MM Chip Quik Inc.	2,499	12.93	RFQ	Datasheet	Proto-Advantage IPC	Bulk	Active	RN	24	0.047" (1.20mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	0.768" L x 0.453" W (19.50mm x 11.50mm)	-	Stainless Steel
IPC0191-S RN42 (1.2MM PITCH, 25.8X13.4MM B Chip Quik Inc.	3,332	12.93	RFQ	Datasheet	Proto-Advantage IPC	Bulk	Active	RN	32	0.047" (1.20mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	1.016" L x 0.528" W (25.80mm x 13.40mm)	-	Stainless Steel
IPC0192-S QFN-36/LFCSP-36 (5 CENTER PADS) Chip Quik Inc.	4,163	12.93	RFQ	Datasheet	Proto-Advantage IPC	Bulk	Active	QFN/LFCSP	36	0.035" (0.90mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	0.433" L x 0.354" W (11.00mm x 9.00mm)	0.122" L x 0.087" W (3.10mm x 2.20mm)	Stainless Steel
CN0073-S USB - C (USB 3.1 GEN 2 SUPERSPEE Chip Quik Inc.	1,822	12.93	RFQ	-	Proto-Advantage CN	Bulk	Active	-	-	-	1.950" L x 0.900" W (49.53mm x 22.86mm)	-	-	Stainless Steel
