Solder Stencils, Templates

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Number of Positions	Pitch	Outer Dimension	Inner Dimension	Thermal Center Pad	Material

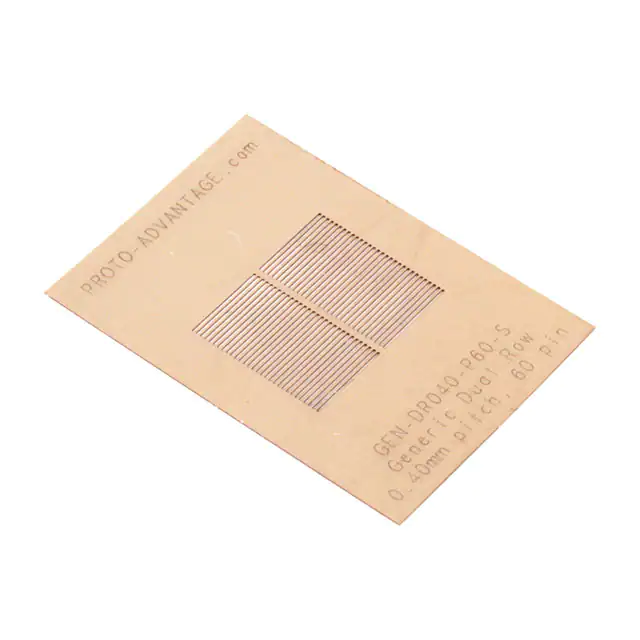

GEN-DR040-P60-S GENERIC DUAL ROW 0.4MM PITCH 60- Chip Quik Inc.	3,536	20.99	RFQ	Datasheet	Proto-Advantage GEN	Bulk	Active	-	60	0.016" (0.40mm)	-	-	-	Stainless Steel

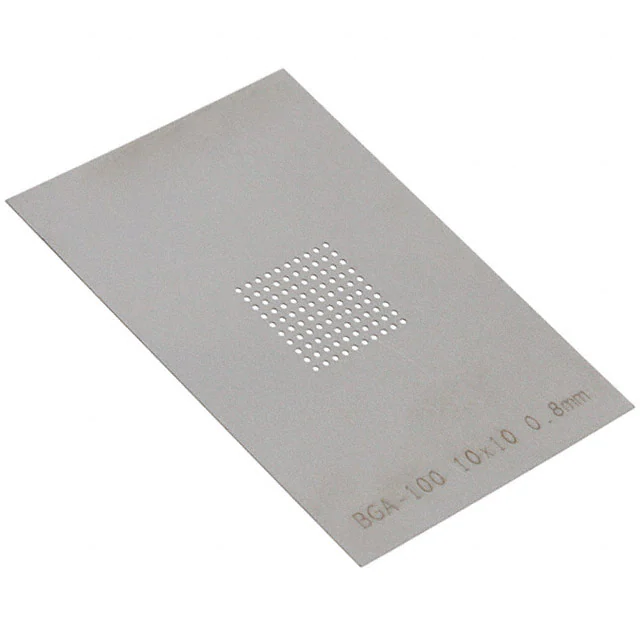

BGA0001-S STENCIL BGA-100 .8MM Chip Quik Inc.	3,046	20.99	RFQ	Datasheet	Proto-Advantage BGA	Bulk	Active	BGA	100	0.031" (0.80mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	-	-	Stainless Steel
BGA0023-S BGA-100 (0.4 MM PITCH, 10 X 10 G Chip Quik Inc.	2,947	20.99	RFQ	Datasheet	Proto-Advantage BGA	Bulk	Active	BGA	100	0.016" (0.40mm)	1.950" L x 1.350" W (49.53mm x 34.29mm)	-	-	Stainless Steel

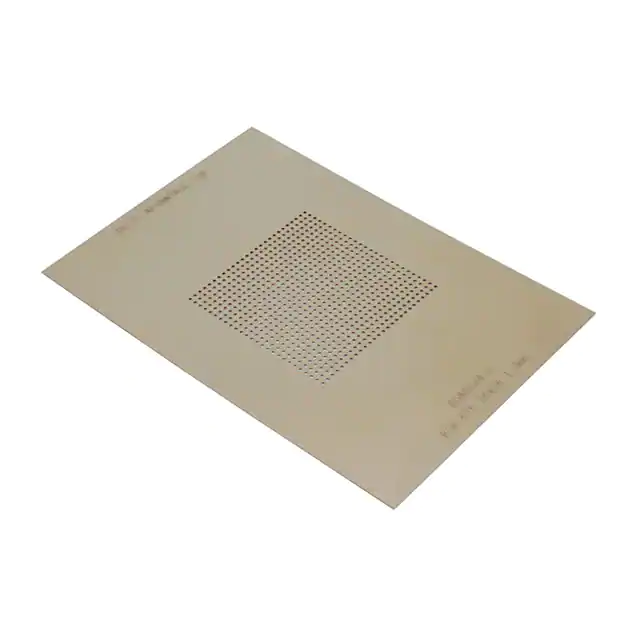

BGA0034-S BGA-676 (1.0 MM PITCH, 26 X 26 G Chip Quik Inc.	1,101	20.99	RFQ	Datasheet	Proto-Advantage BGA	Bulk	Active	BGA	676	0.039" (1.00mm)	2.600" L x 1.800" W (66.04mm x 45.72mm)	1.024" L x 1.024" W (26.00mm x 26.00mm)	-	Stainless Steel
BGA0009-S STENCIL BGA-484 1.27MM Chip Quik Inc.	1,060	20.99	RFQ	Datasheet	Proto-Advantage BGA	Bulk	Active	BGA	484	0.050" (1.27mm)	2.600" L x 1.800" W (66.04mm x 45.72mm)	-	-	Stainless Steel
BGA0029-S BGA-36 (0.35 MM PITCH, 6 X 6 GRI Chip Quik Inc.	4,310	20.99	RFQ	Datasheet	Proto-Advantage BGA	Bulk	Active	BGA	36	0.014" (0.35mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	-	-	Stainless Steel
BGA0030-S BGA-36 (0.5 MM PITCH, 6 X 6 GRID Chip Quik Inc.	1,370	20.99	RFQ	Datasheet	Proto-Advantage BGA	Bulk	Active	BGA	36	0.020" (0.50mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	-	-	Stainless Steel

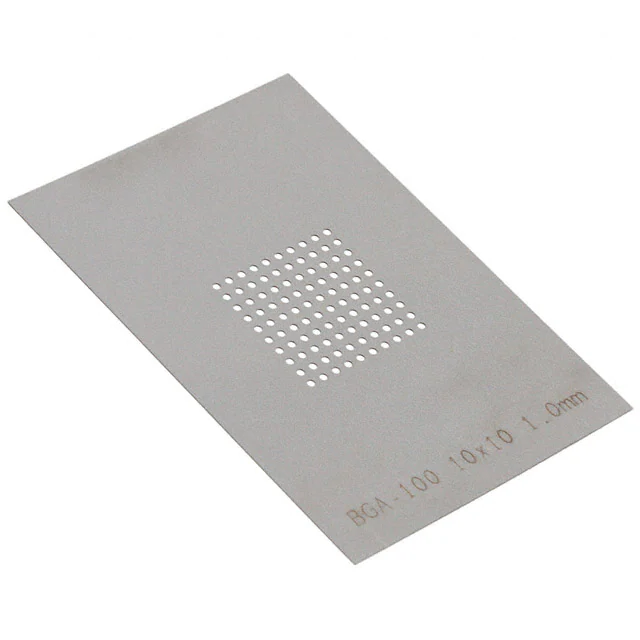

BGA0004-S STENCIL BGA-100 1MM Chip Quik Inc.	4,362	20.99	RFQ	Datasheet	Proto-Advantage BGA	Bulk	Active	BGA	100	0.039" (1.00mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	-	-	Stainless Steel
BGA0028-S BGA-36 STAINLESS STEEL STENCIL Chip Quik Inc.	1,182	22.89	RFQ	Datasheet	Proto-Advantage BGA	Bulk	Active	BGA	36	0.012" (0.30mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	-	-	Stainless Steel

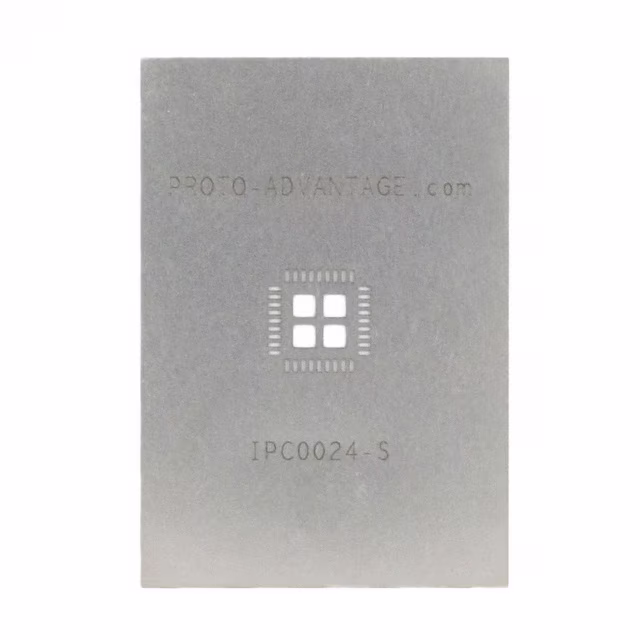

IPC0024-S QFN-36 STENCIL Chip Quik Inc.	3,148	11.59	RFQ	Datasheet	Proto-Advantage IPC	Bulk	Active	QFN/LFCSP	36	0.020" (0.50mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	0.236" L x 0.236" W (6.00mm x 6.00mm)	0.161" L x 0.161" W (4.10mm x 4.10mm)	Stainless Steel
PA0087-S SC70-6/SOT-363 STENCIL Chip Quik Inc.	3,664	11.59	RFQ	Datasheet	Proto-Advantage PA	Bulk	Active	SOT/SC	6	0.026" (0.65mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	-	-	Stainless Steel

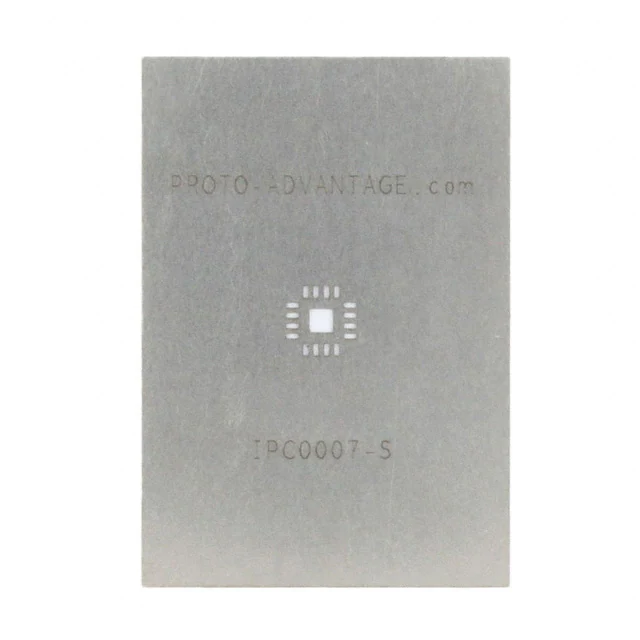

IPC0007-S QFN-16 STENCIL Chip Quik Inc.	4,920	11.59	RFQ	Datasheet	Proto-Advantage IPC	Bulk	Active	QFN/LFCSP	16	0.026" (0.65mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	0.157" L x 0.157" W (4.00mm x 4.00mm)	0.083" L x 0.083" W (2.10mm x 2.10mm)	Stainless Steel
FPC050P040-DPT-S FPC/FFC SMT CONNECTOR STENCIL Chip Quik Inc.	2,020	0.00	RFQ	Datasheet	Proto-Advantage FPC	Bulk	Active	FPC/FFC	40	0.020" (0.50mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	-	-	Stainless Steel

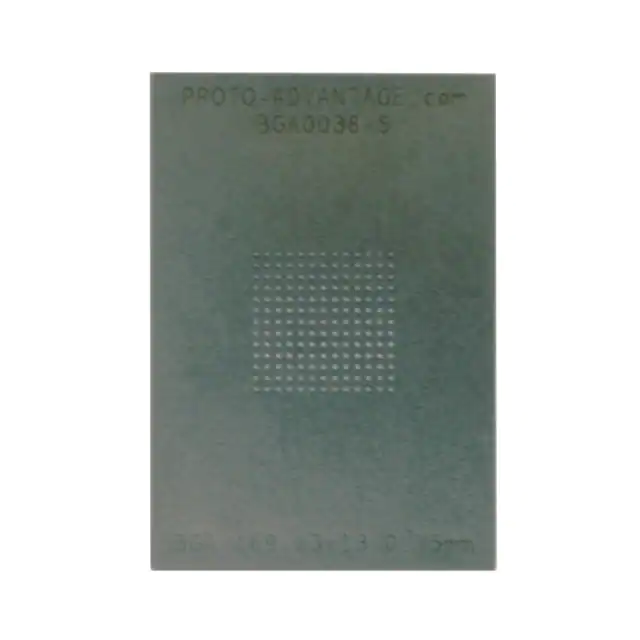

BGA0036-S BGA-169 (0.75MM PITCH, 13X13 GRI Chip Quik Inc.	3,490	20.99	RFQ	Datasheet	Proto-Advantage BGA	Bulk	Active	BGA	169	0.029" (0.75mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	0.512" L x 0.512" W (13.00mm x 13.00mm)	-	Stainless Steel
FPC050P040-S FPC/FFC SMT CONN STENCIL Chip Quik Inc.	1,690	11.59	RFQ	Datasheet	Proto-Advantage FPC	Bulk	Active	FPC/FFC	40	0.020" (0.50mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	-	1.094" L x 0.157" W (27.80mm x 4.00mm)	Stainless Steel
IPC0032-S QFN-64 STENCIL Chip Quik Inc.	3,660	11.59	RFQ	Datasheet	Proto-Advantage IPC	Bulk	Active	QFN/LFCSP	64	0.020" (0.50mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	0.354" L x 0.354" W (9.00mm x 9.00mm)	0.150" L x 0.150" W (3.80mm x 3.80mm)	Stainless Steel
PA0223-S TQFP-100 STENCIL Chip Quik Inc.	4,212	11.59	RFQ	Datasheet	Proto-Advantage PA	Bulk	Active	TQFP	100	0.016" (0.40mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	0.472" L x 0.472" W (12.00mm x 12.00mm)	-	Stainless Steel

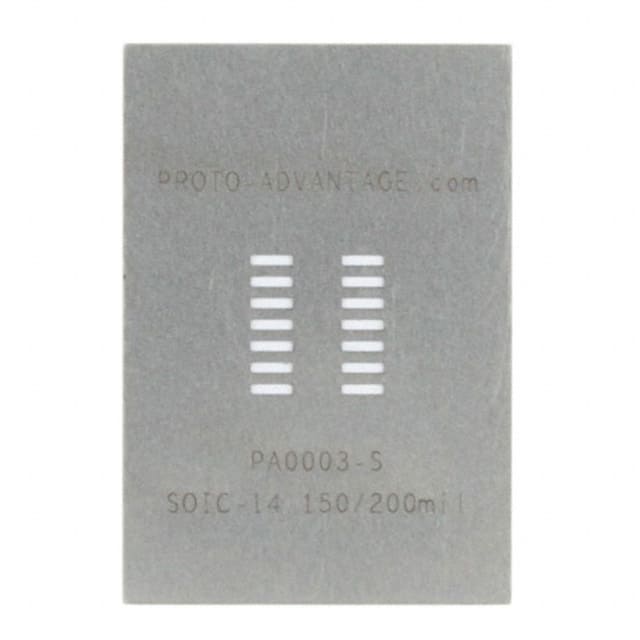

PA0003-S SOIC-14 STENCIL Chip Quik Inc.	1,084	11.59	RFQ	Datasheet	Proto-Advantage PA	Bulk	Active	SOIC	14	0.050" (1.27mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	-	-	Stainless Steel

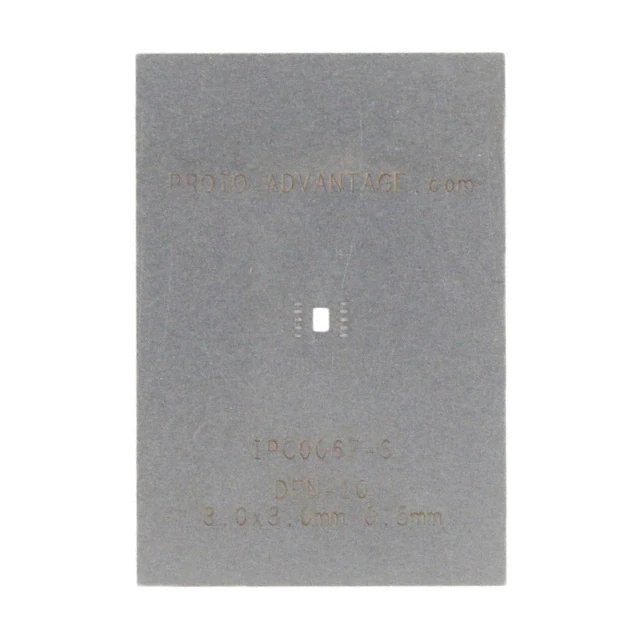

IPC0067-S DFN-10 STENCIL Chip Quik Inc.	3,783	11.59	RFQ	Datasheet	Proto-Advantage IPC	Bulk	Active	DFN	10	0.020" (0.50mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	0.118" L x 0.118" W (3.00mm x 3.00mm)	0.079" L x 0.059" W (2.00mm x 1.50mm)	Stainless Steel

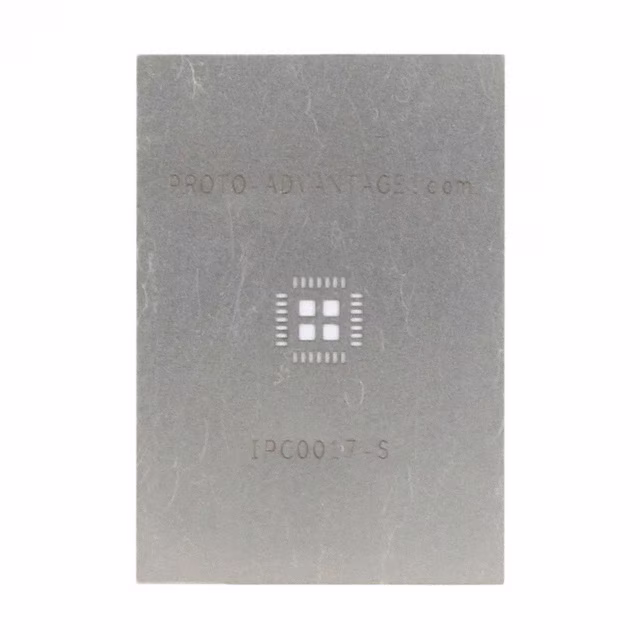

IPC0017-S QFN-28 STENCIL Chip Quik Inc.	2,663	11.59	RFQ	Datasheet	Proto-Advantage IPC	Bulk	Active	QFN/LFCSP	28	0.020" (0.50mm)	1.300" L x 0.900" W (33.02mm x 22.86mm)	0.197" L x 0.197" W (5.00mm x 5.00mm)	0.122" L x 0.122" W (3.10mm x 3.10mm)	Stainless Steel

Total 646 Record«Prev 1 2 345 6 7...33 Next»
