Solder Stencils, Templates
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Positions | Pitch | Outer Dimension | Inner Dimension | Thermal Center Pad | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

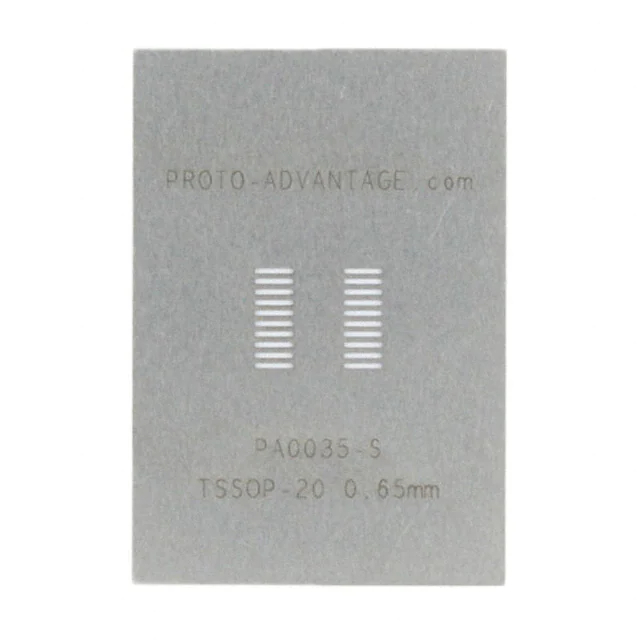

PA0035-STSSOP-20 STENCIL |
4,965 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSSOP | 20 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

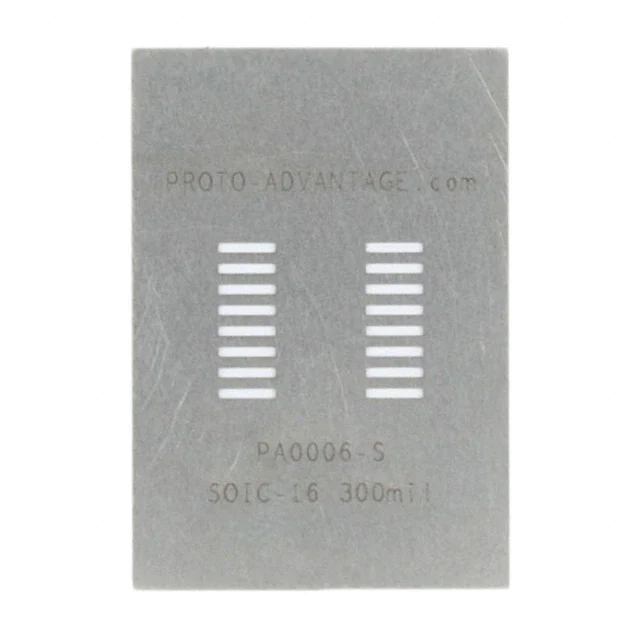

PA0006-SSOIC-16 STENCIL |
3,838 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SOIC | 16 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0037-STSSOP-28 STENCIL |
3,295 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSSOP | 28 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

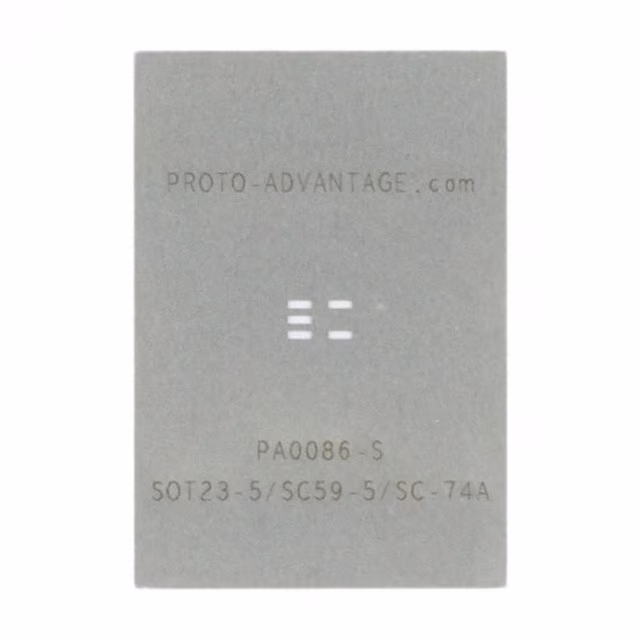

PA0086-SSOT23-5/SC59-5/SC-74A STENCIL |
3,960 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SOT/SC | 5 | 0.037" (0.95mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

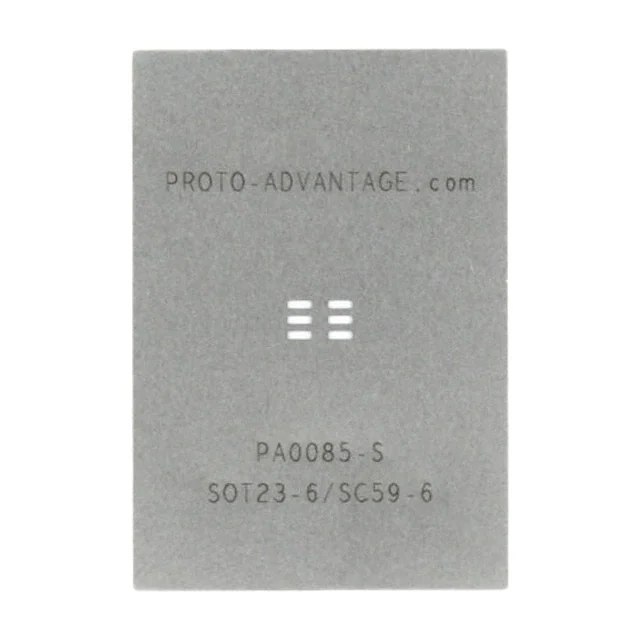

PA0085-SSOT23-6/SC59-6 STENCIL |
4,916 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SOT/SC | 6 | 0.037" (0.95mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

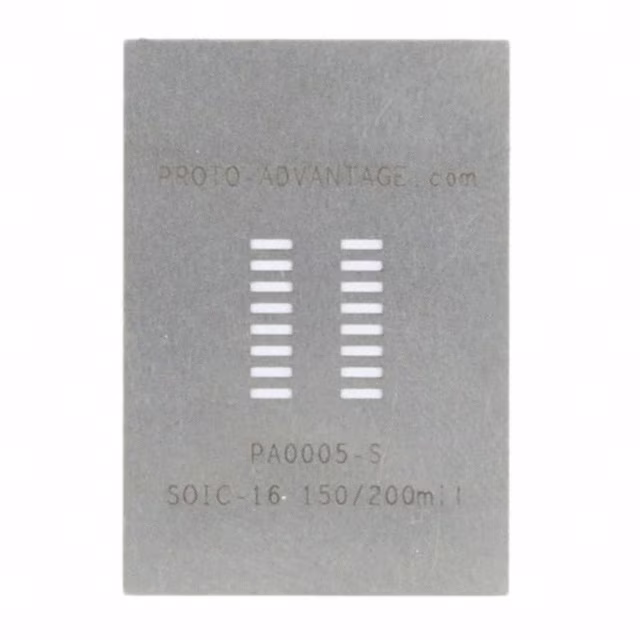

PA0005-SSOIC-16 STENCIL |
3,699 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SOIC | 16 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

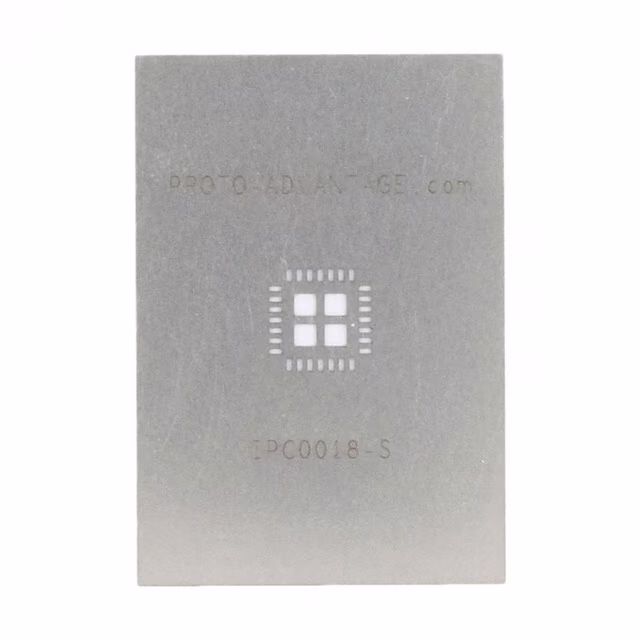

IPC0018-SQFN-28 STENCIL |
2,750 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 28 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" L x 0.161" W (4.10mm x 4.10mm) | Stainless Steel |
|

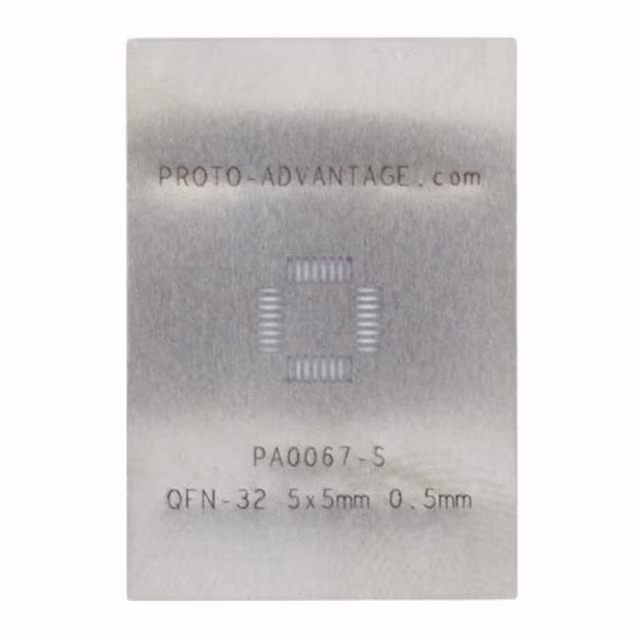

PA0067-SQFN-32 STENCIL |
1,652 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 32 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | Stainless Steel |
|

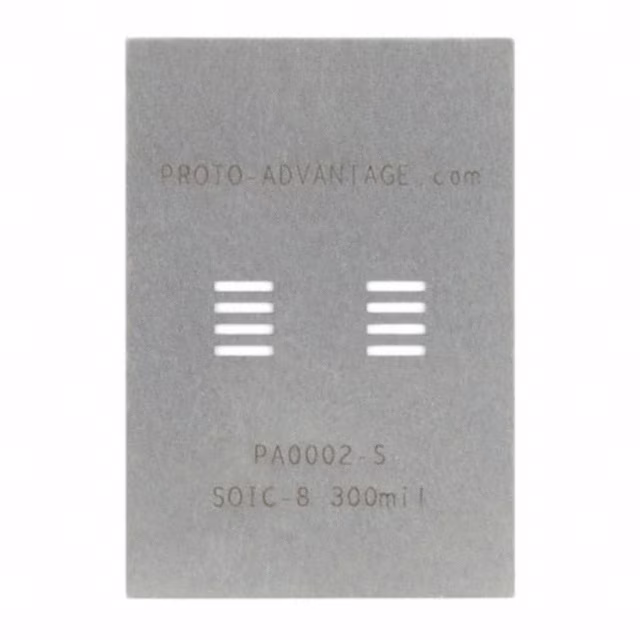

PA0002-SSOIC-8 STENCIL |
3,010 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SOIC | 8 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0011-SSOIC-28 STENCIL |
1,093 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SOIC | 28 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

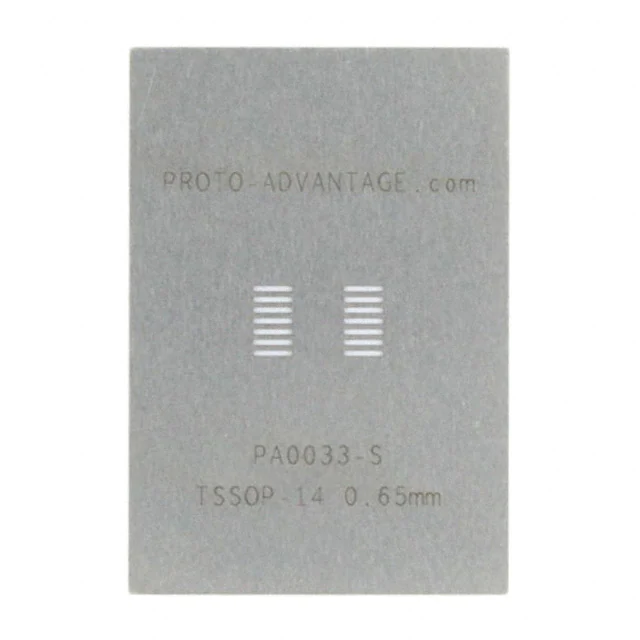

PA0033-STSSOP-14 STENCIL |
3,438 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSSOP | 14 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0107-SPLCC-44/LCC-44/JLCC-44 STENCIL |
4,910 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | PLCC/JLCC | 44 | 0.050" (1.27mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | 0.689" L x 0.689" W (17.50mm x 17.50mm) | - | Stainless Steel |
|

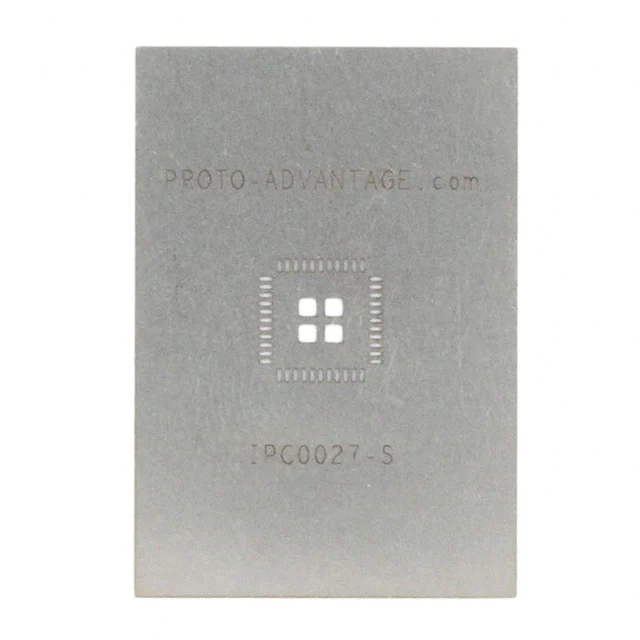

IPC0027-SQFN-44 STENCIL |
1,239 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 44 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Stainless Steel |
|

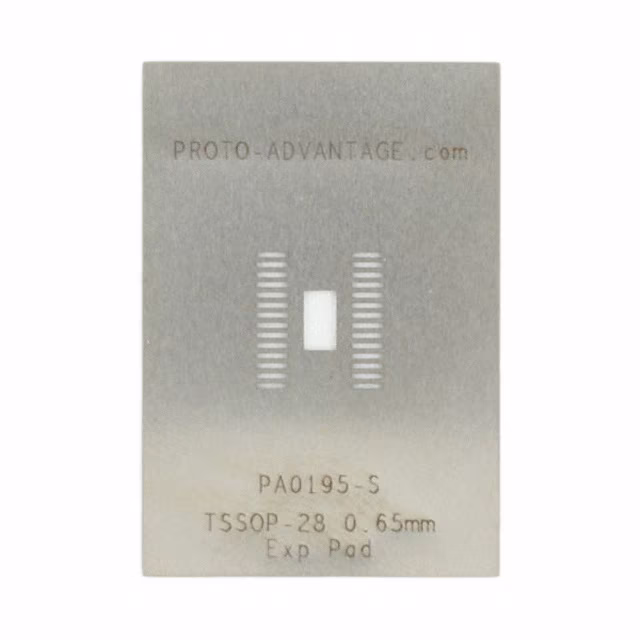

PA0195-STSSOP-28-EXP-PAD STENCIL |
2,462 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSSOP | 28 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.382" L x 0.173" W (9.70mm x 4.40mm) | 0.630" L x 0.118" W (16.00mm x 3.00mm) | Stainless Steel |
|

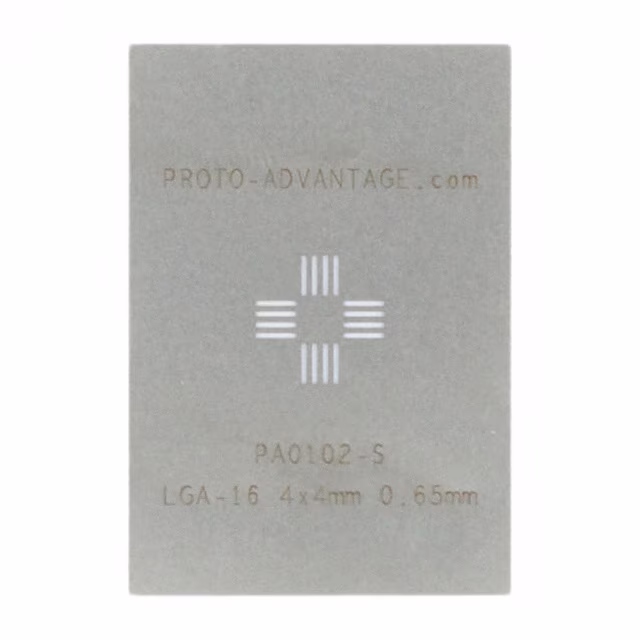

PA0102-SLGA-16 STENCIL |
3,597 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LGA | 16 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | Stainless Steel |
|

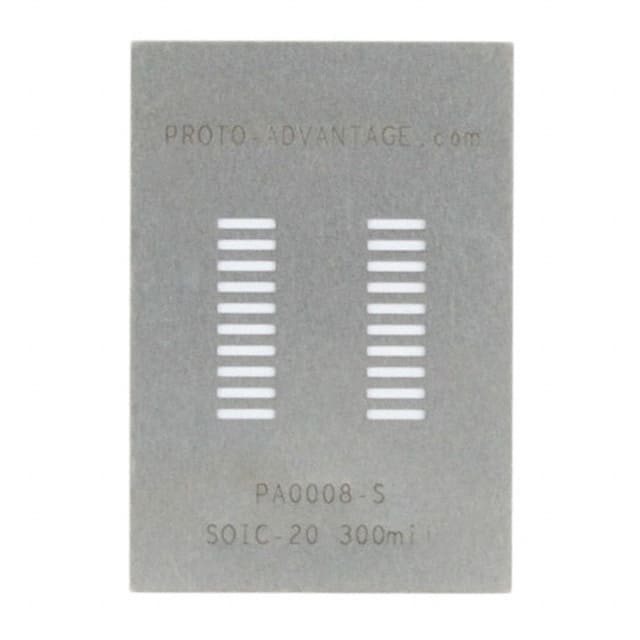

PA0008-SSOIC-20 STENCIL |
1,598 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SOIC | 20 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

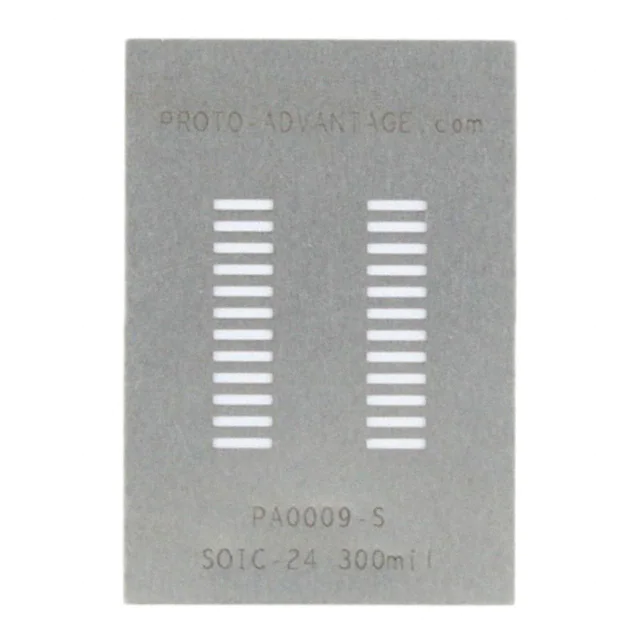

PA0009-SSOIC-24 STENCIL |
4,200 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | SOIC | 24 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

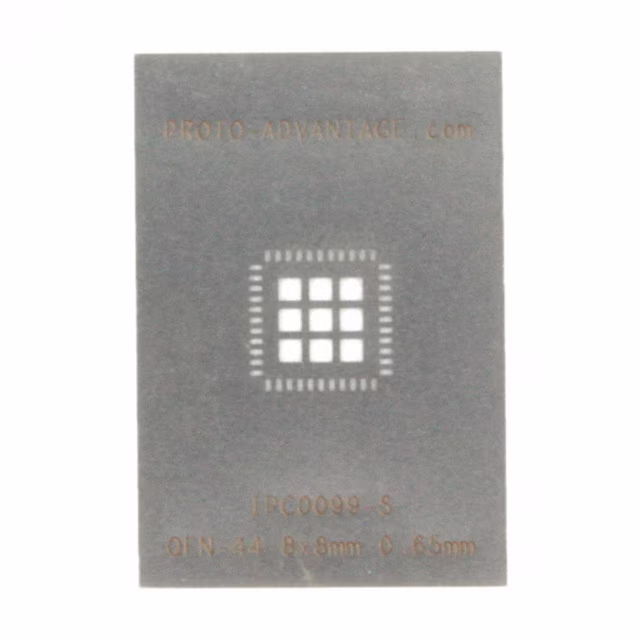

IPC0099-SQFN-44 STENCIL |
3,205 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 44 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.254" L x 0.254" W (6.45mm x 6.45mm) | Stainless Steel |
|

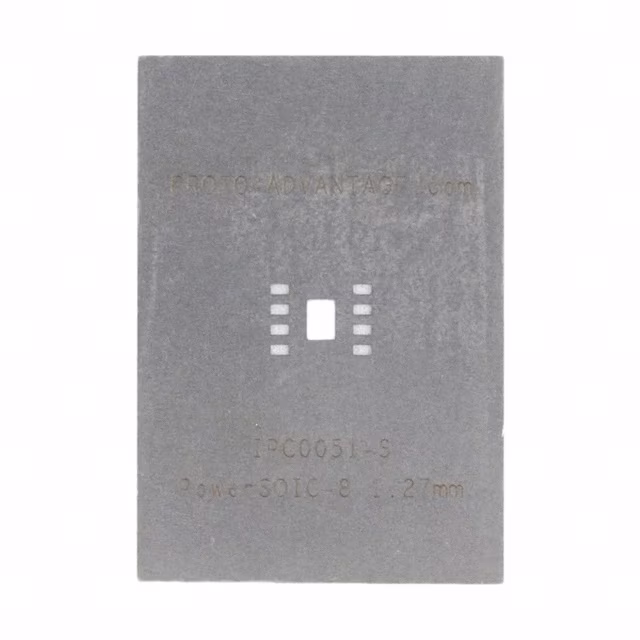

IPC0051-SPOWERSOIC-8/PSOP-8/HSOP-8 STENCI |
2,426 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | PowerSOIC | 8 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.118" L x 0.089" W (3.00mm x 2.25mm) | Stainless Steel |
|

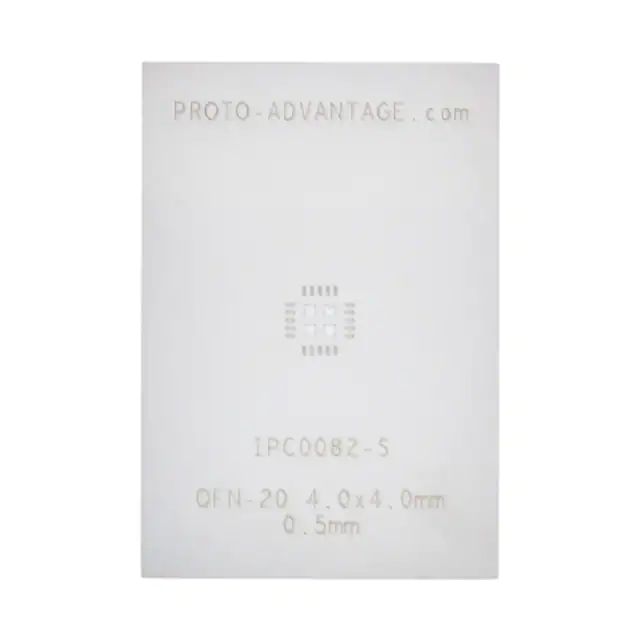

IPC0082-SQFN-20 0.5 MM PITCH 4.0 X 4.0 MM |
1,518 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 20 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" L x 0.098" W (2.50mm x 2.50mm) | Stainless Steel |
