Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLLC-ETD39-48RESONANT XFMR ETD39 48V 200W |
630 | 0.00 |
|
Datasheet |
SLLC | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 360 ~ 400V | - | 4000V | 500µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.732" L x 1.693" W (44.00mm x 43.00mm) | 1.181" (30.00mm) | - | Wirewound |
|
|
SLLC-ETD39-12RESONANT XFMR ETD39 12V 200W |
630 | 0.00 |
|
Datasheet |
SLLC | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 360 ~ 400V | - | 4000V | 500µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.732" L x 1.693" W (44.00mm x 43.00mm) | 1.181" (30.00mm) | - | Wirewound |
|
|
SLLC-ETD39-24RESONANT XFMR ETD39 24V 200W |
628 | 0.00 |
|
Datasheet |
SLLC | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 360 ~ 400V | - | 4000V | 500µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.732" L x 1.693" W (44.00mm x 43.00mm) | 1.181" (30.00mm) | - | Wirewound |
|
|
PDC060-FD20A12SXFMR POE DC/DC CONV 20.5UH SMD |
140 | 0.00 |
|
Datasheet |
PDC-FD | Tray | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 13V @ 20mA | 1500Vrms | 20.5µH @ 200kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.492" (12.50mm) | - | - |
|
PH0803CNLXFMR DC/DC CONV SMD |
290 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
|
PH0804CNLXFMR DC/DC CONV SMD |
290 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.388" (9.85mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
|
PH0807CNLXFMR DC/DC CONV SMD |
290 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
|
750342354XFMR FLYBACK DC/DC CONV 12UH SMD |
177 | 0.00 |
|
Datasheet |
MID-FLYTI | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Texas Instruments | 8 ~ 30V | - | 1500Vrms | 12µH @ 200kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" (12.70mm) | - | Laminated Core |
|
|
DR12-C318XFMR FLYBACK |
510 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DR12-C303XFMR FLYBACK |
508 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ECO2425SEO-D03V014XFMR FLYBACK AC/DC CONV 2.8MH TH |
145 | 6.34 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 170 ~ 230V | 36.5V @ 900mA | 1500Vrns | 2.8mH @ 10kHz | 30kHz | -30°C ~ 120°C | - | - | Through Hole | 1.122" L x 0.945" W (28.50mm x 24.00mm) | 1.240" (31.50mm) | 1.122" L x 0.945" W (28.50mm x 24.00mm) | - |
|

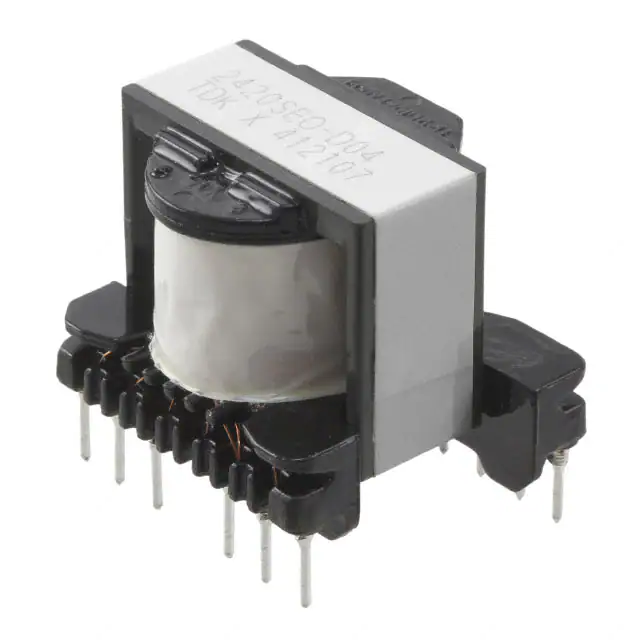

ECO2420SEO-D04V0110XFMR FLYBCK AC/DC CONV 1.54MH TH |
118 | 6.34 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 214 ~ 404V | 12V @ 1.25A, 14V @ 250mA | 1500Vrms | 1.54mH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 1.240" L x 0.984" W (31.50mm x 25.00mm) | 1.043" (26.50mm) | 1.240" L x 0.984" W (31.50mm x 25.00mm) | - |
|

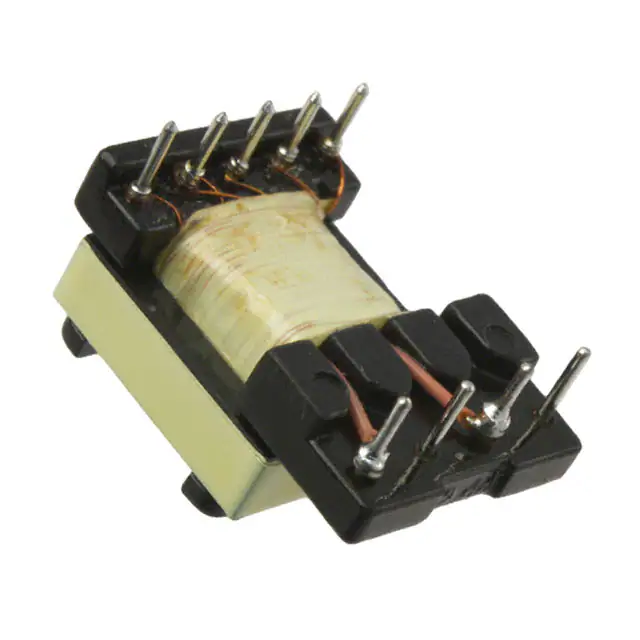

750871013XFMR LED DR AC/DC CONV 1.8MH TH |
113 | 5.04 |
|
Datasheet |
WE-UNIT, MID-OLNXP | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TEA1521T | NXP Semiconductors | 115 ~ 390V | 15V @ 30mA | 4000Vrms | 1.8mH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.540" L x 0.775" W (13.72mm x 19.69mm) | 0.405" (10.29mm) | 0.540" L x 0.775" W (13.72mm x 19.69mm) | - |
|

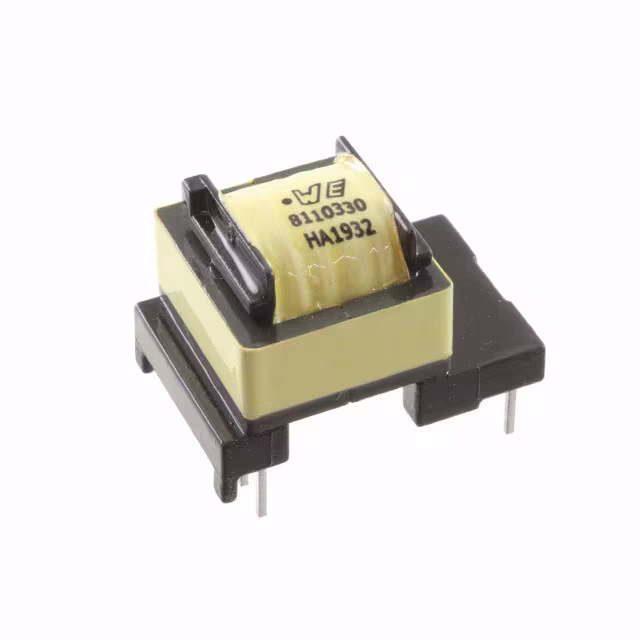

7508110330XFMR FLYBACK AC/DC CONV TH |
103 | 6.05 |
|
Datasheet |
WE-UNIT, MID-OLEE | Tray | Active | For AC/DC Converters | Flyback Converters | - | - | 78 ~ 375V | - | 4500Vrms | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.575" (14.60mm) | - | - |
|
7508110419XFMR FLYBACK AC/DC CONV TH |
101 | 6.05 |
|
Datasheet |
WE-UNIT, MID-OLEE | Tray | Active | For AC/DC Converters | Flyback Converters | - | - | 78 ~ 375V | - | 4500Vrms | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.575" (14.60mm) | - | - |
|
|
750316116XFMR POE DC/DC CONV 18UH SMD |
242 | 0.00 |
|
Datasheet |
MID-POELT | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LT4276 | Linear Technology | 41 ~ 57V | 12V @ 10mA | 1500Vrms | 18µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.450" (11.43mm) | - | Laminated Core |
|
|
PLN048-ED21A12SXFMR POE DC/DC CONV 90UH SMD |
5,164 | 0.00 |
|
Datasheet |
PLN | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 14V | 1750V | 90µH @ 100kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.024" L x 0.969" W (26.00mm x 24.60mm) | 0.386" (9.80mm) | - | Planar |
|
|
PLN060-ER20A05STRANSF PLANAR 60W 5V OUT |
181 | 0.00 |
|
Datasheet |
PLN0xx-ER20 | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 12V @ 30mA | 1500Vrms | 21µH @ 100kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.886" L x 0.827" W (22.50mm x 21.00mm) | 0.315" (8.00mm) | - | Planar |
|
|
750343306XFMR FLYBACK AC/DC CONV 360UH TH |
114 | 0.00 |
|
Datasheet |
MID-OLTI | Tray | Active | For AC/DC Converters | Flyback Converters | - | Texas Instruments | 100 ~ 425V | 12V @ 250mA | 3750V | 360µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 1.024" L x 0.874" W (26.00mm x 22.20mm) | 0.660" (16.76mm) | - | Laminated Core |
|
|
PLN071-ER20A12STRANSF PLANAR 71W 12V OUT |
181 | 0.00 |
|
Datasheet |
PLN0xx-ER20 | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 12V @ 30mA | 1500Vrms | 18µH @ 100kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.886" L x 0.827" W (22.50mm x 21.00mm) | 0.315" (8.00mm) | - | Planar |
