Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA5100.005NLTXFMR FWD P-P DC/DC CONV SMD |
861 | 100.00 |
|
Datasheet |
PA5100XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
|
PA5099.003NLTXFMR FLYBACK DC/DC CONV SMD |
1,701 | 2.63 |
|
Datasheet |
PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
|
PA5100.006NLTXFMR FWD P-P DC/DC CONV SMD |
865 | 0.00 |
|
Datasheet |
PA5100XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
|
PA5100.004NLTXFMR FWD P-P DC/DC CONV SMD |
865 | 125.00 |
|
Datasheet |
PA5100XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
|
PA5100.002NLTXFMR FWD P-P DC/DC CONV SMD |
855 | 30.00 |
|
Datasheet |
PA5100XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
|
PA5100.001NLTXFMR FWD P-P DC/DC CONV SMD |
113 | 113.00 |
|
Datasheet |
PA5100XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
PA3856.004NLTXFMR FWD P-P DC/DC CONV SMD |
900 | 4.42 |
|
Datasheet |
EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
PGT6465NLTXFMR FLYBACK 205UH SMD |
138 | 3.60 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | 70 ~ 820V | - | 4000Vrms | 205µH @ 100kHz | 133kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.650" L x 0.642" W (16.50mm x 16.30mm) | 0.433" (11.00mm) | 0.862" L x 0.650" W (21.90mm x 16.50mm) | Wirewound |
|
POE7W2X12-RXFMR POE CONFIG DC/DC 100UH SMD |
3,223 | 4.90 |
|
Datasheet |
PoE | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Power Over Ethernet (PoE) | - | - | - | - | 1500Vrms | 100µH @ 100kHz | 250kHz | -40°C ~ 85°C | - | - | Surface Mount | 0.673" L x 0.630" W (17.10mm x 16.00mm) | 0.331" (8.40mm) | 0.673" L x 0.878" W (17.10mm x 22.30mm) | - |
|
POE030-PD13050SXFMR POE DC/DC CONV 70UH SMD |
146 | 1.47 |
|
Datasheet |
POE-PD | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 11.5V | 1500Vrms | 70µH @ 100kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.638" L x 0.551" W (16.20mm x 14.00mm) | 0.571" (14.50mm) | - | - |
|
|
PA5000.001NLXFMR FWD P-P DC/DC CONV 100UH SM |
600 | 0.00 |
|
Datasheet |
PA5000.XXXNL | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 75V | 10V @ 50mA | 3000Vrms | 100µH | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.697" L x 0.531" W (17.70mm x 13.50mm) | Wirewound |
|
|
PA5000.002NLXFMR FWD P-P DC/DC CONV 100UH SM |
595 | 0.00 |
|
Datasheet |
PA5000.XXXNL | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 75V | 10V @ 50mA | 3000Vrms | 100µH | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.697" L x 0.531" W (17.70mm x 13.50mm) | Wirewound |
|
PA5111.001NLTXFMR FLYBACK DC/DC CONV 80UH SMD |
244 | 5.38 |
|
Datasheet |
PA5111.XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 75V | - | 3000Vrms | 80µH @ 200kHz | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.689" L x 0.531" W (17.50mm x 13.50mm) | Wirewound |
|
|
PA5000.003NLTXFMR FWD P-P DC/DC CONV 100UH SM |
110 | 5.38 |
|
Datasheet |
PA5000.XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 75V | - | 5000Vrms | 100µH @ 200kHz | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.689" L x 0.531" W (17.50mm x 13.50mm) | Wirewound |
|
|
PA5111.002NLTXFMR FLYBACK DC/DC CONV 80UH SMD |
105 | 5.38 |
|
Datasheet |
PA5111.XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 75V | - | 3000Vrms | 80µH @ 200kHz | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.689" L x 0.531" W (17.50mm x 13.50mm) | Wirewound |
|
PA4470.005NLTXFMR FLYBACK DC/DC CONV SMD |
698 | 5.14 |
|
Datasheet |
PA4470 | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | - | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | - | 0.236" (6.00mm) | 0.315" L x 0.374" W (8.00mm x 9.50mm) | - |
|
|
PA4470.001NLTXFMR FLYBACK DC/DC CONV SMD |
482 | 5.07 |
|
Datasheet |
PA4470 | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | - | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | - | 0.236" (6.00mm) | 0.315" L x 0.374" W (8.00mm x 9.50mm) | - |
|

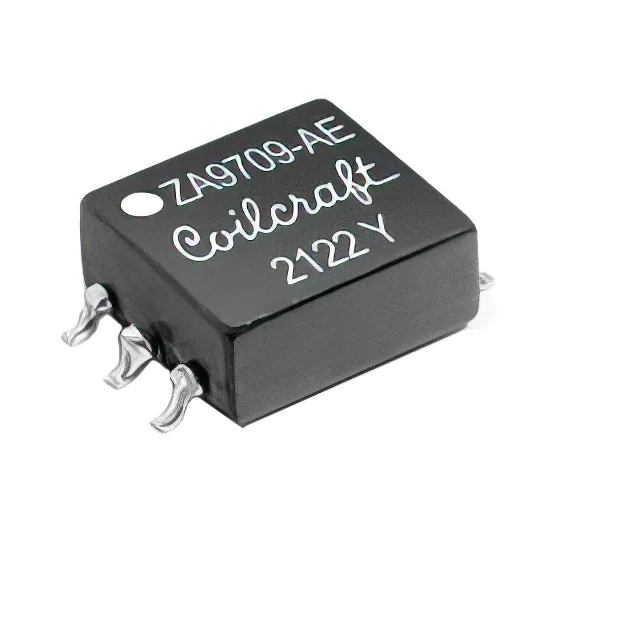

ZA9709-AEDXFMR FWD P-P DC/DC CONV 145UH SM |
2,264 | 5.43 |
|
Datasheet |
ZA9709 | Strip | Active | For DC/DC Converters | Forward, Push-Pull Converters | SN6505B | Texas Instruments | 3.3V | - | 2500Vrms | 145µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.171" (4.34mm) | 0.512" L x 0.347" W (13.00mm x 8.82mm) | - |
|
|
PAT6042NLXFMR FLYBACK |
3,640 | 6.51 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ZA9671-BEDXFMR FLYBACK DC/DC CONV 9UH SMD |
958 | 10.11 |
|
Datasheet |
- | Strip | Active | For DC/DC Converters | Flyback Converters | LM25184 | Texas Instruments | 4 ~ 42V | - | 1500Vrms | 9µH @ 300kHz | 300kHz | -40°C ~ 85°C | - | - | Surface Mount | - | 0.394" (10.00mm) | 0.520" L x 0.430" W (13.21mm x 10.92mm) | - |
