Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

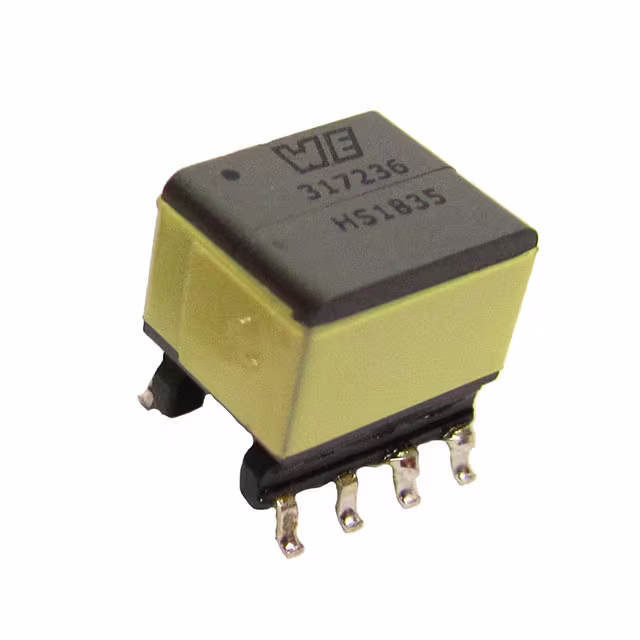

750317236XFMR FLYBACK DC/DC CONV 84UH SMD |
2,355 | 2.59 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 18 ~ 60VDC | - | 1500Vrms | 84µH @ 100kHz | 143.5kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.385" L x 0.374" W (9.78mm x 9.50mm) | 0.415" (10.54mm) | 0.324" L x 0.360" W (8.23mm x 9.14mm) | Wirewound |
|

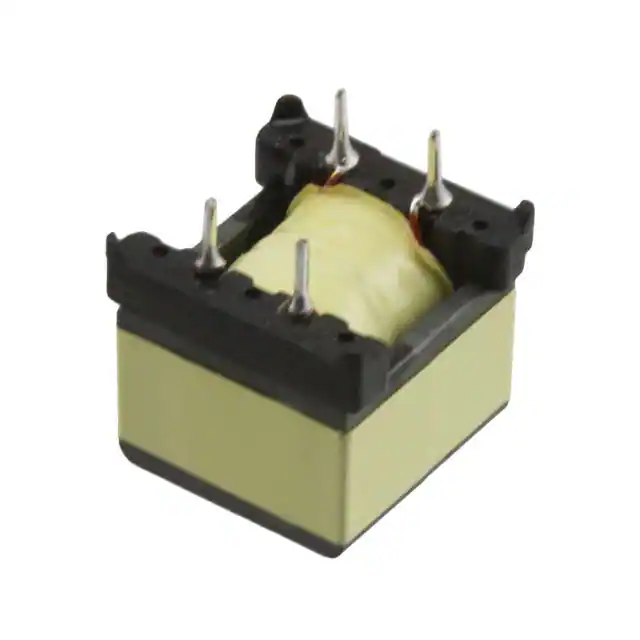

750311524XFMR LED DR AC/DC CONV 180UH TH |
4,986 | 5.92 |
|
Datasheet |
MID-LLIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | SSL2101 | NXP Semiconductors | 230V | - | 1000Vrms | 180µH @ 100kHz, 95µH @ 100kHz | - | -40°C ~ 125°C | - | - | Through Hole | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.505" (12.83mm) | 0.550" L x 0.550" W (13.97mm x 13.97mm) | - |
|

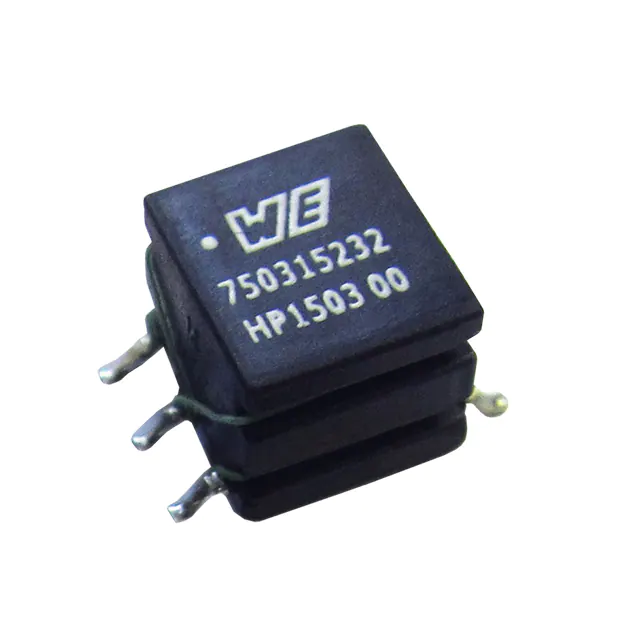

750315232XFMR FWD P-P SMD |
3,360 | 3.75 |
|
Datasheet |
MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.300" (7.62mm) | - | - |
|

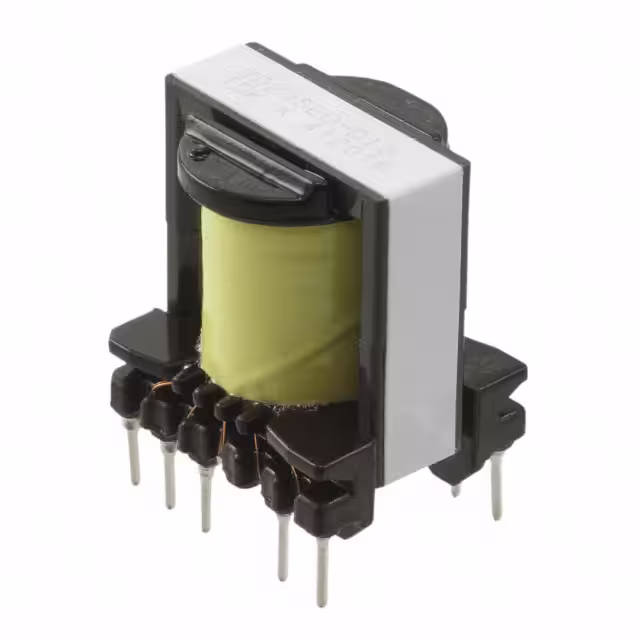

ECO2020SEO-D10V017XFMR FLYBACK AC/DC CONV 770UH TH |
4,735 | 7.02 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 96 ~ 276V | 15V @ 150mA, 18V @ 150mA | 3000Vrms | 770µH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 0.886" L x 0.768" W (22.50mm x 19.50mm) | 1.063" (27.00mm) | 0.886" L x 0.768" W (22.50mm x 19.50mm) | - |
|
7491199331XFMR POE DC/DC CONV 127UH SMD |
2,201 | 6.02 |
|
Datasheet |
WE-PoE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | - | 34 ~ 72V | 12V @ 15mA | 1500Vrms | 127µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.591" W (13.46mm x 15.00mm) | 0.500" (12.70mm) | 0.530" L x 0.713" W (13.46mm x 18.10mm) | - |
|
750310007XFMR POE DC/DC CONV 127UH SMD |
4,594 | 7.88 |
|
Datasheet |
WE-PoE, MID-POE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072 | National Semiconductor | 35 ~ 57V | 12V @ 15mA | 1500Vrms | 127µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
7491194501XFMR POE DC/DC CONV 42UH SMD |
3,769 | 6.02 |
|
Datasheet |
WE-PoE+ | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 12V | 1500Vrms | 42µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.910" L x 1.044" W (23.11mm x 26.52mm) | 0.450" (11.43mm) | 0.910" L x 1.145" W (23.11mm x 29.08mm) | - |
|
|
749119450XFMR POE DC/DC CONV 65UH SMD |
4,062 | 6.02 |
|
Datasheet |
WE-PoE+ | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 15V @ 20mA | 1500Vrms | 65µH @ 100kHz | 250 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.910" L x 1.145" W (23.11mm x 29.08mm) | - |
|
7508170310XFMR FLYBCK AC/DC CONV 1.99MH SM |
4,002 | 4.66 |
|
Datasheet |
WE-UNIT, MID-OLEE | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | 78 ~ 375V | 16V @ 50mA | 3000Vrms | 1.99mH @ 10kHz | 50kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.438" (11.13mm) | 0.543" L x 0.941" W (13.80mm x 23.90mm) | - |
|

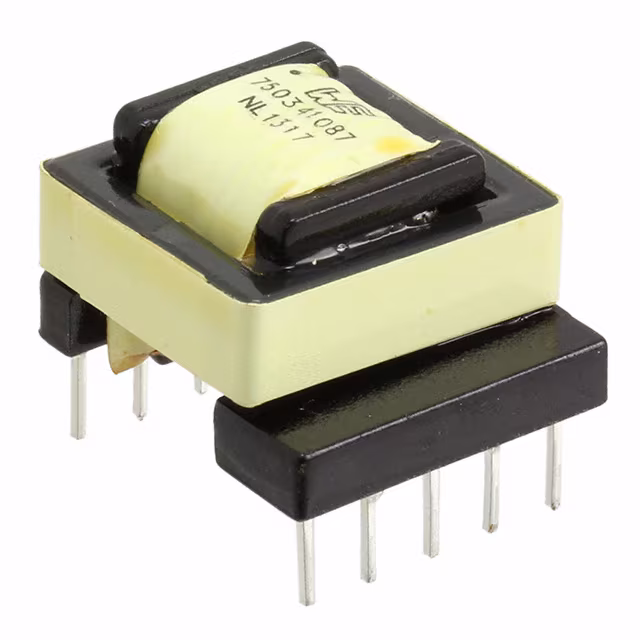

750341087XFMR LED DR AC/DC CONV 3MH TH |
2,825 | 5.18 |
|
Datasheet |
WE-UNIT, MID-OLTI | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 180 ~ 265V | 22V @ 10mA | 4500Vrms | 3mH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.665" L x 0.740" W (16.90mm x 18.80mm) | 0.529" (13.44mm) | 0.665" L x 0.740" W (16.90mm x 18.80mm) | - |
|
750342860XFMR FLYBACK DC/DC CONV 80UH SMD |
1,118 | 5.76 |
|
Datasheet |
WE-FB, MID-IBMAX | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 18 ~ 36V | 24V @ 100mA | 1875Vrms | 80µH @ 50kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|

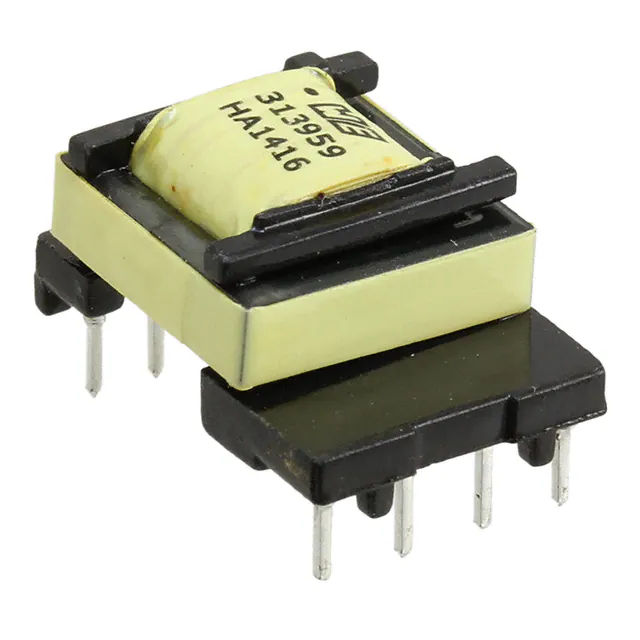

750313959XFMR ISOL AC/DC CONV 1.8MH TH |
4,117 | 5.56 |
|
Datasheet |
WE-FB, MID-OLTI | Tray | Active | For AC/DC Converters | Isolation | - | - | 120 ~ 375V | 18V @ 10mA | 4500Vrms | 1.8mH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.540" L x 0.805" W (13.72mm x 20.45mm) | 0.405" (10.29mm) | 0.540" L x 0.805" W (13.72mm x 20.45mm) | - |
|
7491196331XFMR POE DC/DC CONV 128UH SMD |
4,229 | 7.39 |
|
Datasheet |
WE-PoEH | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 10V | 1500Vrms | 128µH @ 100kHz | 200 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.551" L x 0.591" W (14.00mm x 15.00mm) | 0.571" (14.50mm) | 0.551" L x 0.591" W (14.00mm x 18.10mm) | - |
|
VPH4-0047-RXFMR 7.94UH SMD |
4,294 | 10.15 |
|
Datasheet |
VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
B78304B1031A003XFMR DC/DC CONV 1MH SMD |
3,798 | 8.10 |
|
Datasheet |
B78304B | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 500Vrms | 1mH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.224" (5.70mm) | 0.315" L x 0.374" W (8.00mm x 9.50mm) | - |
|
7508112330XFMR LED DR AC/DC CONV 800UH TH |
4,049 | 7.81 |
|
Datasheet |
WE-UNIT, MID-OLEDF | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 120 ~ 375V | 20V | 4500Vrms | 800µH @ 10kHz | 68 ~ 130kHz | -40°C ~ 125°C | - | - | Through Hole | 0.846" L x 1.142" W (21.50mm x 29.00mm) | 0.477" (12.12mm) | 0.846" L x 1.142" W (21.50mm x 29.00mm) | - |
|

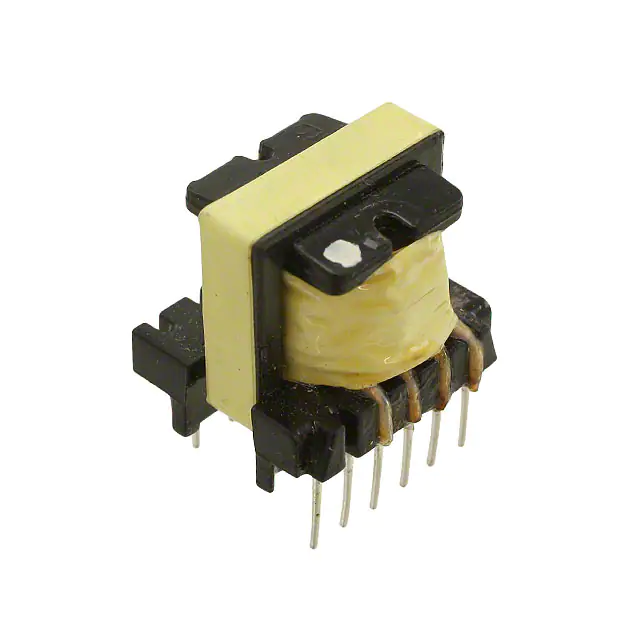

749118205XFMR LED DR AC/DC CONV 900UH TH |
1,300 | 8.51 |
|
Datasheet |
WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCP101x, NCP105x | On Semiconductor | 120 ~ 385V | - | 4000Vrms | 900µH @ 10kHz | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 0.709" L x 0.650" W (18.00mm x 16.50mm) | 0.709" (18.00mm) | 0.709" L x 0.650" W (18.00mm x 16.50mm) | - |
|
750319565XFMR FLYBACK DC/DC CONV 256UH SM |
2,110 | 0.00 |
|
Datasheet |
WE-AGDT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 15V | - | 4000V | 256µH @ 10kHz | 250kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.445" L x 0.431" W (11.30mm x 10.95mm) | 0.470" (11.94mm) | - | Wirewound |
|
750311567XFMR FLYBACK DC/DC CONV 7UH SMD |
1,647 | 9.08 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 10 ~ 40V | 10V @ 20mA | 1500Vrms | 7µH @ 250kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750319020XFMR POE DC/DC CONV 17UH SMD |
4,908 | 13.12 |
|
Datasheet |
MID-POE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 12V | 1500Vrms | 17µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.102" L x 1.064" W (28.00mm x 27.03mm) | 0.550" (13.97mm) | 1.278" L x 1.064" W (32.45mm x 27.03mm) | - |
