Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750312646XFMR FLYBACK AC/DC CONV 200UH TH |
1,454 | 0.00 |
|
Datasheet |
MID-OLLT | Tray | Active | For AC/DC Converters | Flyback Converters | - | On Semiconductor | 120 ~ 430V | 22V @ 10mA | 1500Vrms | 200µH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Through Hole | 1.220" L x 1.220" W (31.00mm x 31.00mm) | 0.984" (25.00mm) | - | Laminated Core |
|
|
750817220XFMR FLYBACK AC/DC CONV 1MH TH |
4,763 | 0.00 |
|
Datasheet |
MID-OLLT | Tray | Active | For AC/DC Converters | Flyback Converters | - | On Semiconductor | 90 ~ 650V | 28V @ 20mA | 5500Vrms | 1mH @ 10KHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | 1.220" L x 1.220" W (31.00mm x 31.00mm) | 0.984" (25.00mm) | - | Laminated Core |
|
|
7608957210XFMR 128UH SMD |
194 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | 54V | - | - | 128µH @ 100kHz | 350kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.197" L x 1.016" W (30.40mm x 25.80mm) | 0.335" (8.50mm) | - | - |
|
|
750343803XFMR FLYBACK AC/DC CONV 75UH TH |
4,682 | 0.00 |
|
Datasheet |
MID-OLTI | Tray | Active | For AC/DC Converters | Flyback Converters | - | Texas Instruments | 85 ~ 265V | 70V @ 100mA | 3750V | 75µH @ 450kHz | 450kHz | -40°C ~ 125°C | - | - | Through Hole | 0.850" L x 0.680" W (21.59mm x 17.27mm) | 0.850" (21.59mm) | - | Laminated Core |
|

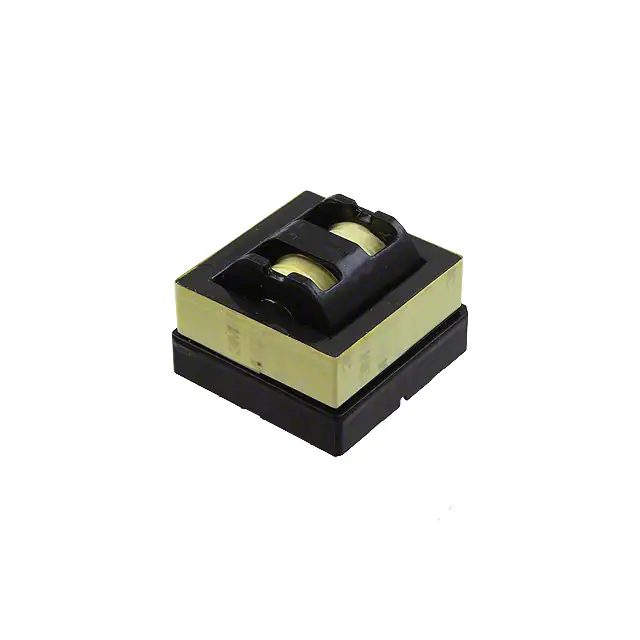

760895651XFMR RES CONV AC/DC 500UH TH |
1,564 | 18.84 |
|
Datasheet |
WE-LLCR | Tray | Active | For AC/DC Converters | Resonant Converters | - | - | 360 ~ 400V | - | 4000Vrms | 500µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.692" L x 1.732" W (43.00mm x 44.00mm) | 1.181" (30.00mm) | 1.692" L x 1.732" W (43.00mm x 44.00mm) | - |
|
|
750316326XFMR FLYBACK AC/DC CONV 250UH TH |
1,749 | 0.00 |
|
Datasheet |
750 | Tray | Active | For AC/DC Converters | Flyback Converters | - | Texas Instruments | 120 ~ 375V | 12V @ 50mA | 3600V | 250µH @ 10kHz | 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.732" L x 1.437" W (44.00mm x 36.50mm) | 1.122" (28.50mm) | - | Laminated Core |
|
PA5130.004NLTXFMR FLYBACK DC/DC CONV SMD |
4,520 | 3.92 |
|
Datasheet |
PA5130XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.610" L x 0.512" W (15.50mm x 13.00mm) | 0.610" (15.50mm) | 0.610" L x 0.512" W (15.50mm x 13.00mm) | Wirewound |
|
|
PA5130.005NLTXFMR FLYBACK DC/DC CONV SMD |
4,277 | 3.92 |
|
Datasheet |
PA5130XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.610" L x 0.512" W (15.50mm x 13.00mm) | 0.610" (15.50mm) | 0.610" L x 0.512" W (15.50mm x 13.00mm) | Wirewound |
|
|
PA5180NLXFMR DC/DC CONV 4UH SMD |
4,349 | 0.00 |
|
Datasheet |
PA5180NL | Tray | Active | For DC/DC Converters | - | - | - | 2 ~ 8V | - | 1500Vrms | 4µH | 140kHz | -40°C ~ 130°C | - | - | Surface Mount | - | 0.451" (11.45mm) | 0.600" L x 0.516" W (15.24mm x 13.10mm) | Wirewound |
|
|
PA5178NLXFMR DC/DC CONV 4UH SMD |
1,420 | 0.00 |
|
Datasheet |
PA5178NL | Tray | Active | For DC/DC Converters | - | - | - | 2 ~ 8V | - | 1500Vrms | 4µH | 140kHz | -40°C ~ 130°C | - | - | Surface Mount | - | 0.451" (11.45mm) | 0.600" L x 0.516" W (15.24mm x 13.10mm) | Wirewound |
|
|
PA5131.005NLTXFMR FWD P-P DC/DC CONV SMD |
1,956 | 92.00 |
|
Datasheet |
PA5131XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.610" L x 0.512" W (15.50mm x 13.00mm) | 0.610" (15.50mm) | 0.610" L x 0.512" W (15.50mm x 13.00mm) | Wirewound |
|
|
PA5131.006NLTXFMR FWD P-P DC/DC CONV SMD |
4,265 | 111.00 |
|
Datasheet |
PA5131XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.610" L x 0.512" W (15.50mm x 13.00mm) | 0.610" (15.50mm) | 0.610" L x 0.512" W (15.50mm x 13.00mm) | Wirewound |
|
|
PA5100.003NLTXFMR FWD P-P DC/DC CONV SMD |
1,565 | 105.00 |
|
Datasheet |
PA5100XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|

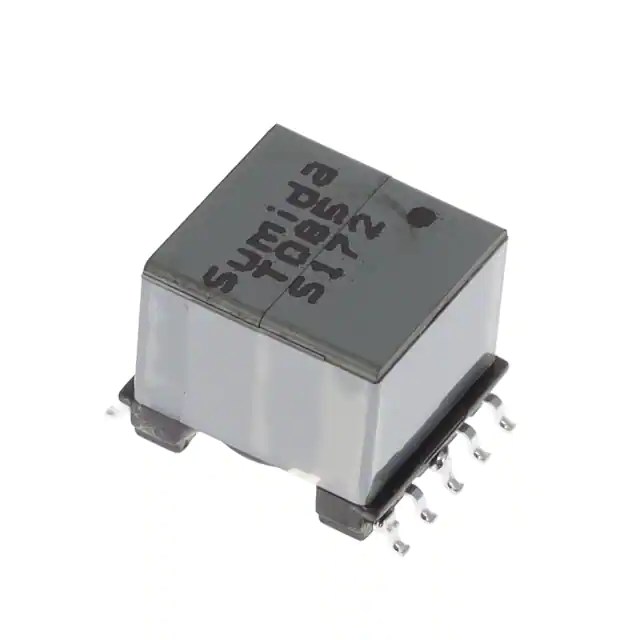

13324-T085XFMR 40UH SMD |
3,051 | 4.67 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | 36 ~ 75V | - | 1500Vrms | 40µH @ 100kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.591" L x 0.531" W (15.00mm x 13.50mm) | 0.492" (12.50mm) | 0.709" L x 0.531" W (18.00mm x 13.50mm) | - |
|
PA5000.002NLTXFMR FWD P-P DC/DC CONV 100UH SM |
1,652 | 5.38 |
|
Datasheet |
PA5000.XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 75V | - | 3000Vrms | 100µH @ 200kHz | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.689" L x 0.531" W (17.50mm x 13.50mm) | Wirewound |
|
|
PA5000.001NLTXFMR FWD P-P DC/DC CONV 100UH SM |
4,948 | 5.38 |
|
Datasheet |
PA5000.XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 75V | - | 3000Vrms | 100µH @ 200kHz | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.689" L x 0.531" W (17.50mm x 13.50mm) | Wirewound |
|
|
POE060-FD20120SXFMR POE DC/DC CONV 100UH SMD |
1,185 | 1.87 |
|
Datasheet |
POE-FD | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 12V | 1875V | 100µH @ 100kHz | 250kHz | -40°C ~ 105°C | - | - | Surface Mount | 0.846" L x 0.831" W (21.50mm x 21.10mm) | 0.472" (12.00mm) | - | - |
|
PCA14.5/6ER-U03S002XFMR 21.6UH SMD |
1,831 | 5.64 |
|
Datasheet |
PCA14.5/6ER | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | Parallel 21.6µH @ 10kHz, Series 778µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.307" (7.80mm) | 0.642" L x 0.661" W (16.30mm x 16.80mm) | - |
|
|
T201258A-1-301.3mH, 0.13Ohm to 4.0Ohm, 0.7Amp |
2,193 | 0.00 |
|
Datasheet |
T201258A | Bulk | Active | For AC/DC Converters | Flyback Converters | RAA223182, RAA223183 | Renesas Electronics Corporation | - | - | 4000V | 1.3mH @ 100kHz | - | -25°C ~ 125°C | - | - | Through Hole | 0.669" L x 0.551" W (17.00mm x 14.00mm) | 0.866" (22.00mm) | - | Laminated Core |
|
|
TSD-1801XFMR FLYBACK AC/DC CONV TH |
2,936 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | For AC/DC Converters | Flyback Converters | TOP243 | Power Integrations | 85 ~ 265V | - | - | - | 47Hz ~ 440Hz | 0°C ~ 70°C | - | - | Through Hole | - | - | - | - |
