Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TGM-330NARLTRISO MOD DC MAX253 4C:3C 11VUS 3K |
2,896 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | - | Wirewound |
|
|
TGM-320NARLTRISO MOD DC MAX253 8C:3C 11VUS 3K |
2,593 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | - | Wirewound |
|
|
TGM-350NARLTRISO MOD DC MAX253 1C:1C 11VUS 3K |
3,277 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | - | Wirewound |
|
750813046XFMR LED DR AC/DC CONV 1.44MH TH |
3,607 | 3.68 |
|
Datasheet |
WE-UNIT, MID-OLTI | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 120 ~ 200V | 12V | 4500Vrms | 1.44mH @ 10kHz | 72kHz | - | - | - | Through Hole | 0.689" L x 0.740" W (17.50mm x 18.80mm) | 0.524" (13.31mm) | 0.665" L x 0.740" W (16.90mm x 18.80mm) | - |
|

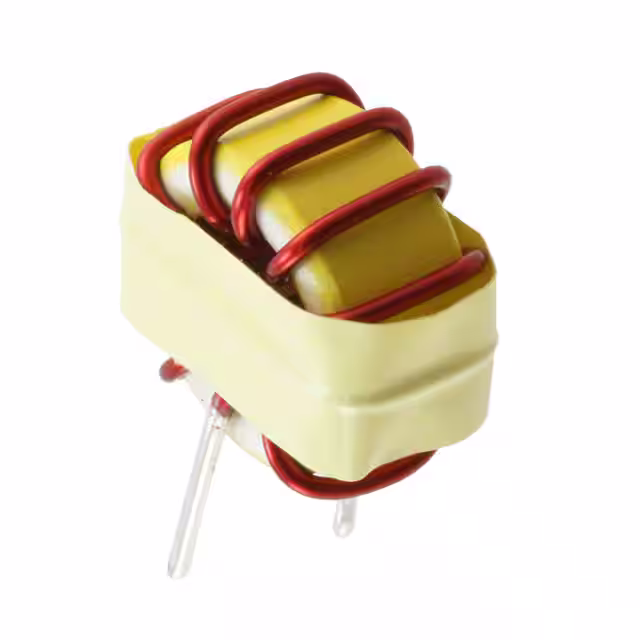

750310344XFMR LED DR AC/DC CONV 10UH TH |
3,204 | 3.94 |
|
Datasheet |
- | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TPS92010DR | Texas Instruments | - | - | - | 10µH @ 100kHz | - | - | - | - | Through Hole | 1.000" Dia x 0.530" W (25.40mm x 13.46mm) | 1.000" (25.40mm) | 1.000" Dia x 0.530" W (25.40mm x 13.46mm) | - |
|

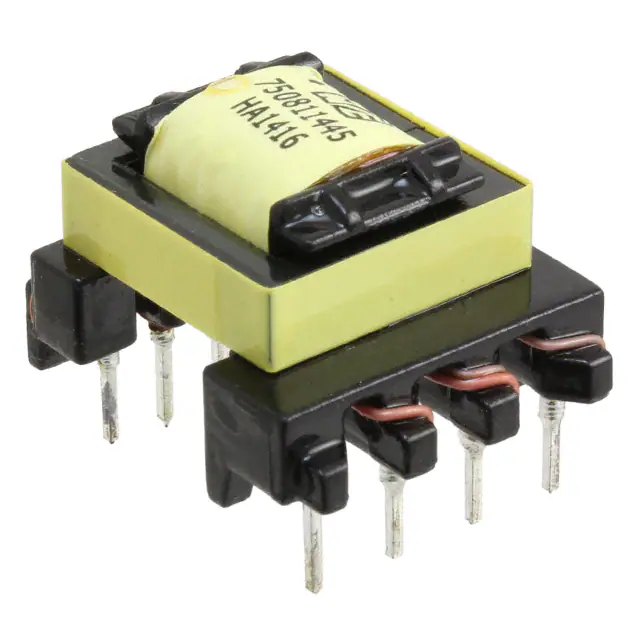

750811445XFMR ISOL AC/DC CONV 1.5MH TH |
4,201 | 3.23 |
|
Datasheet |
WE-UNIT, MID-OLTI | Tray | Active | For AC/DC Converters | Isolation | - | - | 90 ~ 375V | 18V @ 10mA | 4500Vrms | 1.5mH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.635" (16.13mm) | 0.800" L x 0.960" W (20.32mm x 24.38mm) | - |
|
|
TGMR-370V6LFISO MOD DC 1C:1.6C 22VUS 3KV 6P |
2,394 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGMR-360V6LFISO MOD DC 1C:2C 22VUS 3KV 6P SM |
2,368 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGMR-380V6LFISO MOD DC 1C:2.67C 22VUS 3KV 6P |
3,656 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGMR-340V6LFISO MOD DC 1C:1.33C 22VUS 3KV 6P |
2,178 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGMR-355V6LFISO MOD DC 1C:1.5C 22VUS 3KV 6P |
2,920 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGMR-1440V6LFTRISO MOD DC 1C:1.33C 15.7VUS 5KV |
3,070 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | - | MAX14943, MAX14949 | Analog Devices, Inc | - | - | 5000V | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGMR-1455V6LFTRISO MOD DC 1C:1.5C 15.7VUS 5KV |
1,590 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | - | MAX14857, MAX14859 | Analog Devices, Inc | - | - | 5000V | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGMR-1464V6LFTRISO MOD DC 1C:2.4C 15.7UV 5KV 6P |
1,739 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | - | MAX14943, MAX14949 | Analog Devices, Inc | - | - | 5000V | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGM-H280V8LFISO MOD DC 1:1:2.67:2.67 25VUS 1 |
2,925 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | Forward, Push-Pull Converters | MAX13253 | Analog Devices, Inc | - | - | 1500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGM-340NARLISO MOD DC MAX253 3C:4C 11VUS 3K |
4,408 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | - | Wirewound |
|
|
TGM-H240V8LFTRISO MOD DC 1:1:1.3:1.3 25VUS 1A |
4,267 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | MAX13253 | Analog Devices, Inc | - | - | 1500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
750314288XFMR FLYBACK AC/DC CONV 2.5MH TH |
3,111 | 4.01 |
|
Datasheet |
WE-UNIT, MID-OLSTM | Tray | Active | For AC/DC Converters | Flyback Converters | - | STMicroelectronics | 120 ~ 375V | - | 2500Vrms | 2.5mH @ 10kHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.740" (18.80mm) | - | - |
|
750311839XFMR FLYBACK DC/DC CONV 200UH SM |
1,757 | 2.85 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3512 | Linear Technology | 36 ~ 72V | - | 1500Vrms | 200µH @ 100kHz | 190kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.69mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|

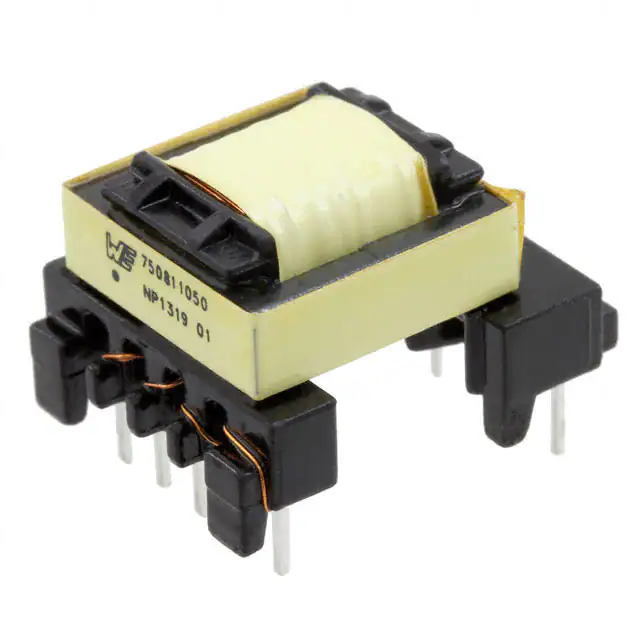

750811050XFMR FLYBACK DC/DC CONV 1.5MH TH |
2,449 | 3.77 |
|
Datasheet |
WE-FB | Tray | Active | For DC/DC Converters | Flyback Converters | LT3748 | Linear Technology | 100 ~ 400V | 15V | 4500Vrms | 1.5mH @ 10kHz | 70 ~ 130kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.635" (16.13mm) | 0.800" L x 0.960" W (20.32mm x 24.38mm) | - |
