Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TGMR-511V6LFISO MOD DC 1:1C 60VUS 0.3A 5KV 6 |
3,192 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | - | MAX13256 | Analog Devices, Inc | - | - | 5000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|

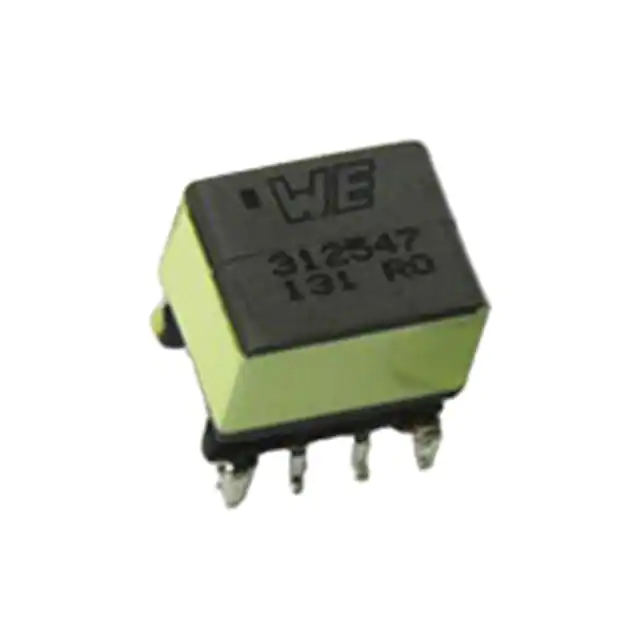

750312547XFMR ISOL BUCK DC/DC CONV 1UH SM |
1,683 | 3.17 |
|
Datasheet |
MID-IBTI | Tape & Reel (TR) | Active | For DC/DC Converters | Isolated Buck Converters | - | Texas Instruments | 3 ~ 6V | - | - | 1µH @ 100kHz | 500kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - | - | - |
|
|
TGSP-P028EFD20LFTRISO MOD POE FLYB XFMR 30W SMD T/ |
1,841 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | AS1135 | Kinetic Technologies | - | - | 1500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.870" L x 0.860" W (22.10mm x 21.84mm) | 0.450" (11.43mm) | - | Wirewound |
|
|
TGSP-P027EFD20LFTRISO MOD POE FLYB XFMR 30W SMD T/ |
3,157 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | AS1135 | Kinetic Technologies | - | - | 1500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.870" L x 0.860" W (22.10mm x 21.84mm) | 0.450" (11.43mm) | - | Wirewound |
|
|
TGSP-P026EFD20LFTRISO MOD POE FLYB XFMR 30W SMD T/ |
1,263 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | AS1135 | Kinetic Technologies | - | - | 1500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.870" L x 0.860" W (22.10mm x 21.84mm) | 0.450" (11.43mm) | - | Wirewound |
|
|
TGM-360NARLTRISO MOD DC MAX253 1C:2C 11VUS 3K |
3,844 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | - | Wirewound |
|
|
TGM-H281NFRLTRISO MOD DC 1:1:2.6:2.6 18.5VUS |
2,430 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | For DC/DC Converters | - | MAX256 | Analog Devices, Inc | - | - | 1500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.475" L x 0.455" W (12.07mm x 11.56mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGMR-501V6LFTRISO MOD DC 1:1 60VUS 0.3A 5KV 6P |
3,619 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | - | MAX13256 | Analog Devices, Inc | - | - | 5000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|

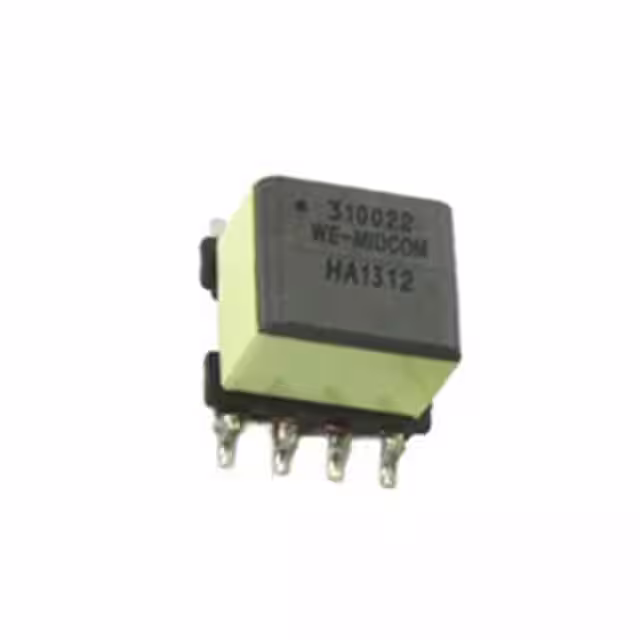

750310022XFMR POE DC/DC CONV SMD |
1,806 | 4.03 |
|
Datasheet |
WE-PoE, MID-POE | Tray | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 8V @ 20mA | 1500Vrms | - | 200kHz | - | - | - | Surface Mount | - | - | - | - |
|
750815047XFMR LED DR AC/DC CONV 3.2MH TH |
1,172 | 4.62 |
|
Datasheet |
WE-FB, MID-OLTI | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 185 ~ 265V | 15V @ 20mA | 3000Vrms | 3.2mH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Through Hole | 0.665" L x 0.740" W (16.90mm x 18.80mm) | 0.529" (13.44mm) | 0.665" L x 0.740" W (16.90mm x 18.80mm) | - |
|

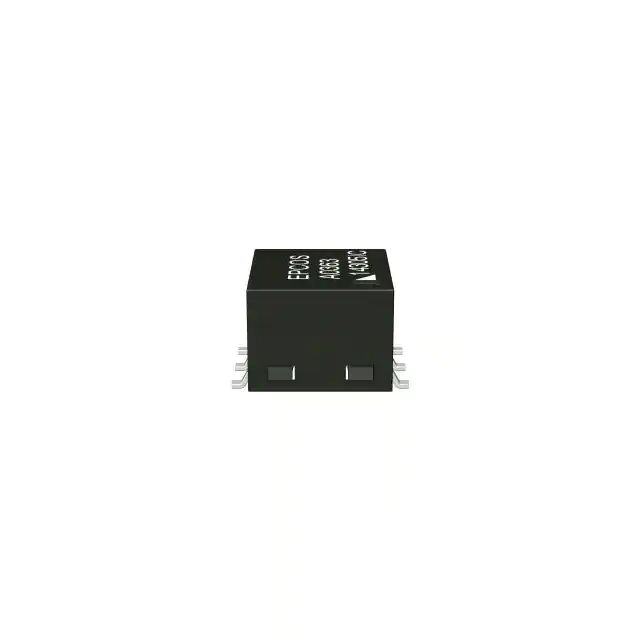

B78304B1016A003XFMR DC/DC CONV 4.3MH SMD |
3,444 | 4.70 |
|
Datasheet |
B78304B | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 500Vrms | 4.3mH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.224" (5.70mm) | 0.315" L x 0.374" W (8.00mm x 9.50mm) | - |
|
750315847XFMR FLYBACK DC/DC CONV SMD |
4,705 | 3.86 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 18 ~ 36V | - | - | - | 500kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.235" (5.97mm) | - | - |
|
|
TGM-380NARLISO MOD DC MAX253 1C:2.67C 11VUS |
4,192 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | - | Wirewound |
|
|
TGMR-410V8LFISO MOD DC 1C:0.5C 18VUS 4.5KV 8 |
1,846 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | - | MAX253, MAX845 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGMR-420V8LFISO MOD DC 1:0.375C 18VUS 4.5KV |
3,654 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | - | MAX253, MAX845 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGMR-430V8LFISO MOD DC 1C:0.75C 18VUS 4.5KV |
3,732 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | - | MAX253, MAX845 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGMR-450V8LFISO MOD DC 1C:1C 22VUS 4.5KV 8P |
2,699 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | - | MAX253, MAX845 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGMR-440V8LFISO MOD DC 1C:1.33C 20VUS 4.5KV |
1,298 | 0.00 |
|
Datasheet |
- | Tube | Active | For DC/DC Converters | - | MAX253, MAX845 | Analog Devices, Inc | - | - | 4500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
750316855XFMR FWD P-P DC/DC CONV 200UH SM |
1,395 | 4.49 |
|
Datasheet |
MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 200µH @ 10kHz | 420kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.450" L x 0.327" W (11.43mm x 8.30mm) | 0.165" (4.20mm) | 0.581" L x 0.327" W (14.75mm x 8.30mm) | - |
|

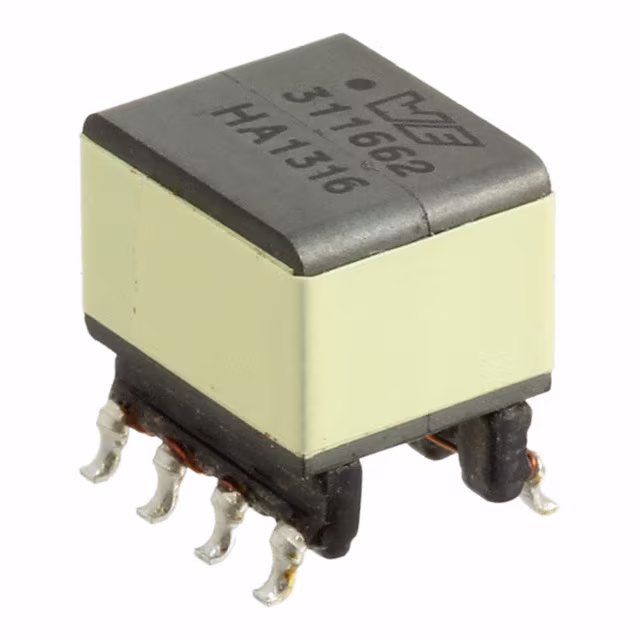

750311662XFMR FLYBACK DC/DC CONV 151UH SM |
2,081 | 3.40 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3512 | Linear Technology | 36 ~ 72V | 5V @ 20mA | 1500Vrms | 151µH @ 100kHz | 220kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.69mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
