Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-06D-132-C2-R0HEATSINK 60X60X25MM XCUT T766 |
121 | 9.08 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.66°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

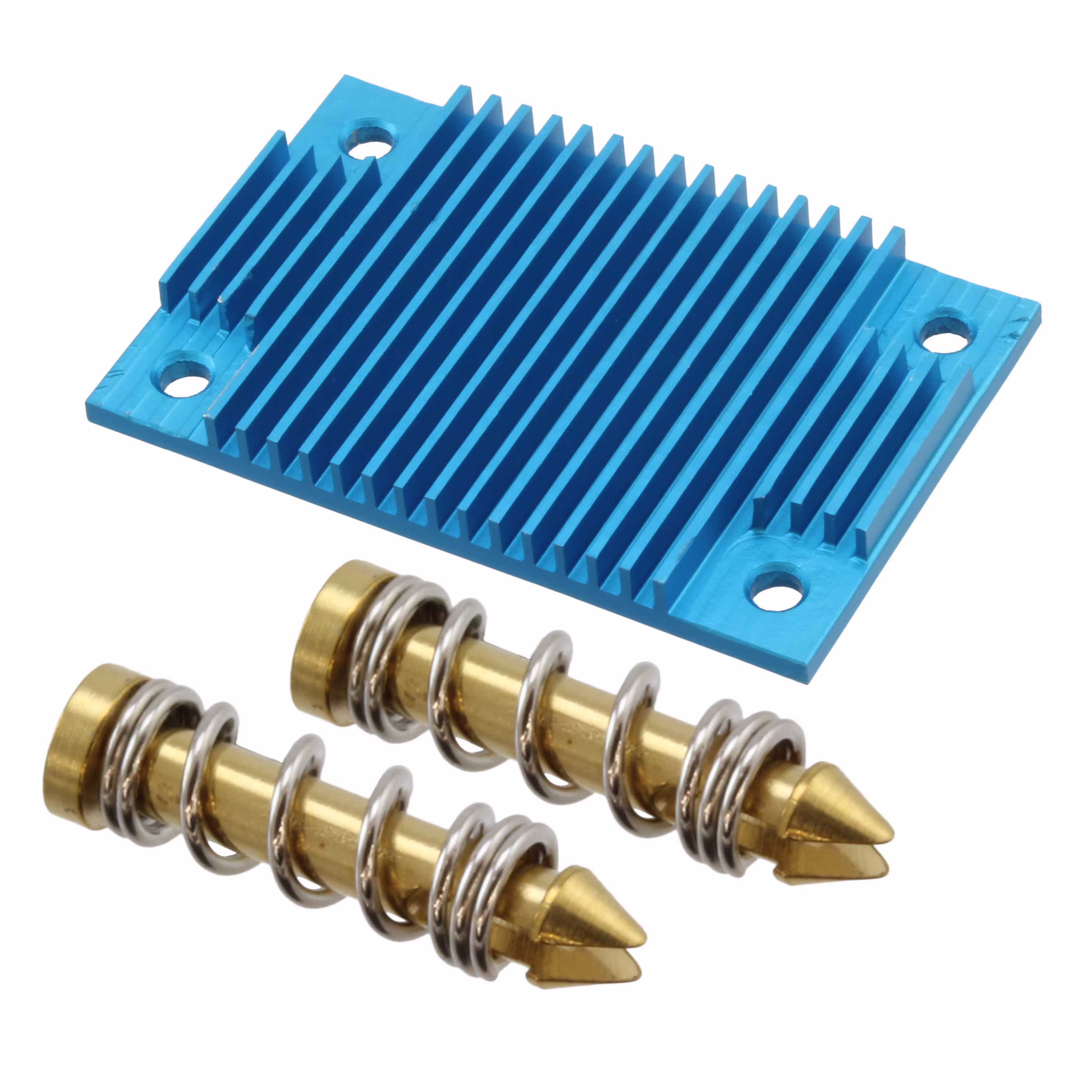

ATS-11E-35-C2-R0HEATSINK 36.83X57.6X5.84MM T766 |
180 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.230" (5.84mm) | - | 22.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
906-31-2-23-2-B-0HEATSINK 31X31X23MM PIN |
165 | 8.71 |
|
Datasheet |
906 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.892" (22.65mm) | - | 2.40°C/W @ 200 LFM | 9.90°C/W | Aluminum | Black Anodized |
|

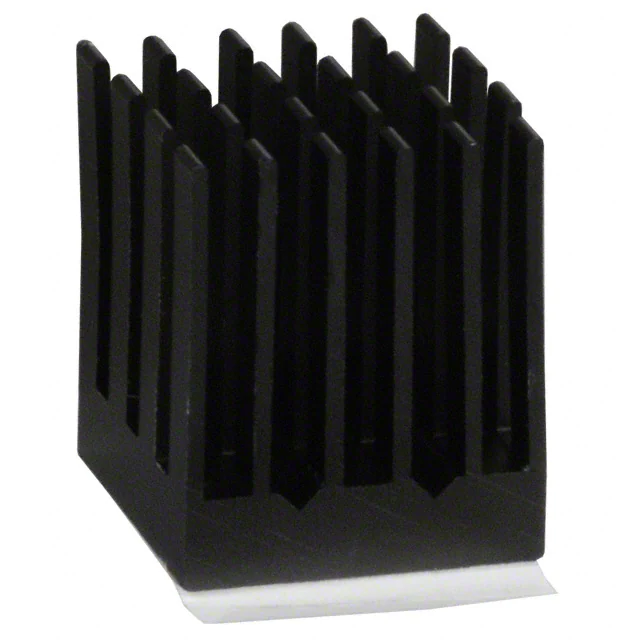

ATS-55170R-C1-R0HEAT SINK 17MM X 17MM X 19.5MM |
206 | 9.23 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.768" (19.50mm) | - | 11.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

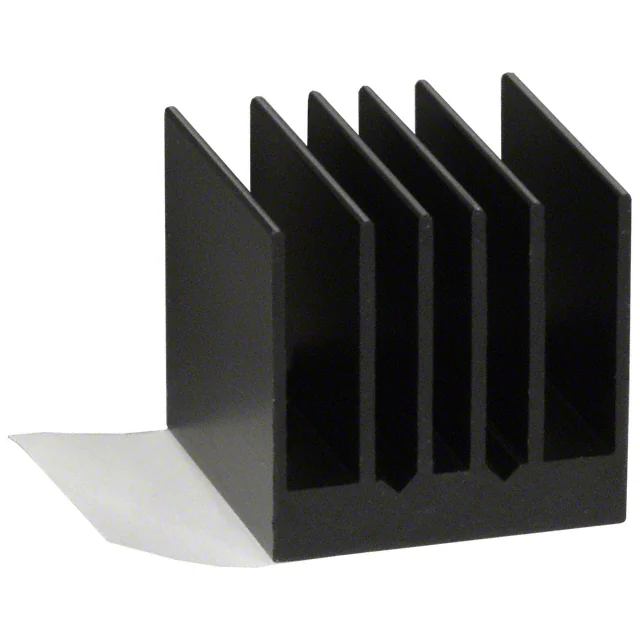

ATS-54210R-C1-R0HEAT SINK 21MM X 21MM X 19.5MM |
561 | 9.27 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.768" (19.50mm) | 0.3W @ 20°C | 7.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-54400K-C1-R0HEAT SINK 40MM X 40MM X 14.5MM |
1,508 | 9.36 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.571" (14.50mm) | - | 4.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

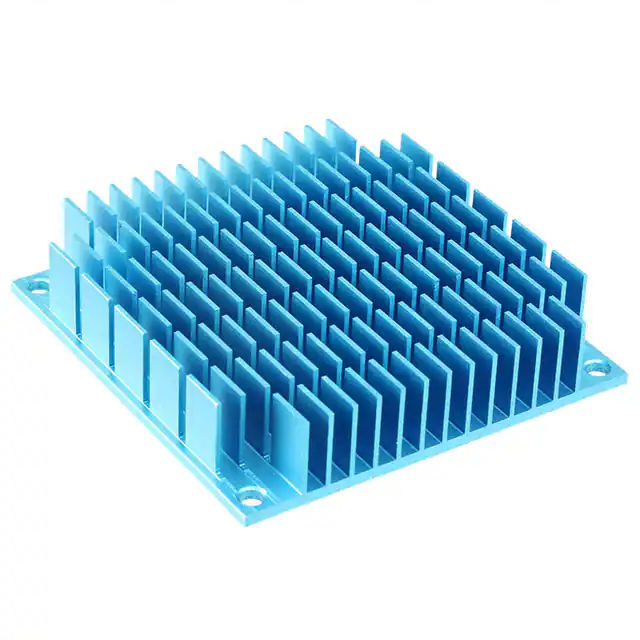

ATS-CPX070070015-134-C2-R0HEATSINK 70X70X15MM XCUT CP |
275 | 9.42 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 4.44°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

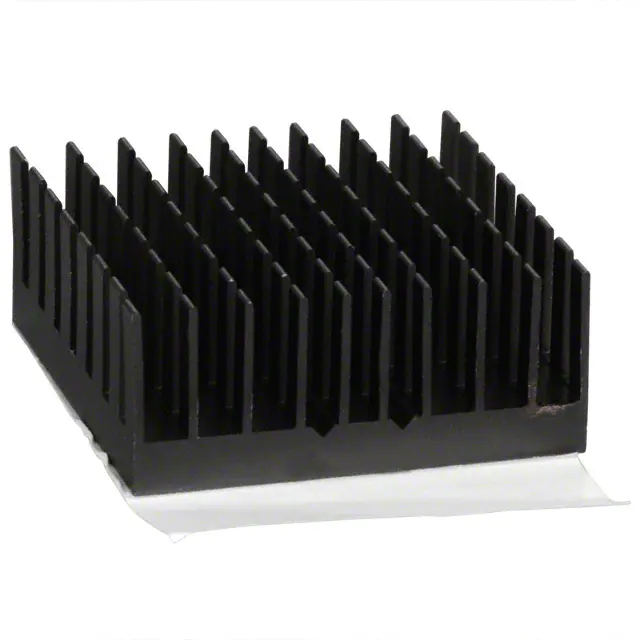

ATS-55350K-C1-R0HEAT SINK 35MM X 35MM X 14.5MM |
673 | 9.59 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.571" (14.50mm) | - | 5.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-52150G-C0-R0HEATSINK 15X15X12.5MM W/OUT TIM |
252 | 9.59 |
|
- |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.492" (12.50mm) | - | 11.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

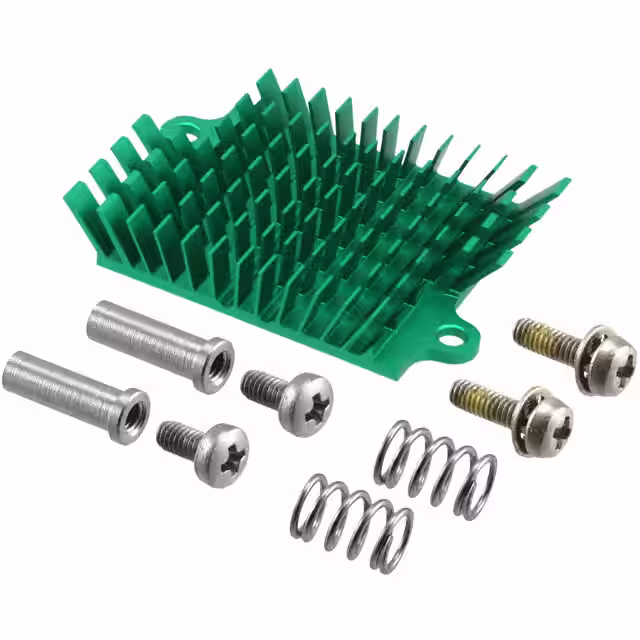

ATS-1041-C3-R0HEATSINK 41X45X10MM PEM |
438 | 14.67 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.610" (40.89mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 3.90°C/W @ 300 LFM | - | Aluminum | Green Anodized |
|

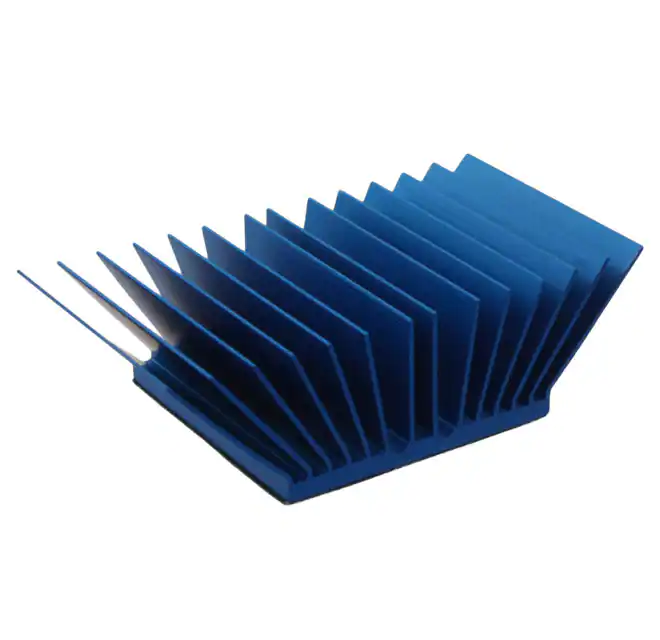

ATS-52350P-C1-R0HEAT SINK 35MM X 35MM X 17.5MM |
1,451 | 12.25 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.689" (17.50mm) | - | 2.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

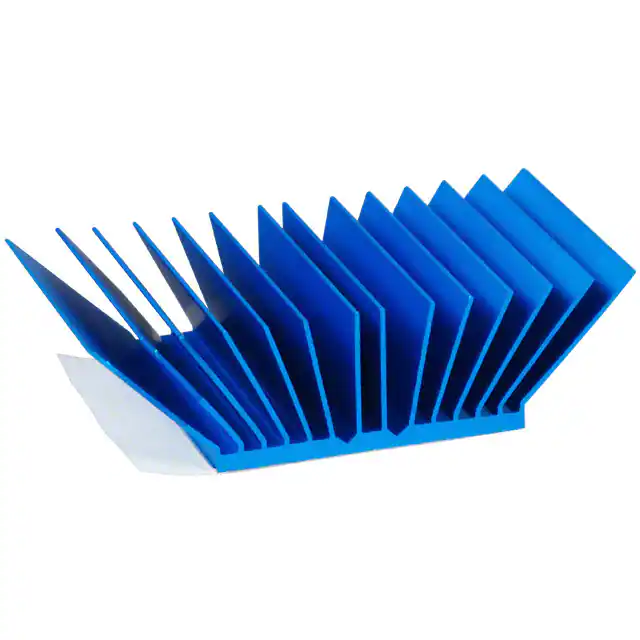

ATS-52375P-C1-R0HEAT SINK 37.5 X 37.5 X 17.5MM |
2,130 | 12.34 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.689" (17.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

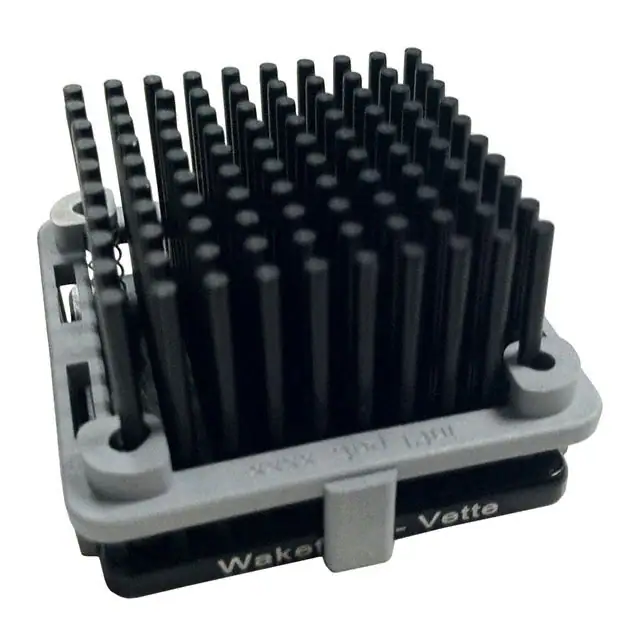

908-35-2-12-2-B-0HEATSINK 35X35X12MM PIN |
424 | 9.59 |
|
Datasheet |
908 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.457" (11.60mm) | - | 3.10°C/W @ 200 LFM | 11.10°C/W | Aluminum | Black Anodized |
|

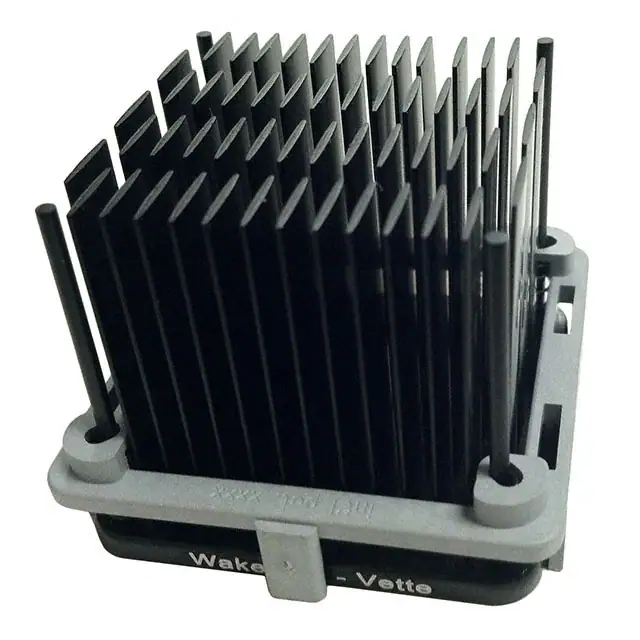

908-35-1-12-2-B-0HEATSINK 35X35X12MM ELLIPTICAL |
356 | 8.02 |
|
Datasheet |
908 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.457" (11.60mm) | - | 3.10°C/W @ 200 LFM | 11.10°C/W | Aluminum | Black Anodized |
|

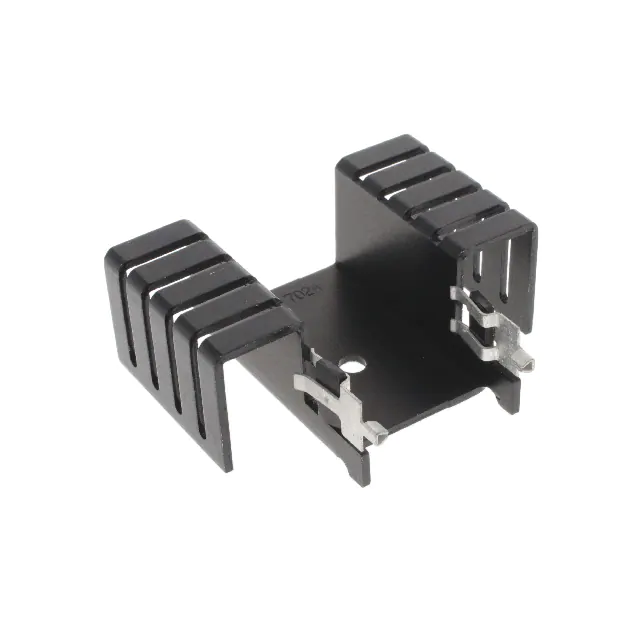

7024B-MTGHEATSINK TO-220 TAB FOLD 41.15MM |
1,314 | 3.22 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.620" (41.15mm) | 2.000" (50.80mm) | - | 0.750" (19.05mm) | 9.0W @ 60°C | 4.00°C/W @ 200 LFM | 5.60°C/W | Aluminum | Black Anodized |
|

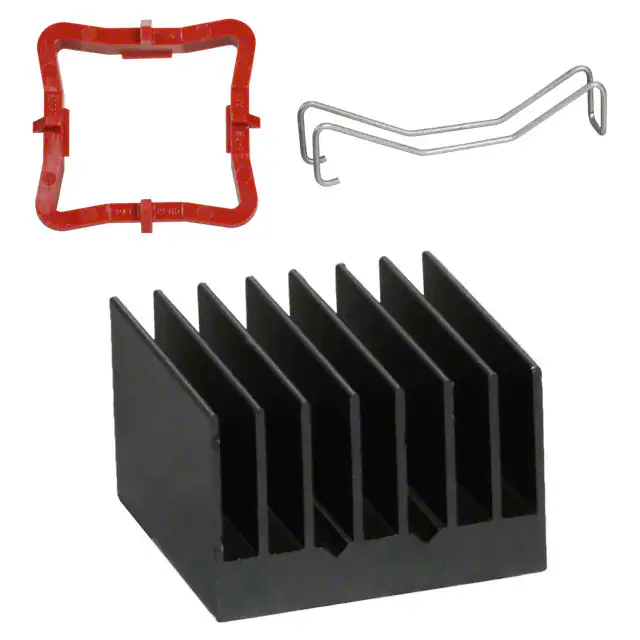

ATS-53230K-C1-R0HEAT SINK 23MM X 23MM X 14.5MM |
1,165 | 12.56 |
|
Datasheet |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.571" (14.50mm) | - | 8.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-55425W-C1-R0HEAT SINK 42.5 X 42.5 X 24.5MM |
123 | 12.14 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.965" (24.50mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-52290G-C1-R0HEAT SINK 29MM X 29MM X 12.5MM |
613 | 10.30 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.492" (12.50mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

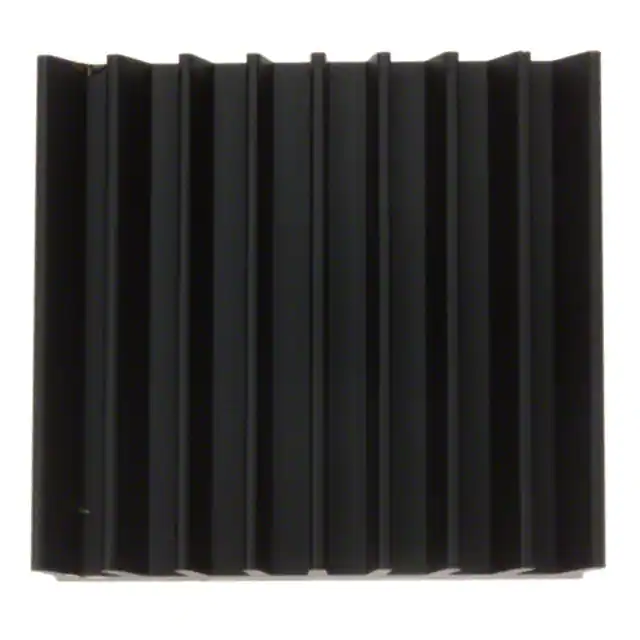

ATS-56002-C4-R0HEAT SINK 25MM X 25MM X 4MM |
110 | 10.33 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.157" (4.00mm) | - | 9.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-55350R-C1-R0HEAT SINK 35MM X 35MM X 19.5MM |
147 | 10.50 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.768" (19.50mm) | - | 4.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
