Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

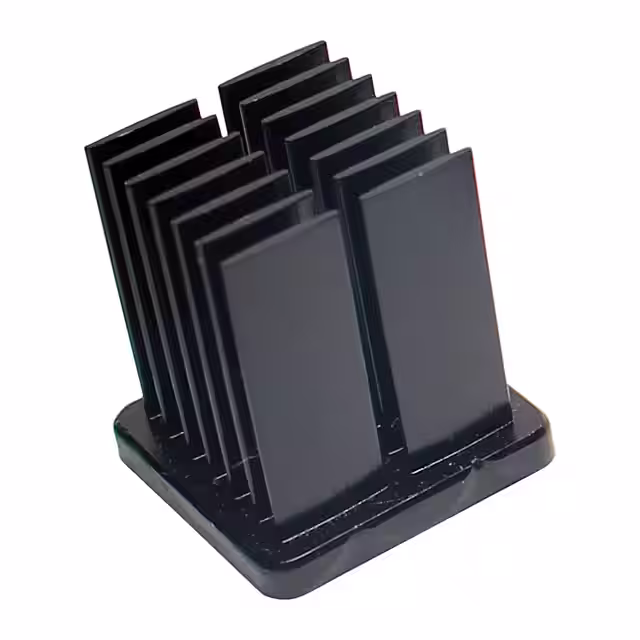

AER21-21-28CB/A01HEATSINK FORGED BLK ANO TOP MNT |
1,969 | 5.29 |
|
Datasheet |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 0.811" (20.60mm) | 0.811" (20.60mm) | - | 1.087" (27.60mm) | - | 3.72°C/W @ 200 LFM | 13.50°C/W | Aluminum Alloy | Black Anodized |
|
|
AER21-21-33CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,350 | 5.29 |
|
Datasheet |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 0.811" (20.60mm) | 0.811" (20.60mm) | - | 1.283" (32.60mm) | - | 3.42°C/W @ 200 LFM | 12.20°C/W | Aluminum Alloy | Black Anodized |
|
ATS-02F-13-C2-R0HEATSINK 50X50X15MM XCUT T766 |
1,844 | 6.67 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 13.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-18F-16-C3-R0HEATSINK 54X54X10MM XCUT T412 |
2,172 | 5.52 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 18.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-21C-16-C3-R0HEATSINK 54X54X10MM XCUT T412 |
4,327 | 5.52 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 18.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-04E-16-C3-R0HEATSINK 54X54X10MM XCUT T412 |
2,119 | 5.52 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 18.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
BGAH170-075EBGA HEATSINK W/TAPE |
4,617 | 6.35 |
|
Datasheet |
BG | Box | Obsolete | Top Mount | BGA, CPU, GPU | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.295" (7.50mm) | - | - | 17.10°C/W | Aluminum Alloy | Black Anodized |
|
ATS-20F-179-C2-R0HEATSINK 35X35X30MM R-TAB T766 |
3,726 | 6.76 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 3.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19H-179-C2-R0HEATSINK 35X35X30MM R-TAB T766 |
3,779 | 6.76 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 3.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-185-C2-R0HEATSINK 40X40X30MM R-TAB T766 |
2,720 | 6.76 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 3.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-P2-145-C2-R0HEATSINK 30X30X30MM L-TAB T766 |
1,262 | 6.76 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | - | 4.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-P2-173-C2-R0HEATSINK 30X30X30MM R-TAB T766 |
1,151 | 6.76 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | - | 4.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03C-179-C2-R0HEATSINK 35X35X30MM R-TAB T766 |
4,969 | 6.76 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 3.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14F-84-C2-R0HEATSINK 30X30X35MM R-TAB T766 |
4,394 | 6.75 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 7.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14G-84-C2-R0HEATSINK 30X30X35MM R-TAB T766 |
2,064 | 6.75 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 7.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14H-84-C2-R0HEATSINK 30X30X35MM R-TAB T766 |
4,139 | 6.75 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 7.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14A-84-C2-R0HEATSINK 30X30X35MM R-TAB T766 |
1,503 | 6.75 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 7.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14B-84-C2-R0HEATSINK 30X30X35MM R-TAB T766 |
2,099 | 6.75 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 7.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14C-84-C2-R0HEATSINK 30X30X35MM R-TAB T766 |
4,988 | 6.75 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 7.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14D-84-C2-R0HEATSINK 30X30X35MM R-TAB T766 |
1,641 | 6.75 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 7.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
