Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-UC-NF-100CPU HEAT SINK NO FAN ALUMINUM |
1,712 | 71.38 |
|
Datasheet |
- | Box | Active | Top Mount, Skived | Intel LGA2011 & LGA2066 CPU Cooler | Push Pin | Square, Fins | 3.543" (90.00mm) | 3.543" (90.00mm) | - | 1.102" (28.00mm) | - | - | - | Aluminum | Blue Anodized |
|

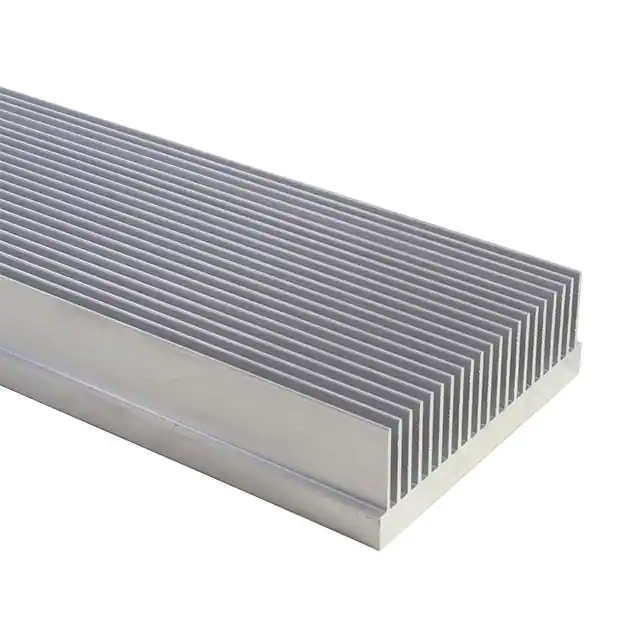

1277554.00" WIDE X 36" FLATBACK HEATSI |
1,467 | 75.53 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 4.000" (101.60mm) | - | 1.395" (35.43mm) | - | - | 0.85°C/W | Aluminum | - |
|

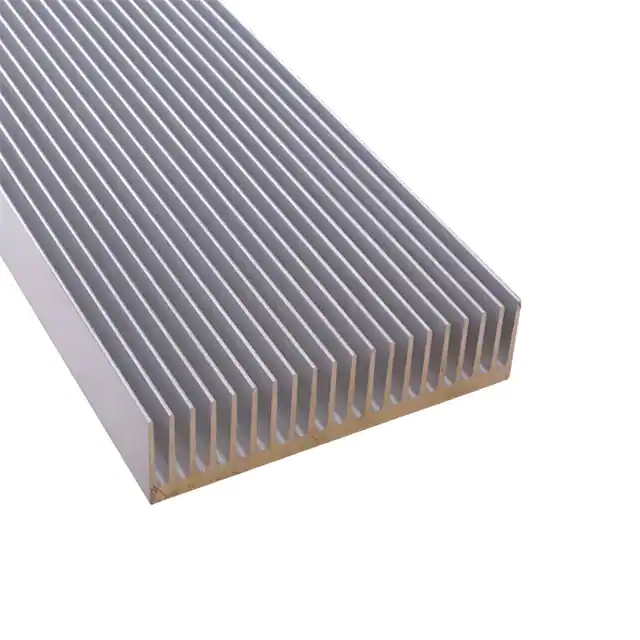

1277646.00" WIDE X 36" FLATBACK HEATSI |
2,456 | 105.77 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.000" (152.40mm) | - | 1.600" (40.64mm) | - | - | 0.28°C/W | Aluminum | - |
|

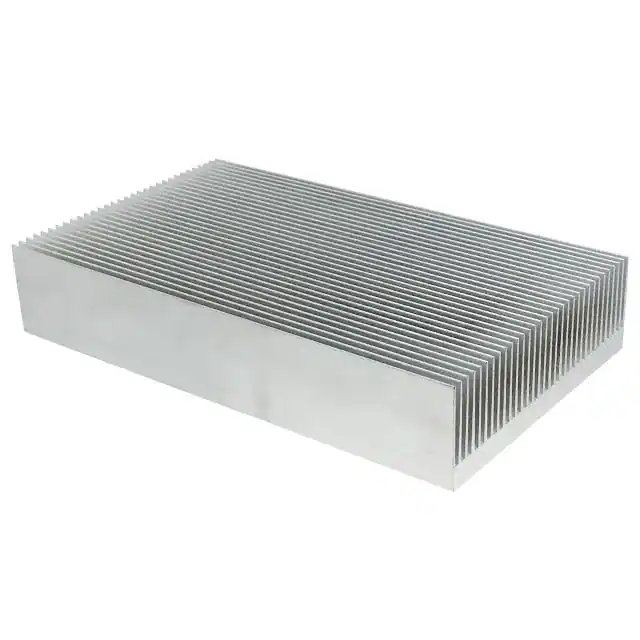

122256HEATSINK 15837 PROFILE 12" |
2,225 | 124.79 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 7.000" (177.80mm) | - | 2.275" (57.78mm) | - | - | - | Aluminum | Unfinished |
|

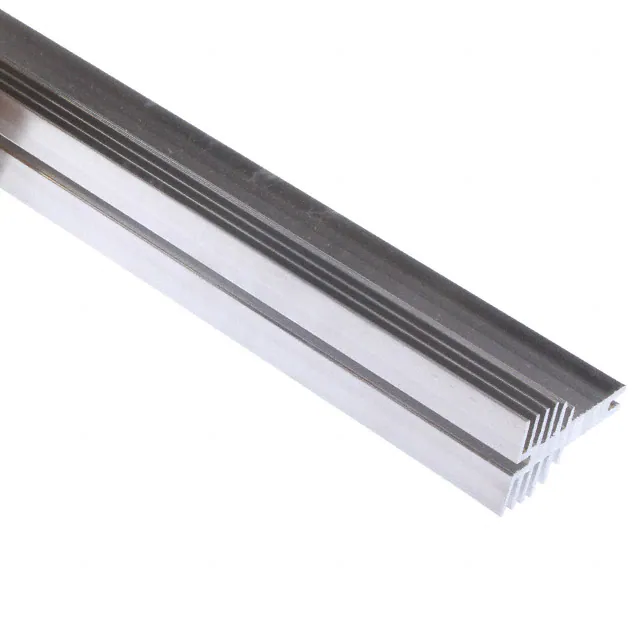

780202F00000G78020 EXTRUSION 1.85X1.18"X4.1' |
4,126 | 170.91 |
|
Datasheet |
- | Box | Active | Board Level, Vertical, Extrusion | - | Clip and PC Pin | Rectangular, Pin Fins | 49.500" (1257.30mm) | 1.181" (30.00mm) | - | 1.850" (47.00mm) | - | - | - | Aluminum | - |
|
12565512.25WX36" EXTRUSIO 19152 XX4471 |
3,214 | 156.23 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 12.250" (311.15mm) | - | 1.000" (25.40mm) | - | - | 0.33°C/W | Aluminum | - |
|

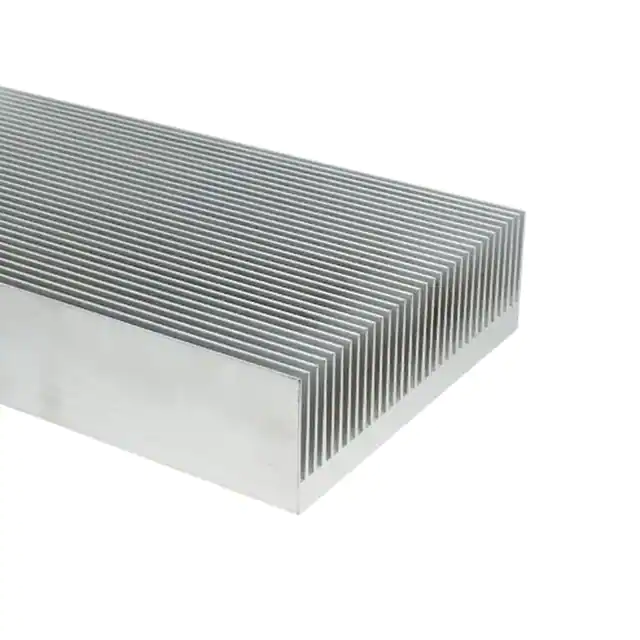

1256457WX36" EXTRUSION 15837 |
2,334 | 179.82 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 7.000" (177.80mm) | - | 2.275" (57.78mm) | - | - | 0.08°C/W | Aluminum | - |
|
ATS-EXL2-1220-R0HEATSINK AL6063 1220X100.38X20MM |
1,552 | 182.54 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 3.967" (100.76mm) | - | 0.790" (20.00mm) | - | 0.90°C/W @ 200 LFM | 10.00°C/W | Aluminum | Degreased |
|

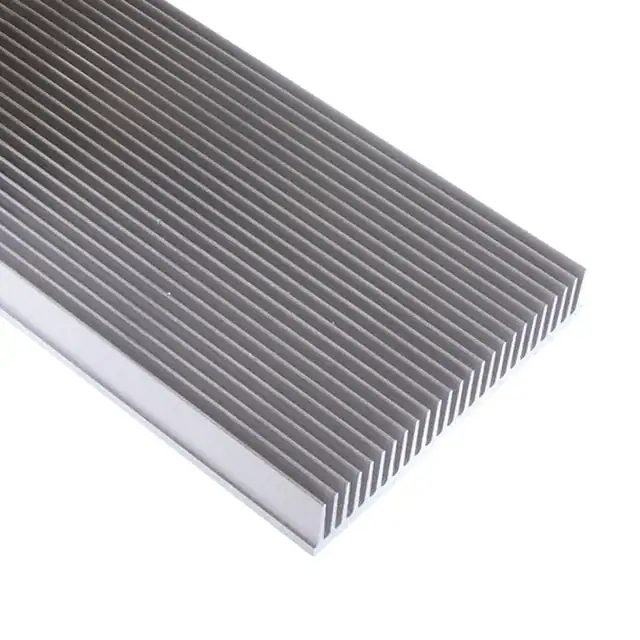

645002F00000G64500 EXTRUSION 1.062X5.9"X4' |
3,874 | 191.96 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Pin Fins | 48.000" (1219.20mm) | 5.900" (149.86mm) | - | 1.063" (27.00mm) | - | 0.50°C/W @ 500 LFM | - | Aluminum | - |
|

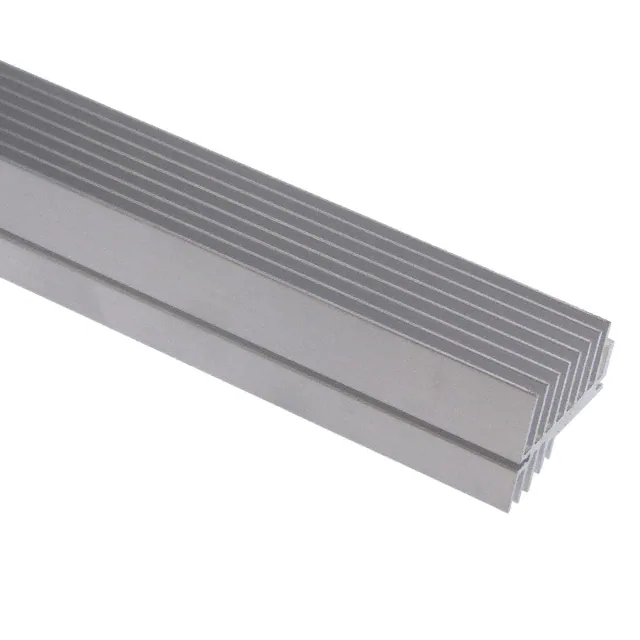

780752F00000G78075 EXTRUSION 2.13X1.5"X4.1' |
1,236 | 105.63 |
|
Datasheet |
- | Box | Active | Board Level, Vertical, Extrusion | - | PC Pin | Rectangular, Pin Fins | 49.500" (1257.30mm) | 1.496" (38.00mm) | - | 2.126" (54.00mm) | - | - | - | Aluminum | - |
|

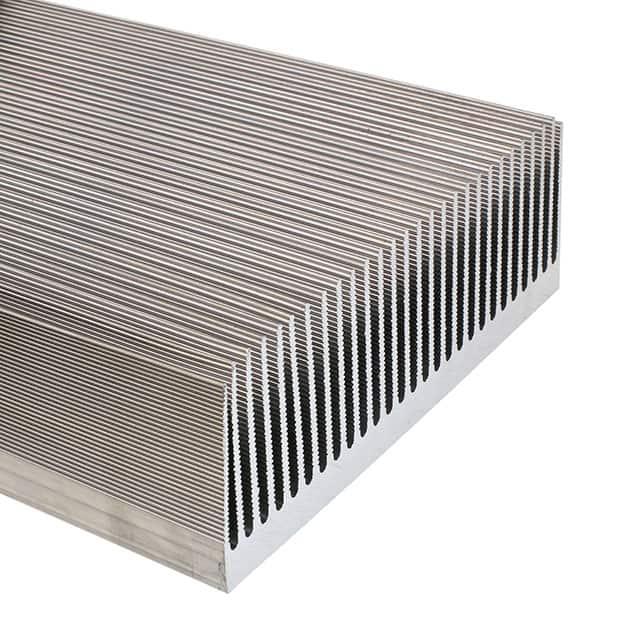

1256597.55WX36" EXTRUSION 19832 |
2,603 | 221.93 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 7.550" (191.77mm) | - | 2.800" (71.12mm) | - | - | 0.09°C/W | Aluminum | - |
|
|
ATS-EXL76-1220-R1HEATSINK AL6063 1220X93.4X40MM |
4,509 | 0.00 |
|
Datasheet |
ATS | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 3.677" (93.40mm) | - | 1.575" (40.00mm) | - | 0.50°C/W @ 200 LFM | 5.20°C/W | Aluminum | Degreased |
|

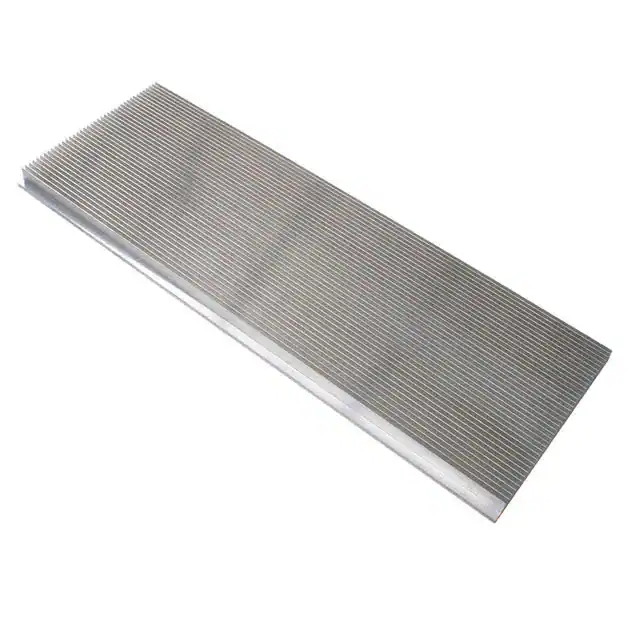

12547613.381WX36" EXTRUSION XX5429 |
3,386 | 257.43 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 13.381" (339.88mm) | - | 1.312" (33.32mm) | - | - | 0.16°C/W | Aluminum | - |
|

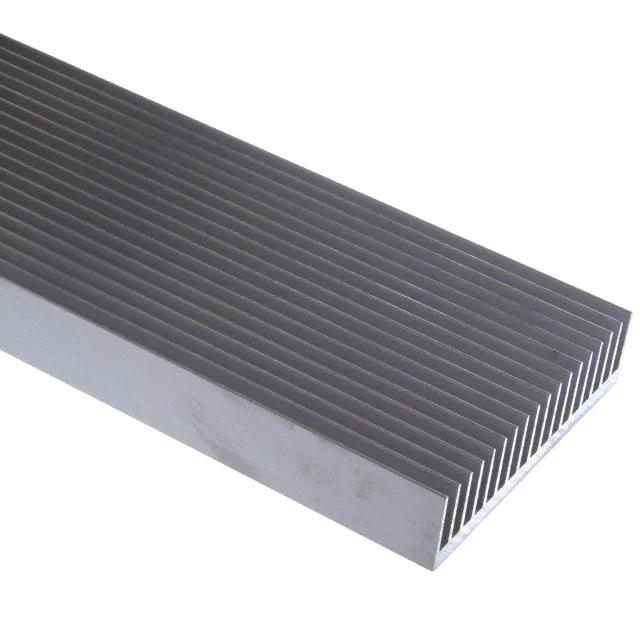

610852F00000G61085 EXTRUSION 1.312X5.375"X4' |
3,390 | 207.94 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Pin Fins | 48.000" (1219.20mm) | 5.380" (136.65mm) | - | 1.312" (33.32mm) | - | 0.50°C/W @ 500 LFM | - | Aluminum Alloy | Unfinished |
|
1255574.921WX36" EXTRUSIO 13698 XX5658 |
2,076 | 222.78 |
|
Datasheet |
- | Box | Active | Board Level, Extrusion | Power Modules | Press Fit | Rectangular, Fins | 36.000" (914.40mm) | 4.921" (124.99mm) | - | 4.528" (115.01mm) | - | - | 0.20°C/W | Aluminum | - |
|
622852F00000G62285 EXTRUSION 1.63X6.75"X4' |
3,802 | 159.67 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.000" (1219.20mm) | 6.750" (171.45mm) | - | 1.630" (41.40mm) | - | 0.65°C/W @ 200 LFM | - | Aluminum | - |
|
|
ATS-EXL110-1220-R0HEATSINK AL6063 1220X201X45MM |
1,359 | 376.75 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 7.874" (200.00mm) | - | 1.772" (45.00mm) | - | 0.72°C/W @ 200 LFM | 2.47°C/W | Aluminum | Degreased |
|

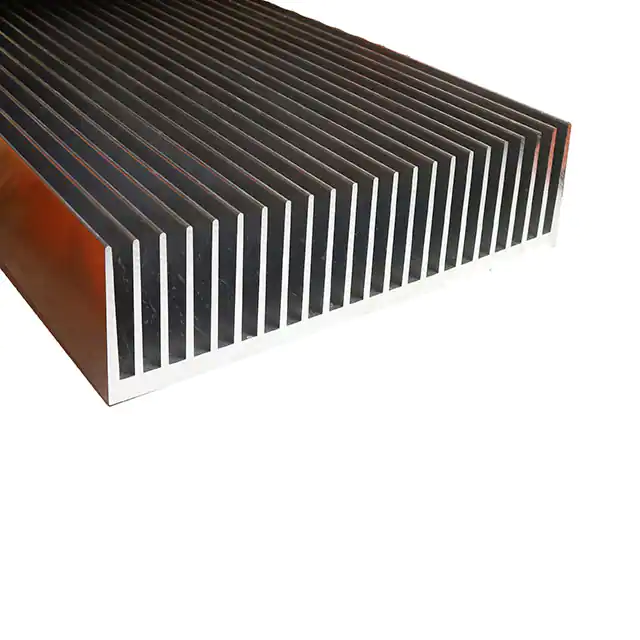

12562611.811WX36" EXTRUSION 19740 |
2,735 | 484.59 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 11.811" (300.00mm) | - | 3.287" (83.49mm) | - | - | 0.46°C/W | Aluminum | - |
|
|
ATS-EXL105-1220-R0HEATSINK AL6063 1220X342X49.5MM |
2,013 | 652.77 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 13.465" (342.00mm) | - | 1.949" (49.50mm) | - | 0.59°C/W @ 200 LFM | 2.04°C/W | Aluminum | Degreased |
|

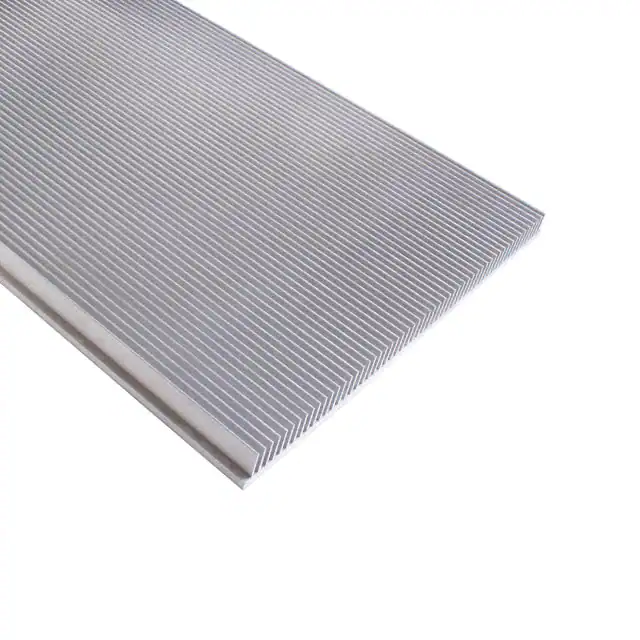

633402F00000G63340 EXTRUSION 1.312X17"X3' |
4,989 | 850.61 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 17.000" (431.80mm) | - | 0.312" (7.92mm) | - | - | - | Aluminum | - |
