Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

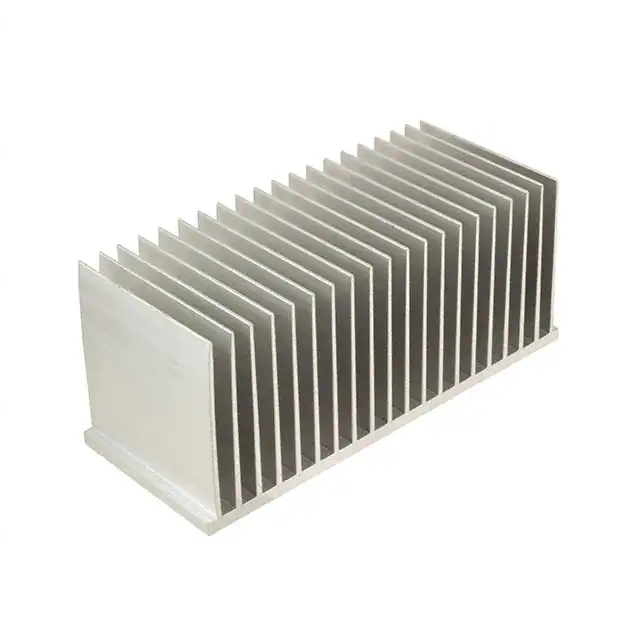

510-3MHEATSINK FOR PWR MOD/IGBT/RELAY |
4,913 | 63.53 |
|
Datasheet |
510 | Bulk | Active | Top Mount | Power Modules | Adhesive | Rectangular, Fins | 3.000" (76.20mm) | 7.380" (187.45mm) | - | 3.106" (78.89mm) | - | - | 0.56°C/W | Aluminum | - |
|

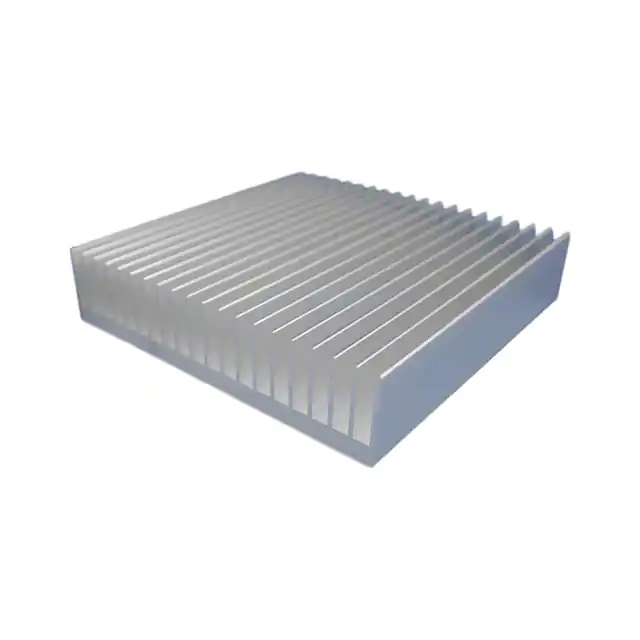

TGH-1535-01ALUMINIUM HEAT SINK 153.5X150MM |
3,196 | 63.04 |
|
Datasheet |
TGH | Bulk | Active | Top Mount | - | - | Rectangular, Fins | 5.906" (150.00mm) | 6.043" (153.50mm) | - | 1.338" (34.00mm) | - | - | - | Aluminum | - |
|

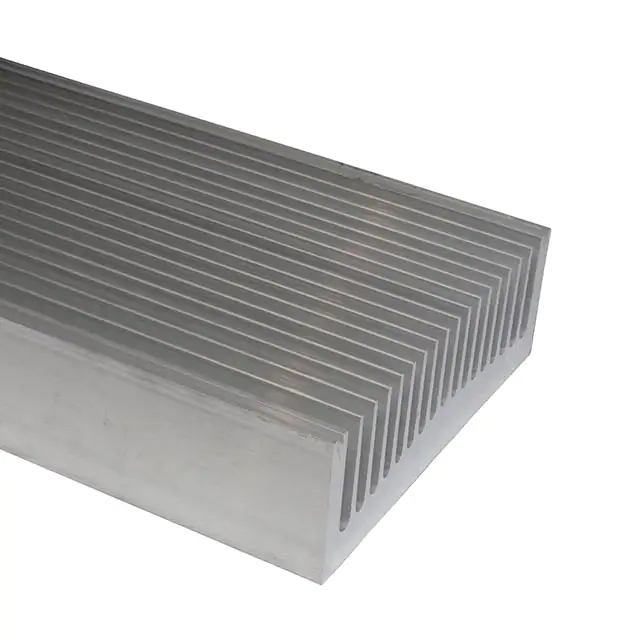

1277206.50" X 12" FLATBACK HEATSINK 16 |
2,006 | 83.05 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 6.500" (165.10mm) | - | 2.190" (55.63mm) | - | - | 0.35°C/W | Aluminum | - |
|

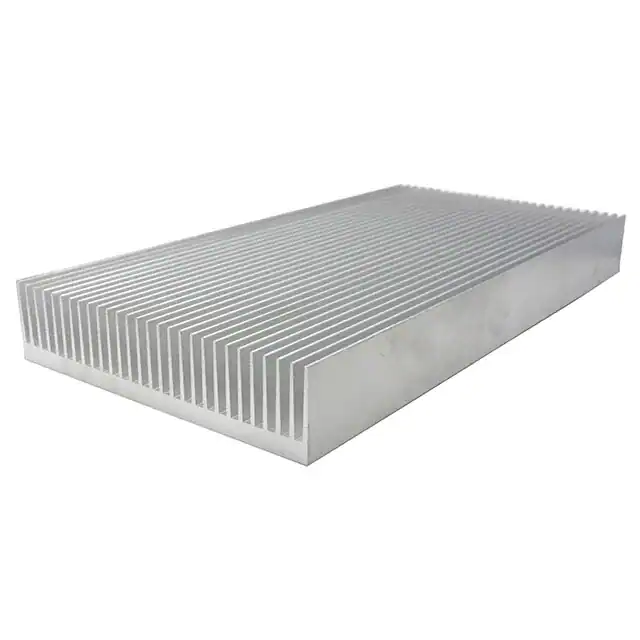

ATS-EXL101-300-R0HEATSINK AL6063 300X152.4X34.6MM |
2,194 | 66.83 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 6.000" (152.40mm) | - | 1.362" (34.60mm) | - | 0.85°C/W @ 200 LFM | 3.59°C/W | Aluminum | Degreased |
|
1253744.375WX36" EXTRUSIO 16296 XX1527 |
2,832 | 67.34 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 4.375" (111.13mm) | - | 1.290" (32.77mm) | - | - | 0.35°C/W | Aluminum | - |
|
1254166.50X36" EXTRUSION 6664 XX4509 |
2,089 | 80.01 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.500" (165.10mm) | - | 1.600" (40.64mm) | - | - | 0.33°C/W | Aluminum | - |
|
ATS-EXL72-1220-R0HEATSINK AL6063 1220X41X6.6MM |
3,231 | 82.13 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 1.604" (40.75mm) | - | 0.260" (6.60mm) | - | 17.70°C/W @ 200 LFM | 47.40°C/W | Aluminum | Degreased |
|

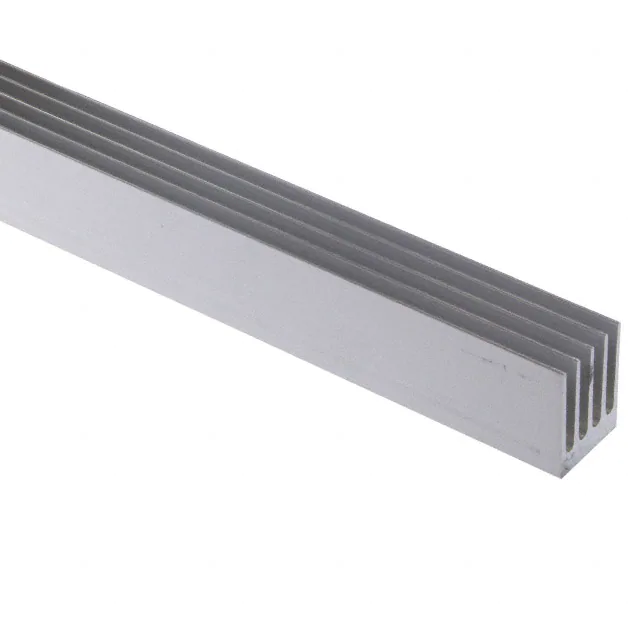

652452F00000G65245 EXTRUSION 1.65X1.26"X4' |
3,971 | 74.00 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Pin Fins | 48.000" (1219.20mm) | 1.260" (32.00mm) | - | 1.650" (41.91mm) | - | 2.00°C/W @ 300 LFM | - | Aluminum | - |
|
122254HEATSINK 19671 PROFILE 12" |
2,847 | 89.27 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 5.324" (135.23mm) | - | 1.630" (41.40mm) | - | - | - | Aluminum | Unfinished |
|

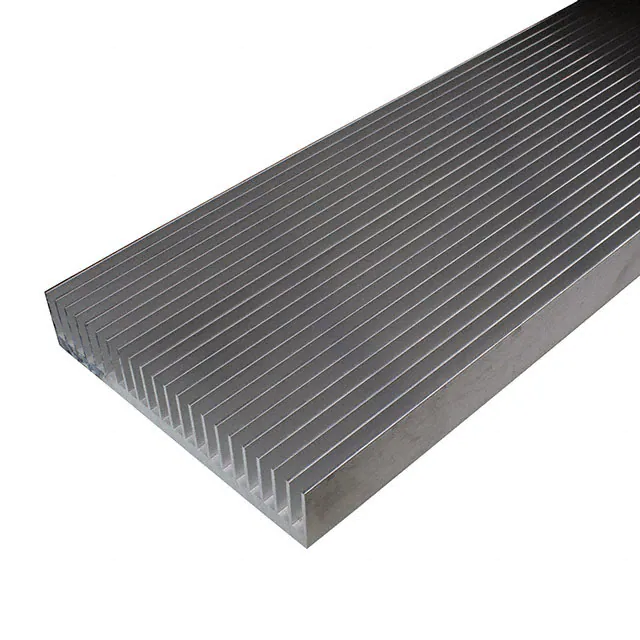

1254226.624WX36" EXTRUSIO 16524 XX7031 |
1,556 | 93.89 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.624" (168.25mm) | - | 1.312" (33.32mm) | - | - | 0.33°C/W | Aluminum | - |
|
ATS-EXL109-300-R0HEATSINK AL6063 300X200X32MM |
2,323 | 92.19 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 7.874" (200.00mm) | - | 1.262" (32.05mm) | - | 0.71°C/W @ 200 LFM | 3.09°C/W | Aluminum | Degreased |
|

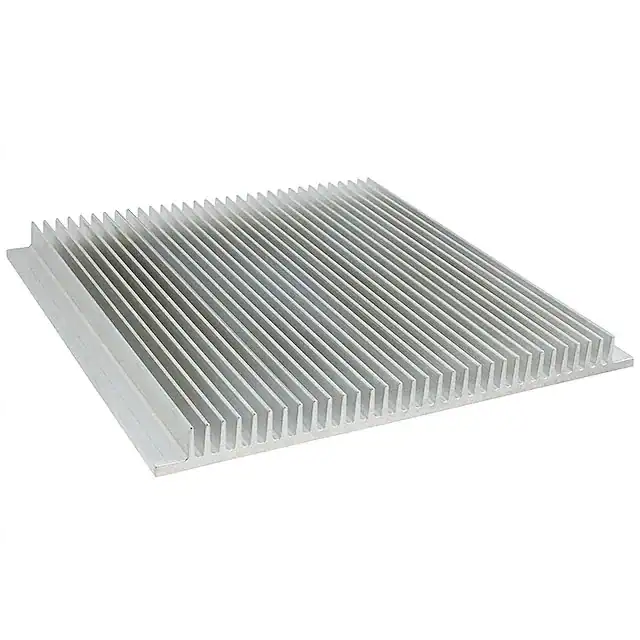

122262HEATSINK 19152 PROFILE 12" |
4,756 | 98.01 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 12.250" (311.15mm) | - | 1.000" (25.40mm) | - | - | - | Aluminum | Unfinished |
|
663652F00000G66365 EXTRUSION 0.63X1.5"X4' |
3,340 | 78.90 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Pin Fins | 48.000" (1219.20mm) | 1.500" (38.10mm) | - | 0.630" (16.00mm) | - | 2.00°C/W @ 400 LFM | - | Aluminum | - |
|
1277946.8" WIDE X 36" FLATBACK W/ MOUN |
4,865 | 107.32 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 36.000" (914.40mm) | 6.800" (172.72mm) | - | 2.000" (50.80mm) | - | - | 0.23°C/W | Aluminum | - |
|
|
ATS-EXL75-1220-R0HEATSINK AL6063 1220X76X18.5MM |
1,360 | 109.97 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 2.976" (75.60mm) | - | 0.728" (18.50mm) | - | 1.40°C/W @ 200 LFM | 9.70°C/W | Aluminum | Degreased |
|

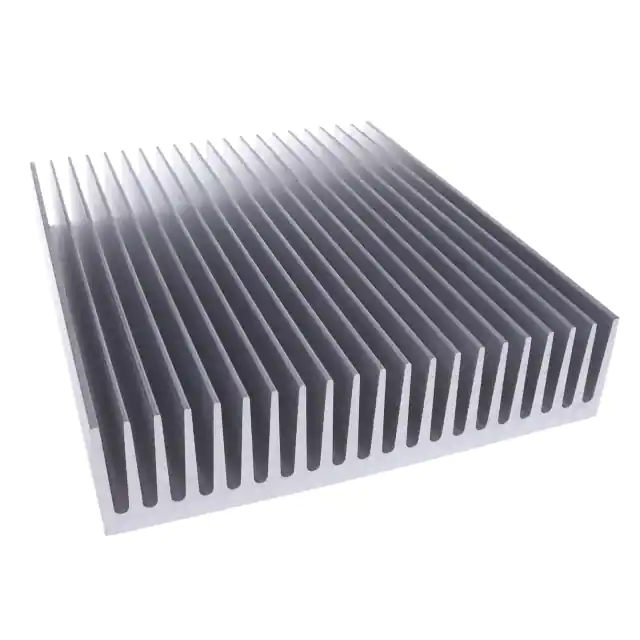

12544810.25WX12" EXTRUSIO 14236 XX5772 |
3,418 | 117.94 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 10.250" (260.35mm) | - | 2.500" (63.50mm) | - | - | 0.18°C/W | Aluminum | - |
|
|
ATS-EXL74-1220-R0HEATSINK AL6063 1220X70X15MM |
3,885 | 156.72 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 2.40°C/W @ 200 LFM | 18.20°C/W | Aluminum | Degreased |
|

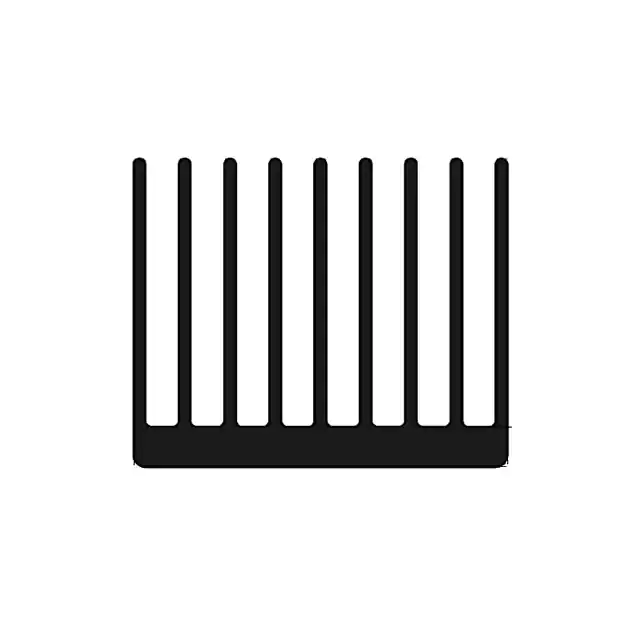

ATS-EXL116-1220-R0PCIE EXTRUSION PROFILE, AL6063 |
3,665 | 160.89 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 2.031" (51.60mm) | - | 1.673" (42.50mm) | - | 1.90°C/W @ 200 LFM | 5.70°C/W | Aluminum | Degreased |
|

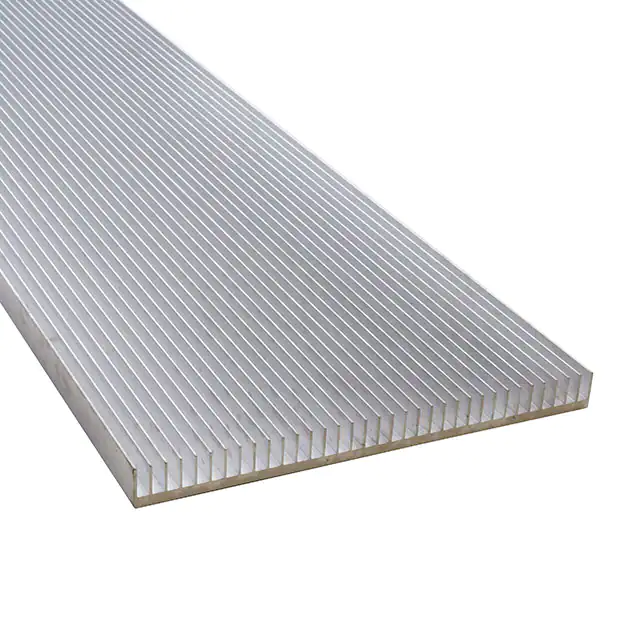

ATS-EXL424-1220-R0HEATSINK AL6063 1220X188X16.5MM |
2,496 | 208.21 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 7.402" (188.00mm) | - | 0.650" (16.51mm) | - | 0.09°C/W @ 200 LFM | 4.00°C/W | Aluminum | Degreased |
|
1277866.00" WIDE X 36" LONG HIGH ASPEC |
2,477 | 232.98 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.000" (152.40mm) | - | 2.750" (69.85mm) | - | - | 0.12°C/W | Aluminum | - |
