Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
960-23-12-F-AB-0HEATSINK 23X12MM FRONT PUSH PIN |
4,663 | 4.99 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.472" (12.00mm) | - | 6.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P1-10-C2-R0HEATSINK 45X45X25MM XCUT T766 |
100 | 6.24 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 7.89°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-03-C2-R0HEATSINK 40X40X15MM XCUT T766 |
1,599 | 6.24 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 15.85°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

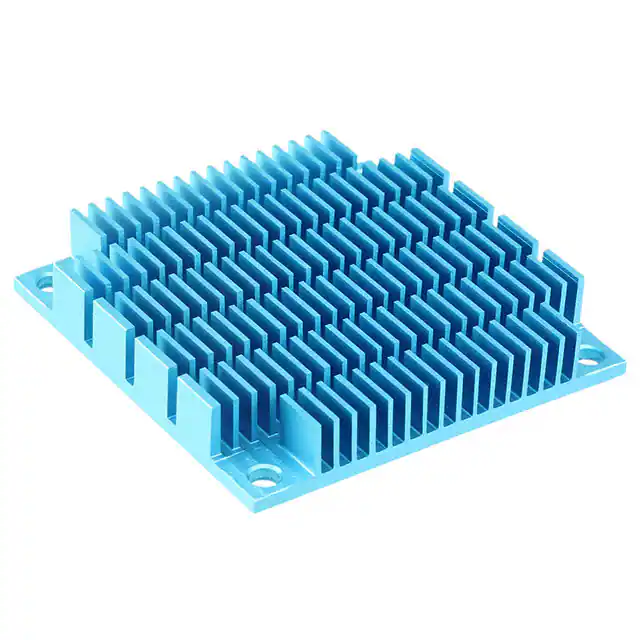

ATS-FPX054054010-16-C2-R0HEATSINK 54X54X10MM XCUT FP |
4,313 | 5.16 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 18.08°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPS037058023-38-C1-R0HEATSINK 36.83X57.6X22.86MM FP |
3,406 | 5.05 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.900" (22.86mm) | - | 6.40°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

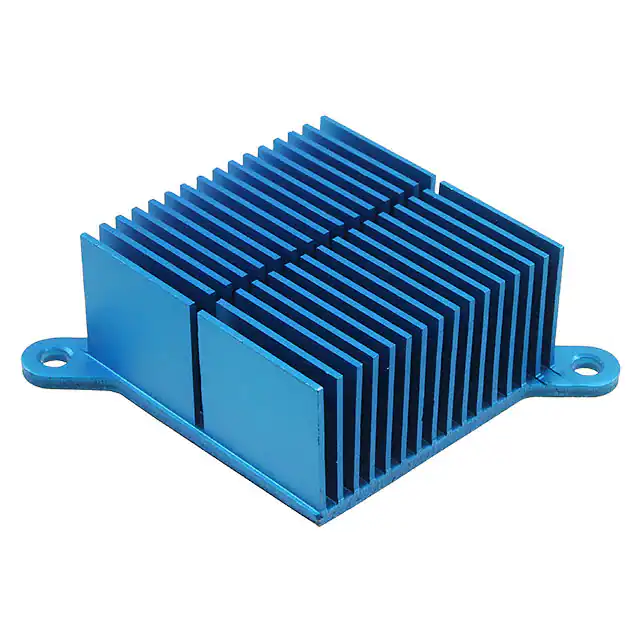

ATS-FPX040040020-63-C2-R0HEATSINK 40X40X20MM L-TAB FP |
1,237 | 5.05 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 12.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

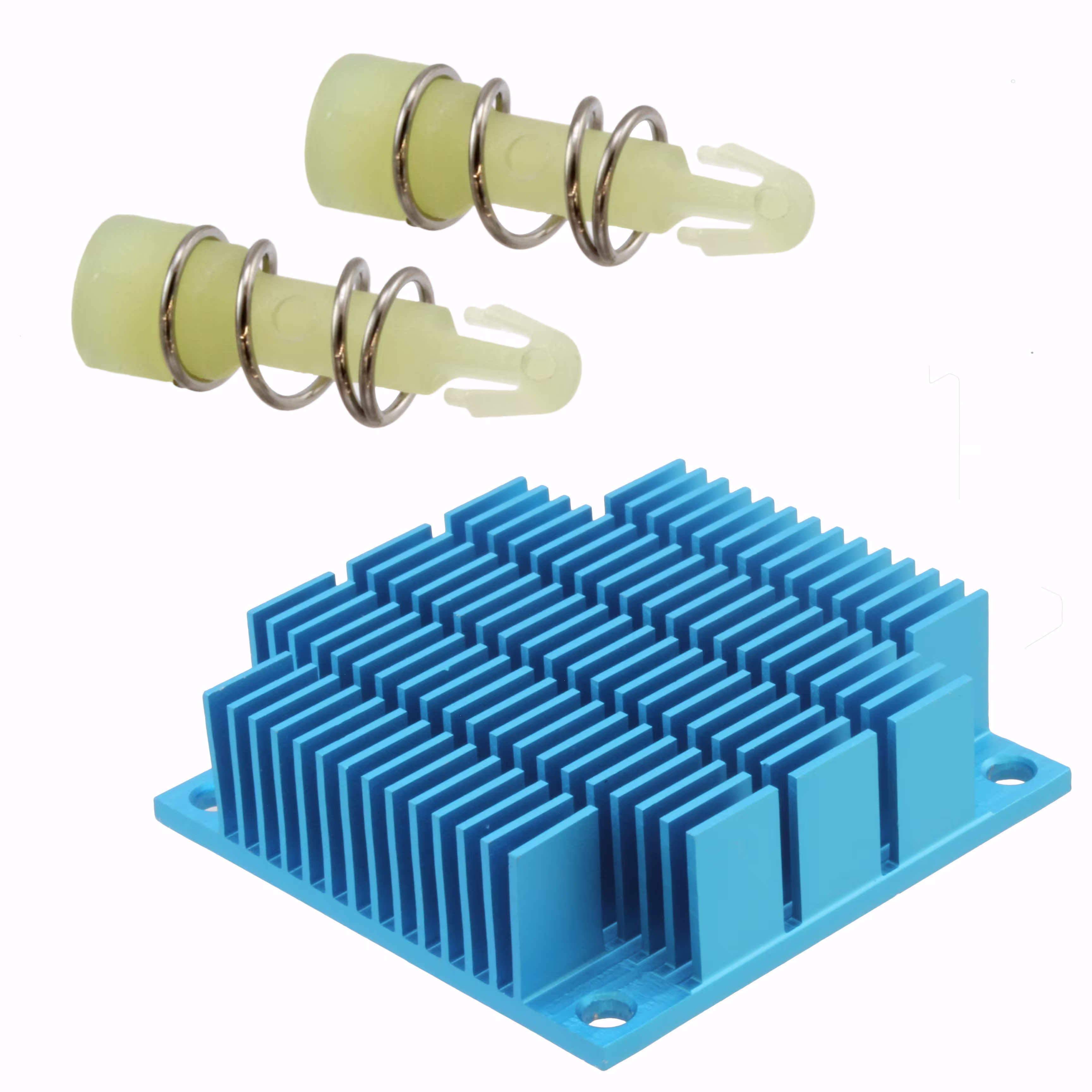

ATS-P1-13-C2-R0HEATSINK 50X50X15MM XCUT T766 |
3,998 | 6.30 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 13.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX050050010-107-C1-R1HEATSINK 50X50X9.5MM XCUT SFP |
1,998 | 5.16 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.374" (9.50mm) | - | 27.91°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPS058037006-31-C2-R0HEATSINK 57.9X36.83X5.84MM FP |
1,547 | 5.18 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.230" (5.84mm) | - | 25.25°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-06-C2-R0HEATSINK 45X45X10MM XCUT T766 |
4,919 | 6.45 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 20.17°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045025-162-C3-R0HEATSINK 45X45X25MM L-TAB CP |
3,731 | 5.39 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX035035030-59-C2-R0HEATSINK 35X35X30MM L-TAB FP |
4,268 | 5.32 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 7.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

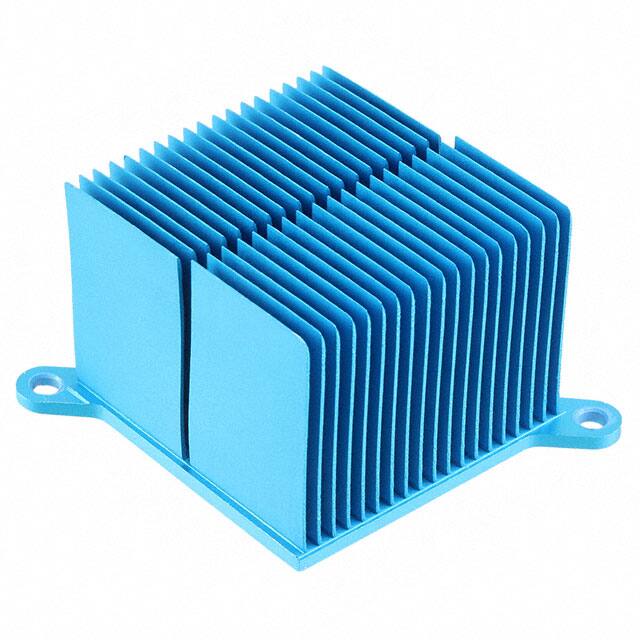

ATS-FPX045045035-72-C2-R0HEATSINK 45X45X35MM L-TAB FP |
2,128 | 6.60 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.378" (35.00mm) | - | 5.11°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-01H-201-C1-R0HEATSINK 50X50X12MM XCUT |
3,701 | 5.39 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.472" (12.00mm) | - | 8.15°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

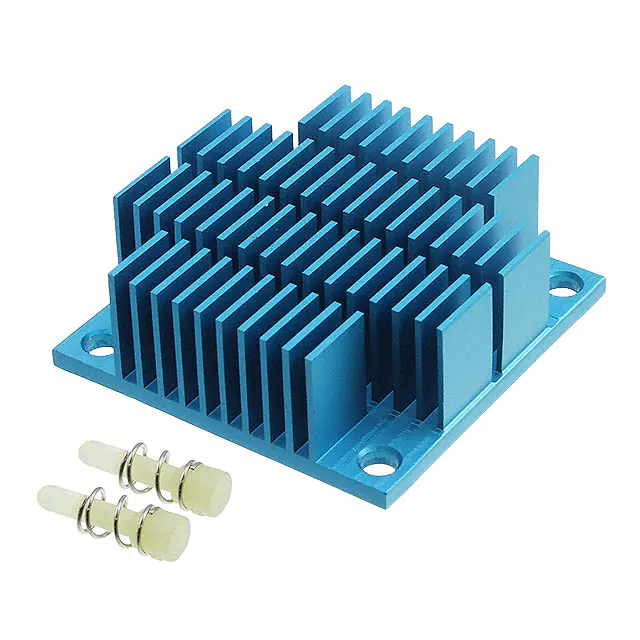

ATS-P1-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
100 | 5.37 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-15B-43-C2-R0HEATSINK 25X25X10MM L-TAB T766 |
1,533 | 5.45 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 28.85°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

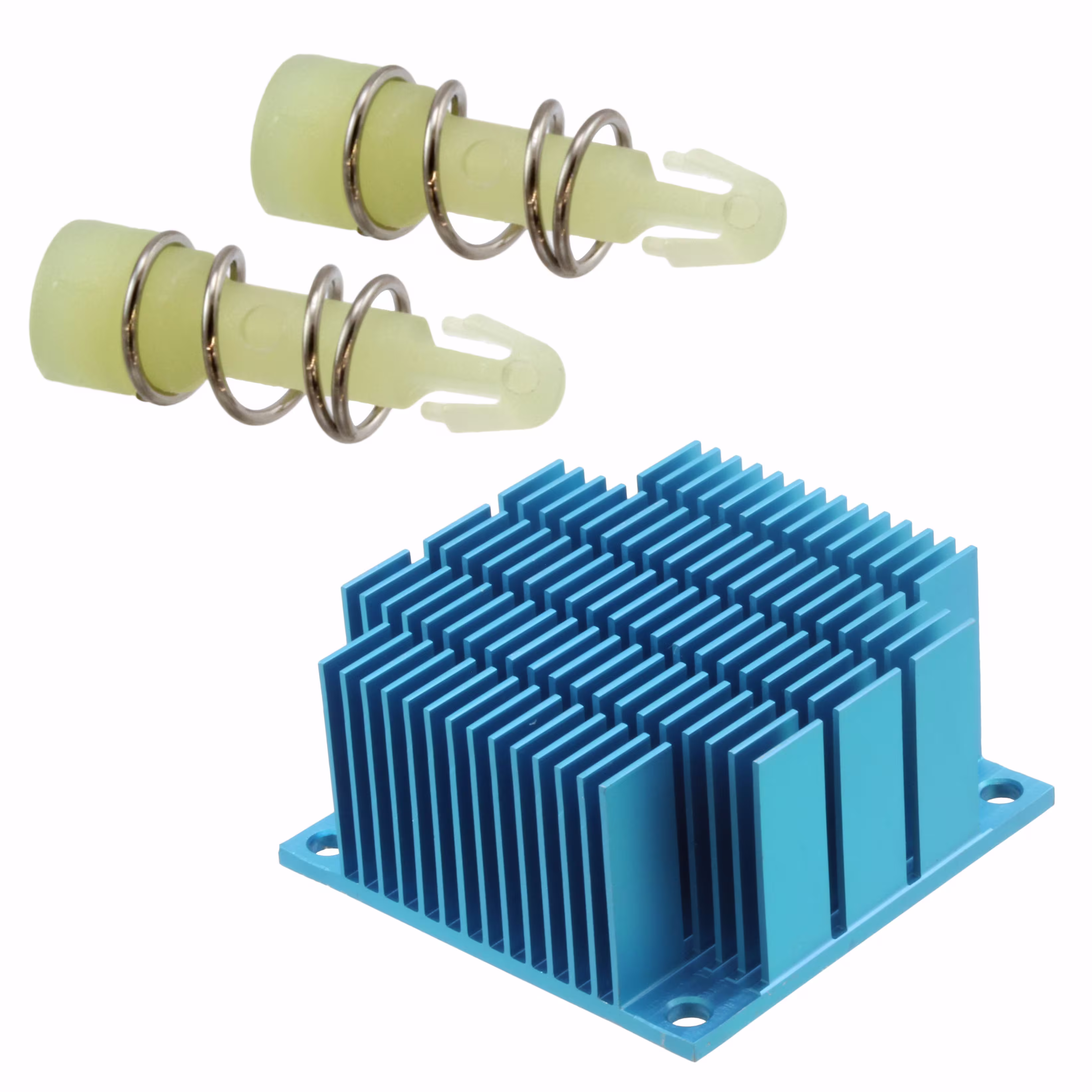

ATS-P1-15-C2-R0HEATSINK 50X50X25MM XCUT T766 |
4,085 | 6.78 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 7.44°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-15F-01-C2-R0HEATSINK 40X40X10MM XCUT T766 |
100 | 5.61 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 21.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-P2-11-C2-R0HEATSINK 50X50X10MM XCUT T766 |
2,193 | 6.86 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 18.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-05A-113-C2-R0HEATSINK 40X40X10MM XCUT T766 |
2,057 | 5.57 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 11.79°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
