Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-19E-22-C3-R0HEATSINK 60X60X12.7MM XCUT T412 |
3,694 | 6.80 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.500" (12.70mm) | - | 13.88°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-19E-23-C3-R0HEATSINK 60X60X15MM XCUT T412 |
3,732 | 6.80 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.590" (15.00mm) | - | 12.06°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-21C-35-C1-R0HEATSINK 36.83X57.6X5.84MM |
2,579 | 6.80 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.230" (5.84mm) | - | 22.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

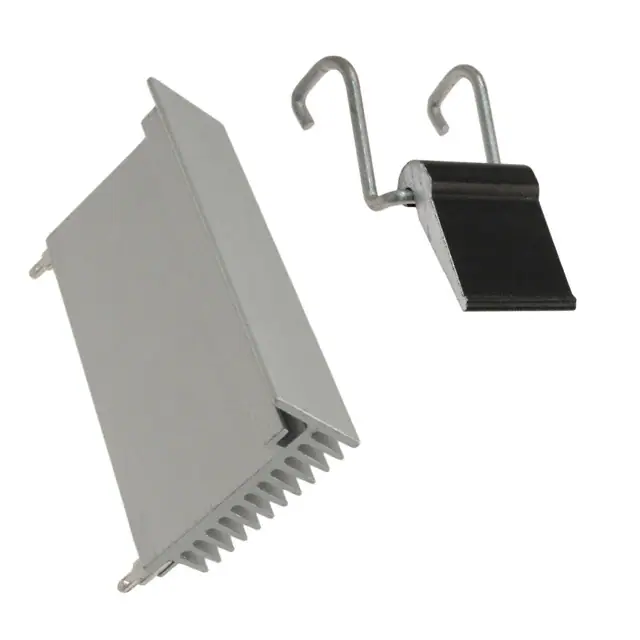

C247-075-3VEHEATSINK FOR TO-247 WITH 3 CLIPS |
4,697 | 8.03 |
|
Datasheet |
C | Box | Obsolete | Board Level, Vertical | TO-247 | 3 Clips and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 1.500" (38.10mm) | - | 0.710" (18.03mm) | 2.5W @ 20°C | 2.00°C/W @ 300 LFM | - | Aluminum | Degreased |
|
ATS-P2-192-C2-R0HEATSINK 45X45X35MM R-TAB T766 |
2,749 | 8.39 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.378" (35.00mm) | - | 2.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-137-C1-R0HEATSINK 25X25X10MM L-TAB |
2,653 | 6.81 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 18.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-165-C1-R0HEATSINK 25X25X10MM R-TAB |
4,019 | 6.81 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 18.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-131-C2-R0HEATSINK 60X60X20MM XCUT T766 |
3,136 | 8.41 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.790" (20.00mm) | - | 3.60°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
513101B02500GBOARD LEVEL HEAT SINK |
2,623 | 6.37 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-218, TO-247 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 8.0W @ 80°C | 3.00°C/W @ 500 LFM | 11.00°C/W | Aluminum | Black Anodized |
|
|
ATS-54375R-C0-R0HEATSINK 37.5X37.5X19.5MM NO TIM |
2,709 | 6.82 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.768" (19.50mm) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

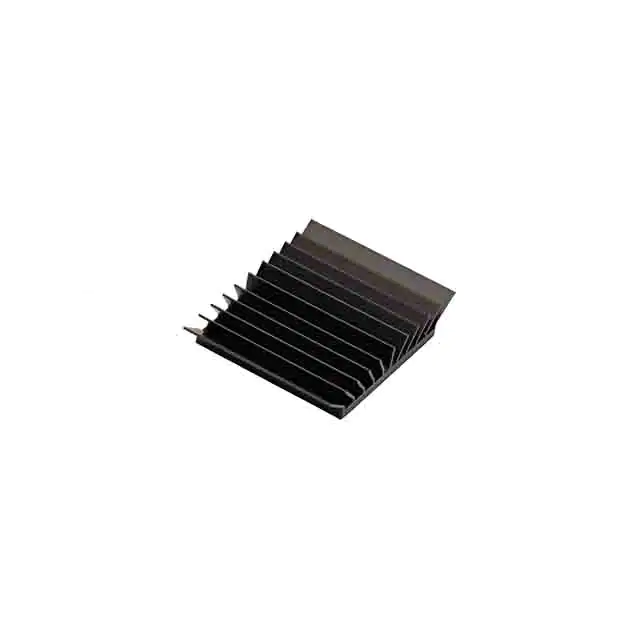

BGAH270-175EBGA HEATSINK W/TAPE |
3,090 | 6.61 |
|
Datasheet |
BG | Box | Obsolete | Top Mount | BGA, CPU, GPU | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.689" (17.50mm) | - | - | 3.50°C/W | Aluminum Alloy | Black Anodized |
|
|
ATS-H1-193-C1-R0HEATSINK 40X40X6MM XCUT |
4,675 | 6.83 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.236" (6.00mm) | - | 21.05°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

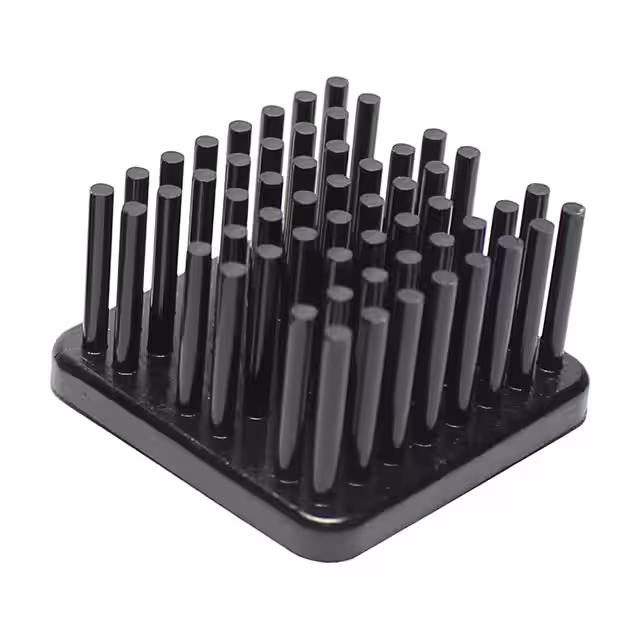

APR27-27-28CB/A01HEATSINK FORGED BLK ANO TOP MNT |
2,249 | 6.60 |
|
Datasheet |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.047" (26.60mm) | 1.047" (26.60mm) | - | 1.087" (27.60mm) | - | 3.40°C/W @ 200 LFM | 10.79°C/W | Aluminum Alloy | Black Anodized |
|
|
APR27-27-33CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,222 | 6.60 |
|
Datasheet |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.047" (26.60mm) | 1.047" (26.60mm) | - | 1.283" (32.60mm) | - | 3.20°C/W @ 200 LFM | 10.31°C/W | Aluminum Alloy | Black Anodized |
|

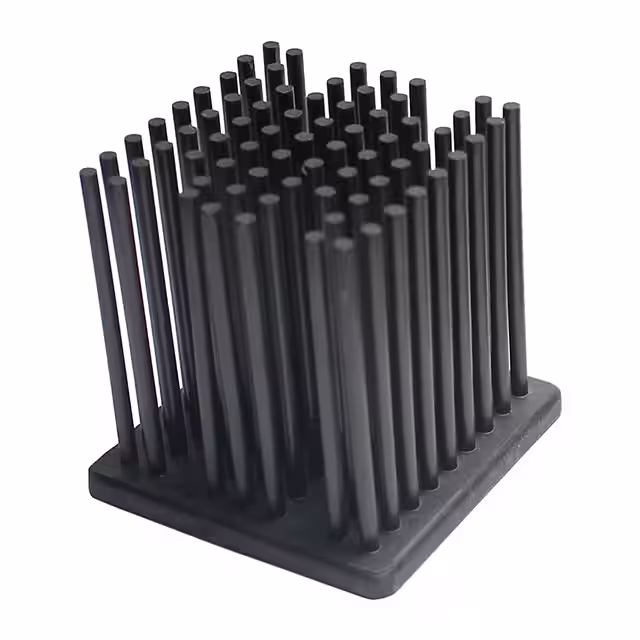

APR33-33-21CB/A01HEATSINK FORGED BLK ANO TOP MNT |
1,364 | 6.60 |
|
Datasheet |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.283" (32.60mm) | 1.283" (32.60mm) | - | 0.811" (20.60mm) | - | 2.78°C/W @ 200 LFM | 10.54°C/W | Aluminum Alloy | Black Anodized |
|
|
APR33-33-23CB/A01HEATSINK FORGED BLK ANO TOP MNT |
1,155 | 6.60 |
|
Datasheet |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.283" (32.60mm) | 1.283" (32.60mm) | - | 0.890" (22.61mm) | - | 2.56°C/W @ 200 LFM | 10.24°C/W | Aluminum Alloy | Black Anodized |
|
ATS-P2-206-C2-R0HEATSINK 60X60X10MM XCUT T766 |
4,685 | 8.43 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 7.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-159-C2-R0HEATSINK 45X45X10MM L-TAB T766 |
1,876 | 7.57 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

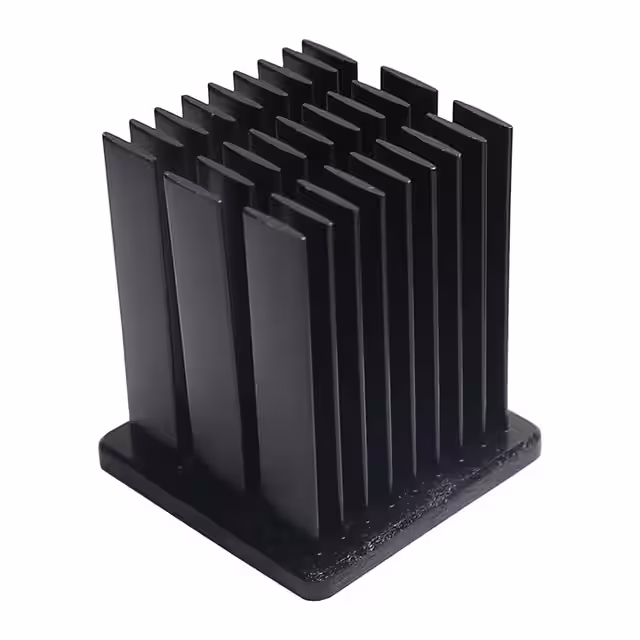

AER29-29-28CB/A01HEATSINK FORGED BLK ANO TOP MNT |
2,957 | 6.61 |
|
Datasheet |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.126" (28.60mm) | 1.126" (28.60mm) | - | 1.087" (27.60mm) | - | 2.72°C/W @ 200 LFM | 9.98°C/W | Aluminum Alloy | Black Anodized |
|
|
AER29-29-33CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,731 | 6.61 |
|
Datasheet |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.126" (28.60mm) | 1.126" (28.60mm) | - | 1.283" (32.60mm) | - | 2.52°C/W @ 200 LFM | 9.18°C/W | Aluminum Alloy | Black Anodized |
