Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-H1-196-C1-R0HEATSINK 45X45X6MM XCUT |
3,528 | 6.89 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.236" (6.00mm) | - | 18.07°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

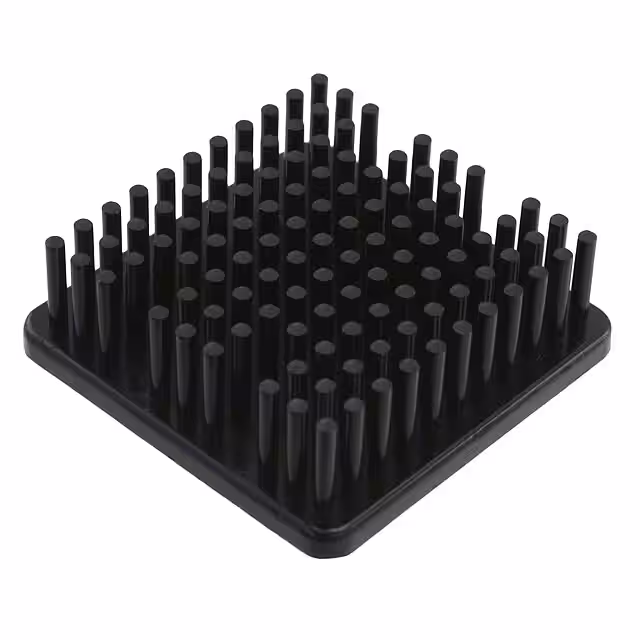

APR38-38-12CB/A01HEATSINK FORGED W/THERMAL TAPE |
4,693 | 6.66 |
|
Datasheet |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.461" (37.10mm) | 1.461" (37.10mm) | - | 0.457" (11.60mm) | - | 3.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
APR38-38-15CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,883 | 6.66 |
|
Datasheet |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.575" (14.60mm) | - | 2.85°C/W @ 200 LFM | 9.73°C/W | Aluminum Alloy | Black Anodized |
|
|
APR38-38-18CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,337 | 6.66 |
|
Datasheet |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.772" (19.60mm) | - | 2.66°C/W @ 200 LFM | 9.43°C/W | Aluminum Alloy | Black Anodized |
|
576602D00000GBOARD LEVEL HEAT SINK |
1,035 | 6.44 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.950" (24.13mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 4.0W @ 70°C | 9.00°C/W @ 200 LFM | 16.60°C/W | Aluminum | Tin |
|
|
532802B02500GBOARD LEVEL HEAT SINK |
3,166 | 6.36 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.500" (63.50mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 6.0W @ 30°C | 2.00°C/W @ 200 LFM | 4.20°C/W | Aluminum | Black Anodized |
|
|
ATS-54400R-C0-R0HEATSINK 40X40X19.5MM W/OUT TIM |
3,724 | 6.90 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.768" (19.50mm) | - | 3.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
APR31-31-15CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,121 | 6.67 |
|
Datasheet |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.205" (30.61mm) | 1.205" (30.61mm) | - | 0.575" (14.60mm) | - | 3.53°C/W @ 200 LFM | 11.86°C/W | Aluminum Alloy | Black Anodized |
|
|
APR31-31-18CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,436 | 6.67 |
|
Datasheet |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.205" (30.61mm) | 1.205" (30.61mm) | - | 0.693" (17.60mm) | - | 3.26°C/W @ 200 LFM | 11.47°C/W | Aluminum Alloy | Black Anodized |
|

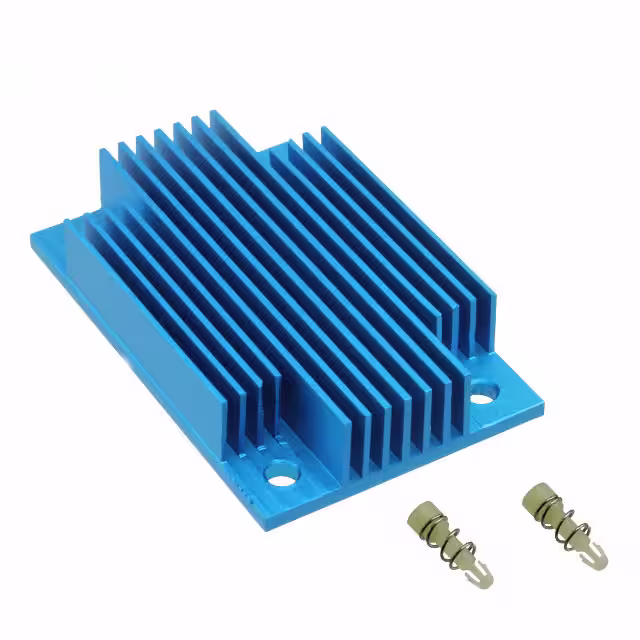

ATS-P1-32-C3-R0HEATSINK 57.9X36.83X11.43MM T412 |
4,818 | 6.91 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.450" (11.43mm) | - | 21.54°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-138-C1-R0HEATSINK 25X25X15MM L-TAB |
1,783 | 6.91 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 12.12°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-166-C1-R0HEATSINK 25X25X15MM R-TAB |
1,460 | 6.91 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 12.12°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
BGAH150-125EBGA HEATSINK W/TAPE |
4,953 | 7.25 |
|
Datasheet |
BG | Box | Obsolete | Top Mount | BGA, CPU, GPU | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.492" (12.50mm) | - | - | 10.30°C/W | Aluminum Alloy | Black Anodized |
|
AER40-40-12CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,385 | 6.69 |
|
Datasheet |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.559" (39.60mm) | 1.559" (39.60mm) | - | 0.457" (11.60mm) | - | 3.02°C/W @ 200 LFM | 10.01°C/W | Aluminum Alloy | Black Anodized |
|
|
AER40-40-15CB/A01HEATSINK FORGED BLK ANO TOP MNT |
1,065 | 6.69 |
|
Datasheet |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.559" (39.60mm) | 1.559" (39.60mm) | - | 0.575" (14.60mm) | - | 2.72°C/W @ 200 LFM | 9.51°C/W | Aluminum Alloy | Black Anodized |
|
|
AER40-40-18CB/A01HEATSINK FORGED BLK ANO TOP MNT |
2,170 | 6.69 |
|
Datasheet |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.559" (39.60mm) | 1.559" (39.60mm) | - | 0.693" (17.60mm) | - | 2.42°C/W @ 200 LFM | 9.01°C/W | Aluminum Alloy | Black Anodized |
|
|
ATS-H1-117-C1-R0HEATSINK 45X45X10MM XCUT |
2,654 | 6.92 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-55350R-C0-R0HEATSINK 35X35X19.5MM W/OUT TIM |
1,764 | 7.07 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.768" (19.50mm) | - | 4.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-52290G-C0-R0HEATSINK 29X29X12.5MM W/OUT TIM |
3,856 | 6.94 |
|
- |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.492" (12.50mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-55310R-C0-R0HEATSINK 31X31X19.5MM W/OUT TIM |
4,990 | 6.94 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.768" (19.50mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
