Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-01C-24-C3-R0HEATSINK 60X60X20MM XCUT T412 |
3,340 | 7.19 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.790" (20.00mm) | - | 8.43°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
527-45AB-T725HEATSINK DC/DC HALF BRICK VERT |
2,183 | 3.28 |
|
Datasheet |
527 | Bulk | Active | Board Level | Half Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 2.280" (57.91mm) | 2.400" (60.96mm) | - | 0.950" (24.13mm) | 7.0W @ 60°C | 2.30°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
906-31-2-12-2-B-0HEATSINK 31X31X12MM PIN |
3,895 | 4.17 |
|
Datasheet |
906 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.457" (11.60mm) | - | 3.40°C/W @ 200 LFM | 12.00°C/W | Aluminum | Black Anodized |
|
|
906-31-1-15-2-B-0HEAT SINK ELLIP FIN 31X31MM CLIP |
3,927 | 7.27 |
|
Datasheet |
906 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.575" (14.60mm) | - | 3.13°C/W @ 200 LFM | 10.10°C/W | Aluminum | Black Anodized |
|
|
906-31-1-18-2-B-0HEAT SINK ELLIP FIN 31X31MM CLIP |
2,952 | 7.27 |
|
Datasheet |
906 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.693" (17.60mm) | - | 2.85°C/W @ 200 LFM | 10.90°C/W | Aluminum | Black Anodized |
|
|
906-31-1-21-2-B-0HEAT SINK ELLIP FIN 31X31MM CLIP |
1,977 | 7.27 |
|
Datasheet |
906 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.811" (20.60mm) | - | 2.63°C/W @ 200 LFM | 9.01°C/W | Aluminum | Black Anodized |
|
|
906-31-1-28-2-B-0HEAT SINK ELLIP FIN 31X31MM CLIP |
4,033 | 7.27 |
|
Datasheet |
906 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 1.087" (27.60mm) | - | 2.21°C/W @ 200 LFM | 8.93°C/W | Aluminum | Black Anodized |
|
|
906-31-1-33-2-B-0HEAT SINK ELLIP FIN 31X31MM CLIP |
1,231 | 7.27 |
|
Datasheet |
906 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 1.283" (32.60mm) | - | 2.02°C/W @ 200 LFM | 7.98°C/W | Aluminum | Black Anodized |
|
|
906-31-2-15-2-B-0HEAT SINK PIN FIN 31X31MM CLIP |
1,060 | 7.27 |
|
Datasheet |
906 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.575" (14.60mm) | - | 3.18°C/W @ 200 LFM | 10.10°C/W | Aluminum | Black Anodized |
|
|
906-31-2-18-2-B-0HEAT SINK PIN FIN 31X31MM CLIP |
4,605 | 7.27 |
|
Datasheet |
906 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.693" (17.60mm) | - | 2.93°C/W @ 200 LFM | 9.57°C/W | Aluminum | Black Anodized |
|
|
906-31-2-21-2-B-0HEAT SINK PIN FIN 31X31MM CLIP |
2,848 | 7.27 |
|
Datasheet |
906 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.811" (20.60mm) | - | 2.72°C/W @ 200 LFM | 9.01°C/W | Aluminum | Black Anodized |
|
|
906-31-2-28-2-B-0HEAT SINK PIN FIN 31X31MM CLIP |
3,422 | 7.27 |
|
Datasheet |
906 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 1.087" (27.60mm) | - | 2.26°C/W @ 200 LFM | 8.56°C/W | Aluminum | Black Anodized |
|
|
906-31-2-33-2-B-0HEAT SINK PIN FIN 31X31MM CLIP |
3,569 | 7.27 |
|
Datasheet |
906 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 1.283" (32.60mm) | - | 2.09°C/W @ 200 LFM | 8.24°C/W | Aluminum | Black Anodized |
|
ATS-H1-01-C1-R0HEATSINK 40X40X10MM XCUT |
2,580 | 7.05 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 21.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-114-C1-R0HEATSINK 40X40X15MM XCUT |
1,193 | 7.05 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.38°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-198-C1-R0HEATSINK 45X45X12MM XCUT |
1,227 | 7.05 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.472" (12.00mm) | - | 9.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
C247-075-3AEHEATSINK FOR TO-247 WITH 3 CLIPS |
1,556 | 8.22 |
|
Datasheet |
C | Box | Obsolete | Board Level, Vertical | TO-247 | 3 Clips and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 1.500" (38.10mm) | - | 0.710" (18.03mm) | 2.5W @ 20°C | 2.00°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
ATS-01F-33-C1-R0HEATSINK 57.9X36.83X17.78MM |
3,100 | 7.20 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.700" (17.78mm) | - | 17.40°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-06F-33-C1-R0HEATSINK 57.9X36.83X17.78MM |
1,830 | 7.20 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.700" (17.78mm) | - | 17.40°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

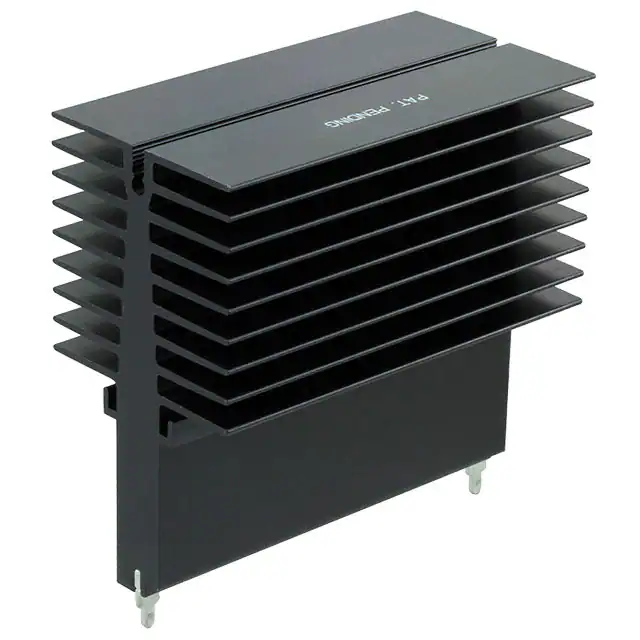

CR401-75AEALUMINUM HEATSINK 75MM BLK ANODI |
2,851 | 8.22 |
|
Datasheet |
CR | Box | Obsolete | Board Level, Vertical | TO-401 | 2 Clips and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 2.953" (75.00mm) | - | - | - | - | 3.00°C/W | Aluminum Alloy | Black Anodized |
