Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6380BTHM,17500B-1G REV H |
2,802 | 0.00 |
|
- |
- | Bulk | Active | Board Level, Vertical | TO-218, TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.650" (41.91mm) | 1.000" (25.40mm) | - | 1.000" (25.40mm) | 2.0W @ 20°C | 3.5°C/W @ 200 LFM | 6.80°C/W | Aluminum | Black Anodized |
|

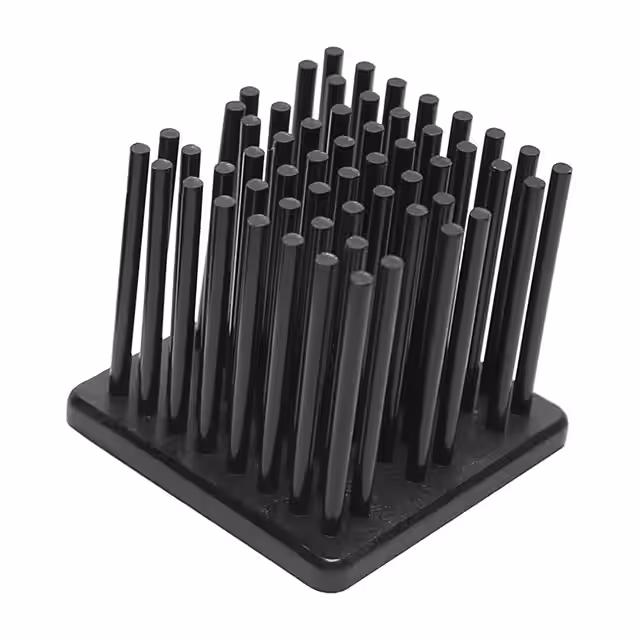

APR29-29-28CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,943 | 7.03 |
|
Datasheet |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.126" (28.60mm) | 1.126" (28.60mm) | - | 1.087" (27.60mm) | - | 2.94°C/W @ 200 LFM | 10.43°C/W | Aluminum Alloy | Black Anodized |
|
|
APR29-29-33CB/A01HEATSINK FORGED BLK ANO TOP MNT |
2,310 | 7.03 |
|
Datasheet |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.126" (28.60mm) | 1.126" (28.60mm) | - | 1.283" (32.60mm) | - | 2.70°C/W @ 200 LFM | 9.87°C/W | Aluminum Alloy | Black Anodized |
|
ATS-H1-51-C1-R0HEATSINK 30X30X20MM L-TAB |
2,720 | 7.28 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 13.99°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-56-C1-R0HEATSINK 35X35X15MM L-TAB |
1,672 | 7.28 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.69°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-81-C1-R0HEATSINK 30X30X20MM R-TAB |
3,201 | 7.28 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 13.99°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-86-C1-R0HEATSINK 35X35X15MM R-TAB |
1,988 | 7.28 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.69°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-125-C1-R0HEATSINK 54X54X10MM XCUT |
3,338 | 7.28 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 8.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-139-C3-R0HEATSINK 25X25X20MM L-TAB T412 |
1,727 | 7.28 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | - | 9.37°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-167-C3-R0HEATSINK 25X25X20MM R-TAB T412 |
1,622 | 7.28 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | - | 9.37°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-194-C3-R0HEATSINK 40X40X10MM XCUT T412 |
1,928 | 7.28 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 13.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-08F-134-C1-R0HEATSINK 70X70X15MM XCUT |
3,777 | 7.45 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 4.43°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-17E-134-C1-R0HEATSINK 70X70X15MM XCUT |
4,099 | 7.45 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 4.43°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-52375G-C0-R0HEATSINK 37.5X37.5X12.5MM NO TIM |
4,167 | 7.29 |
|
- |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.492" (12.50mm) | - | 2.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
MA-101-27EHEATSINK W/CLIP - TO-247/TO-264 |
3,535 | 7.29 |
|
Datasheet |
M | Box | Obsolete | Top Mount | TO-247, TO-264 | Clip and PC Pin | Rectangular, Fins | 1.060" (26.92mm) | 1.350" (34.30mm) | - | 1.520" (38.61mm) | - | - | 8.00°C/W | Aluminum | Black Anodized |
|
ATS-20E-39-C1-R0HEATSINK 57.9X60.96X5.84MM |
4,177 | 7.29 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-21E-39-C1-R0HEATSINK 57.9X60.96X5.84MM |
1,280 | 7.29 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01F-39-C1-R0HEATSINK 57.9X60.96X5.84MM |
4,870 | 7.29 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-02F-39-C1-R0HEATSINK 57.9X60.96X5.84MM |
3,509 | 7.29 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03F-39-C1-R0HEATSINK 57.9X60.96X5.84MM |
1,935 | 7.29 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
