Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-09E-27-C2-R0HEATSINK 70X70X12.7MM XCUT T766 |
4,563 | 11.74 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.500" (12.70mm) | - | 12.24°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-12E-27-C2-R0HEATSINK 70X70X12.7MM XCUT T766 |
3,000 | 11.74 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.500" (12.70mm) | - | 12.24°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

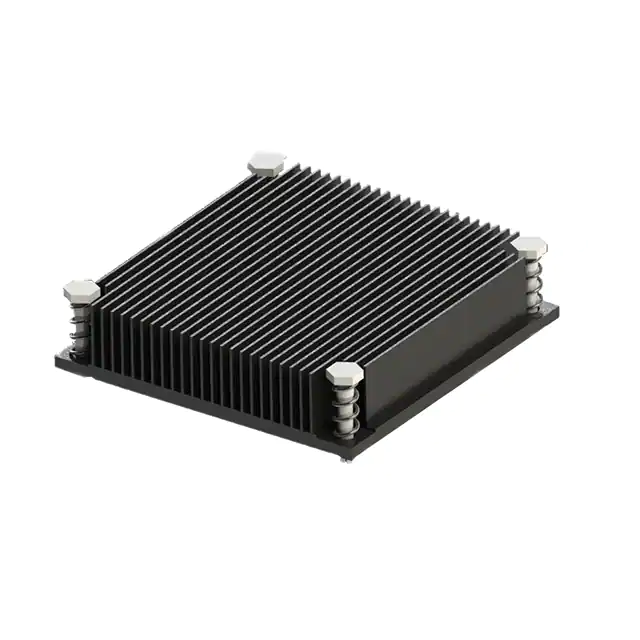

SKV909010-ALALUMINUM HEATSINK 90X90X10MM |
4,313 | 9.41 |
|
Datasheet |
SKV | Bulk | Active | Top Mount, Skived | - | Push Pin | Square, Fins | 3.543" (90.00mm) | 3.543" (90.00mm) | - | 0.394" (10.00mm) | - | 1.40°C/W @ 200 LFM | 5.00°C/W | Aluminum | - |
|
ATS-20E-30-C1-R0HEATSINK 70X70X25MM XCUT |
3,566 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-21E-30-C1-R0HEATSINK 70X70X25MM XCUT |
3,889 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01F-30-C1-R0HEATSINK 70X70X25MM XCUT |
3,747 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-02F-30-C1-R0HEATSINK 70X70X25MM XCUT |
2,070 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03F-30-C1-R0HEATSINK 70X70X25MM XCUT |
2,110 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-04F-30-C1-R0HEATSINK 70X70X25MM XCUT |
3,341 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-05F-30-C1-R0HEATSINK 70X70X25MM XCUT |
1,377 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-06F-30-C1-R0HEATSINK 70X70X25MM XCUT |
3,859 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-07F-30-C1-R0HEATSINK 70X70X25MM XCUT |
2,166 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-08F-30-C1-R0HEATSINK 70X70X25MM XCUT |
2,252 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-09F-30-C1-R0HEATSINK 70X70X25MM XCUT |
3,763 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-10F-30-C1-R0HEATSINK 70X70X25MM XCUT |
3,062 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-11F-30-C1-R0HEATSINK 70X70X25MM XCUT |
3,019 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-12F-30-C1-R0HEATSINK 70X70X25MM XCUT |
4,911 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-13F-30-C1-R0HEATSINK 70X70X25MM XCUT |
2,497 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14F-30-C1-R0HEATSINK 70X70X25MM XCUT |
4,755 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-15F-30-C1-R0HEATSINK 70X70X25MM XCUT |
3,283 | 9.14 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
