Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1963675-121MM HEATSINK ASSEMBLY |
1,901 | 9.32 |
|
Datasheet |
- | Tray | Active | Top Mount | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.357" (9.07mm) | - | 7.22°C/W @ 200 LFM | 13.40°C/W | Aluminum | Black Anodized |
|
|
3750350-PAH14010-P03750350-PAH14010-P0 |
3,505 | 0.00 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.709" (18.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|

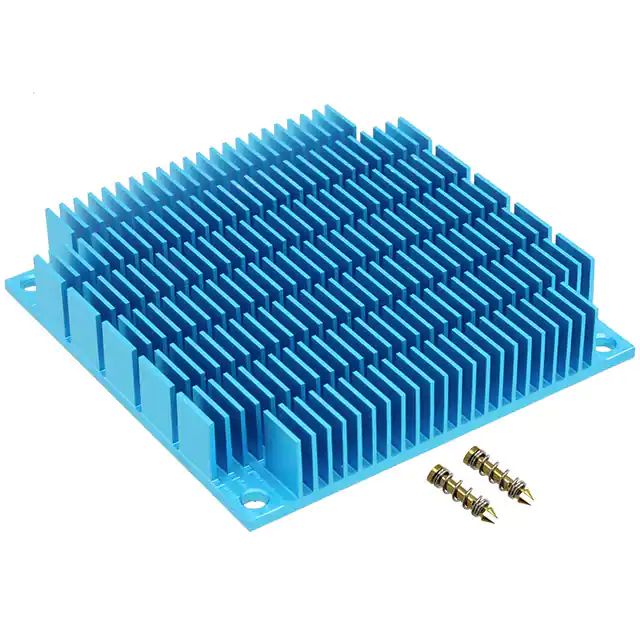

ATS-02A-27-C2-R0HEATSINK 70X70X12.7MM XCUT T766 |
2,825 | 11.74 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.500" (12.70mm) | - | 12.24°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-112-C1-R1HEATSINK 60.00MM X 60.00MM ALUM |
2,611 | 9.61 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.500" (12.70mm) | - | 26.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

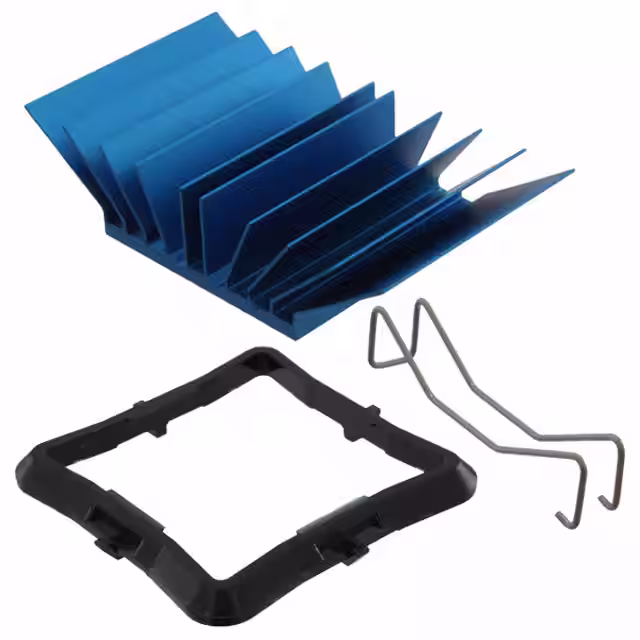

ATS-50310G-C0-R0HEATSINK 31MMX31MMX12.5MM W/O TI |
3,581 | 9.61 |
|
- |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.492" (12.50mm) | - | 4.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
2-1542000-821MM HS ASS'Y |
1,071 | 9.28 |
|
Datasheet |
- | Box | Active | Top Mount | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.332" (8.43mm) | - | 7.22°C/W @ 200 LFM | 13.43°C/W | Aluminum | Black Anodized |
|

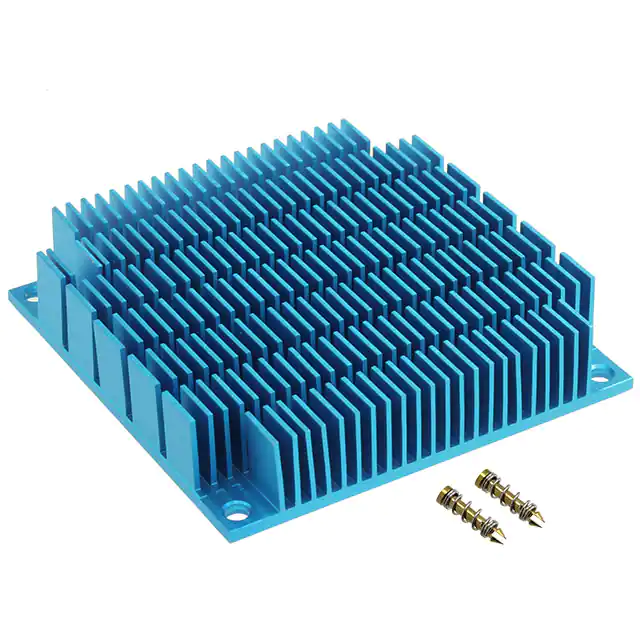

ATS-P2-28-C3-R0HEATSINK 70X70X15MM XCUT T412 |
1,613 | 9.63 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 10.62°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
2286BGHEATSINK |
3,853 | 9.65 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-H1-134-C1-R0HEATSINK 70X70X15MM XCUT |
1,426 | 9.68 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 4.43°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-50310B-C0-R0HEAT SINK 31MM X 31MM X 7.5MM |
2,572 | 9.68 |
|
- |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.295" (7.50mm) | - | 6.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
375024B60024GHEATSINK BGA W/O SOLDER ANCHORS |
3,583 | 0.00 |
|
Datasheet |
- | Bulk | Active | Board Level | BGA | Solder Anchor | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.01mm) | - | 0.709" (18.00mm) | 2.0W @ 30°C | 4.30°C/W @ 200 LFM | 12.00°C/W | Aluminum | Black Anodized |
|

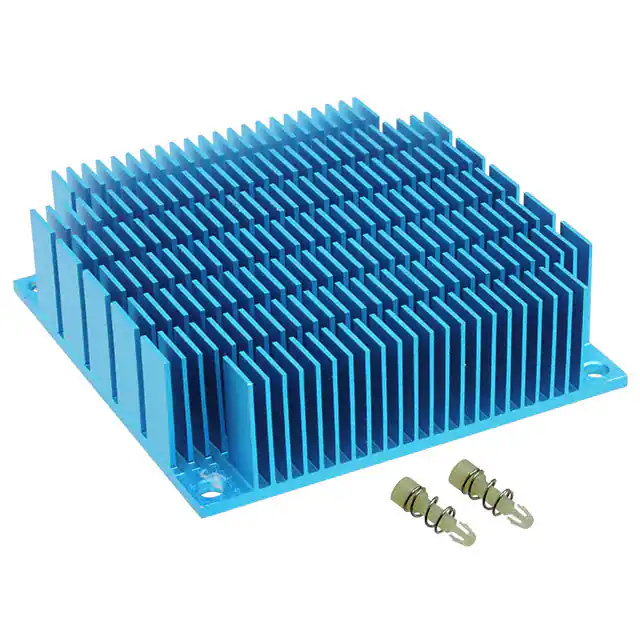

ATS-P1-29-C3-R0HEATSINK 70X70X20MM XCUT T412 |
1,200 | 9.74 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.790" (20.00mm) | - | 7.61°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-26-C1-R0HEATSINK 70X70X10MM XCUT |
2,249 | 9.75 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 14.19°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-04G-25-C2-R0HEATSINK 60X60X25MM XCUT T766 |
2,649 | 9.77 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 6.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01A-25-C2-R0HEATSINK 60X60X25MM XCUT T766 |
1,495 | 9.77 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 6.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01B-25-C2-R0HEATSINK 60X60X25MM XCUT T766 |
2,531 | 9.77 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 6.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01C-25-C2-R0HEATSINK 60X60X25MM XCUT T766 |
3,168 | 9.77 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 6.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
1542264-4SALEABLE PACKAGED VERSION. |
3,249 | 9.51 |
|
Datasheet |
- | Tray | Active | Top Mount | - | - | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.471" (11.96mm) | - | - | - | - | - |
|
ATS-H1-25-C3-R0HEATSINK 60X60X25MM XCUT T412 |
1,742 | 9.78 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 6.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14F-28-C2-R0HEATSINK 70X70X15MM XCUT T766 |
1,963 | 12.11 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 10.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
